Automatic Edible Oil Filling Machine Line 500ml - 5000ml

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTGF-1000
Minimum Order Quantity: 1 SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Edible Oil/coconut Oil Filling Machine Other Name: Edible Oil Filling Machine
Application: For Food And Beverage Capacity: 500-1500 BPH(customizable)
Filling Volume Accuracy: >99% Length Of The Line: 7000mm
Warranty: 1 Year Workflow: Filling-capping-labeling-collecting
Voltage: 220V/50HZ Type: Filling Machine, Bottling Line
Bottle Type: Plastic Bottle And Glass Bottle,PET Plastic Bottle / Glass Bottle,round Bottle Automatic Grade: Automatic
Packaging Type: Bottles,cans, Buckets
High Light:

5000ml Edible Oil Filling Machine

,

Automatic Edible Oil Filling Machine

,

7000mm Automatic Bottle Filling Plant


Product Description

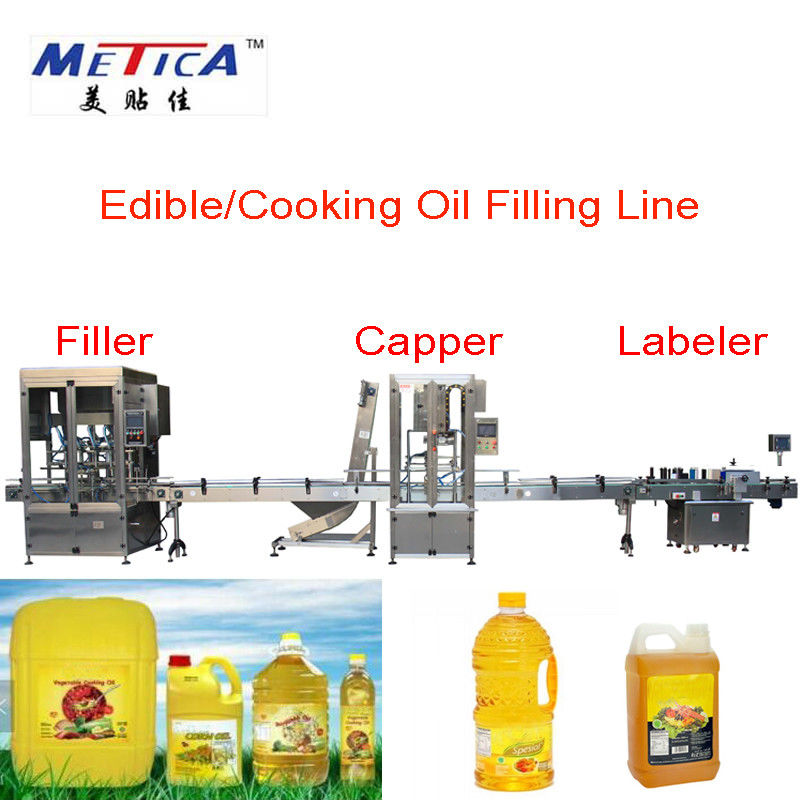

Automatic 500ml-5000ml Edible Oil Filling Machine Line



Application :

  • Mainly used to fill edible oil in plastic or glass bottle, widely used in food, chemical, beverages, and similar products.
  • Full filling line is automatic



Description:

  • 1) Easy to adjust and no bottle no filling. Accurate filling quantity and has counting function.
  • 2) Adopts volume type plunger pump filling with filling suffocate preventing from dropping and brushed , no bottle no filling , no drop no spill.
  • 3) Automatic filling, capping and labeling. Easy operation.
  • 4) PLC, control by touch screen



Work process:

  • 1) Put bottles on turn table feeding bottles to filling machine automatically
  • 2) Bottles conveyed to filling machine to fill automatically
  • 3) Bottle conveyed to capping machine cap automatically after filling
  • 4) Bottle conveyed to labeling machine label automatically
  • 5) Collect bottles with a turn table(optional)





the Whole Line technical parameter


Speed 700-1500BPH
Filling accuracy >99%
Filling volume 100-1000ml, 300-3000ml, 500-5000ml (can be customized)
Filling method piston+servo motor driven
Power 220V 50/60Hz, 6kw
Air supply 0.6 MPa
Bottles applicable A wide shape range
Application Liquid or viscosity products
Feature PLC, touch screen, tank, level meter







Automatic Edible Oil Filling Machine Line 500ml - 5000ml 0

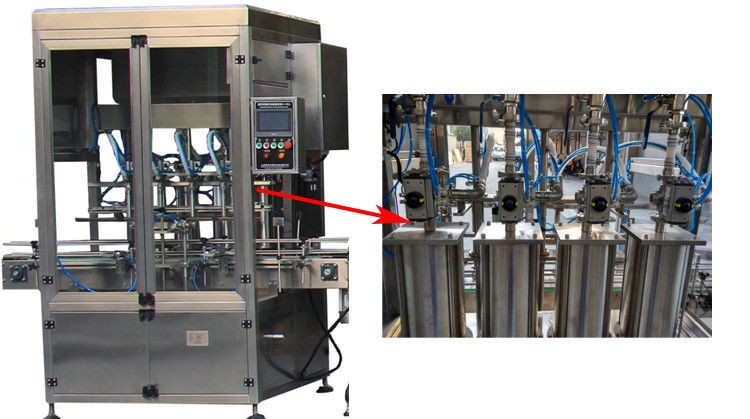

Filling machine:

 Automatic Edible Oil Filling Machine Line 500ml - 5000ml 1

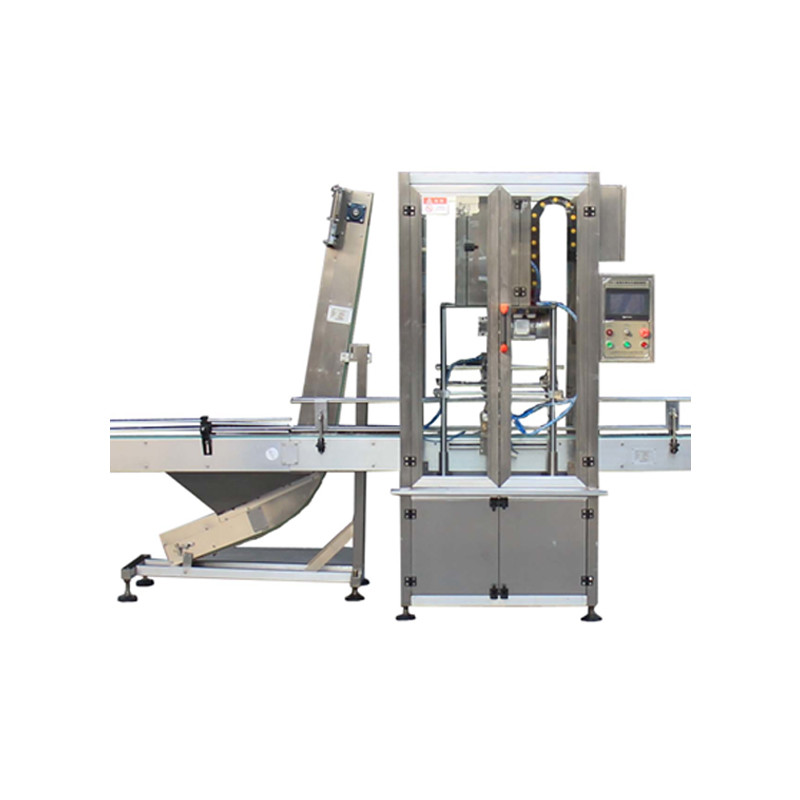

Capping machine:

Automatic Edible Oil Filling Machine Line 500ml - 5000ml 2

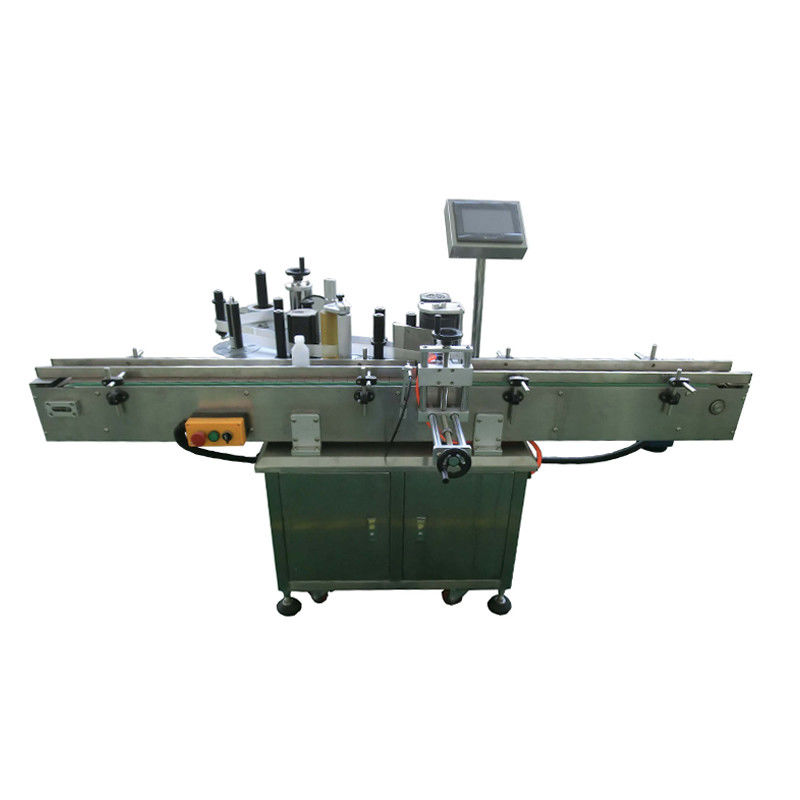

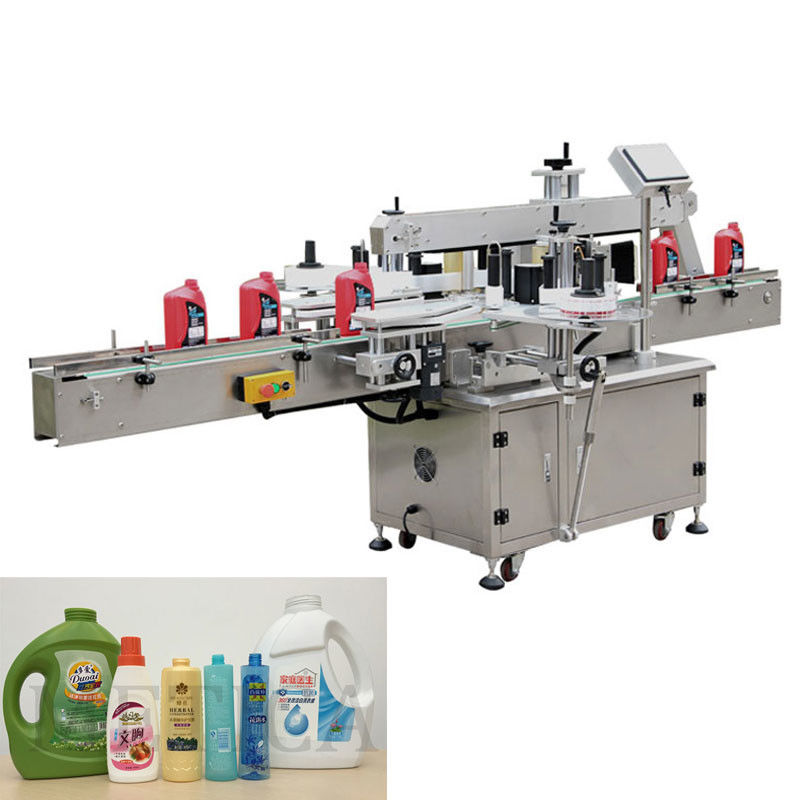

Labeling machine:
Automatic Edible Oil Filling Machine Line 500ml - 5000ml 3


Samples display:
Automatic Edible Oil Filling Machine Line 500ml - 5000ml 4

Service flow:
Automatic Edible Oil Filling Machine Line 500ml - 5000ml 5


Pre-sale Service:
Automatic Edible Oil Filling Machine Line 500ml - 5000ml 6

Automatic Edible Oil Filling Machine Line 500ml - 5000ml 7

Packing&Shipping:
Automatic Edible Oil Filling Machine Line 500ml - 5000ml 8

After-sale service:
Automatic Edible Oil Filling Machine Line 500ml - 5000ml 9
