8000mm Length Bottling Production Line Automatic Syrup Filling Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFC-3000
Minimum Order Quantity: 1 SET
Price: USD 10000-30000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Liquid Sticky Liquid Filling Machine Application: For Liquid Or Viscosity Liquid Products Bottling
Capacity: 2000-3000BPH(customizable) Filling Accuracy: >99%
Length Of The Line: 8000mm Warranty: 1 Year
Workflow: Feeding-filling-capping-labeling-collecting
High Light:

8000mm Bottling Production Line

,

5kw Bottling Production Line

,

3000BPH Automatic Syrup Filling Machine


Product Description

Automatic Syrup Liquid and Sticky Liquid Filling Machine line and Filling Capping Machine Line



Application

  • This line is widely used in pharmaceutical, health care industries 100-1000 ml plastic (glass) bottle filling capping, such as oral liquid, topical agent, syrup, vaccine, nails water etc.
  • It adopts 4 nozzles piston type filling, rotating plate positioning capping method. No bubble, no spill. Filling accurate, good performance, easy to maintain and operate.
  • It is advised to choose dust cover.

Spec and Feature

  • The line includes: Turn Table, Filler, Caps Feeding, Screw Capper, Labeler
  • Automatic run, PLC control, Operate on Touch Screen,
  • GMP standards, all the contact parts use 316L stainless steel
  • Suitable for the volume 10-500 ml liquid or low viscosity products
  • Applicable for many types of caps: screw caps, Anti-Theft ring screw caps, Spiral Caps, Aluminium Caps and etc



Speed  2000-3000bph (customizable)
Filling accuracy  >99%
Filling volume 100-1000ml, 200-2000ml, … 500-5000ml(customizable)
Filling method piston + servo motor driven, diving nozzles
Power supply 220V 50hz 5kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Total length 8merers
Feature PLC, touch screen, tank, level meter

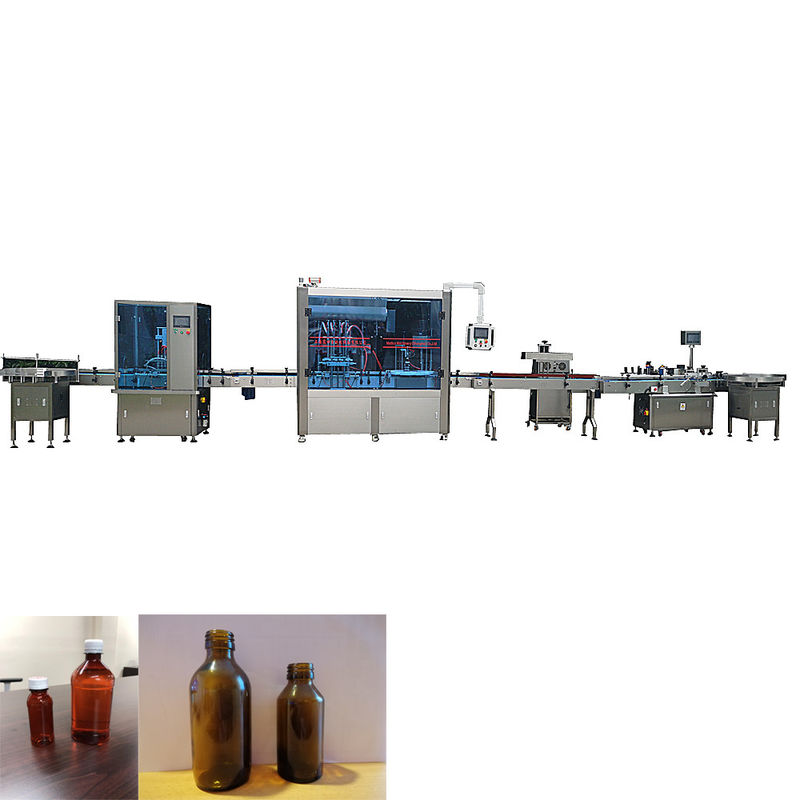

8000mm Length Bottling Production Line Automatic Syrup Filling Machine 0

Turn table and bottle washing machine:

8000mm Length Bottling Production Line Automatic Syrup Filling Machine 1



Filling capping machine in one:

8000mm Length Bottling Production Line Automatic Syrup Filling Machine 2



Labeling machine:

8000mm Length Bottling Production Line Automatic Syrup Filling Machine 3





Samples display:

8000mm Length Bottling Production Line Automatic Syrup Filling Machine 4

8000mm Length Bottling Production Line Automatic Syrup Filling Machine 58000mm Length Bottling Production Line Automatic Syrup Filling Machine 6
