Servo Driven Bottling Production Line 3Kw 220V For Loose Powder

Servo Driven Bottling Production Line 3Kw 220V For Loose Powder

Bottling Production Line 3Kw

Bottling Production Line 220V

Place of Origin:

Shanghai

Brand Name:

METICA

Certification:

CE

Model Number:

MTPF-1000

Contact Us
Request A Quote
Product Details
Name:
Loose Powder And Cosmetic Powder Filling Machine Line
Application:
For Cosmetic Products
Capacity:
100-2000 BPH(customizable)
Filling Accuracy:
>=99%
Length Of The Filling Line:
8000mm
Warranty:
One Year
Automatic Grade:
Automatic Filling, Capping, Weighing An Labeling
Driven Type:
Electric
Voltage:
220V, 50/60HZ
Type:
Filling Machine Line For Loose Powder
Bottle Type:
Plastic Bottle And Glass Bottle,small Square Bottle,flat Bottle,round Bottle
Highlight:

Bottling Production Line 3Kw

,

Bottling Production Line 220V

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 10000-16000/SET
Packaging Details
Fumigation-free wooden boxes that meet international standards
Delivery Time
25-30 days
Payment Terms
L/C, T/T
Supply Ability
100 SETS PER MONTH
Product Description

Automatic Loose Powder Filling Capping Machine Line Bottling Production Line



Application:

  • 1. The filling capping and labeling machine is widely used in Pharmaceutical, Health Care industries.
  • 2. This powder filling capping and labeling machine line is suitable for small volume 10-100ml powder automatic packing, like loose powder, Freeze-dried powder,pepper and so on.



Machines included:

  • 1. Full automatic bottle sorting machine
  • 2. Automatic filling plugging and capping machine in 1 machine
  • 3. Automatic bottle clamping
  • 4. Automatic weighting machine
  • 5. Automatic top and bottom labeling machine
  • 6. Auto collecting products



Spec and Feature

  • Adopts servo motor driven filling system. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts one or two filling nozzles, the more filling nozzles, the higher capacity.
  • Filling volume is adjustable in certain filling volume scope.
  • Single nozzle is micro adjustable.
  • Compact models, operation stability, simple operation, easy cleaning
  • PLC,Touch screen human-computer interface with simple operation



Technical Parameters

Speed 15-30 BPM(can be customized)
Filling accuracy +/- 2%
Filling volume 10-500 g(can be customized)
Filling method servo motor driven
Power supply 220V 50/60 Hz, 3 kw
Air supply 0.8MPa
Bottle applicable A wide shape range
Application Powder products packaging
Feature PLC, touch screen

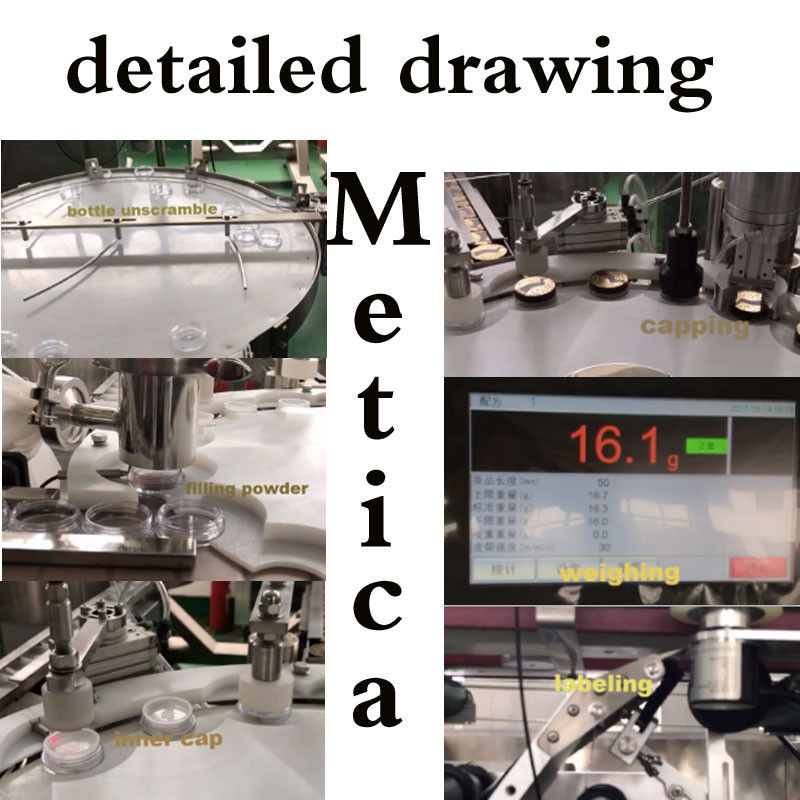

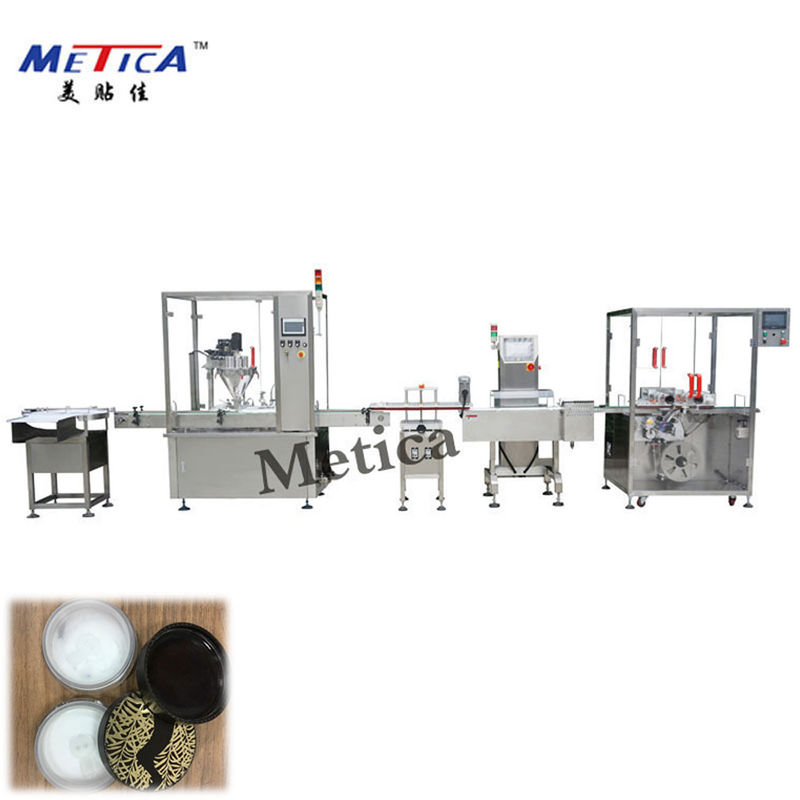

Servo Driven Bottling Production Line 3Kw 220V For Loose Powder 0

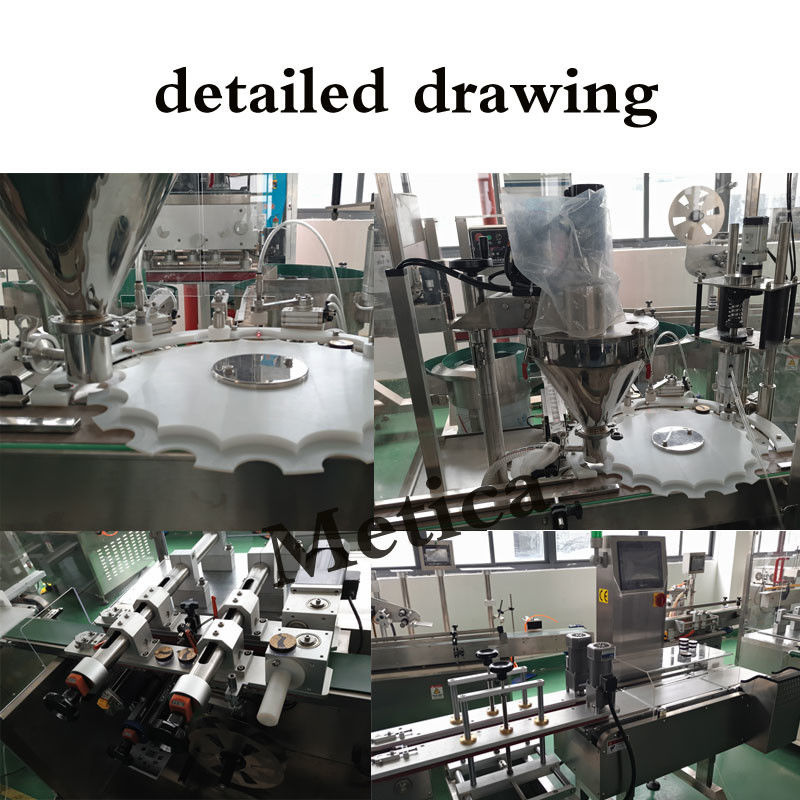

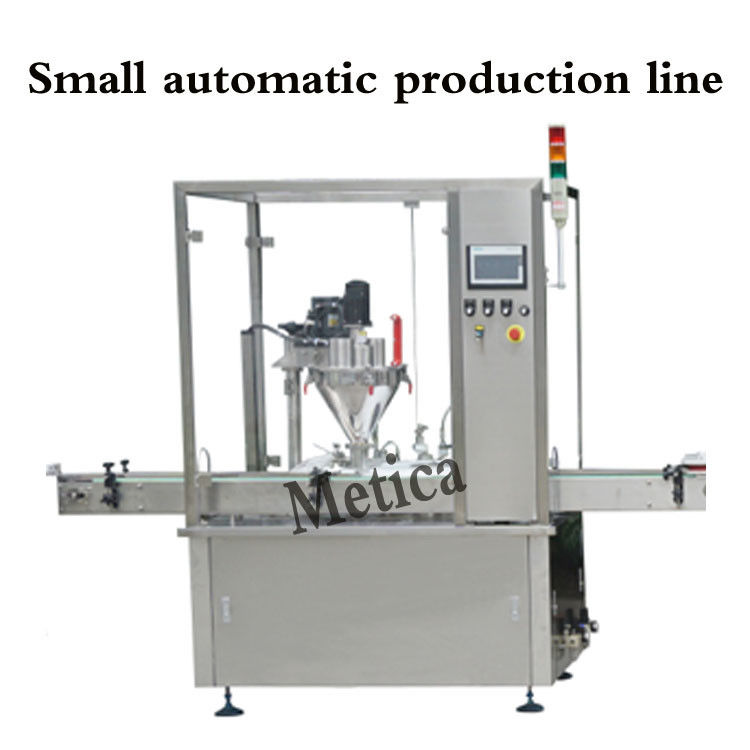

Servo Driven Bottling Production Line 3Kw 220V For Loose Powder 1Servo Driven Bottling Production Line 3Kw 220V For Loose Powder 2Servo Driven Bottling Production Line 3Kw 220V For Loose Powder 3



Project Examples

Servo Driven Bottling Production Line 3Kw 220V For Loose Powder 4
