METICA Syrup Bottling Production Line Pet Bottle Filling And Capping Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFC-3000
Minimum Order Quantity: 1 SET
Price: USD 10000-30000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Syrup And Similar Products Liquid Filling Machine Capacity: 1500-3000BPH(customizable)
Filling Accuracy: >99% Length Of The Line: 9000mm
Warranty: 1 Year Workflow: Auto Feeding-filling-capping-labeling-collecting
Application: Beverage,Food,Chemical,Medical,Commodity Bottle Type: Plastic Bottle And Glass Bottle,PET Plastic Bottle / Glass Bottle,round Bottle
Other Name: Syrup Bottling Line
High Light:

3000BPH Bottling Production Line

,

9000mm Bottling Production Line

,

METICA Pet Bottle Filling And Capping Machine


Product Description

Pharmaceutical Grade Automatic Syrup Filling Capping And Labeling Machine Pet Bottle Bottling Production Line



Application

  • This bottling line is widely used in pharmaceutical, health care industries 100-1000 ml plastic (glass) bottle filling capping, such as oral liquid, topical agent, syrup, vaccine, nails water etc.
  • It adopts 4 nozzles piston type filling, rotating plate positioning capping method. No bubble, no spill. Filling accurate, good performance, easy to maintain and operate.

Spec and Feature

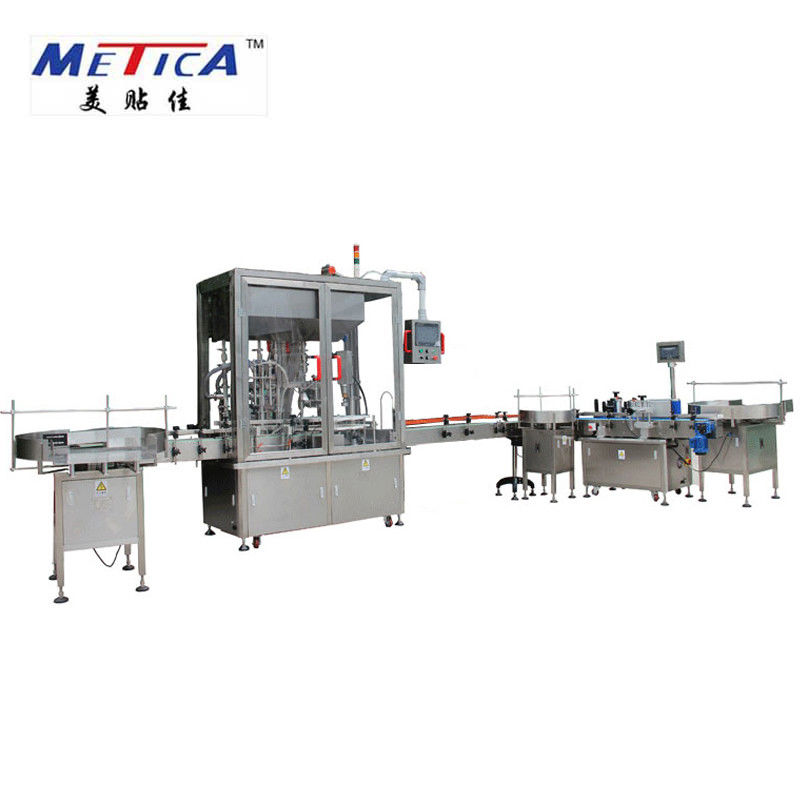

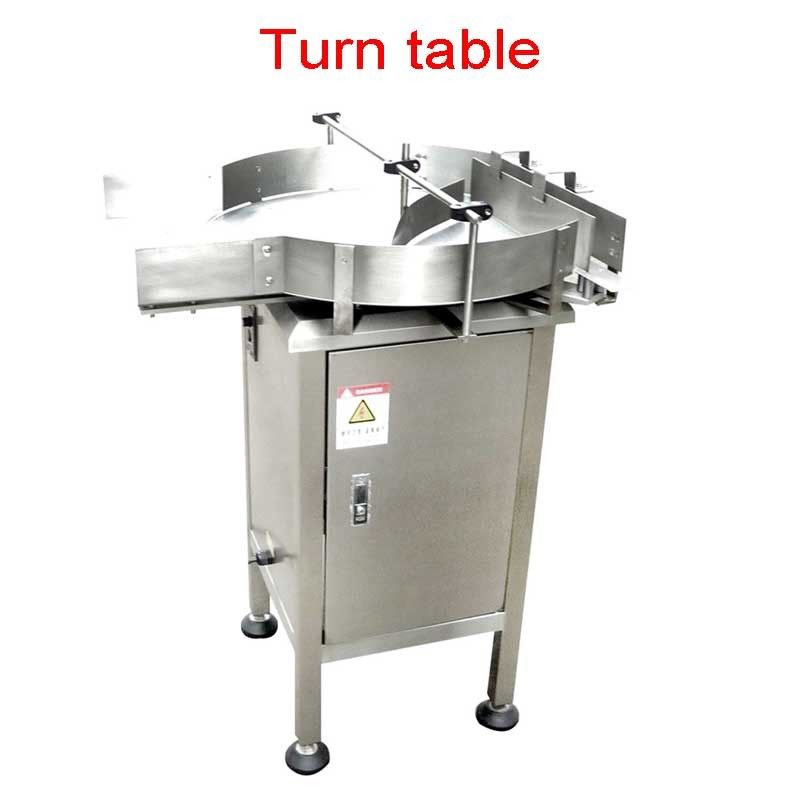

  • The line includes: Turn Table, Filler and Screw Capper in one, Labeler
  • Automatic run, PLC control, Operate on Touch Screen,
  • The contact parts use 316L stainless steel
  • Suitable for the volume 50-500 ml liquid or low viscosity products
  • Applicable for many types of caps: screw caps, Anti-Theft ring screw caps, Spiral Caps, Aluminium Caps and etc



Speed  1500-3000bph (customizable)
Filling accuracy  >99%
Filling volume 50-500ml,100-1000mll(customizable)
Filling method piston + servo motor driven, diving nozzles
Power supply 220V 50hz 5kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Total length 9meters
Feature PLC, touch screen, tank, level meter







METICA Syrup Bottling Production Line Pet Bottle Filling And Capping Machine 0

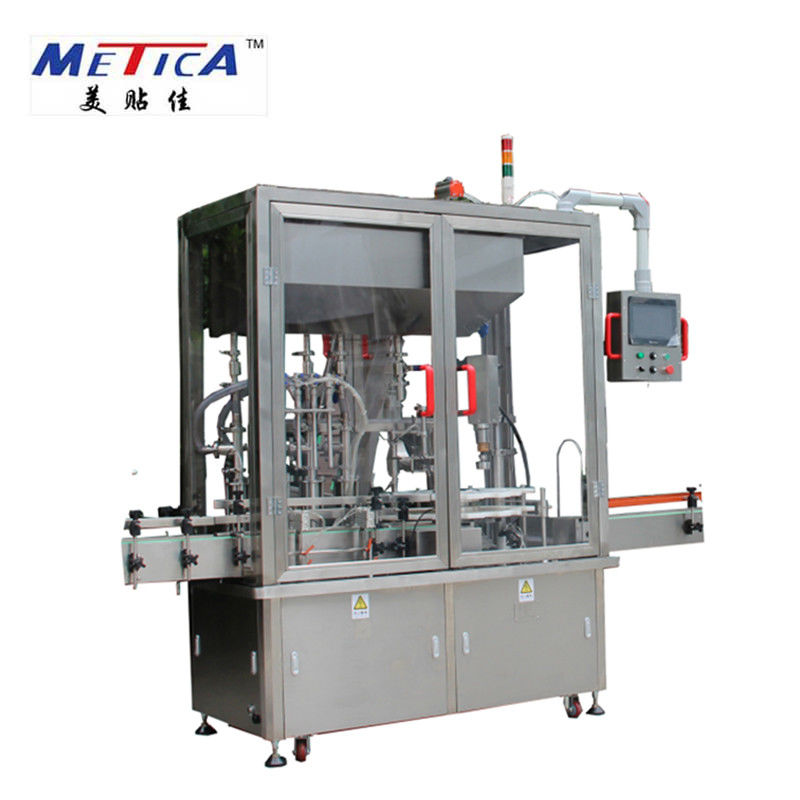

Filling capping machine in one:

METICA Syrup Bottling Production Line Pet Bottle Filling And Capping Machine 1METICA Syrup Bottling Production Line Pet Bottle Filling And Capping Machine 2

METICA Syrup Bottling Production Line Pet Bottle Filling And Capping Machine 3

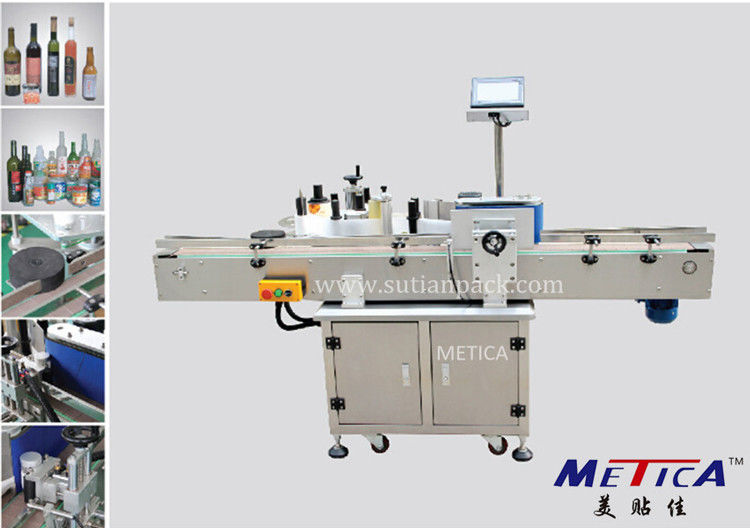

Labeling machine:

METICA Syrup Bottling Production Line Pet Bottle Filling And Capping Machine 4





Samples display:

METICA Syrup Bottling Production Line Pet Bottle Filling And Capping Machine 5

METICA Syrup Bottling Production Line Pet Bottle Filling And Capping Machine 6METICA Syrup Bottling Production Line Pet Bottle Filling And Capping Machine 7
