1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTGF-1000
Minimum Order Quantity: 1 SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Edible Oil/coconut Oil Filling Machine Other Name: Automatic Bottle Filling Plant
Application: For Food And Beverage Capacity: 700-1500 BPH(customizable)
Filling Volume Accuracy: >99% Length Of The Line: 7000mm
Warranty: 1 Year Workflow: Filling-capping-labeling-collecting
Voltage: 220V/50HZ Type: Filling Machine, Bottling Line
Bottle Type: Plastic Bottle And Glass Bottle,PET Plastic Bottle / Glass Bottle,round Bottle Automatic Grade: Automatic
Packaging Type: Bottles,cans, Buckets
High Light:

Coconut Oil Bottle Filling Machine

,

Edible Oil Bottle Filling Machine 5L

,

220V Bottle Filling Plant


Product Description

220V Edible Oil And Coconut Oil Bottle Filling Plant



Application :

  • Mainly used to fill edible oil in plastic or glass bottle, widely used in food, chemical, beverages, and similar products.
  • Full filling line is automatic



Description:

  • 1) Easy to adjust and no bottle no filling. Accurate filling quantity and has counting function.
  • 2) Adopts volume type plunger pump filling with filling suffocate preventing from dropping and brushed , no bottle no filling , no drop no spill.
  • 3) Automatic filling, capping and labeling. Easy operation.
  • 4) PLC, control by touch screen



Work process:

  • 1) Put bottles on turn table feeding bottles to filling machine automatically
  • 2) Bottles conveyed to filling machine to fill automatically
  • 3) Bottle conveyed to capping machine cap automatically after filling
  • 4) Bottle conveyed to labeling machine label automatically
  • 5) Collect bottles with a turn table(optional)

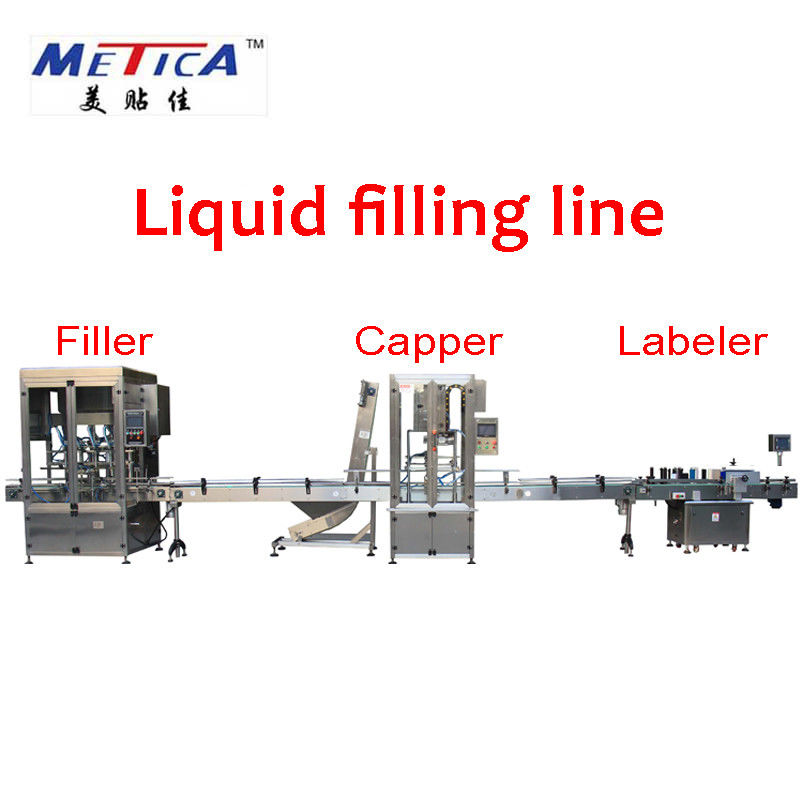

the Whole Line technical parameter



Speed 700-1500BPH
Filling accuracy >99%
Filling volume 100-1000ml, 300-3000ml, 500-5000ml (can be customized)
Filling method piston+servo motor driven
Power 220V 50/60Hz, 6kw
Air supply 0.6 MPa
Bottles applicable A wide shape range
Application Liquid or viscosity products
Feature PLC, touch screen, tank, level meter







1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ 0

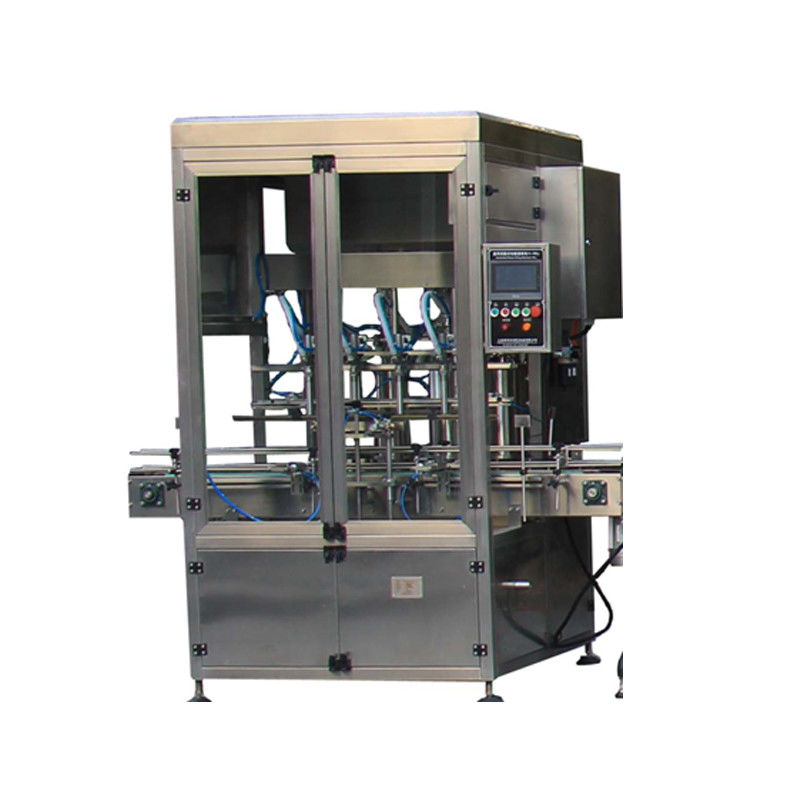

Filling machine:

 1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ 1

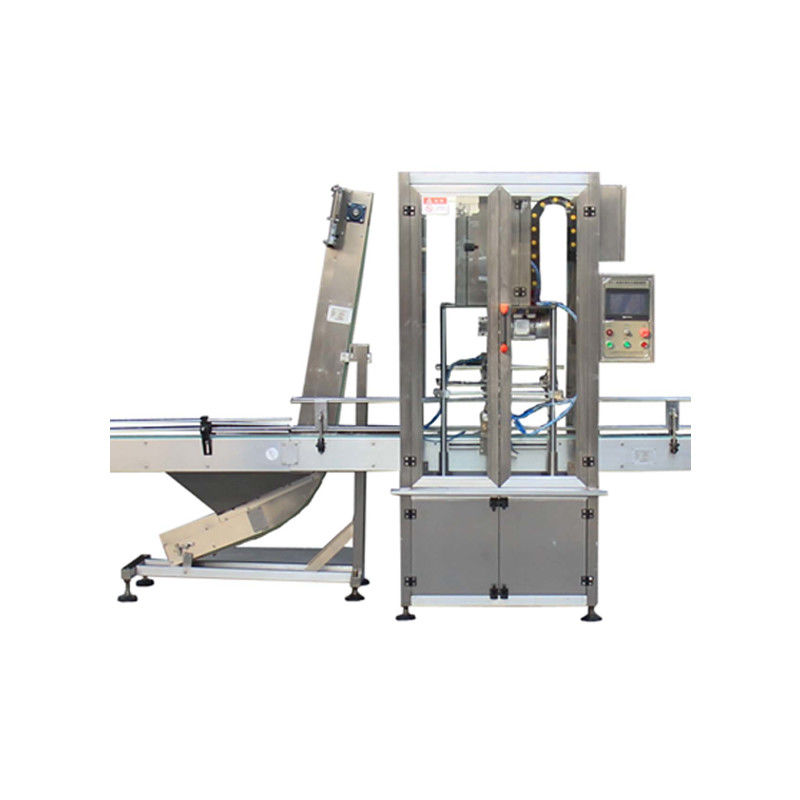

Capping machine:

1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ 2

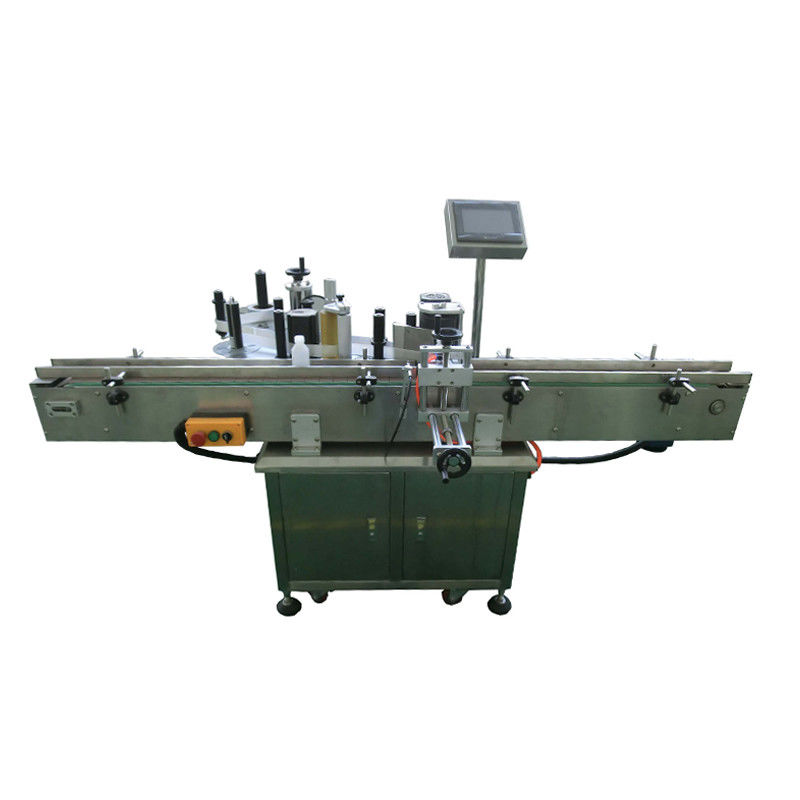

Labeling machine:

1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ 3





Samples display:

1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ 4



Service flow:

1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ 5





Pre-sale Service:

1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ 6



1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ 7



Packing&Shipping:

1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ 8



After-sale service:

1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ 9



METICA Machinery
provides one-stop service of bottling equipment in developing, manufacturing, shipping and support for customers from all over the world.


  • Real manufacturer: since 2008, with 2 production bases and mature team.
  • Flexible machinery: for filling, capping, labeling, sealing and cartoning.
  • Customization: innovative designs provide you suitable packaging solutions.
  • Strong support: video demonstrations training before and after sales, on-site service available.
  • Guarantee: 1 year free parts, all life service.
