100ml-500ml Syrup Bottling Production Line Automatic Bottling Machine

100ml-500ml Syrup Bottling Production Line Automatic Bottling Machine

100ml-500ml Bottling Production Line

Syrup Bottling Production Line

Syrup beverage bottling plant

Place of Origin:

Shanghai

Brand Name:

METICA

Certification:

CE

Model Number:

MTFC-3000

Contact Us
Request A Quote
Product Details
Name:
Liquid Sticky Liquid Filling Machine
Application:
For Liquid Or Viscosity Liquid Products Bottling
Capacity:
2000-3000BPH(customizable)
Filling Accuracy:
>99%
Length Of The Line:
8000mm
Warranty:
1 Year
Workflow:
Feeding-filling-capping-labeling-collecting
Highlight:

100ml-500ml Bottling Production Line

,

Syrup Bottling Production Line

,

Syrup beverage bottling plant

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 10000-30000/SET
Packaging Details
Fumigation-free wooden boxes that meet international standards
Delivery Time
25-30 days
Payment Terms
L/C, T/T
Supply Ability
100 SETS PER MONTH
Product Description

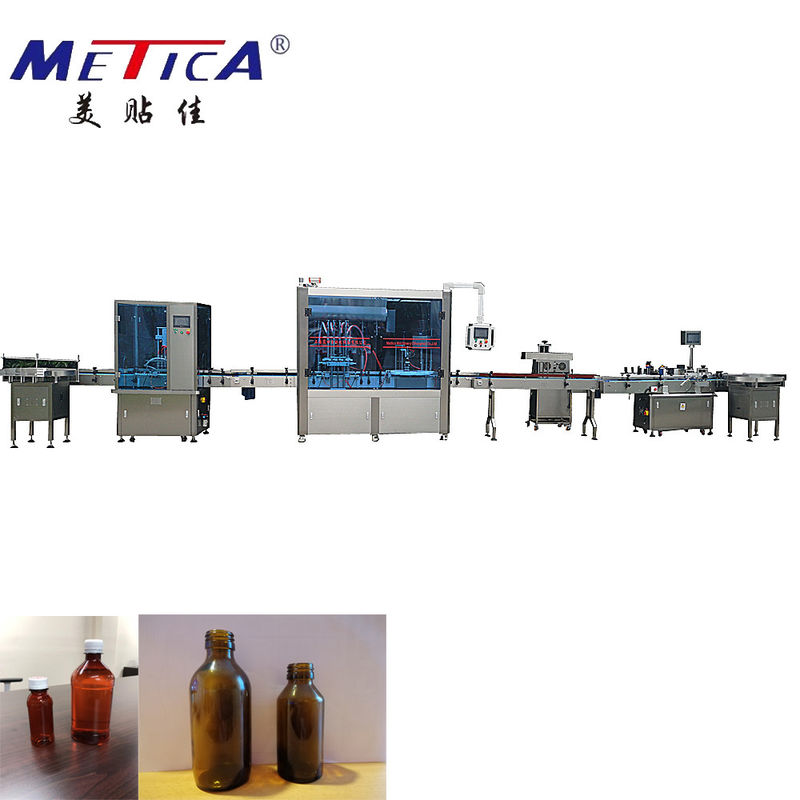

100ml-500ml Syrup Bottle Filling Capping Machine Line Automatic Syrup Bottling Line



Application

  • This line is widely used in pharmaceutical, health care industries 100-1000 ml plastic (glass) bottle filling capping, such as oral liquid, topical agent, syrup, vaccine, nails water etc.
  • It adopts 4 nozzles piston type filling, rotating plate positioning capping method. No bubble, no spill. Filling accurate, good performance, easy to maintain and operate.
  • It is advised to choose dust cover.

Spec and Feature

  • The line includes: Turn Table, Filler, Caps Feeding, Screw Capper, Labeler
  • Automatic run, PLC control, Operate on Touch Screen,
  • GMP standards, all the contact parts use 316L stainless steel
  • Suitable for the volume 10-500 ml liquid or low viscosity products
  • Applicable for many types of caps: screw caps, Anti-Theft ring screw caps, Spiral Caps, Aluminium Caps and etc



Speed  2000-3000bph (customizable)
Filling accuracy  >99%
Filling volume 100-1000ml, 200-2000ml, … 500-5000ml(customizable)
Filling method piston + servo motor driven, diving nozzles
Power supply 220V 50hz 5kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Total length 8merers
Feature PLC, touch screen, tank, level meter







100ml-500ml Syrup Bottling Production Line Automatic Bottling Machine 0

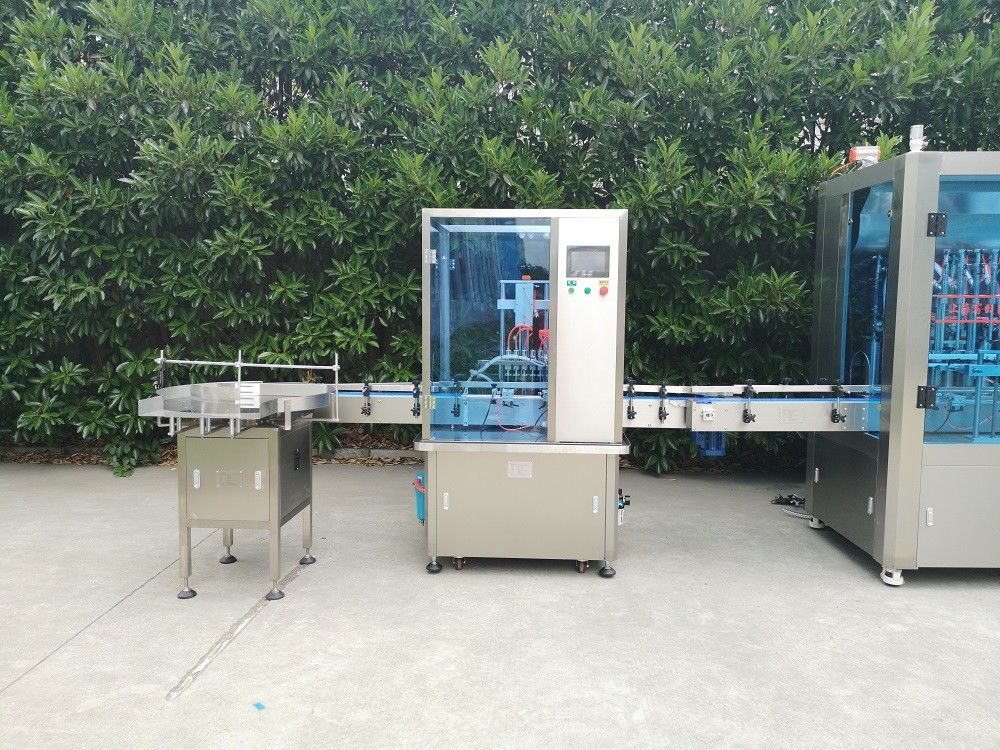

Turn table and bottle washing machine:

100ml-500ml Syrup Bottling Production Line Automatic Bottling Machine 1

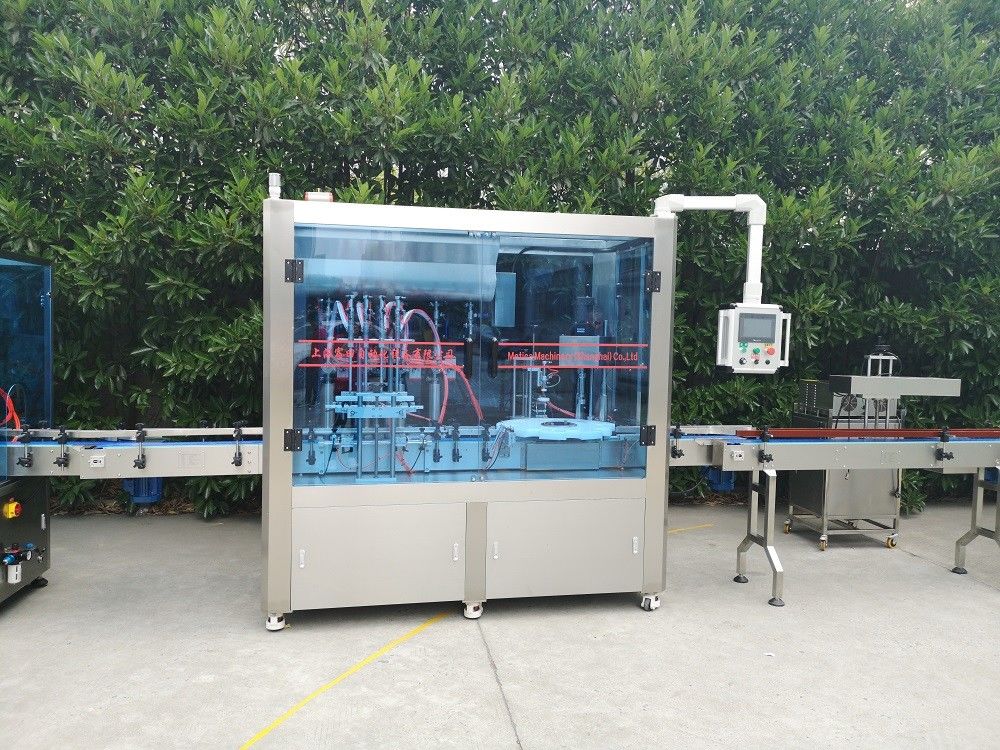

Filling capping machine in one:

100ml-500ml Syrup Bottling Production Line Automatic Bottling Machine 2



Labeling machine:

100ml-500ml Syrup Bottling Production Line Automatic Bottling Machine 3

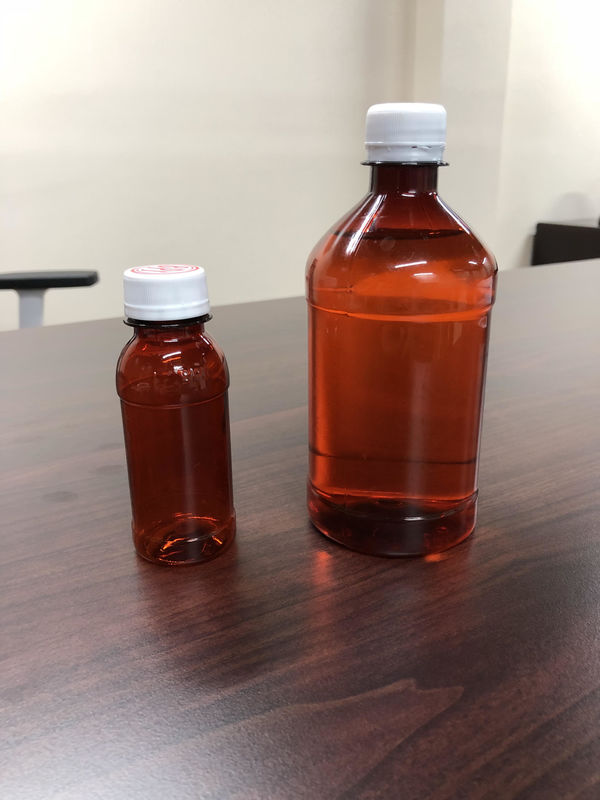

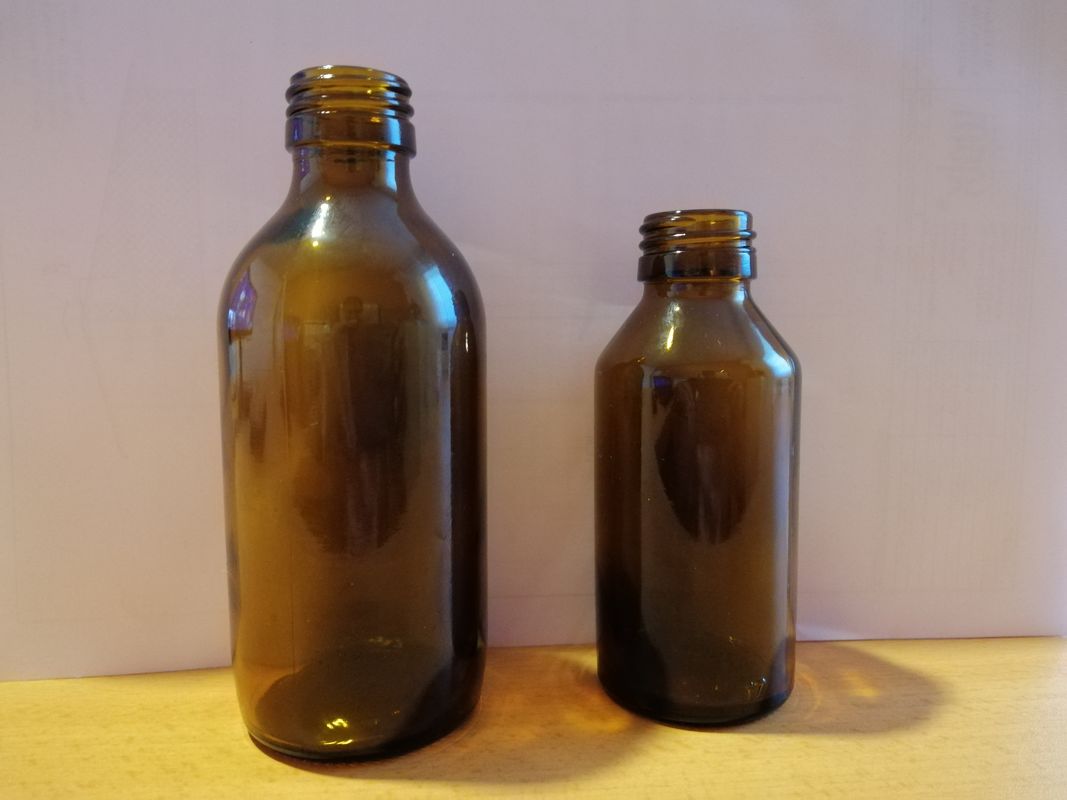

Samples display:

100ml-500ml Syrup Bottling Production Line Automatic Bottling Machine 4

100ml-500ml Syrup Bottling Production Line Automatic Bottling Machine 5100ml-500ml Syrup Bottling Production Line Automatic Bottling Machine 6



Our company:



METICA Machinery

provides one-stop service of bottling equipment in developing, manufacturing, shipping and support for customers from all over the world.



  • Real manufacturer: since 2008, with 2 production bases and mature team.
  • Flexible machinery: for filling, capping, labeling, sealing and cartoning.
  • Customization: innovative designs provide you suitable packaging solutions.
  • Strong support: video demonstrations training before and after sales, on-site service available.
  • Guarantee: 1 year free parts, all life service.
