Cooking Sunflower Oil Bottling Production Line Automatic Filling Capping Machine 50HZ

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTGF-1000
Minimum Order Quantity: 1 SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Sunflower Oil And Cooking Oil Filling Machine Application: For Food And Beverage Industry
Capacity: 700-1500 BPH(customizable) Filling Volume Accuracy: >=99%
Length Of The Line: 7 M Warranty: One Year
Workflow: Feeding-filling-capping-labeling-collecting Voltage: 110V, 220V/50HZ
Type: Filling Machine, Bottling Line Bottle Type: Plastic Bottle And Glass Bottle,PET Plastic Bottle / Glass Bottle,round Bottle
Automatic Grade: Automatic Packaging Type: Bottles,cans, Buckets
High Light:

Sunflower Oil Bottling Production Line

,

Automatic Cooking Oil Filling Line 50HZ

,

Bottling Oil Filling Capping Machine


Product Description

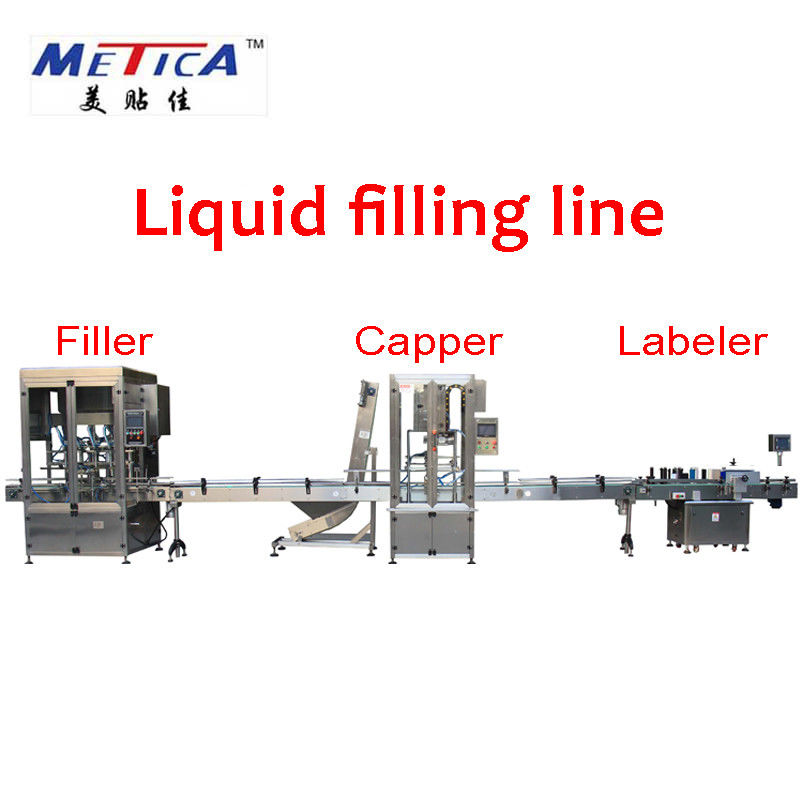

Sunflower Oil Bottling Production Line Cooking Oil Filling Capping Machine Line



Application :

  • Mainly used to fill edible oil in plastic or glass bottle, widely used in food, chemical, beverages, and similar products.
  • Full filling line is automatic



Description:

  • 1) Easy to adjust and no bottle no filling. Accurate filling quantity and has counting function.
  • 2) Adopts volume type plunger pump filling with filling suffocate preventing from dropping and brushed , no bottle no filling , no drop no spill.
  • 3) Automatic filling, capping and labeling. Easy operation.
  • 4) PLC, control by touch screen



Work process:

  • 1) Put bottles on turn table feeding bottles to filling machine automatically
  • 2) Bottles conveyed to filling machine to fill automatically
  • 3) Bottle conveyed to capping machine cap automatically after filling
  • 4) Bottle conveyed to labeling machine label automatically
  • 5) Collect bottles with a turn table(optional)





the Whole Line technical parameter



Speed 700-1500BPH
Filling accuracy >99%
Filling volume 100-1000ml, 300-3000ml, 500-5000ml (can be customized)
Filling method piston+servo motor driven
Power 220V 50/60Hz, 6kw
Air supply 0.6 MPa
Bottles applicable A wide shape range
Application Liquid or viscosity products
Feature PLC, touch screen, tank, level meter







Cooking Sunflower Oil Bottling Production Line Automatic Filling Capping Machine 50HZ 0

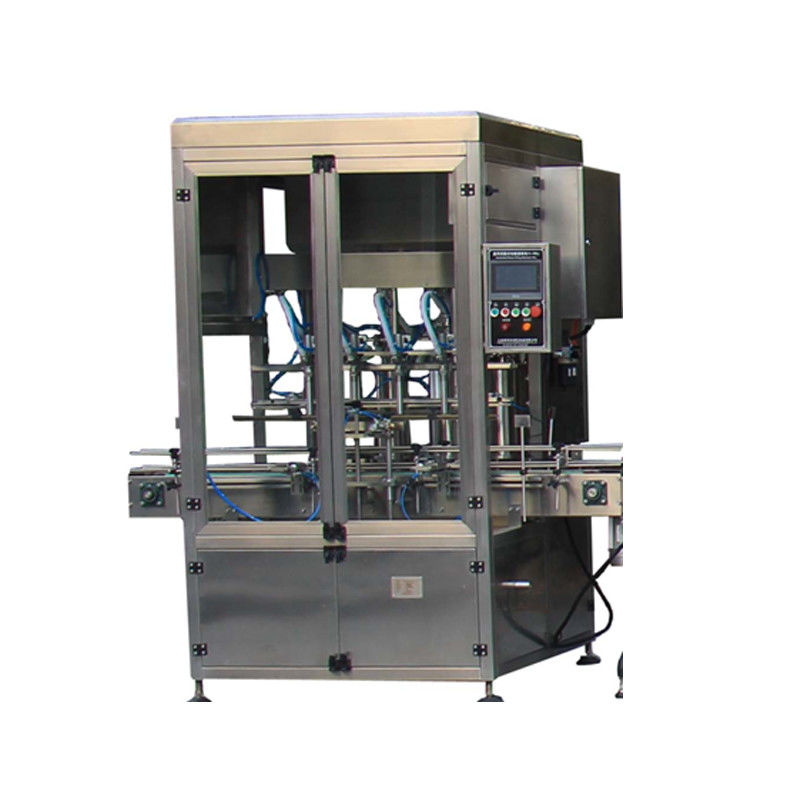

Filling machine:

 Cooking Sunflower Oil Bottling Production Line Automatic Filling Capping Machine 50HZ 1

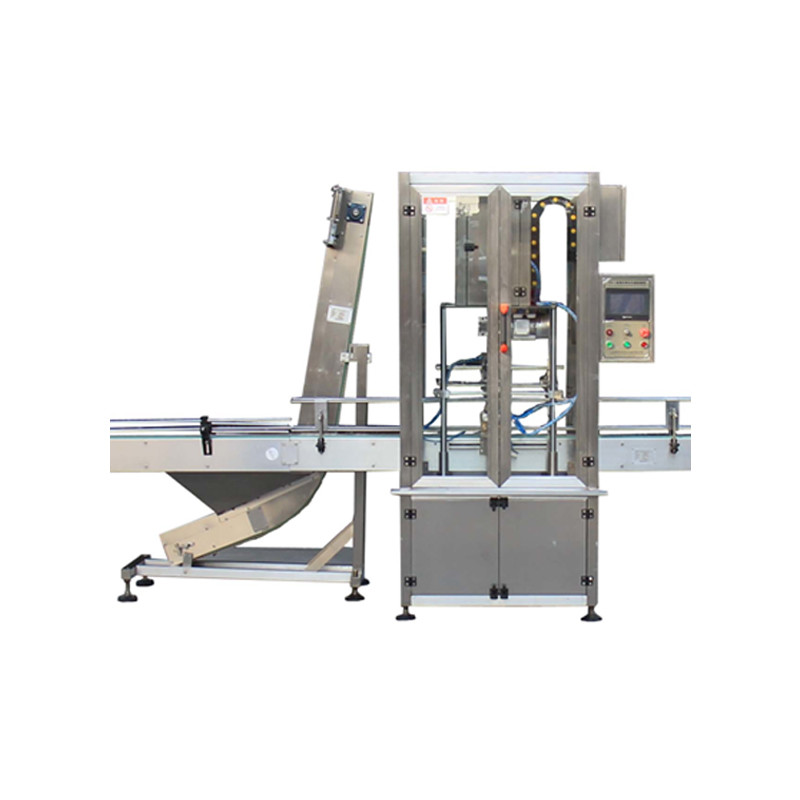

Capping machine:

Cooking Sunflower Oil Bottling Production Line Automatic Filling Capping Machine 50HZ 2

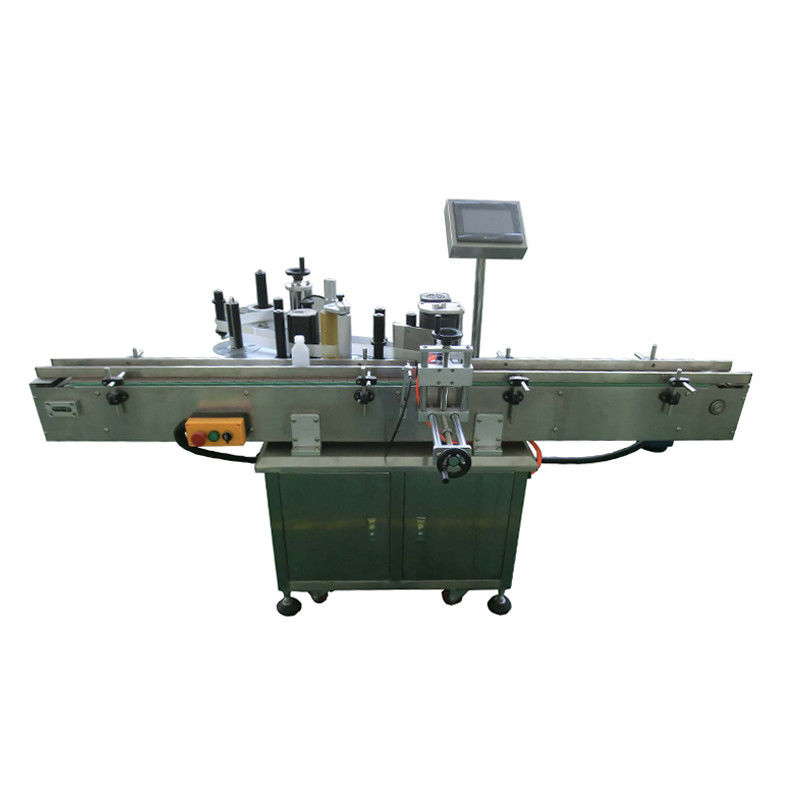

Labeling machine:

Cooking Sunflower Oil Bottling Production Line Automatic Filling Capping Machine 50HZ 3





Samples display:

Cooking Sunflower Oil Bottling Production Line Automatic Filling Capping Machine 50HZ 4



Service flow:

Cooking Sunflower Oil Bottling Production Line Automatic Filling Capping Machine 50HZ 5





Pre-sale Service:

Cooking Sunflower Oil Bottling Production Line Automatic Filling Capping Machine 50HZ 6



Cooking Sunflower Oil Bottling Production Line Automatic Filling Capping Machine 50HZ 7



Packing&Shipping:

Cooking Sunflower Oil Bottling Production Line Automatic Filling Capping Machine 50HZ 8



After-sale service:

Cooking Sunflower Oil Bottling Production Line Automatic Filling Capping Machine 50HZ 9



Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We are located in Shanghai, very convenient in factory visiting, and goods shipping. We have more than ten years experience in automatic packaging machinery. We make machines as per GMP Standard. In addition, we have obtained CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and North America, Southeast Asia, the Middle East, Africa and South America.
