Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFC-2000
Minimum Order Quantity: 1 SET
Price: USD 10000-30000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Hand Sanitizer Filling Machine Line Application: Chemical,Medical,Commodity
Capacity: 500-2500BPH(customizable) Filling Accuracy: Over 99%
Length Of The Line: 7000 Mm Warranty: One-year
Workflow: Auto Feeding-washing-filling-capping-labeling Voltage: 110V/220V,50/60HZ (customizable)
Type: Filling Machine, Hand Sanitizer Bottling Line Bottle Type: Plastic Bottle And Glass Bottle
High Light:

Hand Sanitizer Filling Capping Machine

,

Bottling Production Line 110V

,

Liquid Filling Capping Labeling Machine


Product Description

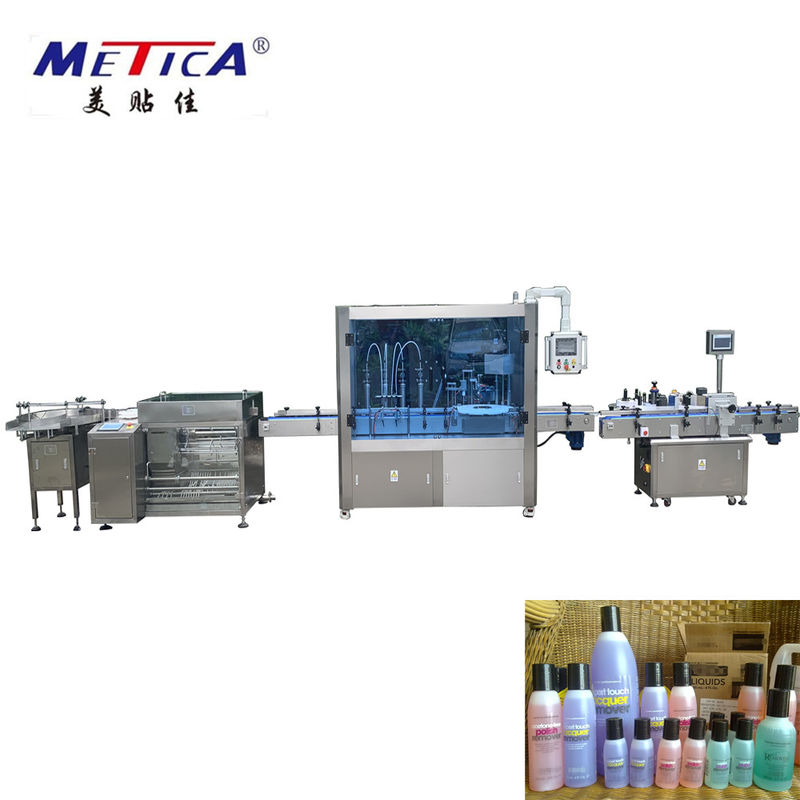

Hand Sanitizer Bottling Production Line Liquid Filling Capping And Labeling Machine



Application :

  • The filling capping and labeling machine is widely used in Chemicals And Pesticides,Pharmaceutical, Health Care industries.
  • This vial filling capping and labeling machine is suitable for small volume 50-500 ml liquid automatic packing

Work process:

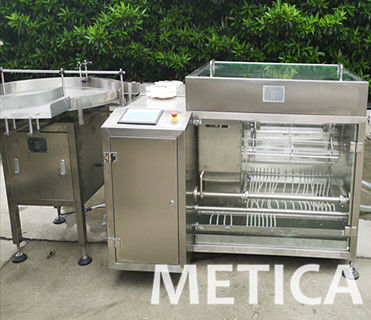

  • Manually put bottles on the turn table

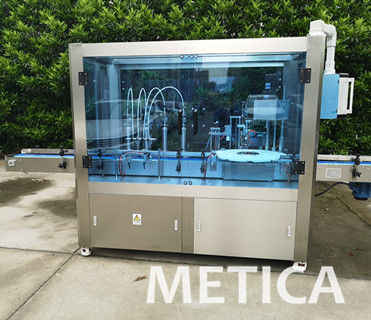

  • Bottles conveyed to filling capping machine to fill automatically
  • Bottle conveyed to cap automatically after filling

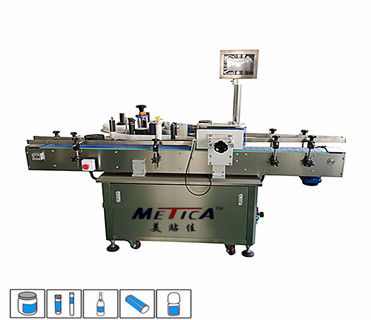

  • Automatic labeling or sleeve shrink labeling machine
  • Collect bottles with a turn table



the Whole Line technical parameter

  • Bottle applied: Round glass dropper bottle or round plastic bottle
  • Line speed: 2000-3000 bottles per hour
  • Filling volume: 50-500 ml (can be customized)
  • Power: about 5KW
  • Air pressure and consumption: 0.6-0.8Mpa



Spec and Feature

  • The whole machine line is designed especially for 50-500ml liquid filling, capping, labeling
  • The line speed is 20-35 bottles per minute
  • Filling plugging-in and capping machine in one machine, save space and away from pollution
  • Famous branded electrical parts guarantee the line working stable and a longer working life
  • Adopts peristaltic pump or piston pump for filling, high filling precision. No bottle, no fill, no drop, no leak
  • Touch screen, easy operate and adjust human interface. English or other language operation interface
  • The machines can work together smoothly or work alone by PLC control
  • The line is easy to install, operate, maintenance, and move
  • Suitable for different diameter bottles, just need several minutes change parts for different bottles
  • All the machine parts which contact liquid adopt corrosion resisting material and 316 stainless steel
  • The machines have emergency stop Button and automatic interrupt device for safe operation
  • Labors need: 1-2 workers
  • Space for the line: 7000*1500*1900mm



Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V 0



Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V 1Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V 2Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V 3



Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V 4

Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V 5Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V 6

Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V 7Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V 8

Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V 9







Samples display:

Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V 10Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V 11





Service flow:

Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V 12





Pre-sale Service:

Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V 13



Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V 14



Packing&Shipping:

Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V 15



After-sale service:

Hand Sanitizer Bottling Production Line Liquid Filling Capping Labeling Machine 110V 16



Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We are located in Shanghai, very convenient in factory visiting, and goods shipping. We have more than ten years experience in automatic packaging machinery. We make machines as per GMP Standard. In addition, we have obtained CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and North America, Southeast Asia, the Middle East, Africa and South America. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Warmly welcome friends all over the world to contact for cooperation, we do believe we will be good business partners. We provide strong support with machines, solutions, information.
