220V 5kw Grape Juice Bottling Line Easy Maintenance 2000-3000BPH Capacity

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFC-3000
Minimum Order Quantity: 1 SET
Price: USD 10000-30000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Grape Juice Filling Machine Application: Beverage,Food,Chemical,Medical And Other Industry
Capacity: 2000-3000bph(customizable) Filling Accuracy: More Than 99%
Length Of The Line: 8 Meters Warranty: One-year
Workflow: Auto Feeding-filling-capping-labeling-collecting Packaging Type: Bottles,Cans,jars And Other Similar Container
Bottle Type: PET Plastic Bottle / Glass Bottle,round Bottle Type: Filling Machine Line
After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

5kw Juice Bottling Line

,

220V Juice Bottling Line

,

3000BPH Bottling Production Line


Product Description

Calamine Lotion Filling Machine And Capping Machine Line Bottling Production Line



Application

  • This line is widely used in food, beverage, pharmaceutical, health care industries 100-1000 ml plastic (glass) bottle filling capping, such as oral liquid, topical agent, syrup, vaccine, nails water etc.



Spec and Feature

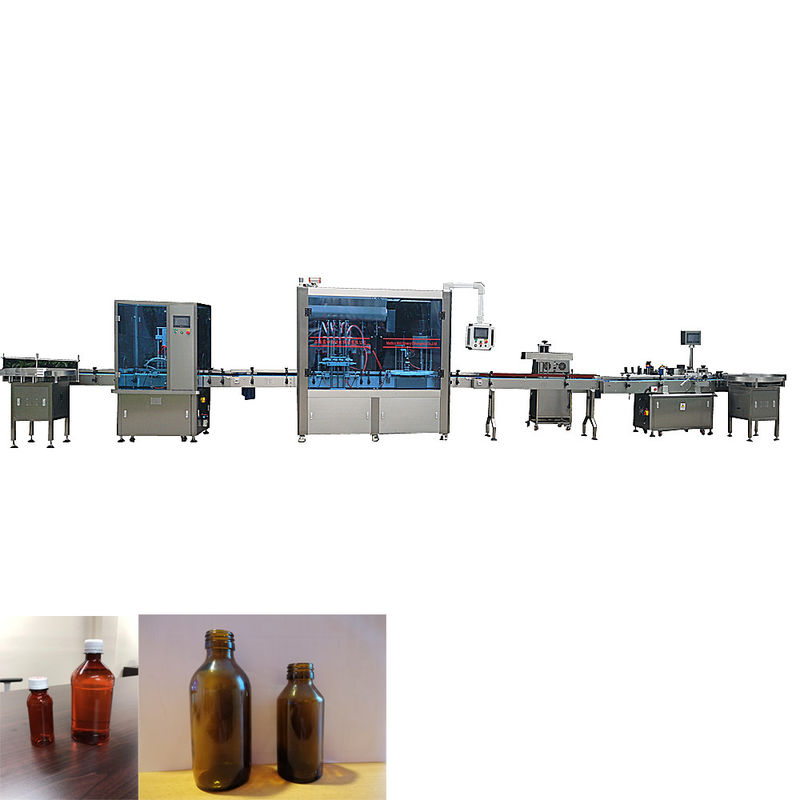

  • The line includes: Turn Table, Filler, Caps Feeding, Screw Capper, Labeler
  • Automatic run, PLC control, Operate on Touch Screen,
  • Suitable for the volume 10-500 ml liquid or low viscosity products
  • Applicable for many types of caps: screw caps, Anti-Theft ring screw caps, Spiral Caps, Aluminium Caps and etc
  • It adopts 4 nozzles piston type filling, rotating plate positioning capping method. No bubble, no spill. Filling accurate, good performance, easy to maintain and operate



Work process:

  • 1) Put bottles on turn table feeding bottles to filling machine automatically
  • 2) Bottles conveyed to filling machine to fill automatically
  • 3) Bottle conveyed to capping machine cap automatically after filling
  • 4) Bottle conveyed to labeling machine label automatically
  • 5) Collect bottles with a turn table(optional)

Parameter:

Speed  2000-3000bph (customizable)
Filling accuracy  more than 99%
Filling volume 100-1000ml, 200-2000ml, … 500-5000ml(customizable)
Filling method piston + servo motor driven, diving nozzles
Power supply 220V 50hz 5kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Total length 8merers
Feature PLC, touch screen, tank, level meter





220V 5kw Grape Juice Bottling Line Easy Maintenance 2000-3000BPH Capacity 0

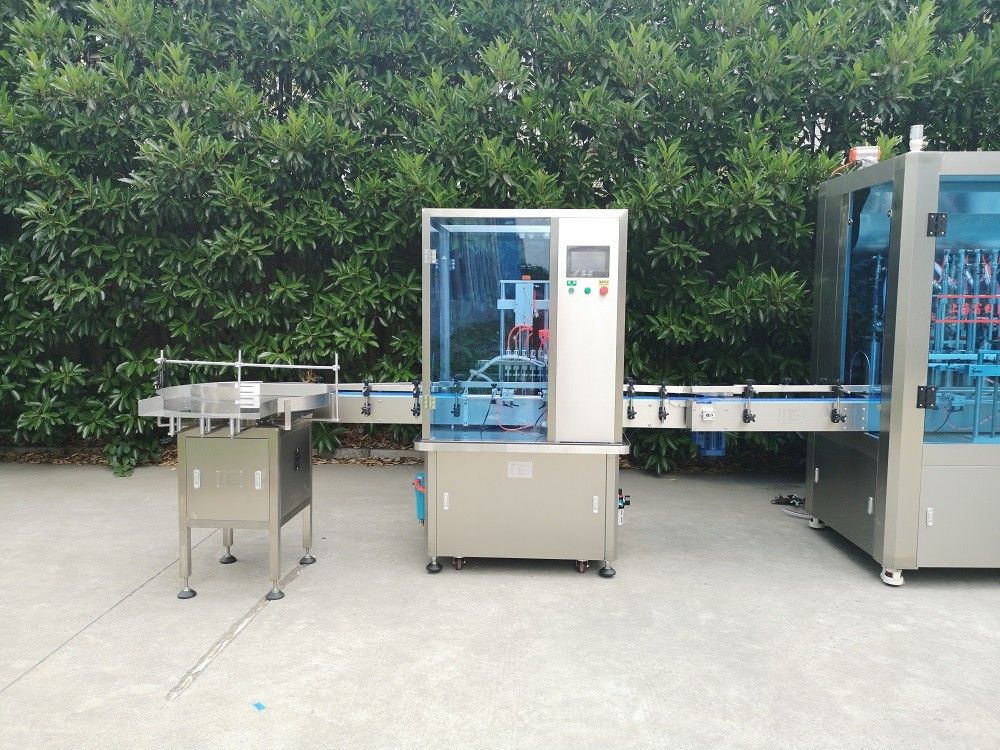

Turn table and bottle washing machine:

220V 5kw Grape Juice Bottling Line Easy Maintenance 2000-3000BPH Capacity 1

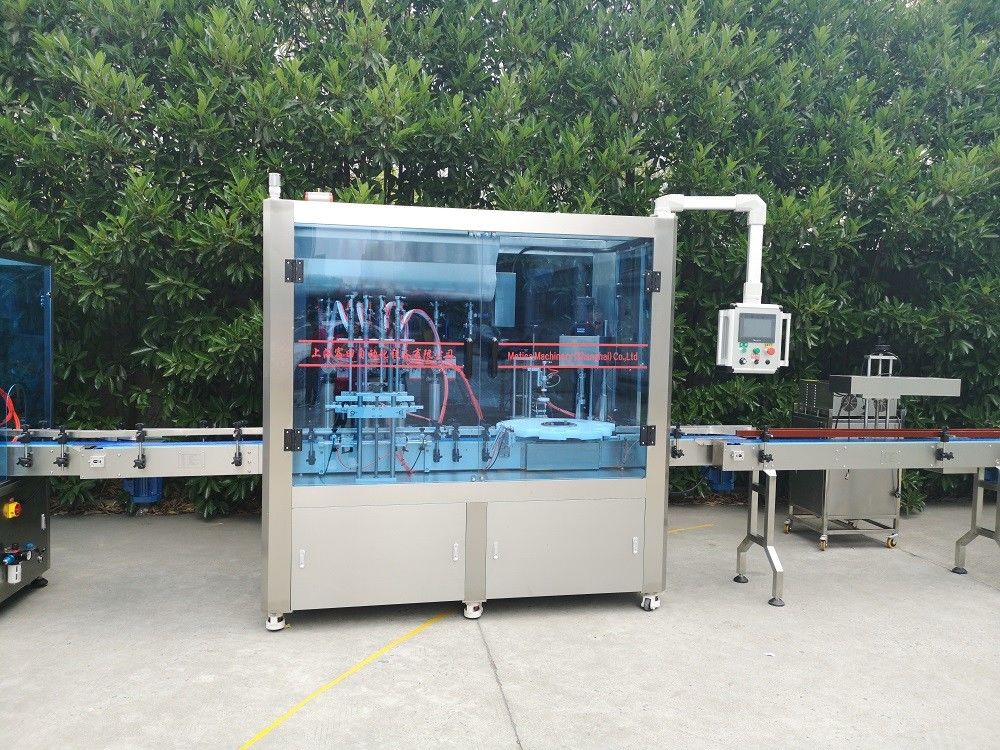

Filling capping machine in one:

220V 5kw Grape Juice Bottling Line Easy Maintenance 2000-3000BPH Capacity 2



Labeling machine:

220V 5kw Grape Juice Bottling Line Easy Maintenance 2000-3000BPH Capacity 3

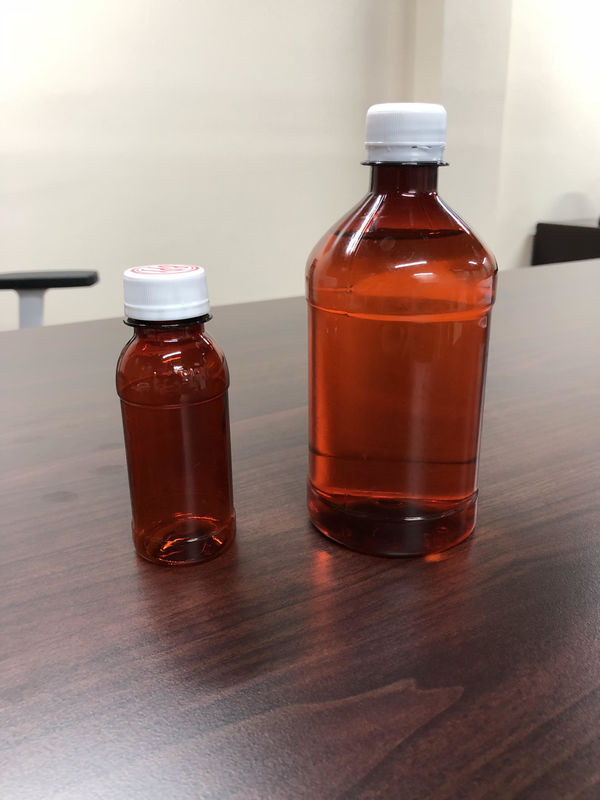

Samples display:

220V 5kw Grape Juice Bottling Line Easy Maintenance 2000-3000BPH Capacity 4

220V 5kw Grape Juice Bottling Line Easy Maintenance 2000-3000BPH Capacity 5220V 5kw Grape Juice Bottling Line Easy Maintenance 2000-3000BPH Capacity 6220V 5kw Grape Juice Bottling Line Easy Maintenance 2000-3000BPH Capacity 7



Service flow:

220V 5kw Grape Juice Bottling Line Easy Maintenance 2000-3000BPH Capacity 8





Pre-sale Service:

220V 5kw Grape Juice Bottling Line Easy Maintenance 2000-3000BPH Capacity 9



220V 5kw Grape Juice Bottling Line Easy Maintenance 2000-3000BPH Capacity 10



Packing&Shipping:

220V 5kw Grape Juice Bottling Line Easy Maintenance 2000-3000BPH Capacity 11



After-sale service:

220V 5kw Grape Juice Bottling Line Easy Maintenance 2000-3000BPH Capacity 12



Company Profile:

Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We are located in Shanghai, very convenient in factory visiting, and goods shipping. We have more than ten years experience in automatic packaging machinery. Since the date of establishment, our company has always been pursuing the best product quality and service. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We can also provide customers with the manufacture and development of various non-standard machines. We make machines as per GMP Standard. In addition, we have obtained CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and North America, Southeast Asia, the Middle East, Africa and South America. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Warmly welcome friends all over the world to contact for cooperation, we do believe we will be good business partners. We provide strong support with machines, solutions, information.
