Pesticides Bottling Production Line Liquid Filling Capping And Labeling Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFC-2000
Minimum Order Quantity: 1 SET
Price: USD 10000-30000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Chemicals And Pesticides Filling Machine Line Application: Chemical,Medical,Commodity
Capacity: 500-2500BPH(customizable) Filling Accuracy: Over 99%
Length Of The Line: 700 Cm Warranty: One Year
Workflow: Auto Feeding-washing-filling-capping-labeling Voltage: 110V/220V,50/60HZ (can Be Customized)
Type: Filling Machine, Chemicals And Pesticides Bottling Line Bottle Type: Plastic Bottle And Glass Bottle
High Light:

2500BPH Bottling Production Line

,

5KW Liquid Filling Capping And Labeling Machine

,

METICA Bottling Production Line


Product Description

Chemicals And Pesticides Automatic Filling Capping Labeling Line Bottling Production Line



Application :

  • The filling capping and labeling machine is widely used in Chemicals And Pesticides,Pharmaceutical, Health Care industries.
  • This vial filling capping and labeling machine is suitable for small volume 50-500 ml liquid automatic packing

Work process:

  • Manually put bottles on the turn table
  • Bottles conveyed to filling capping machine to fill automatically
  • Bottle conveyed to cap automatically after filling
  • Automatic labeling or sleeve shrink labeling machine
  • Collect bottles with a turn table



the Whole Line technical parameter

  • Bottle applied: Round glass dropper bottle or round plastic bottle
  • Line speed: 2000-3000 bottles per hour
  • Filling volume: 50-500 ml (can be customized)
  • Power: about 5KW
  • Air pressure and consumption: 0.6-0.8Mpa



Spec and Feature

  • The whole machine line is designed especially for 50-500ml liquid filling, capping, labeling
  • The line speed is 20-35 bottles per minute
  • Filling plugging-in and capping machine in one machine, save space and away from pollution
  • Famous branded electrical parts guarantee the line working stable and a longer working life
  • Adopts peristaltic pump or piston pump for filling, high filling precision. No bottle, no fill, no drop, no leak
  • Touch screen, easy operate and adjust human interface. English or other language operation interface
  • The machines can work together smoothly or work alone by PLC control
  • The line is easy to install, operate, maintenance, and move
  • Suitable for different diameter bottles, just need several minutes change parts for different bottles
  • All the machine parts which contact liquid adopt corrosion resisting material and 316 stainless steel
  • The machines have emergency stop Button and automatic interrupt device for safe operation
  • Labors need: 1-2 workers
  • Space for the line: 7000*1500*1900mm

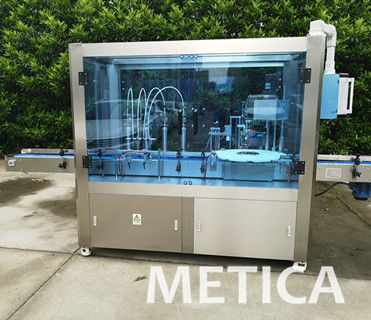

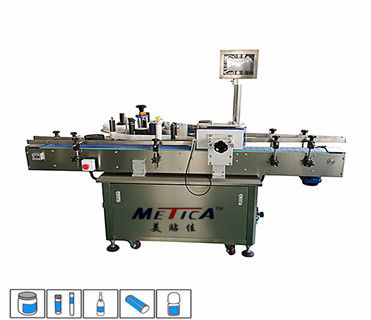

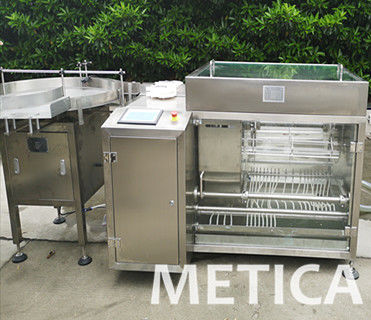

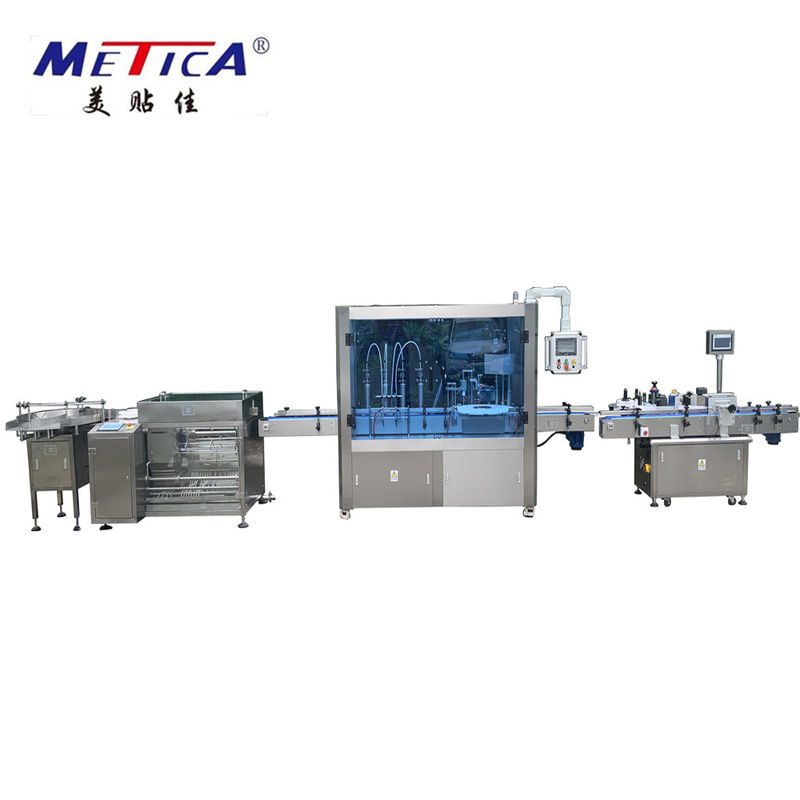

Pesticides Bottling Production Line Liquid Filling Capping And Labeling Machine 0



Pesticides Bottling Production Line Liquid Filling Capping And Labeling Machine 1Pesticides Bottling Production Line Liquid Filling Capping And Labeling Machine 2Pesticides Bottling Production Line Liquid Filling Capping And Labeling Machine 3



Pesticides Bottling Production Line Liquid Filling Capping And Labeling Machine 4

Pesticides Bottling Production Line Liquid Filling Capping And Labeling Machine 5Pesticides Bottling Production Line Liquid Filling Capping And Labeling Machine 6

Pesticides Bottling Production Line Liquid Filling Capping And Labeling Machine 7Pesticides Bottling Production Line Liquid Filling Capping And Labeling Machine 8

Pesticides Bottling Production Line Liquid Filling Capping And Labeling Machine 9







Samples display:

Pesticides Bottling Production Line Liquid Filling Capping And Labeling Machine 10Pesticides Bottling Production Line Liquid Filling Capping And Labeling Machine 11
