5L Edible Oil Filling Capping And Labeling Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFC-1000
Minimum Order Quantity: 1 SET
Price: USD 10000-30000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: 5L Edible Oil Filling Machine Capacity: 500-1500 BPH(customizable)
Filling Volume Accuracy: More Than 99% Length Of The Line: 6000mm
Warranty: One-year Workflow: Auto Feeding-filling-capping-labeling-collecting
Voltage: 220V, 50/60HZ Type: Bottling Machine Line
Bottle Type: Plastic Bottle And Glass Bottle,PET Plastic Bottle / Glass Bottle Automatic Grade: Automatic Bottling
Packaging Type: Bottles,cans,jars
High Light:

5L Filling Capping And Labeling Machine

,

6000mm Filling Capping And Labeling Machine

,

edible oil filling machine


Product Description

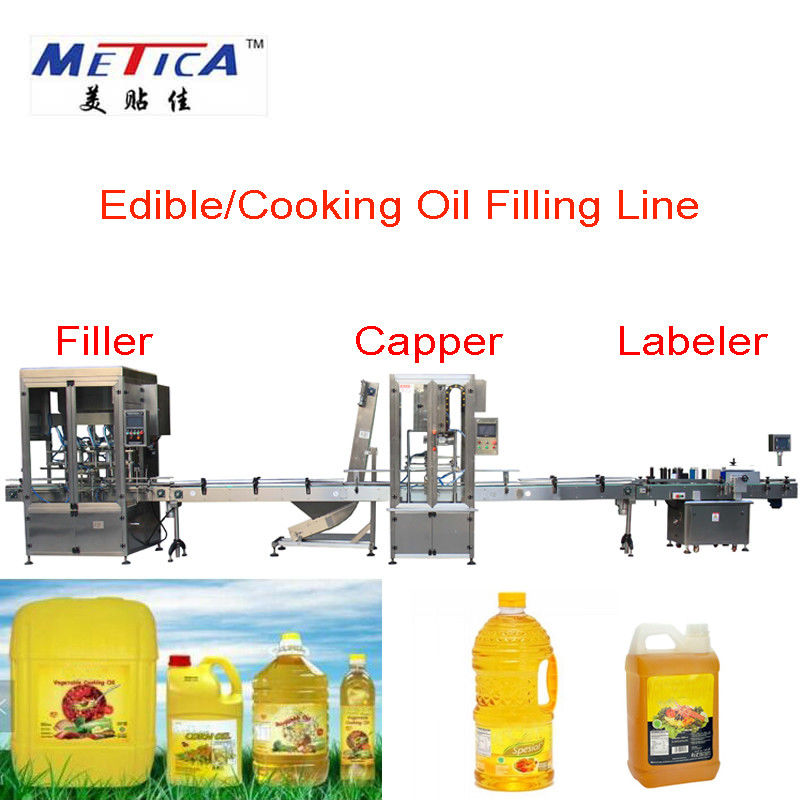

5L Edible Oil Filling Capping And Labeling Machine Edible Oil Bottling Production Line





Application :

  • Mainly used to fill edible oil in plastic or glass bottle, widely used in food, chemical, beverages, and similar products.
  • Full filling line is automatic, good for filling 500ml-5000ml bottle.



Description:

  • Easy to adjust and no bottle no filling. Accurate filling quantity and has counting function.
  • Automatic filling, capping and labeling. Easy operation.
  • PLC, control by touch screen
  • Adopts piston + servo motor driven fillin system. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts four filling nozzles, can change to 6/8/10/12/16 filling nozzles or more, the more filling nozzles, the higher capacity.
  • Diving filling method is available
  • High filling speed and filling precision, no bubble,stable



Work process:

  • 1)Put bottles on turn table feeding bottles to filling machine automatically
  • 2)Bottles conveyed to filling machine to fill automatically
  • 3)Bottle conveyed to capping machine cap automatically after filling
  • 4)Bottle conveyed to labeling machine label automatically
  • 5)Collect bottles with a turn table(optional)





the Whole Line technical parameter



Speed 700-1500BPH
Filling accuracy >99%
Filling volume 100-1000ml, 300-3000ml, 500-5000ml (can be customized)
Filling method piston+servo motor driven
Power 220V 50/60Hz, 6kw
Air supply 0.6 MPa
Bottles applicable A wide shape range
Application Liquid or viscosity products
Feature PLC, touch screen, tank, level meter







5L Edible Oil Filling Capping And Labeling Machine 0

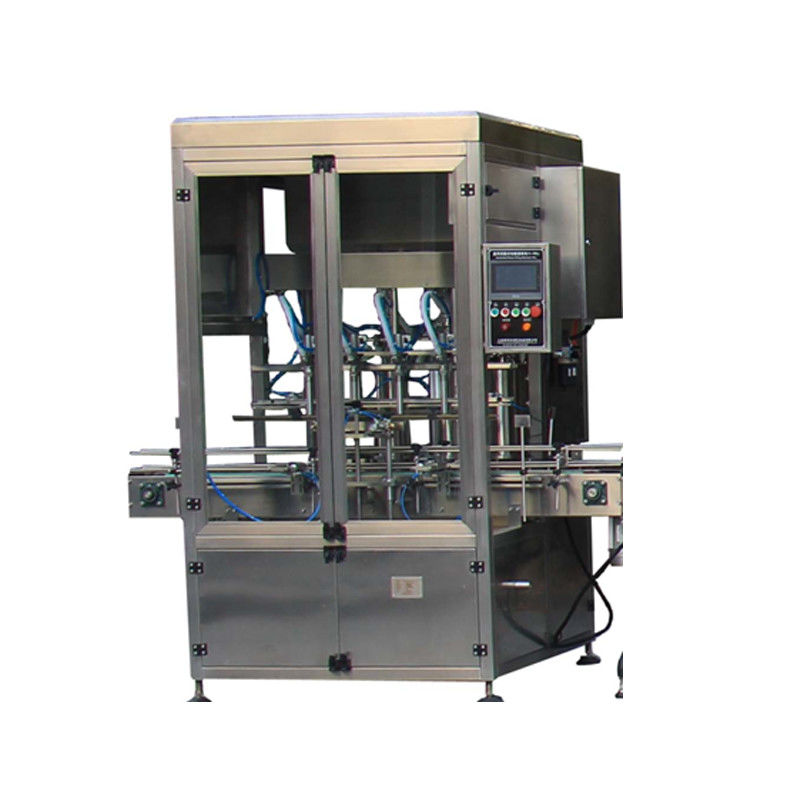

Filling machine:

 5L Edible Oil Filling Capping And Labeling Machine 1

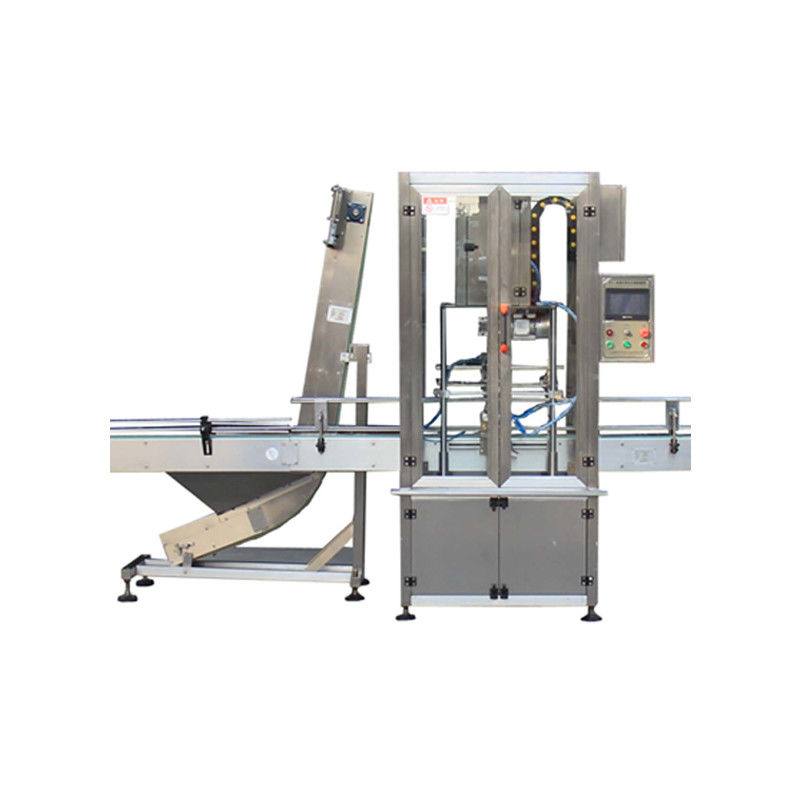

Capping machine:

5L Edible Oil Filling Capping And Labeling Machine 2

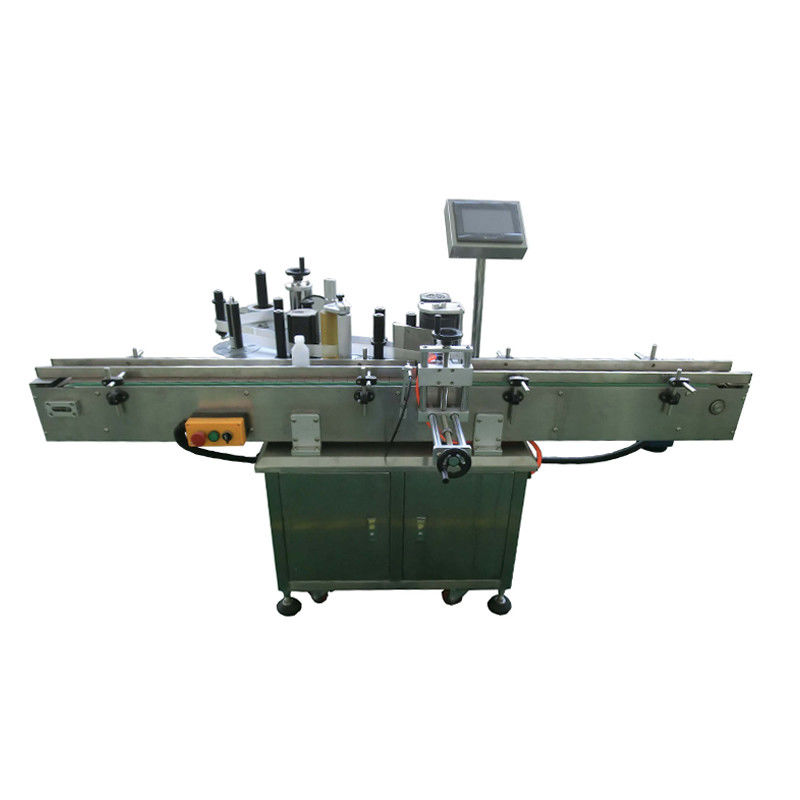

Labeling machine:

5L Edible Oil Filling Capping And Labeling Machine 3





Samples display:

5L Edible Oil Filling Capping And Labeling Machine 4
