5kw Automatic Filling Capping And Labelling Machine For Spray Bottle

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFC-1000
Minimum Order Quantity: 1 SET
Price: USD 10000-30000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Hand Sanitizer Filling Machine Application: For Hand Sanitizer And Similar Liquid Products
Capacity: 2000-3000 BPH(customizable) Filling Volume Accuracy: >99%
Length Of The Line: 5000mm Warranty: 1 Year
Workflow: Filling-capping-labeling(if Necessary)-collecting Voltage: 220V/50HZ
Type: Filling Machine, Bottling Line Bottle Type: Plastic Bottle And Glass Bottle,PET Plastic Bottle / Glass Bottle,round Bottle
Automatic Grade: Automatic Packaging Type: Bottles
High Light:

5kw Automatic Filling Capping And Labelling Machine

,

5000mm Filling Capping And Labelling Machine

,

50HZ Automatic Filling Capping Labelling Machine


Product Description

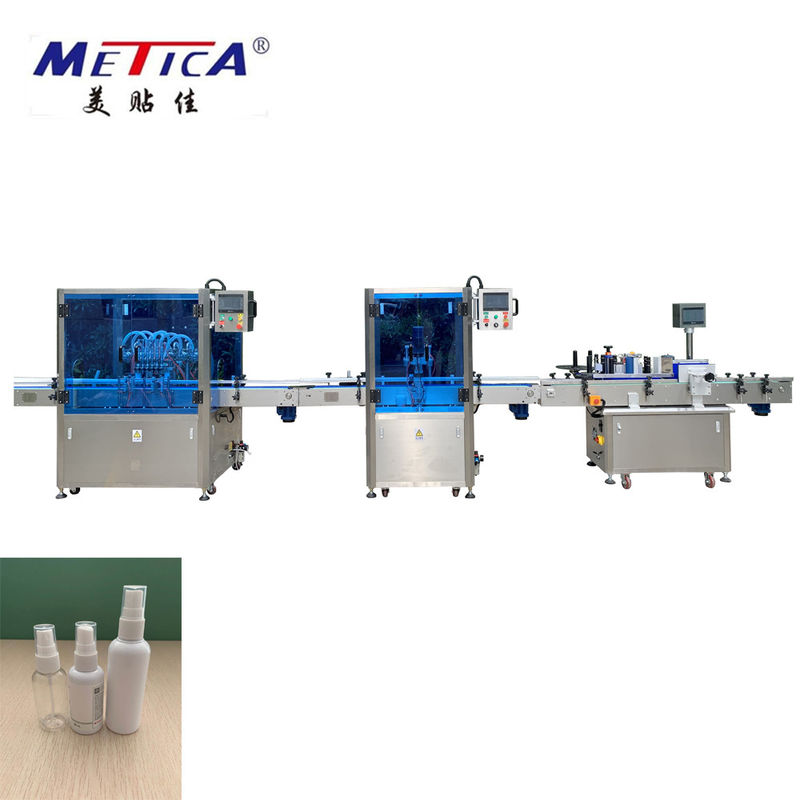

Automatic Hand Sanitizer Filling Capping Labeling Machine For Spray Bottle Production Line



General information

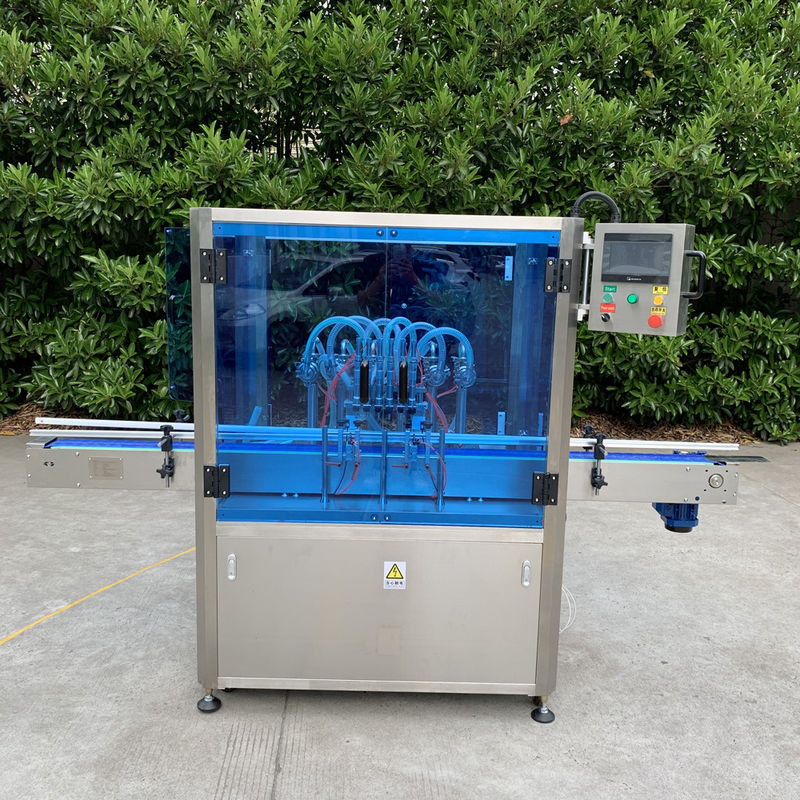

  • 1. The hand sanitizer filling capping labeling machine, adopt piston filling method, controlled by micro- computer, filling accurate. (Can be changed to ceramic pump for special work surroundings).
  • 2. Adopt advanced electrical and pneumatic parts, ensure stable work ability and long use time, high filling precision, capping qualified rate.
  • 3. Achieve no bottle, no filling; No bottle no plugging-in and capping, No leak, no drool during filling process. Reduce detergent material consumption, increase user's economic benefit.
  • 4. User can adjust speed and filling volume by touch screen setting. Easy to use, adjust, maintain.
  • 5. Can be matched with protective cover to forbid pollution.
  • 6. Connected to the liquid container through corrosion-resistant medical infusion tube.
  • 7. Can work alone or connected to labeling machine to work together.
  • 8. Can be matched with wheels to move the machine easily.



Spec and Feature

  • 1) Simple structure in linear type ,easy in installation and maintation.
  • 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
  • 3) Running in a high automatization and intellectualization,no pollution
  • 4)PLC control, adjust in touch screen, easy operated, less labor



Technical Parameters

Speed 1500-3000 BPH (can be customized)
Filling accuracy >99%
Filling volume 10-100ml(can be customized)
Filling method piston + servo motor driven
Power supply 220V 50hz 5kw
Air supply 0.6 mpa
Machine size 500*135*170cm
Bottles applicable a wide shape range
Application liquid products
Feature PLC, touch screen





5kw Automatic Filling Capping And Labelling Machine For Spray Bottle 0





5kw Automatic Filling Capping And Labelling Machine For Spray Bottle 15kw Automatic Filling Capping And Labelling Machine For Spray Bottle 25kw Automatic Filling Capping And Labelling Machine For Spray Bottle 35kw Automatic Filling Capping And Labelling Machine For Spray Bottle 4



Labeling machine(optional):

5kw Automatic Filling Capping And Labelling Machine For Spray Bottle 5

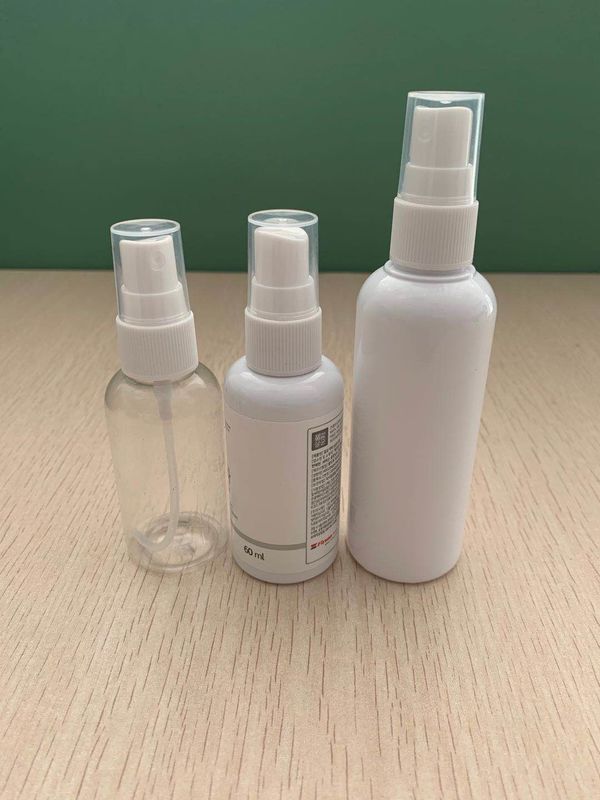

Samples display:

5kw Automatic Filling Capping And Labelling Machine For Spray Bottle 65kw Automatic Filling Capping And Labelling Machine For Spray Bottle 7
