10-100ml Bottling Production Line Automatic Liquid Filling And Capping Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFC-1000
Minimum Order Quantity: 1 SET
Price: USD 10000-30000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: CBD Oil And Essential Oil Filling Machine Line Application: For Essential Oil, CBD Oil, E-Cigarette, Pharmaceutical, Health Care Industries
Capacity: 2000-3000 BPH(customizable) Filling Accuracy: >99%
Length Of The Line: 800cm Warranty: 1 Year
Workflow: Feeding-filling-capping-labeling-collecting Voltage: Can Be Customized,220V/50HZ
Type: Filling Machine, Essential Oil Bottling Line Bottle Type: Glass Dropper Bottle, Small Plastic Bottle And Glass Bottle
High Light:

100ml Bottling Production Line

,

800cm Bottling Production Line

,

METICA Automatic Liquid Filling And Capping Machine


Product Description



Automatic Essential Oil Filling Capping Labeling Line And Glass Dropper Bottle Production Line



Application :

  • The filling capping and labeling machine is widely used in Essential oil, CBD oil, E-Cigarette, Pharmaceutical, Health Care industries.
  • This vial filling capping and labeling machine is suitable for small volume 10-100 ml liquid automatic packing, like CBD oil, Essential oil, E-Cigarette Oil, Eye Drop, Oral Liquid and so on.



Machines Recommended :

  • Turn table for feeding bottles
  • Automatic filling and capping machine in 1 machine
  • Automation round bottle positioning labeling machine with date printer(If necessary)
  • Automatic shrink sleeve labeling machine
  • Turn table for collecting bottles



Work process:

  • Manually put bottles on the turn table
  • Bottles conveyed to filling capping machine to fill automatically
  • Bottle conveyed to cap automatically after filling
  • Automatic labeling or sleeve shrink labeling machine
  • Collect bottles with a turn table



the Whole Line technical parameter

  • Bottle applied: Round glass dropper bottle or round plastic bottle
  • Line speed: 2000-3000 bottles per hour
  • Filling volume: 10-100 ml (can be customized)
  • Power: about 5KW
  • Air pressure and consumption: 0.6-0.8Mpa



Spec and Feature

  • The whole machine line is designed especially for 10-100ml liquid filling, capping, labeling
  • The line speed is 20-35 bottles per minute
  • Filling plugging-in and capping machine in one machine, save space and away from pollution
  • Famous branded electrical parts guarantee the line working stable and a longer working life
  • Adopts peristaltic pump or piston pump for filling, high filling precision. No bottle, no fill, no drop, no leak
  • Touch screen, easy operate and adjust human interface. English or other language operation interface
  • The machines can work together smoothly or work alone by PLC control
  • The line is easy to install, operate, maintenance, and move
  • Suitable for different diameter bottles, just need several minutes change parts for different bottles
  • All the machine parts which contact liquid adopt corrosion resisting material and 316 stainless steel
  • The machines have emergency stop Button and automatic interrupt device for safe operation
  • Labors need: 1-2 workers
  • Space for the line: 8000*1500*1900mm

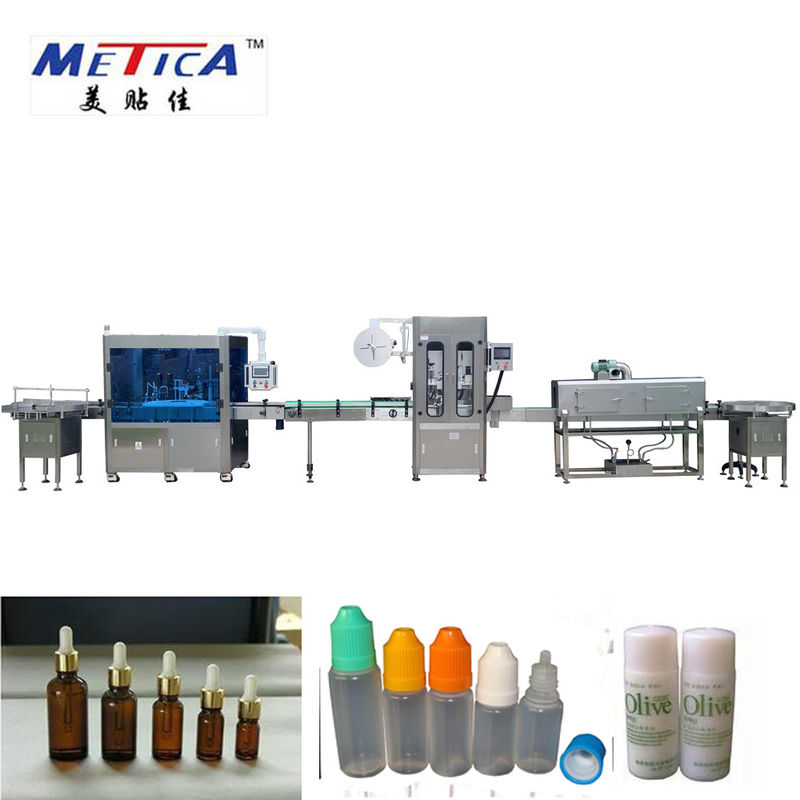

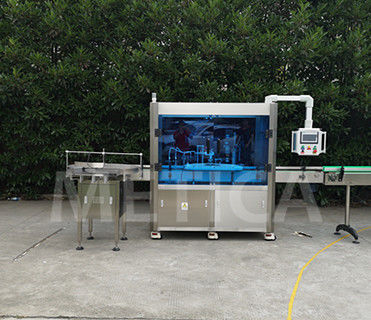

10-100ml Bottling Production Line Automatic Liquid Filling And Capping Machine 0

10-100ml Bottling Production Line Automatic Liquid Filling And Capping Machine 1

10-100ml Bottling Production Line Automatic Liquid Filling And Capping Machine 2



Labeling machine(optional):

10-100ml Bottling Production Line Automatic Liquid Filling And Capping Machine 3

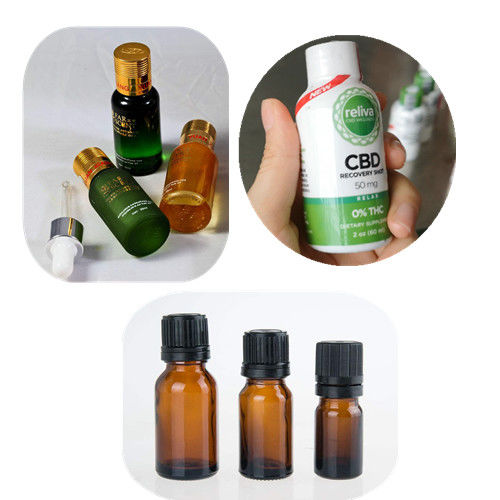

Samples display:

10-100ml Bottling Production Line Automatic Liquid Filling And Capping Machine 4
