METICA CBD Oil Bottling And Labeling Machine 0.6-0.8Mpa Glass Bottle Filling Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFC-1000
Minimum Order Quantity: 1 SET
Price: USD 10000-30000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Vials And Glass Dropper Bottle Filling Machine Application: For CBD Oil, E-Cigarette, Pharmaceutical, Health Care Industries
Capacity: 2000-3000 BPH(customizable) Filling Volume Accuracy: >99%
Length Of The Line: 8000mm Warranty: 1 Year
Workflow: Feeding-filling-capping-labeling(Shrink Sleeve Labeling)-collecting Voltage: ,220V/50HZ
Type: Filling Machine, Bottling Line Bottle Type: Plastic Bottle And Glass Bottle,PET Plastic Bottle / Glass Bottle,round Bottle
Automatic Grade: Automatic Packaging Type: Bottles
High Light:

METICA Bottling And Labeling Machine

,

0.8Mpa Bottling And Labeling Machine

,

8000mm Glass Bottle Filling Machine


Product Description



Automatic CBD Oil Filling Capping Labeling Machine Line for Small Glass Dropper Bottle



Application :

  • The filling machine line is widely used in CBD oil, E-Cigarette, Pharmaceutical, Health Care industries.
  • It's suitable for small volume 10-100 ml liquid automatic packing, like CBD oil, Essential oil, E-Cigarette Oil, Eye Drop, Oral Liquid and so on.



Machines Recommended :

  • Turn table for feeding bottles

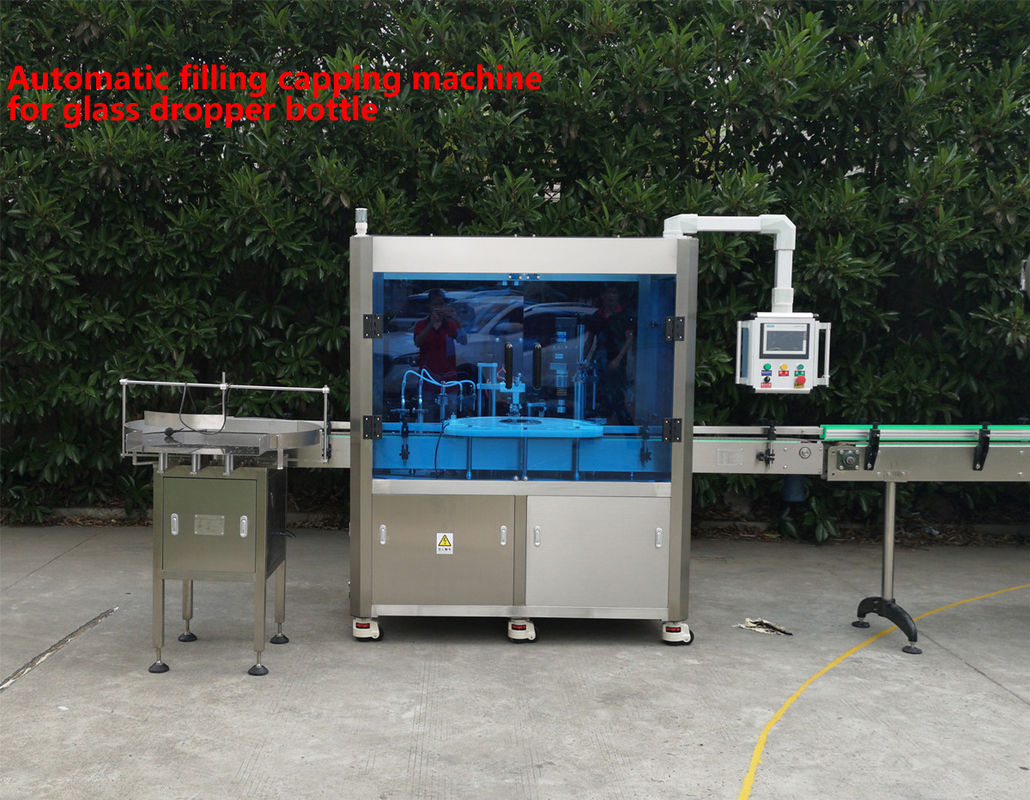

  • Automatic filling and capping machine in one machine
  • Automation round bottle positioning labeling machine with date printer

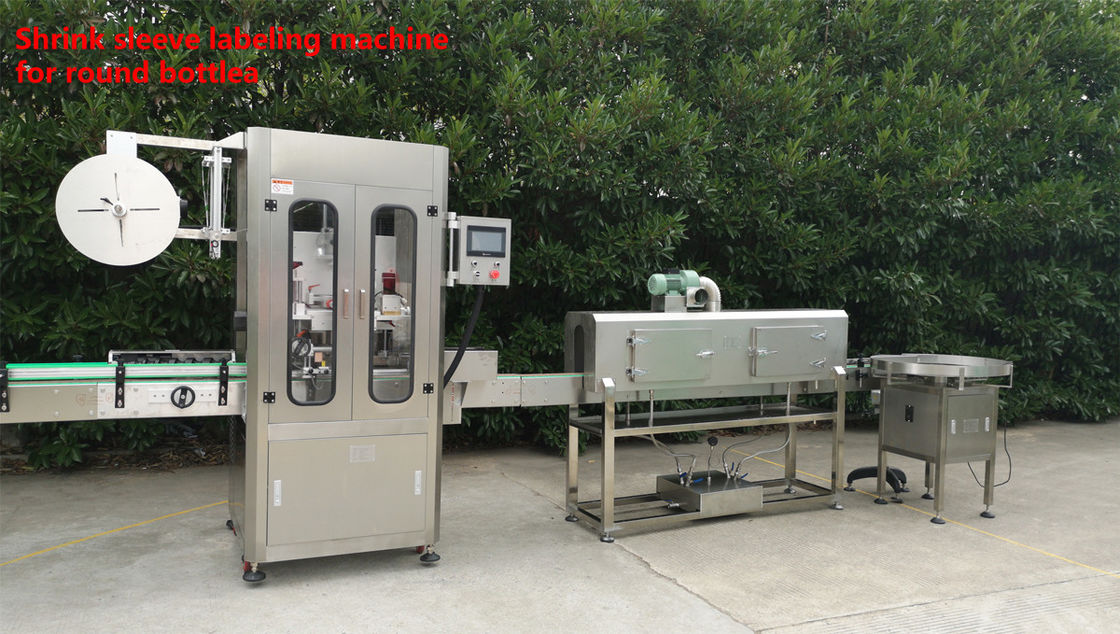

  • Automatic shrink sleeve labeling machine
  • Turn table for collecting bottles



Work process:

  • Put bottles on the turn table by hand
  • Bottles conveyed to filling capping machine to fill automatically
  • Bottle conveyed to cap automatically after filling
  • Automatic labeling or sleeve shrink labeling machine
  • Collect bottles with a turn table



Spec and Feature

  • The whole machine line is designed especially for 10-100ml liquid filling, capping, labeling
  • The line speed is 20-35 bottles per minute(we can make higher speed machine according to customer's requirements)
  • Filling plugging-in and capping machine in one machine, save space and away from pollution
  • Adopts peristaltic pump or piston pump for filling, high filling precision. No bottle, no fill, no drop, no leak
  • Touch screen, easy operate and adjust human interface. English operation interface
  • The machines can work together smoothly or work alone by PLC control
  • Suitable for different diameter bottles, just need several minutes change parts for different bottles
  • All the machine parts which contact liquid adopt corrosion resisting material and 316 stainless steel
  • The machines have emergency stop Button and automatic interrupt device for safe operation
  • Labors need: 1-2 workers
  • Space for the line: 8000*1500*1900mm

the Whole Line technical parameter

Bottle applied

Round glass dropper bottle or round plastic bottle

Line speed 1800-3000 bottles per hour
Filling volume

10-100 ml (can be customized)

Power

about 5KW

Air pressure and consumption

0.6-0.8Mpa

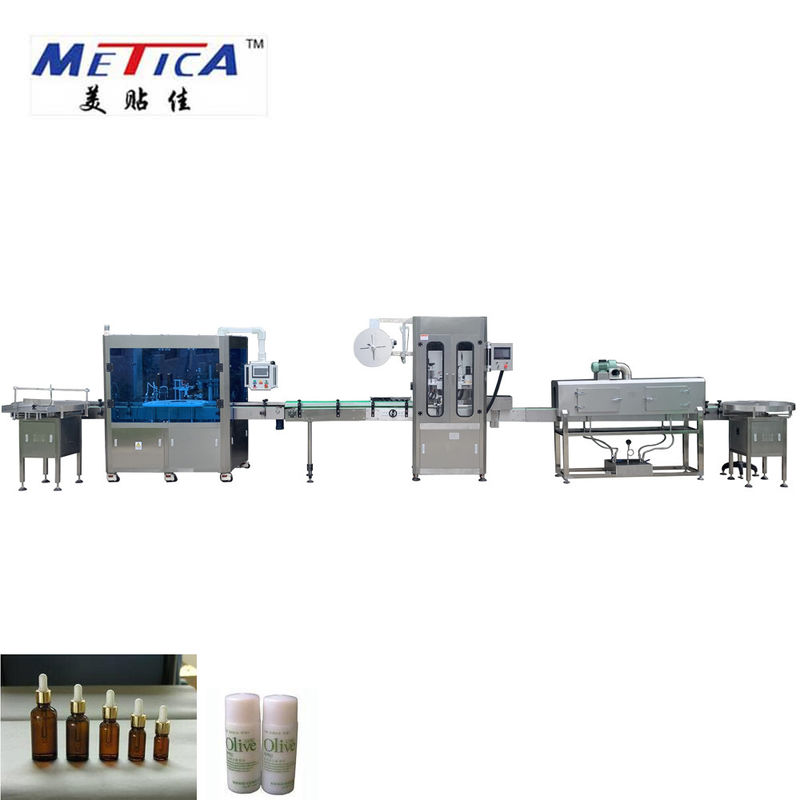

METICA CBD Oil Bottling And Labeling Machine 0.6-0.8Mpa Glass Bottle Filling Machine 0

METICA CBD Oil Bottling And Labeling Machine 0.6-0.8Mpa Glass Bottle Filling Machine 1

METICA CBD Oil Bottling And Labeling Machine 0.6-0.8Mpa Glass Bottle Filling Machine 2

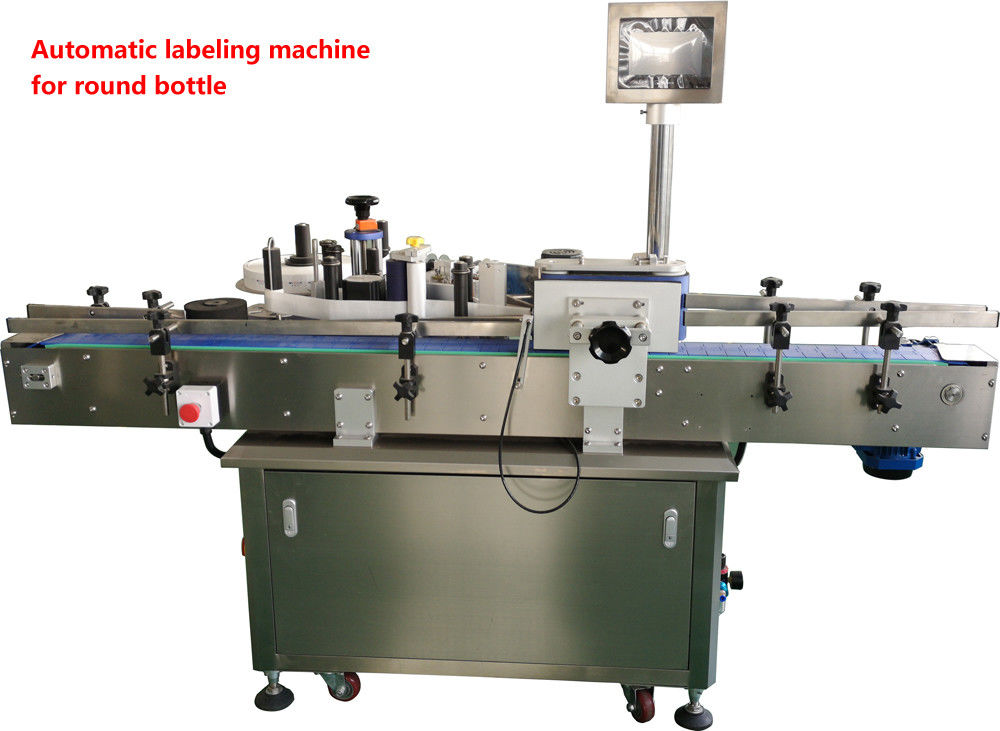

Labeling machine(optional):

METICA CBD Oil Bottling And Labeling Machine 0.6-0.8Mpa Glass Bottle Filling Machine 3





Samples display:

METICA CBD Oil Bottling And Labeling Machine 0.6-0.8Mpa Glass Bottle Filling Machine 4
