Oral Liquid Bottling And Labeling Machine 0.6-0.8Mpa Glass Bottle Filling Machine

Oral Liquid Bottling And Labeling Machine 0.6-0.8Mpa Glass Bottle Filling Machine

Oral Liquid Glass Bottle Filling Machine

0.8Mpa Glass Bottle Filling Machine

Labeling Glass Bottle Filling Machine

Place of Origin:

Shanghai

Brand Name:

METICA

Certification:

CE

Model Number:

MTFC-1000

Contact Us
Request A Quote
Product Details
Name:
Vials And Glass Dropper Bottle Filling Machine
Application:
For CBD Oil, E-Cigarette, Pharmaceutical, Health Care Industries
Capacity:
2000-3000 BPH(customizable)
Filling Volume Accuracy:
>99%
Length Of The Line:
8000mm
Warranty:
1 Year
Workflow:
Feeding-filling-capping-labeling(Shrink Sleeve Labeling)-collecting
Voltage:
,220V/50HZ
Type:
Filling Machine, Bottling Line
Bottle Type:
Plastic Bottle And Glass Bottle,PET Plastic Bottle / Glass Bottle,round Bottle
Automatic Grade:
Automatic
Packaging Type:
Bottles
High Light:

Oral Liquid Glass Bottle Filling Machine

,

0.8Mpa Glass Bottle Filling Machine

,

Labeling Glass Bottle Filling Machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 10000-30000/SET
Packaging Details
Fumigation-free wooden boxes that meet international standards
Delivery Time
25-30 days
Payment Terms
L/C, T/T
Supply Ability
100 SETS PER MONTH
Product Description

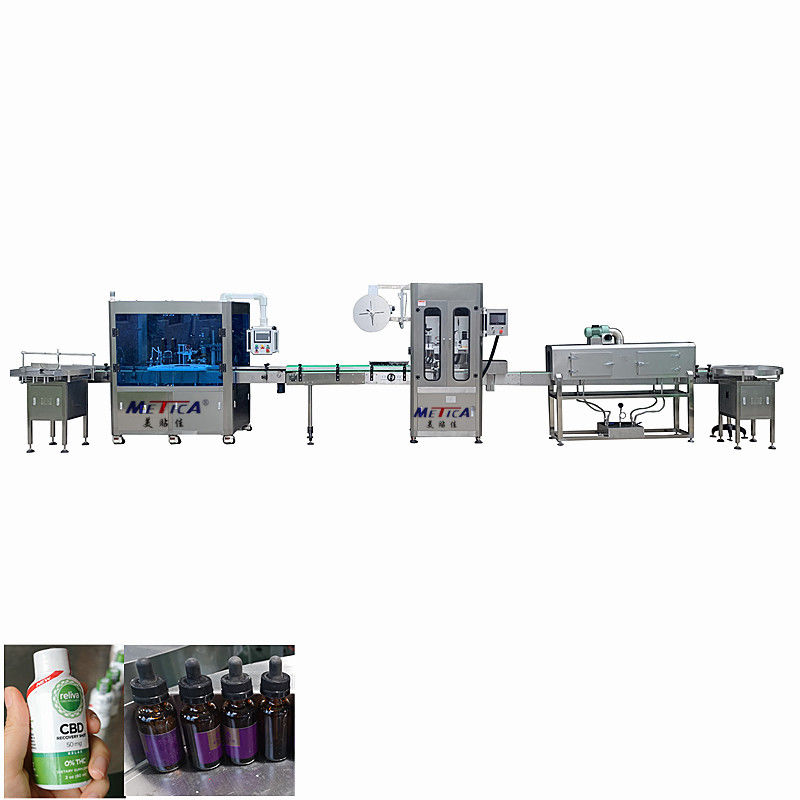

Automatic CBD Oil Filling Capping Labeling Machine Line for Small Glass Dropper Bottle



Application :

  • The filling machine line is widely used in CBD oil, E-Cigarette, Pharmaceutical, Health Care industries.
  • It's suitable for small volume 10-100 ml liquid automatic packing, like CBD oil, Essential oil, E-Cigarette Oil, Eye Drop, Oral Liquid and so on.



Machines Recommended :

  • Turn table for feeding bottles

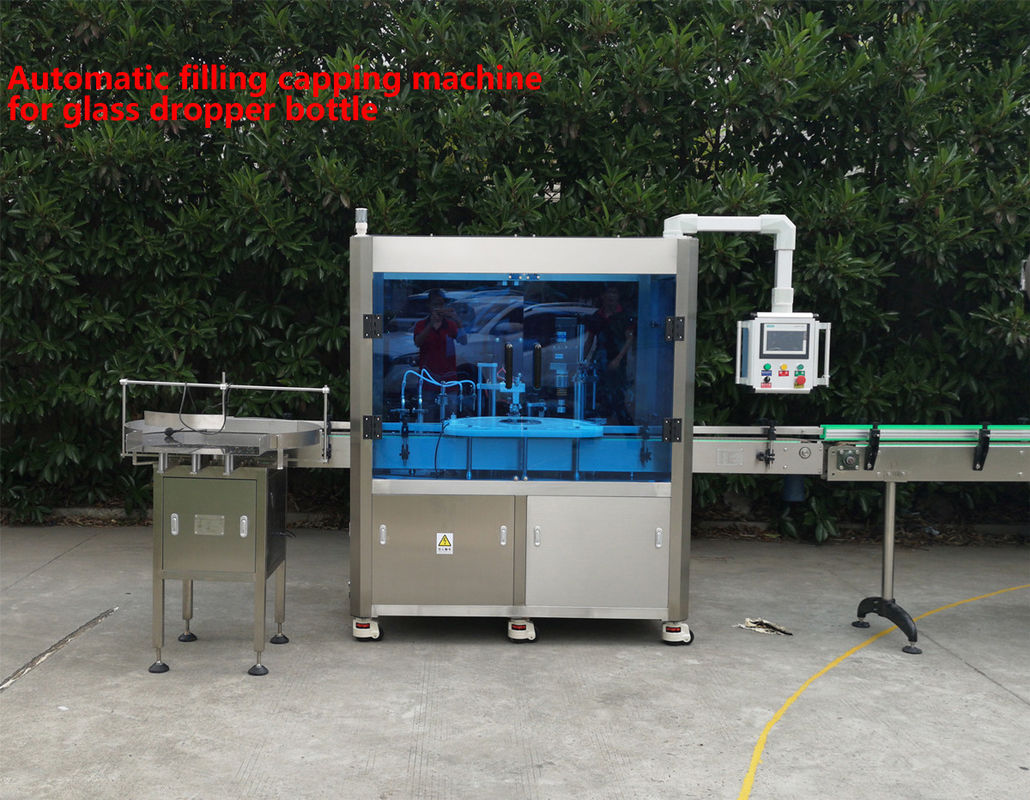

  • Automatic filling and capping machine in one machine
  • Automation round bottle positioning labeling machine with date printer

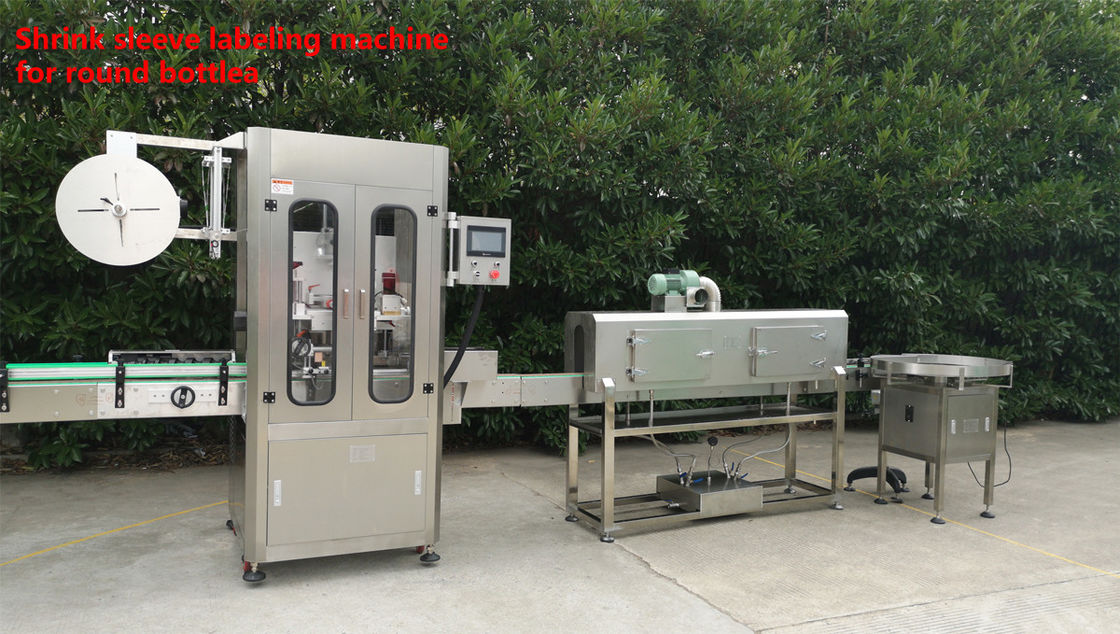

  • Automatic shrink sleeve labeling machine
  • Turn table for collecting bottles



Work process:

  • Put bottles on the turn table by hand
  • Bottles conveyed to filling capping machine to fill automatically
  • Bottle conveyed to cap automatically after filling
  • Automatic labeling or sleeve shrink labeling machine
  • Collect bottles with a turn table



Spec and Feature

  • The whole machine line is designed especially for 10-100ml liquid filling, capping, labeling
  • The line speed is 20-35 bottles per minute(we can make higher speed machine according to customer's requirements)
  • Filling plugging-in and capping machine in one machine, save space and away from pollution
  • Adopts peristaltic pump or piston pump for filling, high filling precision. No bottle, no fill, no drop, no leak
  • Touch screen, easy operate and adjust human interface. English operation interface
  • The machines can work together smoothly or work alone by PLC control
  • Suitable for different diameter bottles, just need several minutes change parts for different bottles
  • All the machine parts which contact liquid adopt corrosion resisting material and 316 stainless steel
  • The machines have emergency stop Button and automatic interrupt device for safe operation
  • Labors need: 1-2 workers
  • Space for the line: 8000*1500*1900mm

the Whole Line technical parameter

Bottle applied

Round glass dropper bottle or round plastic bottle

Line speed 1800-3000 bottles per hour
Filling volume

10-100 ml (can be customized)

Power

about 5KW

Air pressure and consumption

0.6-0.8Mpa





Oral Liquid Bottling And Labeling Machine 0.6-0.8Mpa Glass Bottle Filling Machine 0

Oral Liquid Bottling And Labeling Machine 0.6-0.8Mpa Glass Bottle Filling Machine 1

Oral Liquid Bottling And Labeling Machine 0.6-0.8Mpa Glass Bottle Filling Machine 2



Labeling machine(optional):

Oral Liquid Bottling And Labeling Machine 0.6-0.8Mpa Glass Bottle Filling Machine 3

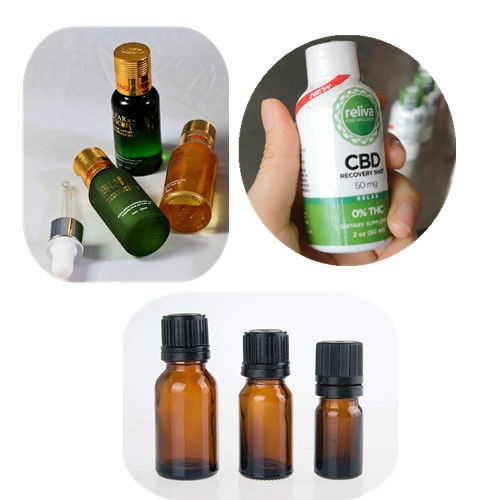

Samples display:

Oral Liquid Bottling And Labeling Machine 0.6-0.8Mpa Glass Bottle Filling Machine 4



Company Profile:



Metica Machinery (Shanghai) Co., Ltd. established in 2008, our company is a professional packaging machinery supplier integrating research, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We are located in Shanghai, very convenient in factory visiting, and goods shipping. We have more than ten years experience in automatic packaging machinery. Since the date of establishment, our company has always been pursuing the better product quality and service. Our affiliated factories dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We can also provide customers with research and development of various non-standard machines. In addition, we have obtained CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and North America, Southeast Asia, the Middle East, Africa and South America. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Warmly welcome friends all over the world to contact for cooperation, we do believe we will be good business partners. We provide strong support with machines, solutions, information.
