Servo Driven Bottling Production Line 3Kw 220V For Loose Powder

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTPF-1000
Minimum Order Quantity: 1 SET
Price: USD 10000-16000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Loose Powder And Cosmetic Powder Filling Machine Line Application: For Cosmetic Products
Capacity: 100-2000 BPH(customizable) Filling Accuracy: >=99%
Length Of The Filling Line: 8 M Warranty: One-Year
Automatic Grade: Automatic Filling, Capping, Weighing An Labeling Driven Type: Electric
Voltage: 220V, 50/60HZ Type: Filling Machine Line For Loose Powder
Bottle Type: Plastic Bottle And Glass Bottle,small Square Bottle,flat Bottle,round Bottle
High Light:

Loose Powder Bottle Filling Line 3Kw

,

Servo Driven Bottling Production Line

,

Powder Filling Capping Machine 220V


Product Description

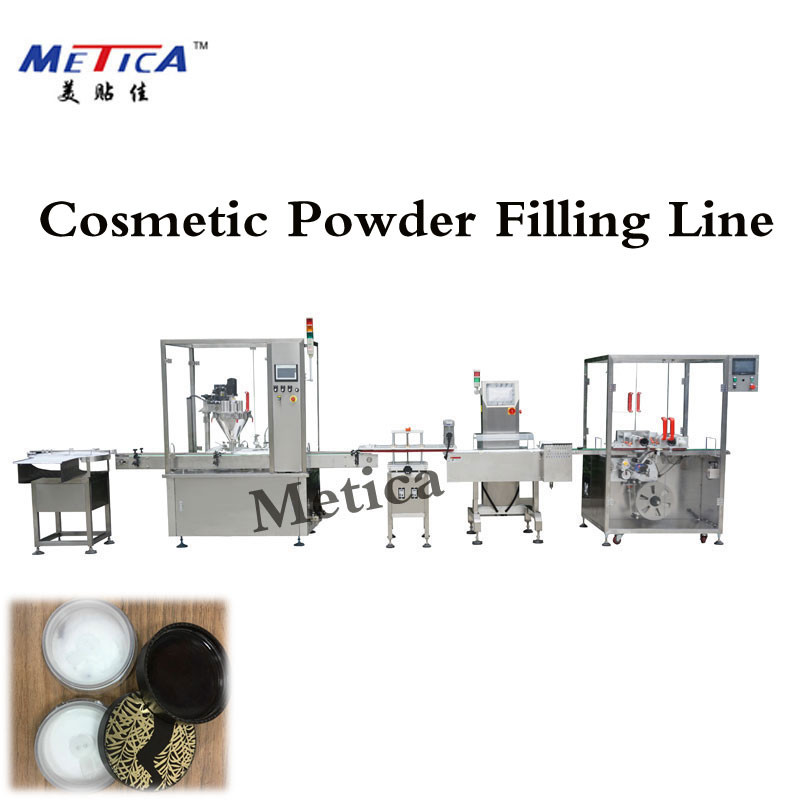

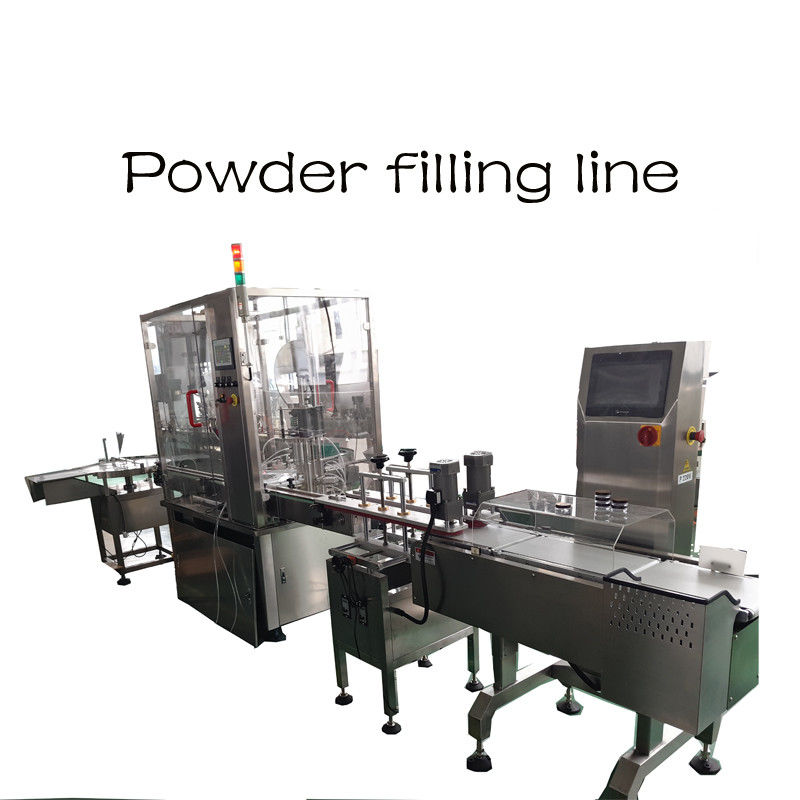

Automatic Loose Powder Filling Capping Machine Line Bottling Production Line



Application:

  • 1. The filling capping and labeling machine is widely used in Pharmaceutical, Health Care industries.
  • 2. This powder filling capping and labeling machine line is suitable for small volume 10-100ml powder automatic packing, like loose powder, Freeze-dried powder,pepper and so on.



Machines included:

  • 1. Full automatic bottle sorting machine
  • 2. Automatic filling plugging and capping machine in 1 machine
  • 3. Automatic bottle clamping
  • 4. Automatic weighting machine
  • 5. Automatic top and bottom labeling machine
  • 6. Auto collecting products



Spec and Feature

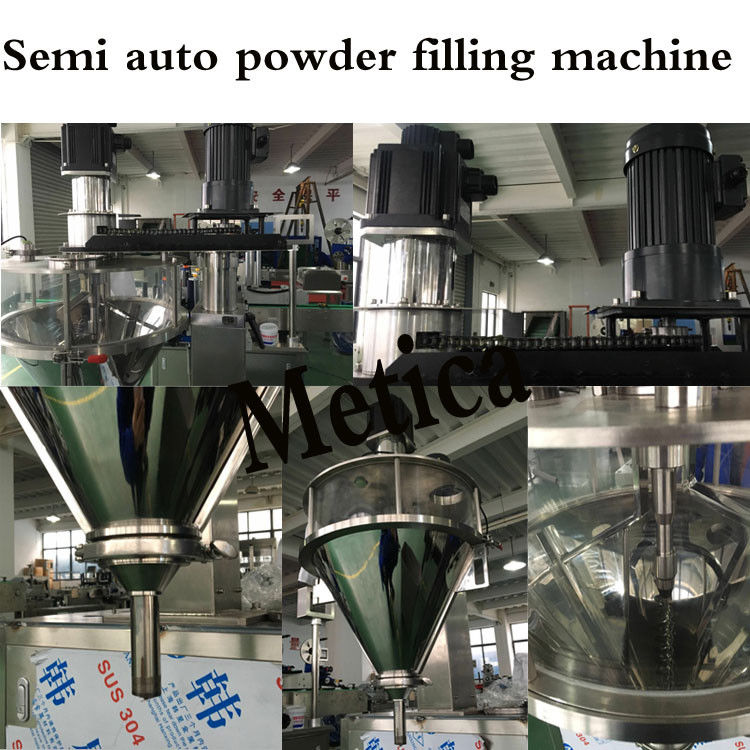

  • Adopts servo motor driven filling system. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts one or two filling nozzles, the more filling nozzles, the higher capacity.
  • Filling volume is adjustable in certain filling volume scope.
  • Single nozzle is micro adjustable.
  • Compact models, operation stability, simple operation, easy cleaning
  • PLC,Touch screen human-computer interface with simple operation



Technical Parameters

Speed 15-30 BPM(can be customized)
Filling accuracy +/- 2%
Filling volume 10-500 g(can be customized)
Filling method servo motor driven
Power supply 220V 50/60 Hz, 3 kw
Air supply 0.8MPa
Bottle applicable A wide shape range
Application Powder products packaging
Feature PLC, touch screen



Servo Driven Bottling Production Line 3Kw 220V For Loose Powder 0

Servo Driven Bottling Production Line 3Kw 220V For Loose Powder 1Servo Driven Bottling Production Line 3Kw 220V For Loose Powder 2Servo Driven Bottling Production Line 3Kw 220V For Loose Powder 3



Project Examples

Servo Driven Bottling Production Line 3Kw 220V For Loose Powder 4





Service flow:

Servo Driven Bottling Production Line 3Kw 220V For Loose Powder 5





Pre-sale Service:

Servo Driven Bottling Production Line 3Kw 220V For Loose Powder 6



Servo Driven Bottling Production Line 3Kw 220V For Loose Powder 7



Packing&Shipping:

Servo Driven Bottling Production Line 3Kw 220V For Loose Powder 8



After-sale service:

Servo Driven Bottling Production Line 3Kw 220V For Loose Powder 9



Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We are located in Shanghai, very convenient in factory visiting, and goods shipping. We have more than ten years experience in automatic packaging machinery. We make machines as per GMP Standard. In addition, we have obtained CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and North America, Southeast Asia, the Middle East, Africa and South America. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Warmly welcome friends all over the world to contact for cooperation, we do believe we will be good business partners. We provide strong support with machines, solutions, information.
