Automatic Rotary Type Glass Bottle Capping Machine SS304 2000bph

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTCP-100
Minimum Order Quantity: 1 SET
Price: USD 7000-10000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Glass Bottle Capping Machine, Lug Cap Capping Machine Application: Suit For Screw Cap Or Press Type Cap/twist Off Cap
Capacity: 1000-3000BPH(customizable) Qualified Rate Of Capping: Over 99%
Machine Size: 2500*1000*1900mm³ Warranty: 1 Year Warranty
Material: SS 304 (customizable) Other Name: Glass Bottle Cap Sealing Machine
High Light:

SS304 Rotary Glass Bottle Capping Machine

,

Bottle Capping Machine 2000bph

,

Automatic Bottle Screw Capping Machine


Product Description

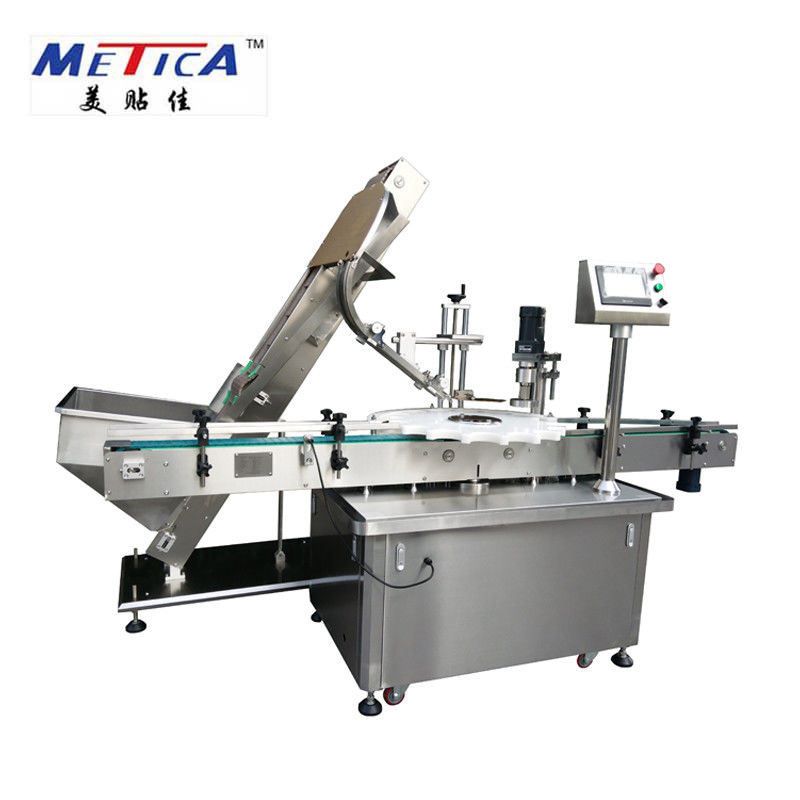

Automatic rotary type bottle capping machine for screw caps and press caps





Auto Capping Machine Application



  • MTCP-100 automatic plastic bottle screw capping machine is our new designed product recently.
  • Automatic capping machine adopts rotary plate to positioning the bottle and capping.
  • The type machine is widely used in packaging cosmetic,chemical,foods,pharmaceutical,pesticides industry and so on.
  • The bottle capping machine adopts Frequency controlled drive,and transportation exit is adjustable,so it could meet different packaging machinery pipeline request.
  • It uses PLC programmable control.Structure compact,just used similar size of bottles and caps.





Capping Machine Features



  • Automatic Feeding with Feeding Plate or Vibration bowl and Feeding Track
  • Automatic Capping for all kinds of caps, such as lug/twits off caps, plastic screw caps and so on





  • We can also design machine according to customer's special requirements.



Speed  1500-3000 bph (customizable)
Capping accuracy >99%
Caps applicable Screw caps or press caps
Caps' diameter range 20-80mm (can be customized)
Power supply 220V 50hz 1kw
Air supply 0.6MPa
Bottle applicable a wide shape range
Caps feeding device Lifter or vibration bowel
Feature PLC, touch screen, with clutch



Automatic Rotary Type Glass Bottle Capping Machine SS304  2000bph 0

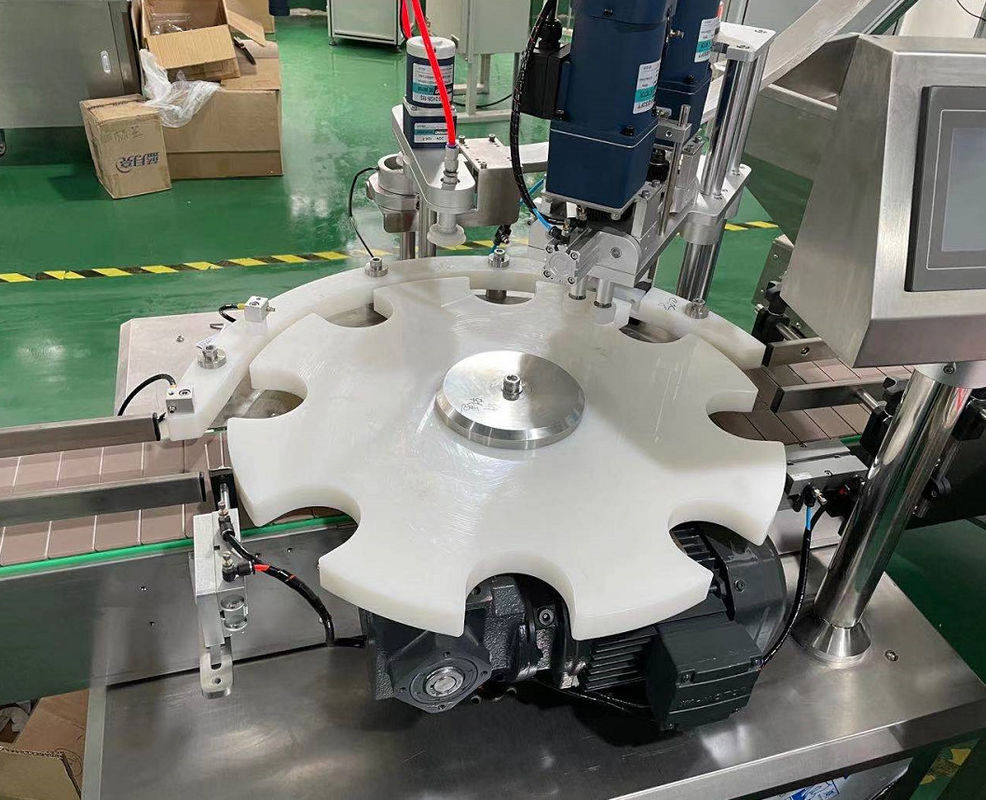

Star wheel for fixing the bottle:

Automatic Rotary Type Glass Bottle Capping Machine SS304  2000bph 1





Two capping methods for your option:

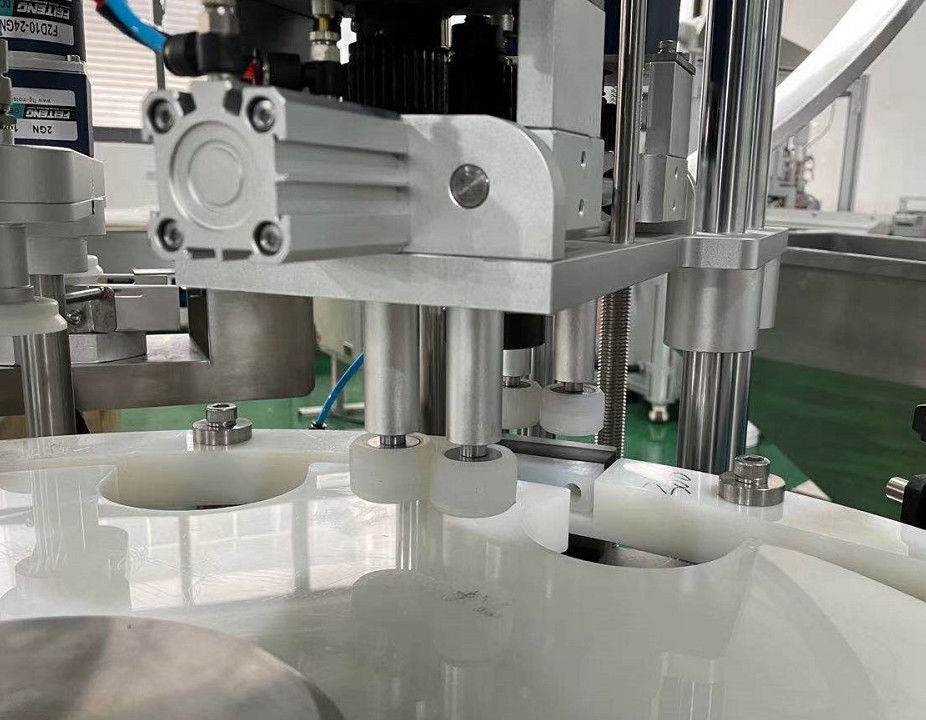

Rubber wheels for capping:

Automatic Rotary Type Glass Bottle Capping Machine SS304  2000bph 2

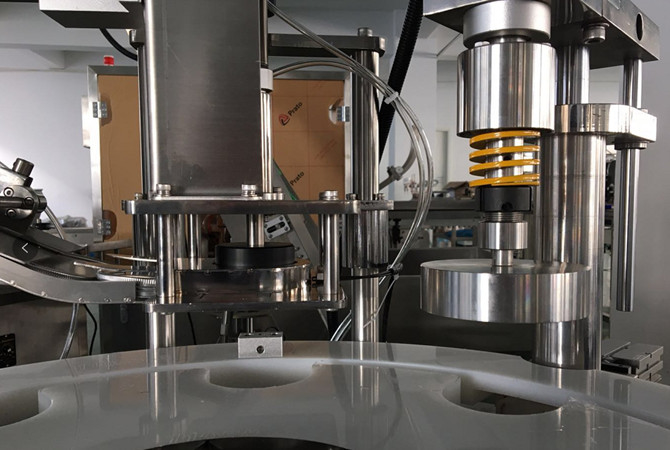

Screw capping head for capping:

Automatic Rotary Type Glass Bottle Capping Machine SS304  2000bph 3

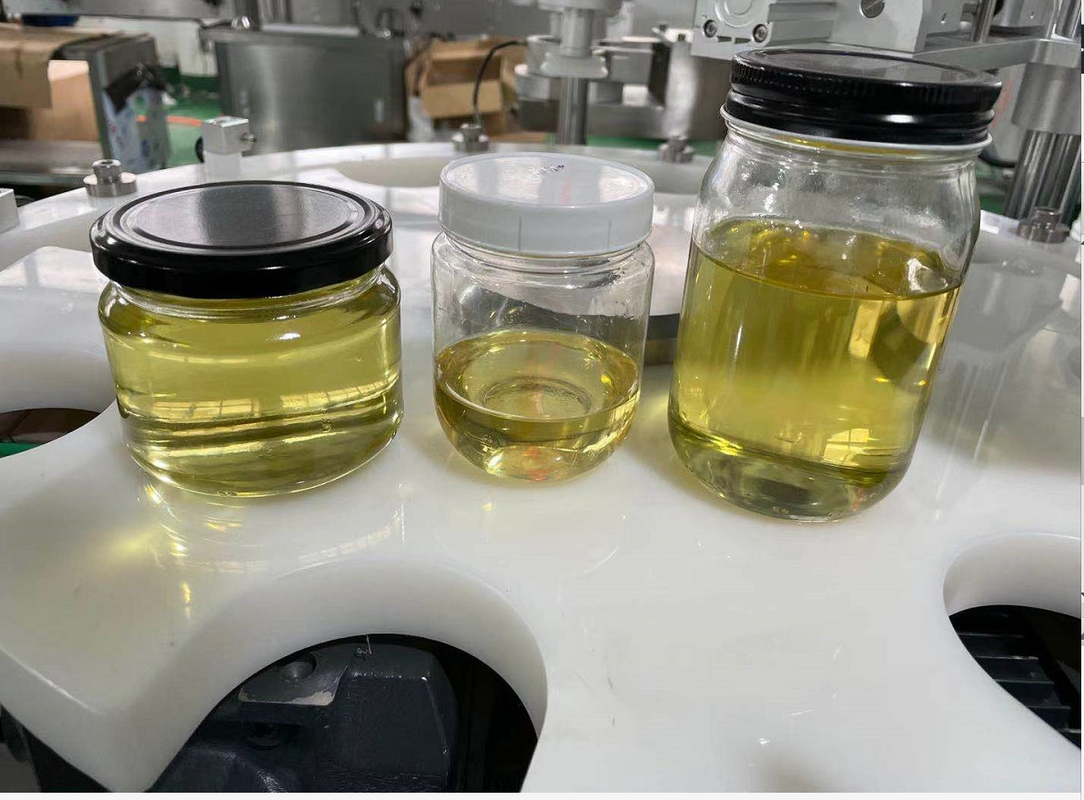

Samples display:

Automatic Rotary Type Glass Bottle Capping Machine SS304  2000bph 4

Automatic Rotary Type Glass Bottle Capping Machine SS304  2000bph 5



Service flow:

Automatic Rotary Type Glass Bottle Capping Machine SS304  2000bph 6





Pre-sale Service:

Automatic Rotary Type Glass Bottle Capping Machine SS304  2000bph 7



Automatic Rotary Type Glass Bottle Capping Machine SS304  2000bph 8



Packing&Shipping:

Automatic Rotary Type Glass Bottle Capping Machine SS304  2000bph 9



After-sale service:

Automatic Rotary Type Glass Bottle Capping Machine SS304  2000bph 10
