6000bph 8 Heads High Speed Rotary Bottle Capping Machine For Plastic And Glass Bottle

6000bph 8 Heads High Speed Rotary Bottle Capping Machine For Plastic And Glass Bottle

6000bph Bottle Capping Machine

8 Heads Plastic Bottle Capping Machine

High Speed Bottle Capping Machine

Place of Origin:

Shanghai

Brand Name:

METICA

Certification:

CE

Model Number:

MTHX-800

Contact Us
Request A Quote
Product Details
Name:
High Speed Plastic Bottle Capping Machine
Application:
Beverage,Food,Medical,Chemical,Commodity Etc...
Capacity:
5000-8000 BPH (customizable)
Qualified Rate Of Capping:
>99%
Machine Size:
2500*1200*2000 Mm
Warranty:
1 Year
Packaging Type:
Plastic Bottle
Product Name:
High Speed Screw Cap Capping Machine
Driven Type:
Electric And Pneumatic
Type:
High Speed Capping Machine
Usage:
Screw Cap And Press Cap
High Light:

6000bph Bottle Capping Machine

,

8 Heads Plastic Bottle Capping Machine

,

High Speed Bottle Capping Machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 10000-30000/SET
Packaging Details
Fumigation-free wooden boxes that meet international standards
Delivery Time
15-30 days
Payment Terms
L/C, T/T
Supply Ability
100 SETS PER MONTH
Product Description

100BPM Automatic High Speed Rotary Capping Machine For Plastic Bottle



Application

  • MTHX-800 high speed automatic bottle screw capping machine is our new designed product recently.
  • Automatic capping machine adopts rotary plate to positioning the bottle and capping.
  • The type machine is widely used in packaging cosmetic,chemical,foods,pharmaceutical,pesticides industry and so on.
  • The bottle capping machine adopts Frequency controlled drive,and transportation exit is adjustable,so it could meet different packaging machinery pipeline request.
  • It uses PLC programmable control.Structure compact,just used similar size of bottles and caps.
  • Capacity is up to 100 bottles per minutes



Features

  • Adopt rotary type capping station, speed is higher.
  • Automatic Feeding with Feeding Plate or Vibration bowl and Feeding Track
  • Automatic Capping for all kinds of caps, such as lug/twits off caps, plastic screw caps and so on
  • We can also design machine according to customer's special requirements.



Paremeter



Speed 5000-8000 BPH
Capping accuracy >99%
Caps applicable Screw caps or press caps
Caps size range 20-80mm (can be customized)
Power supply 220V 50/60Hz, 3KW
Air supply 0.6 MPa
Machine size 250*120*200 cm
Bottle applicable a wide shape range
Caps feeding Lifter or vibration bowel
Feature PLC, touch screen, with clutch

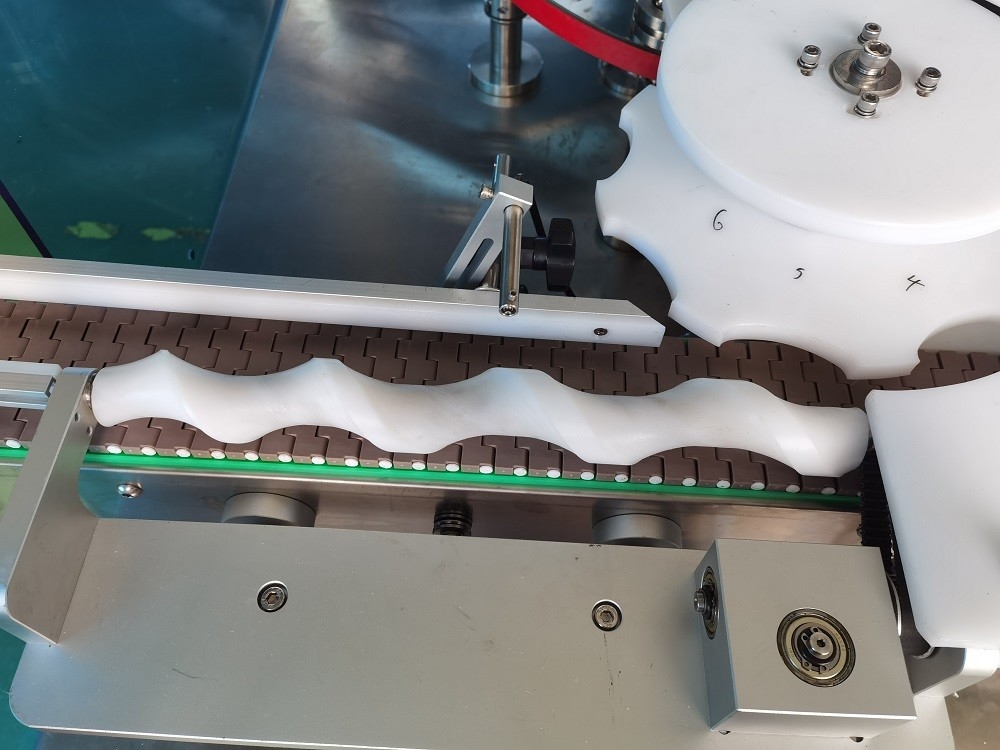

6000bph 8 Heads High Speed Rotary Bottle Capping Machine For Plastic And Glass Bottle 0

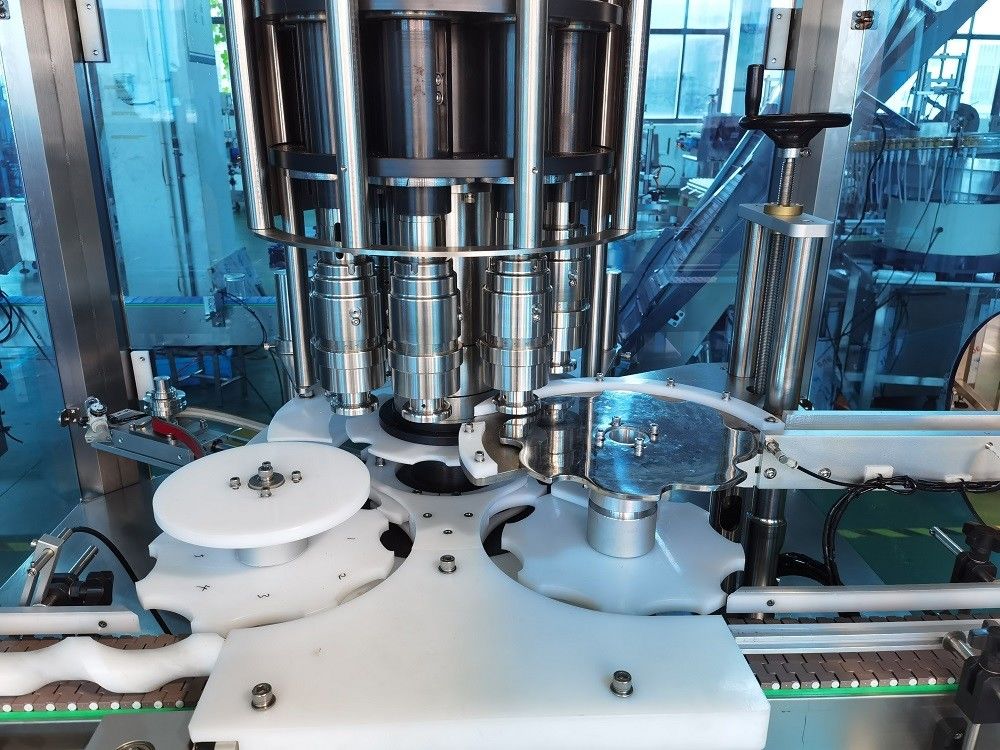

6000bph 8 Heads High Speed Rotary Bottle Capping Machine For Plastic And Glass Bottle 1

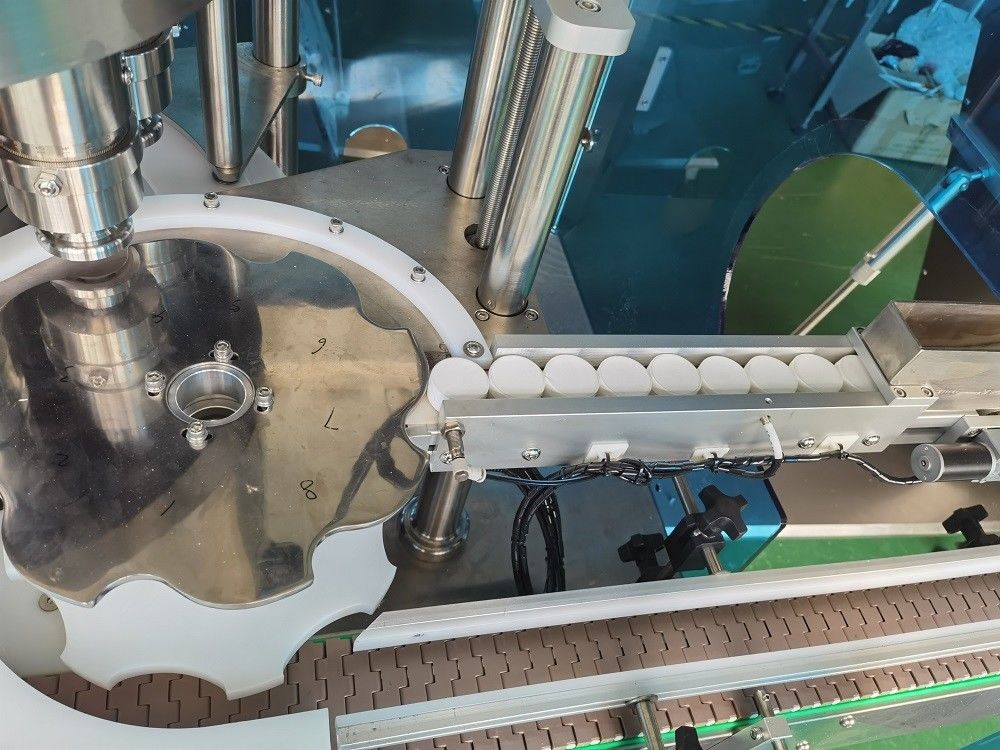

6000bph 8 Heads High Speed Rotary Bottle Capping Machine For Plastic And Glass Bottle 26000bph 8 Heads High Speed Rotary Bottle Capping Machine For Plastic And Glass Bottle 3

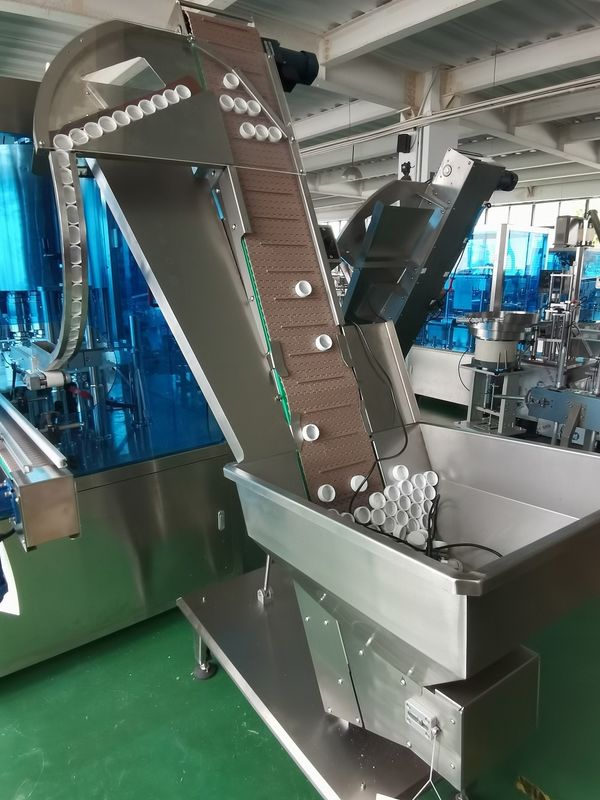

6000bph 8 Heads High Speed Rotary Bottle Capping Machine For Plastic And Glass Bottle 4



Samples display:

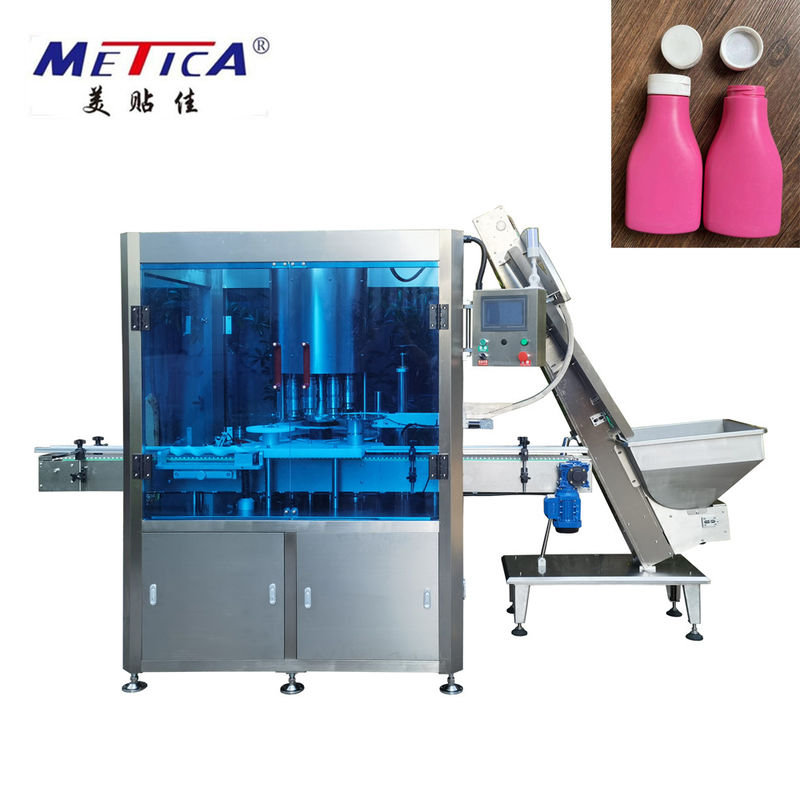

6000bph 8 Heads High Speed Rotary Bottle Capping Machine For Plastic And Glass Bottle 5

6000bph 8 Heads High Speed Rotary Bottle Capping Machine For Plastic And Glass Bottle 6





Metica Machinery (Shanghai) Co., Ltd. established in 2008, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line.

We are located in Shanghai, very convenient in factory visiting, and goods shipping.

We have more than ten years experience in automatic packaging machinery. Since the date of establishment, our company has always been pursuing the best product quality and service. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We can also provide customers with the manufacture and development of various non-standard machines. We make machines as per GMP Standard. In addition, we have obtained CE certificates.
