Twin Heads Juice Bottle Capping Machine High Speed Rotary

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTCP-2100
Minimum Order Quantity: 1 SET
Price: USD 7000-15000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Juice Bottle High Speed Plastic Bottle Capping Machine Application: Beverage,Food,Medical,Chemical,Commodity Etc...
Capacity: 2000-4000 BPH (customizable) Qualified Rate Of Capping: >99%
Machine Size: 2500*1200*1900 Mm³ Warranty: One Year
Packaging Type: Plastic Bottle And Glass Jar And Similar Container Product Name: Juice Bottle High Speed Screw Cap Capping Machine
Driven Type: Electric And Pneumatic Combined Type: Capping Machine
Usage: Screw Cap And Press Cap, Bottle Capping
High Light:

Juice Bottle Capping Machine

,

Rotary Bottle Cap Sealing Machine

,

Bottle Automatic Capping Machine 2000BPH


Product Description

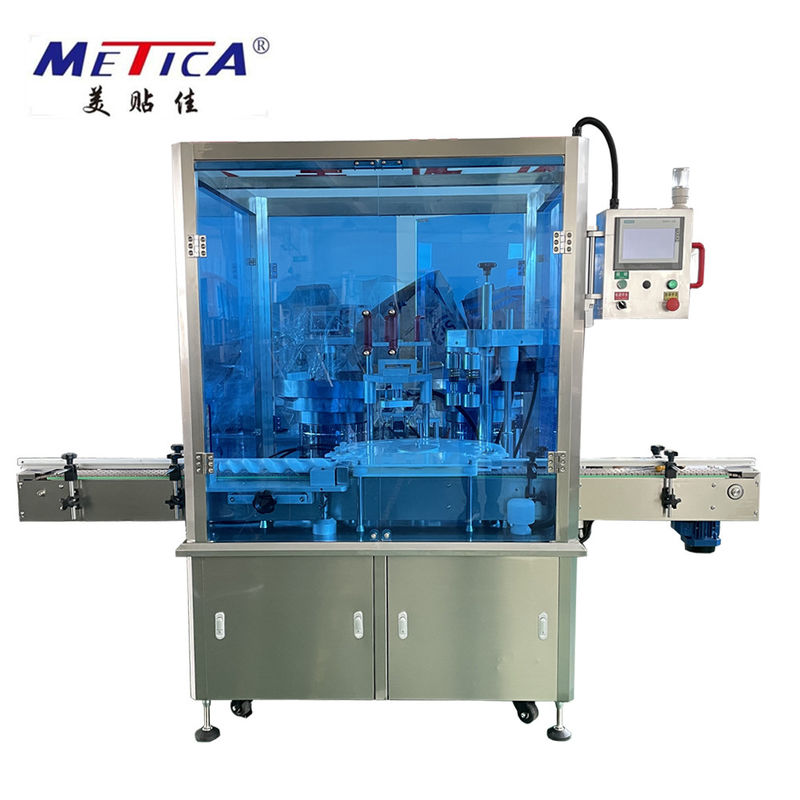

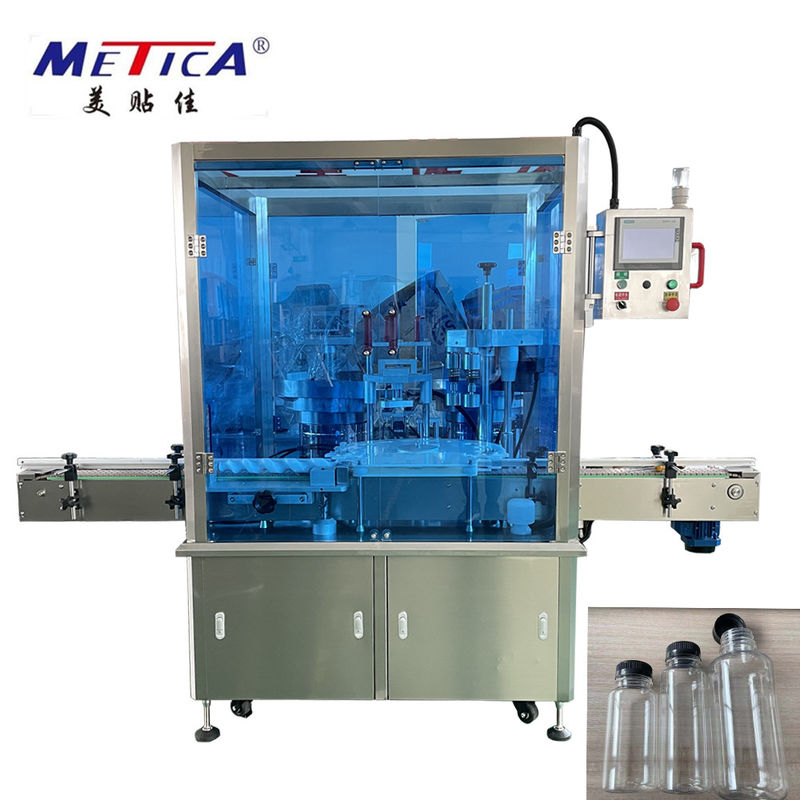

Juice Bottle High Speed Rotary Type Bottle Capping Machine With Twin Capping Heads



Application

  • MTCP-2100 automatic bottle screw capping machine is our new designed product recently.
  • Automatic capping machine adopts rotary plate to positioning the bottle and capping.
  • The type machine is widely used in packaging cosmetic,chemical,foods,pharmaceutical,pesticides industry and so on.
  • The bottle capping machine adopts Frequency controlled drive,and transportation exit is adjustable,so it could meet different packaging machinery pipeline request.
  • It uses PLC programmable control.Structure compact,just used similar size of bottles and caps.



Features

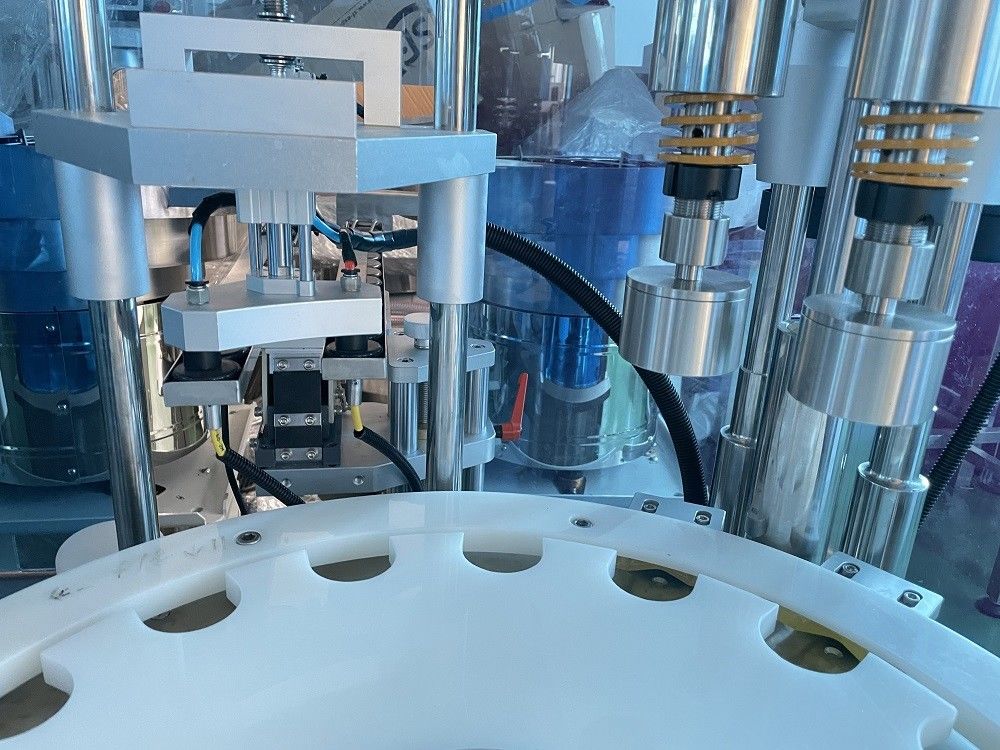

  • Adopt two cap load station and capping station, speed is higher.

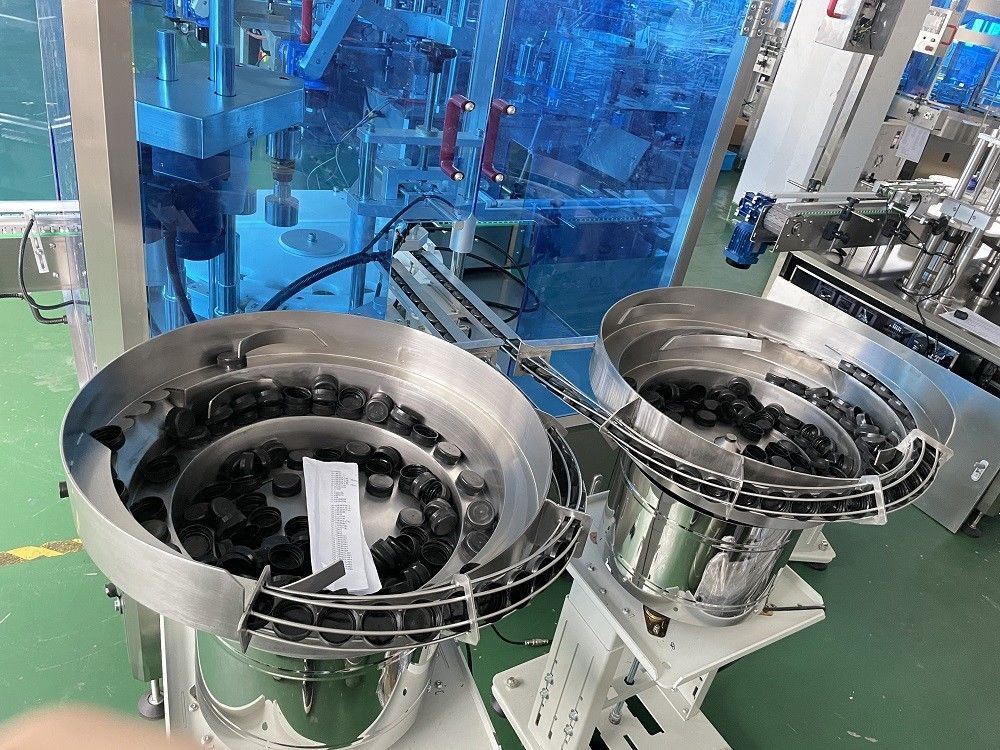

  • Automatic Feeding with Feeding Plate or Vibration bowl and Feeding Track
  • Automatic Capping for all kinds of caps, such as lug/twits off caps, plastic screw caps and so on
  • We can also design machine according to customer's special requirements.



Paremeter



Speed 2000-4000 BPH
Capping accuracy >99%
Caps applicable Screw caps or press caps
Caps size range 20-80mm (can be customized)
Power supply 220V 50/60Hz, 3KW
Air supply 0.6 MPa
Machine size 250*120*190 cm
Bottle applicable a wide shape range
Caps feeding Lifter or vibration bowel
Feature PLC, touch screen, with clutch

Twin Heads Juice Bottle Capping Machine High Speed Rotary 0

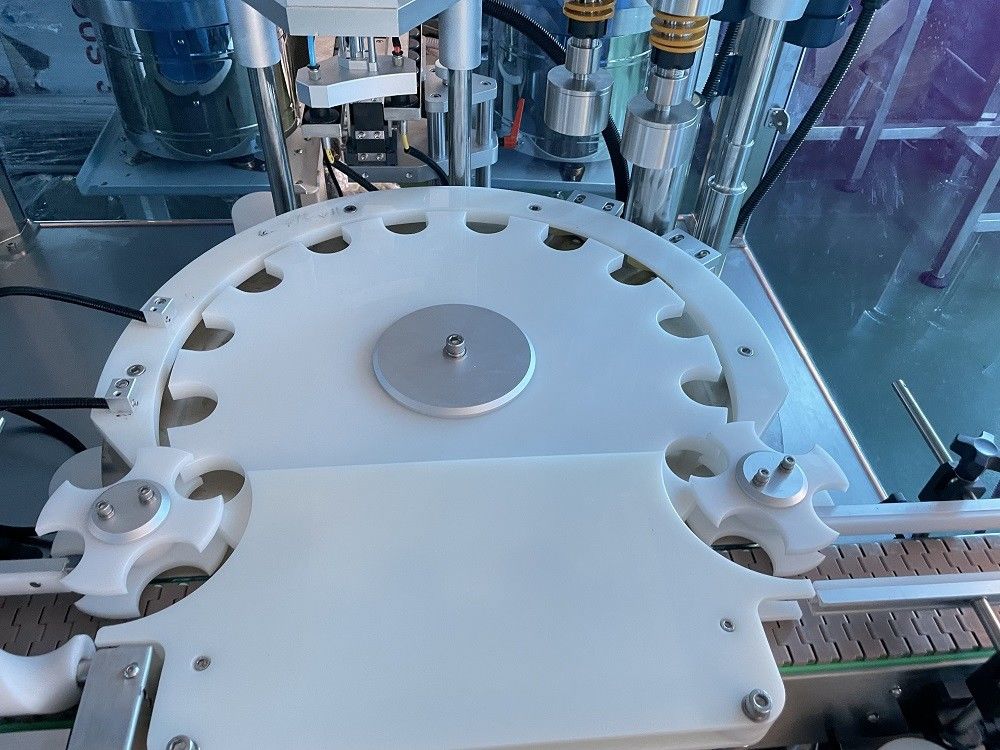

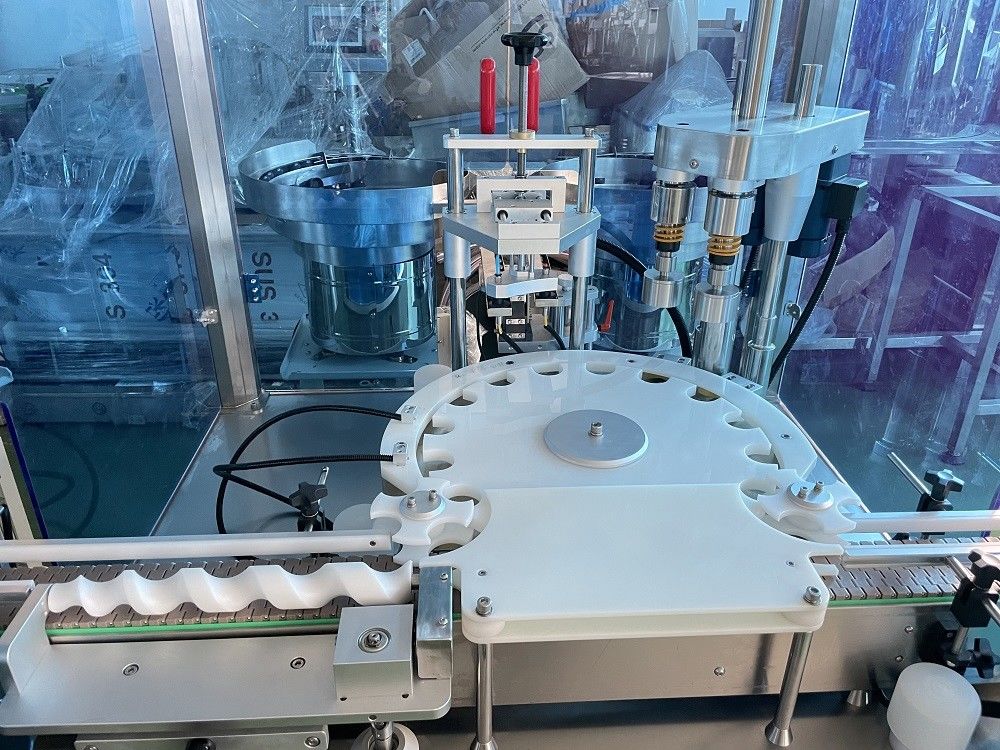

Star wheel for fixing the bottle:

Twin Heads Juice Bottle Capping Machine High Speed Rotary 1

Twin Heads Juice Bottle Capping Machine High Speed Rotary 2Twin Heads Juice Bottle Capping Machine High Speed Rotary 3

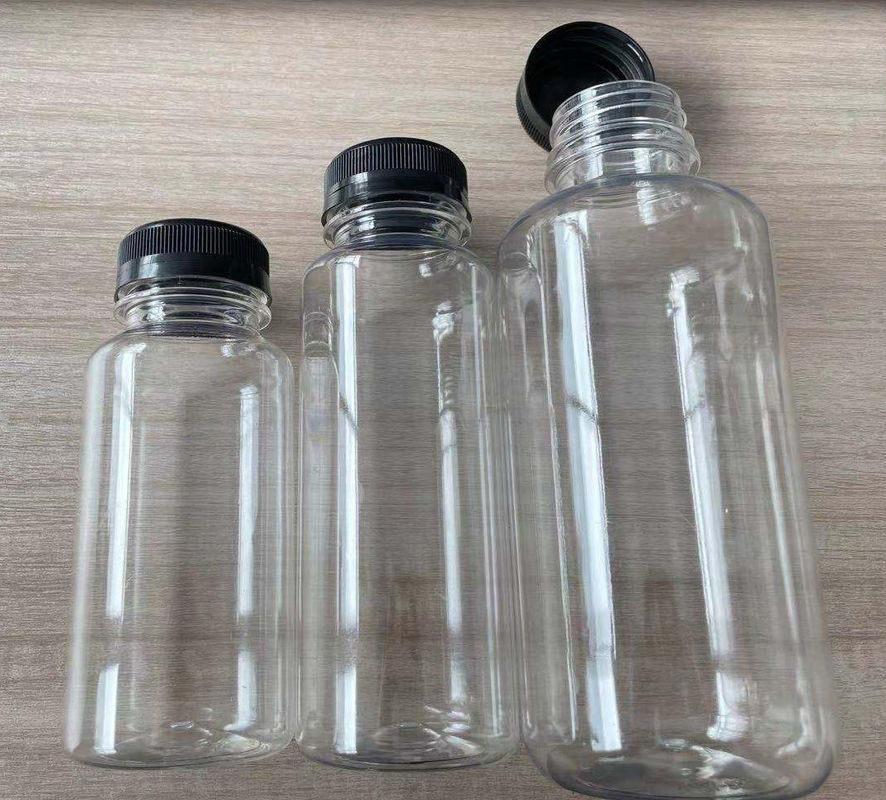

Samples display:

Twin Heads Juice Bottle Capping Machine High Speed Rotary 4

Twin Heads Juice Bottle Capping Machine High Speed Rotary 5



Service flow:

Twin Heads Juice Bottle Capping Machine High Speed Rotary 6





Pre-sale Service:

Twin Heads Juice Bottle Capping Machine High Speed Rotary 7



Twin Heads Juice Bottle Capping Machine High Speed Rotary 8



Packing&Shipping:

Twin Heads Juice Bottle Capping Machine High Speed Rotary 9



After-sale service:

Twin Heads Juice Bottle Capping Machine High Speed Rotary 10



Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We have more than ten years experience in automatic packaging machinery. We make machines as per GMP Standard. In addition, we have obtained CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and North America, Southeast Asia, the Middle East, Africa and South America.
