1L Engine Oil Bottle Capping Machine 900BPH-1500BPH Automatic Bottle Capper

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTCY-100
Minimum Order Quantity: 1 SET
Price: USD 7000-12000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: 1L Engine Oil Bottle Capacity: 900-1500 BPH
Qualified Rate Of Capping: More Than 99% Machine Size: 3100*900*2200 Mm³
Warranty: 1 Year Warranty Packaging Type: Bottles/jars/cans And So On
Product Name: Full Automatic Capping Machine Type: Capping Machine With Cap Feeder
Application: Beverage,Food,Medical,Chemical,Commodity Etc... After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support
High Light:

1L Engine Oil Bottle Capping Machine

,

1500BPH Automatic Bottle Capper

,

1kw Oil Bottle Capping Machine


Product Description

Automatic 1L Engine Oil Bottle Capping Machine



Auto Capping Machine Application

  • Used for Linear Packaging line for all kinds of Screw Caps and Press Caps,Theft Proof Caps, automatically Feeding Caps and Capping
  • Good for engine oil bottle and deible oil bottle capping. Customized capping machine is available


Capping Machine Features:

  • Automatic Feeding with Feeding Plate and Feeding Track
  • Automatic Linear Capping for all kinds of caps
  • High precision and good stability
  • The machine is operated by touch screen. Easy and convenient.

  • E-stop button can stop machine right away once the machine has any problem.

  • The capping head can screw cap and press cap. It can change mode by touch screen.


Workflow:

  • 1) Manually put bottles on the conveyor
  • 2) Automatic feeding caps from lift machine or vibration plate
  • 3) Bottles conveyed to capping machine to screw/press cap automatically
  • 4) Collect bottles with a turn table(optional)



Paremeter

Speed  1000-1500 bph (customizable)
Capping accuracy more than 99%
Caps applicable Screw caps or press caps
Caps' diameter range 20-80mm (can be customized)
Power supply 220V 50hz 1kw
Air supply 0.6MPa
Bottle applicable a wide shape range
Caps feeding device Lifter or vibration plate
Feature PLC, touch screen

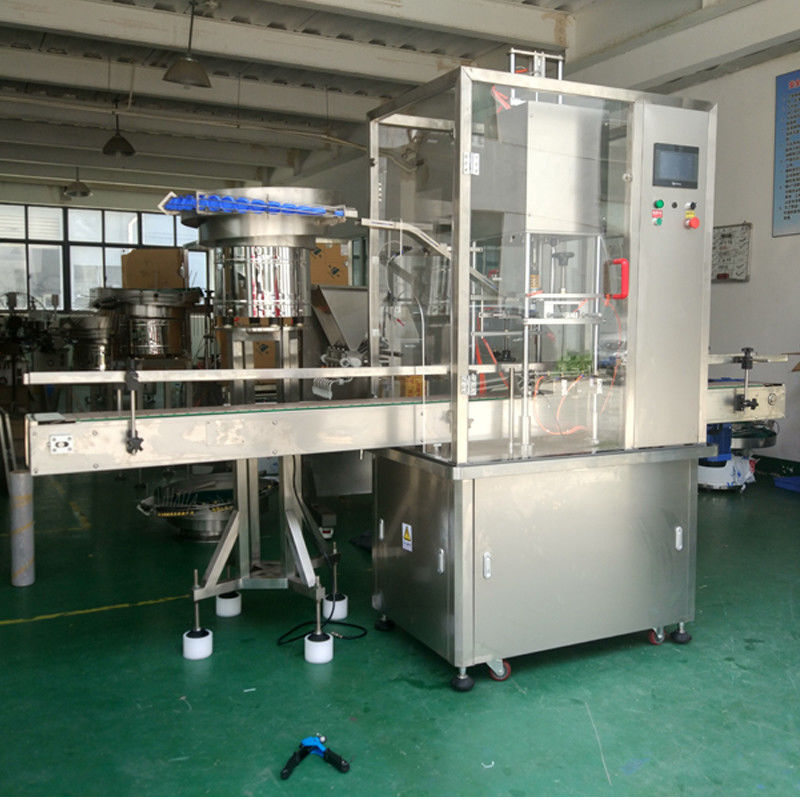

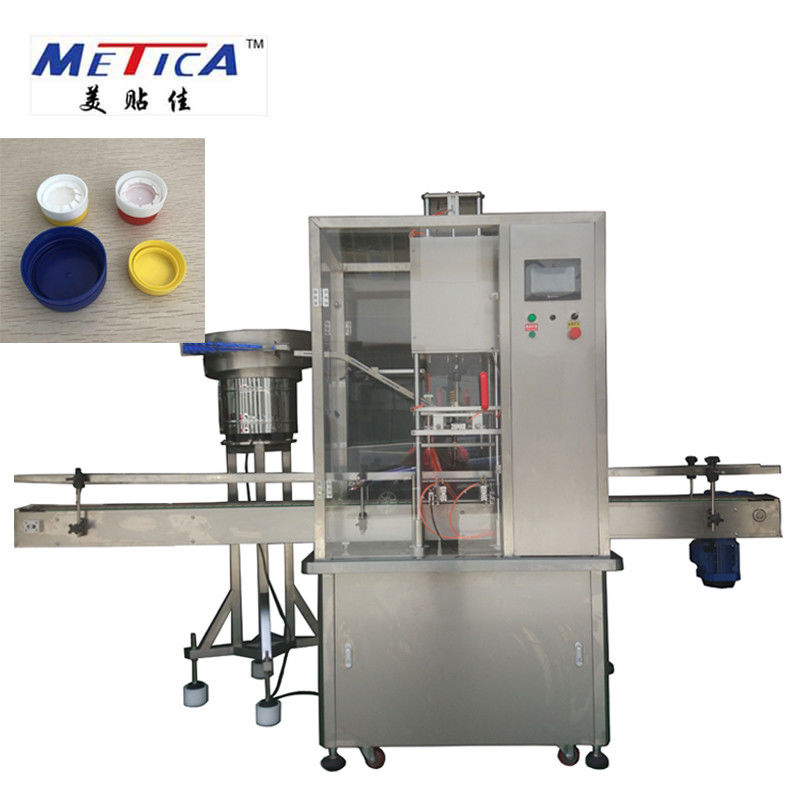

1L Engine Oil Bottle Capping Machine 900BPH-1500BPH Automatic Bottle Capper 01L Engine Oil Bottle Capping Machine 900BPH-1500BPH Automatic Bottle Capper 11L Engine Oil Bottle Capping Machine 900BPH-1500BPH Automatic Bottle Capper 2



Samples display:

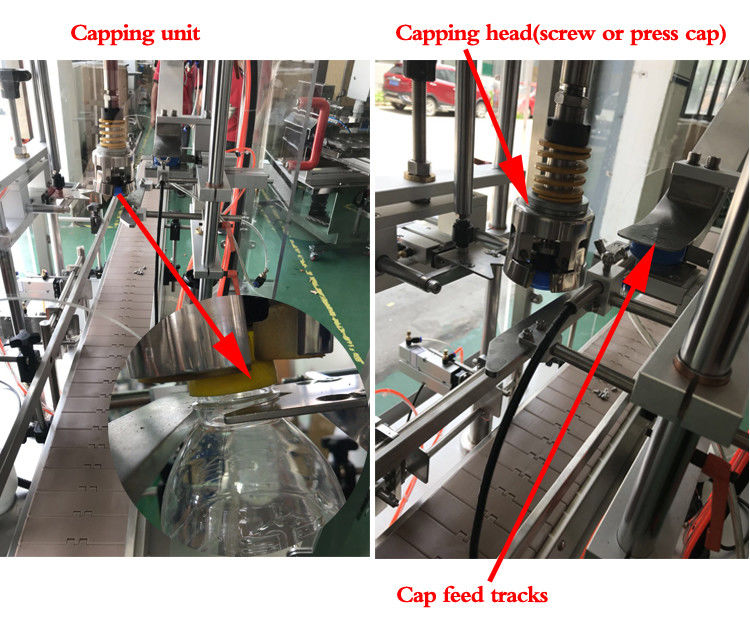

1L Engine Oil Bottle Capping Machine 900BPH-1500BPH Automatic Bottle Capper 3

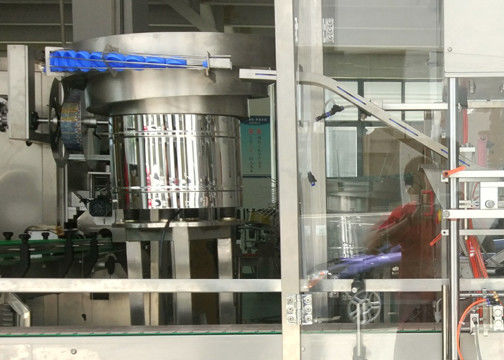

1L Engine Oil Bottle Capping Machine 900BPH-1500BPH Automatic Bottle Capper 4
