products

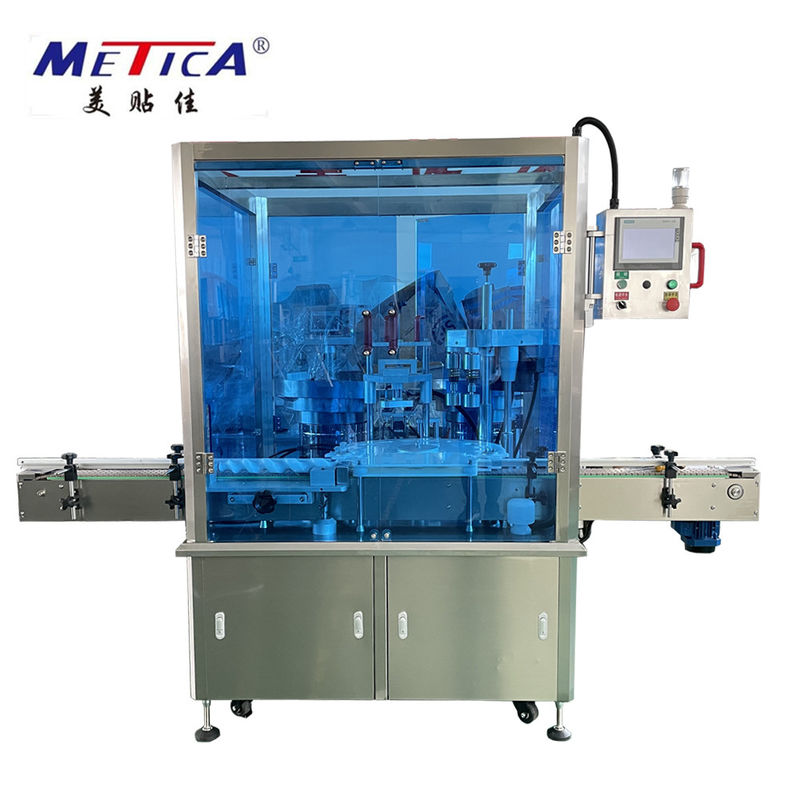

Multifunctional Pet Bottle Capping Machine , Rotary Capper Machine 3000-4000BPH

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTCP-2100
Minimum Order Quantity: 1 SET
Price: USD 7000-15000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: High Speed Rotary Type Bottle Capping Machine Application: Beverage,Food,Medical...
Capacity: 3000-4000 BPH( Can Be Customized) Qualified Rate Of Capping: >99%
Machine Size: 250*120*190 Mm³ Warranty: One Year
Packaging Type: Bottles/jar And So On Product Name: High Speed Rotary Type Screw Cap Capping Machine
Driven Type: Electric,Pneumatic Type: Capping Machine
Usage: Screw Cap,bottle Capping
High Light:

Multifunctional Pet Bottle Capping Machine

,

Pet Bottle Capping Machine 4000BPH

,

Multifunctional Rotary Capper Machine


Product Description

High Speed PET Bottle And Glass Bottle Screw Cap Rotary Type Bottle Capping Machine



Application

  • MTCP-2100 automatic bottle screw capping machine is our new designed product recently.
  • Automatic capping machine adopts rotary plate to positioning the bottle and capping.
  • The type machine is widely used in packaging cosmetic,chemical,foods,pharmaceutical,pesticides industry and so on.
  • The bottle capping machine adopts Frequency controlled drive,and transportation exit is adjustable,so it could meet different packaging machinery pipeline request.
  • It uses PLC programmable control.Structure compact,just used similar size of bottles and caps.



Features

  • Adopt two cap load station and capping station, speed is higher.

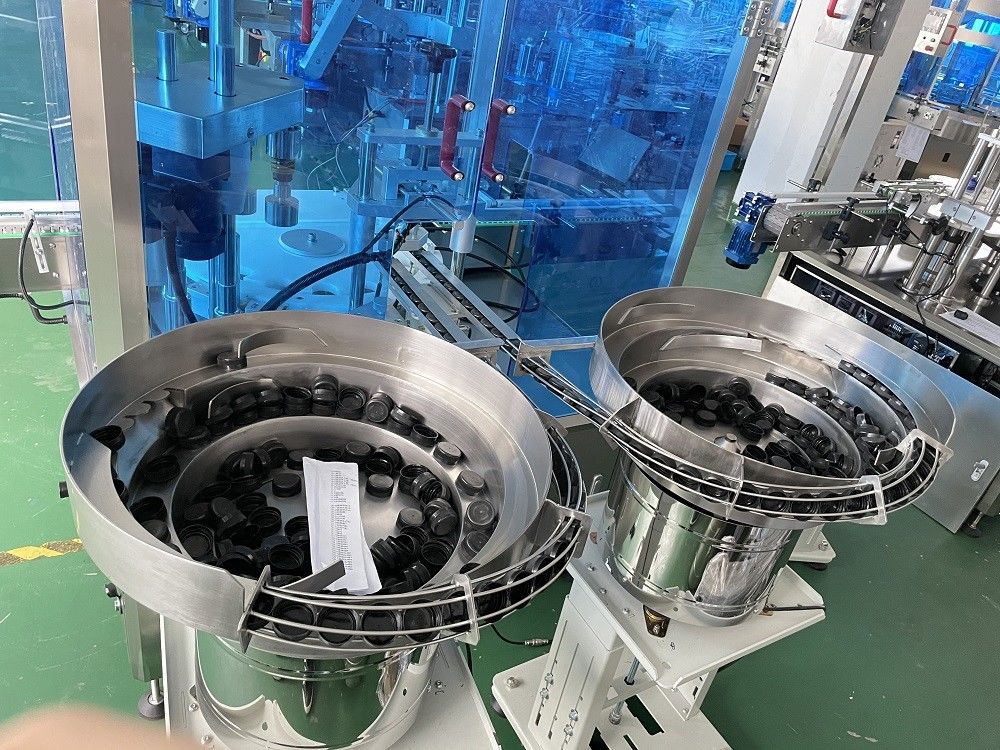

  • Automatic Feeding with Feeding Plate or Vibration bowl and Feeding Track
  • Automatic Capping for all kinds of caps, such as lug/twits off caps, plastic screw caps and so on
  • We can also design machine according to customer's special requirements.



Work flow:

  • Feed bottle on the conveyor or turn table
  • Bottle convey to star wheel
  • Feed cap automatically
  • Capping automatically



Paremeter



Speed 3000-4000 BPH
Capping accuracy >99%
Caps applicable Screw caps or press caps
Caps size range 20-80mm (can be customized)
Power supply 220V 50/60Hz, 3KW
Air supply 0.6 MPa
Machine size 250*120*190 cm
Bottle applicable a wide shape range
Caps feeding Lifter or vibration bowel
Feature PLC, touch screen, with clutch

Multifunctional Pet Bottle Capping Machine , Rotary Capper Machine 3000-4000BPH 0

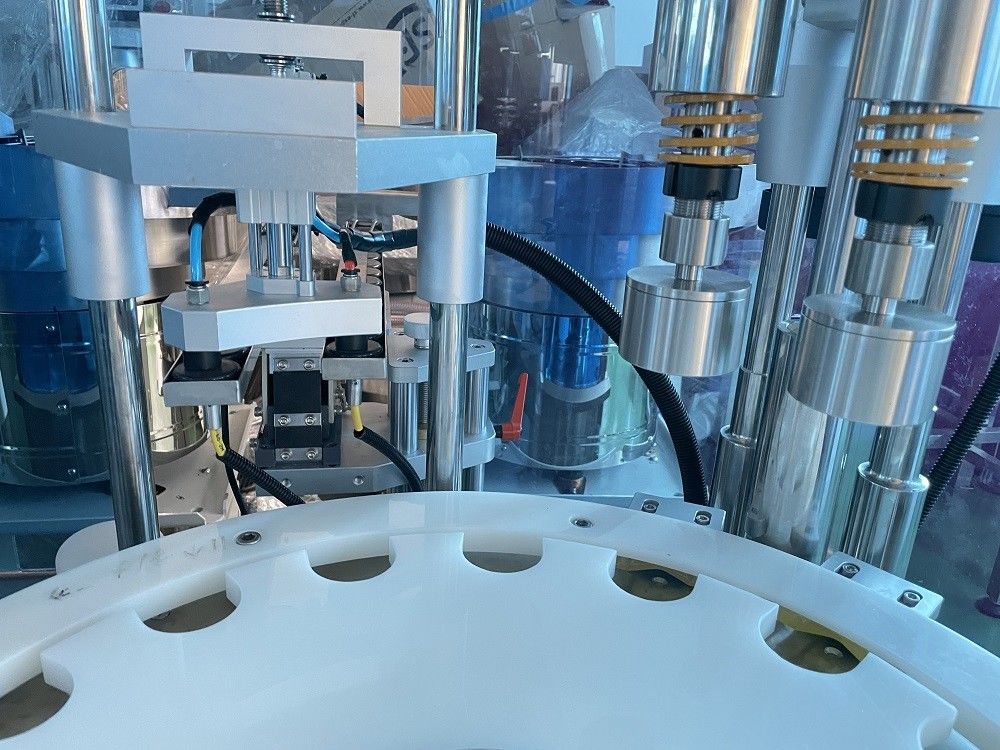

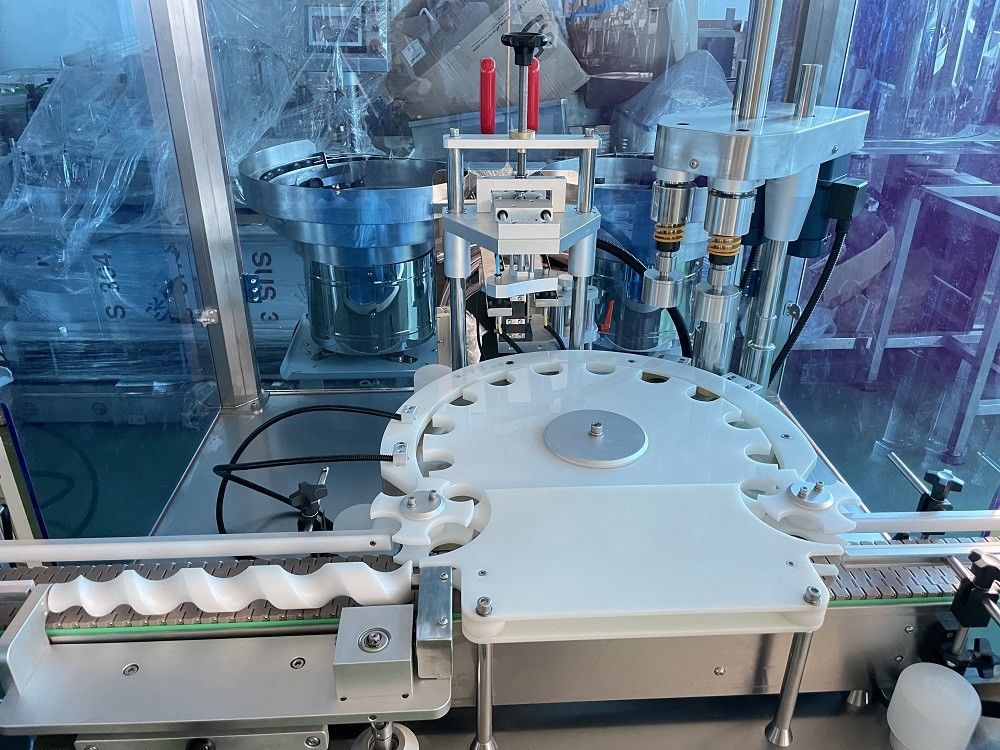

Star wheel for fixing the bottle:

Multifunctional Pet Bottle Capping Machine , Rotary Capper Machine 3000-4000BPH 1

Multifunctional Pet Bottle Capping Machine , Rotary Capper Machine 3000-4000BPH 2Multifunctional Pet Bottle Capping Machine , Rotary Capper Machine 3000-4000BPH 3





Samples display:

Multifunctional Pet Bottle Capping Machine , Rotary Capper Machine 3000-4000BPH 4

Multifunctional Pet Bottle Capping Machine , Rotary Capper Machine 3000-4000BPH 5
