Auto PET Glass Bottle Capping Machine Rotary Capping Machine 1500BPH-3000BPH

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTCP-100
Minimum Order Quantity: 1 SET
Price: USD 7000-10000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Rotary Type Bottle Capping Machine Application: Beverage,Food,Medical,Chemical
Capacity: 1500-3000BPH( Can Be Customized) Qualified Rate Of Capping: >99%
Machine Size: 250*100*190 Mm³ Warranty: 1-year
Packaging Type: Bottles/jar/can And Similar Container Product Name: Automatic Rotary Type Screw Cap Capping Machine
High Light:

Glass Bottle Capping Machine 1500BPH

,

Rotary Capping Machine 3000BPH

,

220V Glass Bottle Capping Machine


Product Description

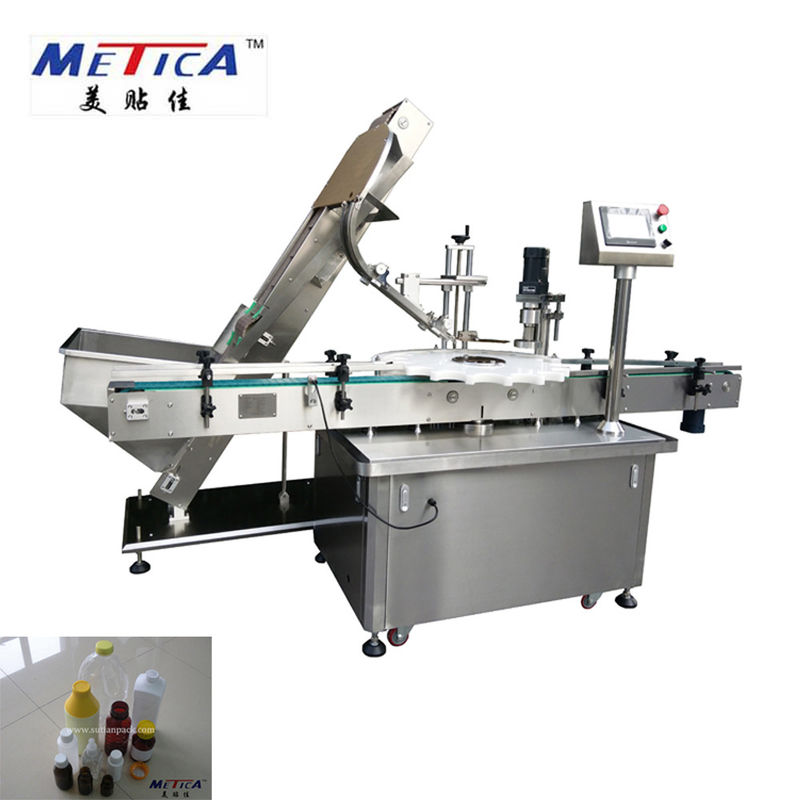

Automatic PET bottle and glass bottle screw cap rotary type bottle capping machine



Auto Capping Machine Application

  • MTCP-100 automatic plastic bottle screw capping machine is our new designed product recently.
  • Automatic capping machine adopts rotary plate to positioning the bottle and capping.
  • It uses PLC programmable control.Structure compact,just used similar size of bottles and caps.
  • Good for lug cap, twis off cap, plastic screw cap, we can also customized for customers' bottles and caps.



Capping Machine Features

  • Automatic Feeding with Feeding Plate or Vibration bowl and Feeding Track
  • Automatic Capping for all kinds of caps, such as lug/twits off caps, plastic screw caps and so on
  • We can also design machine according to customer's special requirements.

Work flow:

  • Feed bottle on the conveyor or turn table
  • Bottle convey to star wheel
  • Feed cap automatically
  • Capping automatically



Paremeter

Speed  1500-3000 bph (customizable)
Capping accuracy >99%
Caps applicable Screw caps or press caps, lug caps, twist off caps
Caps' diameter range 20-80mm (can be customized)
Power supply 220V 50hz 1kw
Air supply 0.6MPa
Bottle applicable a wide shape range
Caps feeding device Lifter or vibration plate
Feature PLC, touch screen, with clutch



Auto PET Glass Bottle Capping Machine Rotary Capping Machine 1500BPH-3000BPH 0

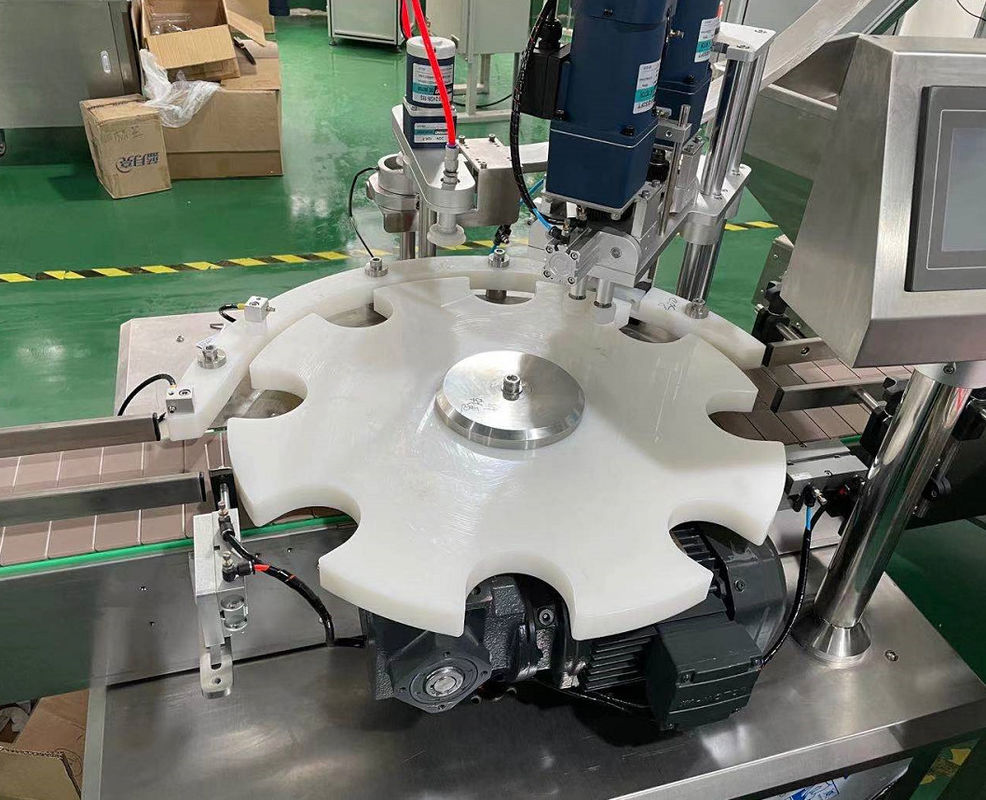

Star wheel for fixing the bottle:

Auto PET Glass Bottle Capping Machine Rotary Capping Machine 1500BPH-3000BPH 1





Two capping methods for your option:



Rubber wheels for capping:

Auto PET Glass Bottle Capping Machine Rotary Capping Machine 1500BPH-3000BPH 2



Screw capping head for capping:

Auto PET Glass Bottle Capping Machine Rotary Capping Machine 1500BPH-3000BPH 3

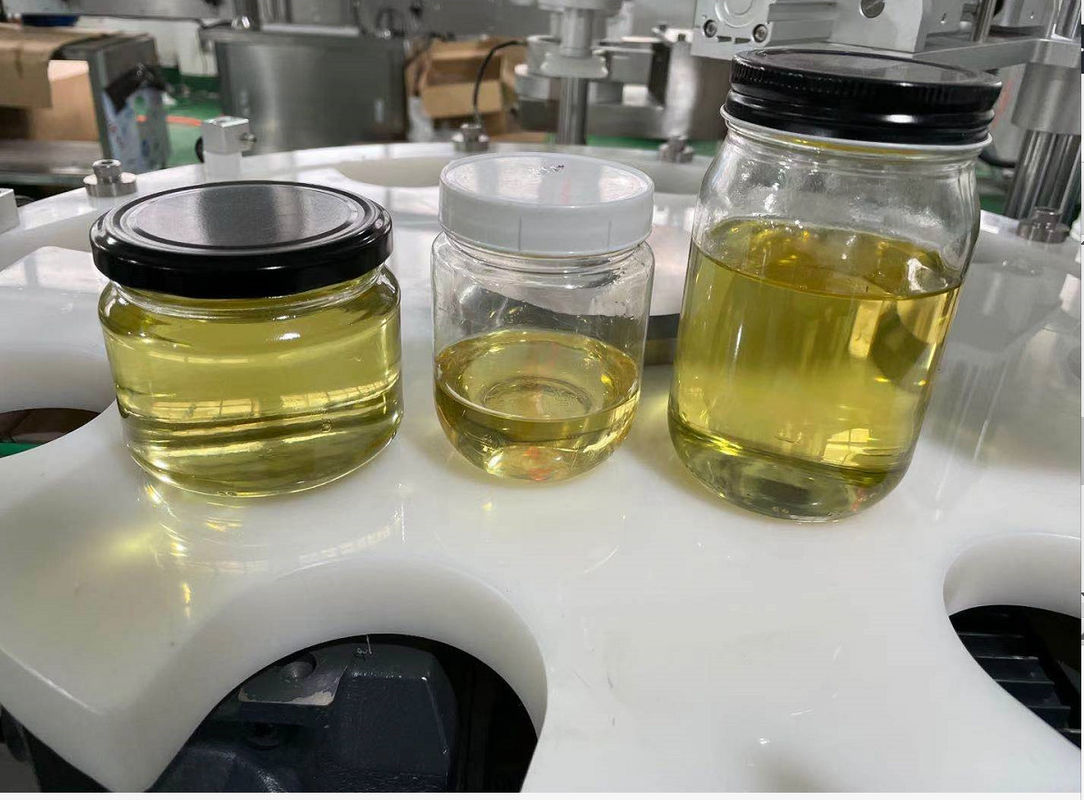

Samples display:

Auto PET Glass Bottle Capping Machine Rotary Capping Machine 1500BPH-3000BPH 4

Auto PET Glass Bottle Capping Machine Rotary Capping Machine 1500BPH-3000BPH 5
