PLC Programmable Bottle Capping Machines 1000BPH-1500BPH For Trigger Cap

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTCP-500
Minimum Order Quantity: 1 SET
Price: USD 10000-16000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 20-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Pump Cap/spray Cap/trigger Cap Capping Machine Application: Suit For Pump Cap / Trigger Cap Etc.
Capacity: 1000-1500 BPH(customizable) Qualified Rate Of Capping: >99%
Machine Size: 2000*1000*1600mm Warranty: 1 Year
Voltage: 220V/50HZ Automatic Grade: Automatic,Semi-Automatic
Type: Capping Machine Other Name: Automatic Bottle Capper
High Light:

PLC Programmable Bottle Capping Machines

,

Bottle Capping Machines 1000BPH


Product Description

Automatic Pump Cap/Spray Cap/Trigger Cap Capper And Bottle Capping Machine



Auto Capping Machine Application

  • MTCP-500 automatic plastic bottle screw capping machine is our new designed product recently.
  • Automatic capping machine adopts rotary plate to positioning the bottle and capping.
  • The type machine is widely used in packaging cosmetic,chemical,foods,pharmaceutical,pesticides industry and so on.
  • The bottle capping machine adopts Frequency controlled drive,and transportation exit is adjustable,so it could meet different packaging machinery pipeline request.
  • It uses PLC programmable control.Structure compact,just used similar size of bottles and caps.



Capping Machine Features

  • Automatic Feeding with Vibration bowl and Feeding Track(by hand)
  • Automatic Capping for pump cap / spray cap / trigger cap
  • We can also design machine according to customer's special requirements.



Parameter

Speed  1000-1500 bph (customizable)
Capping accuracy >99%
Caps applicable Pump cap/spray cap/trigger cap
Power supply 220V 50hz 1kw
Air supply 0.6MPa
Bottle applicable a wide shape range
Caps feeding device By hand or vibration bowel
Feature PLC, touch screen, with clutch

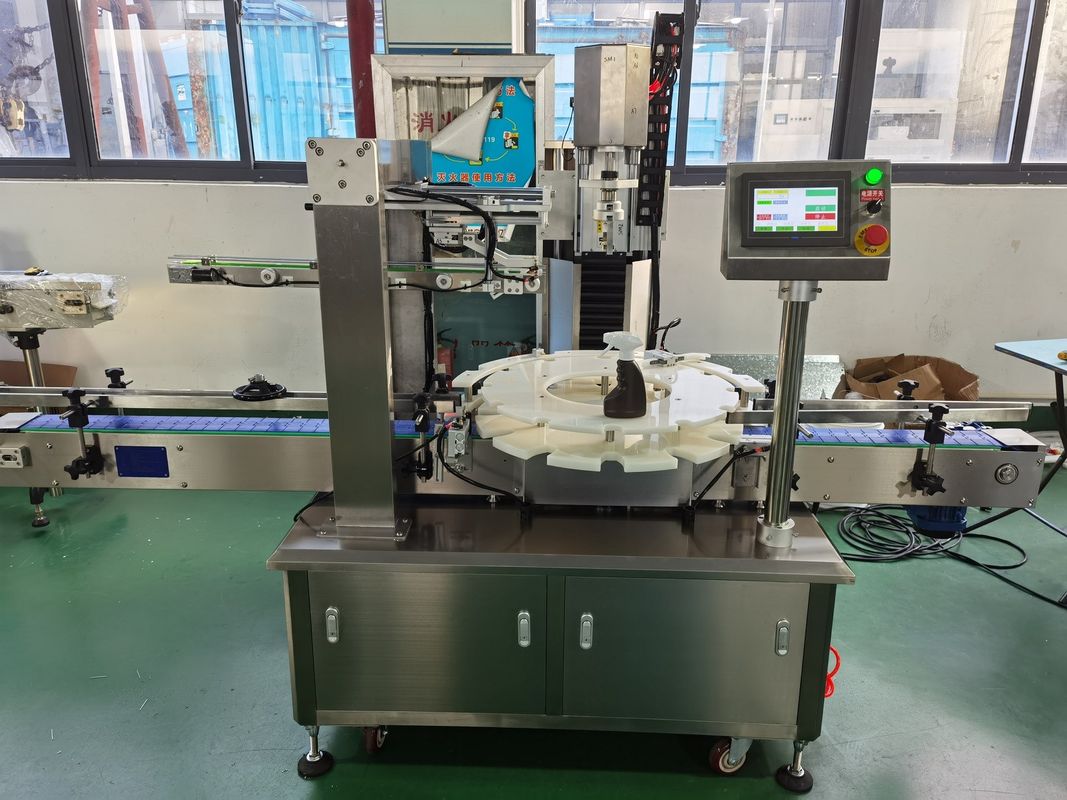

PLC Programmable Bottle Capping Machines 1000BPH-1500BPH For Trigger Cap 0

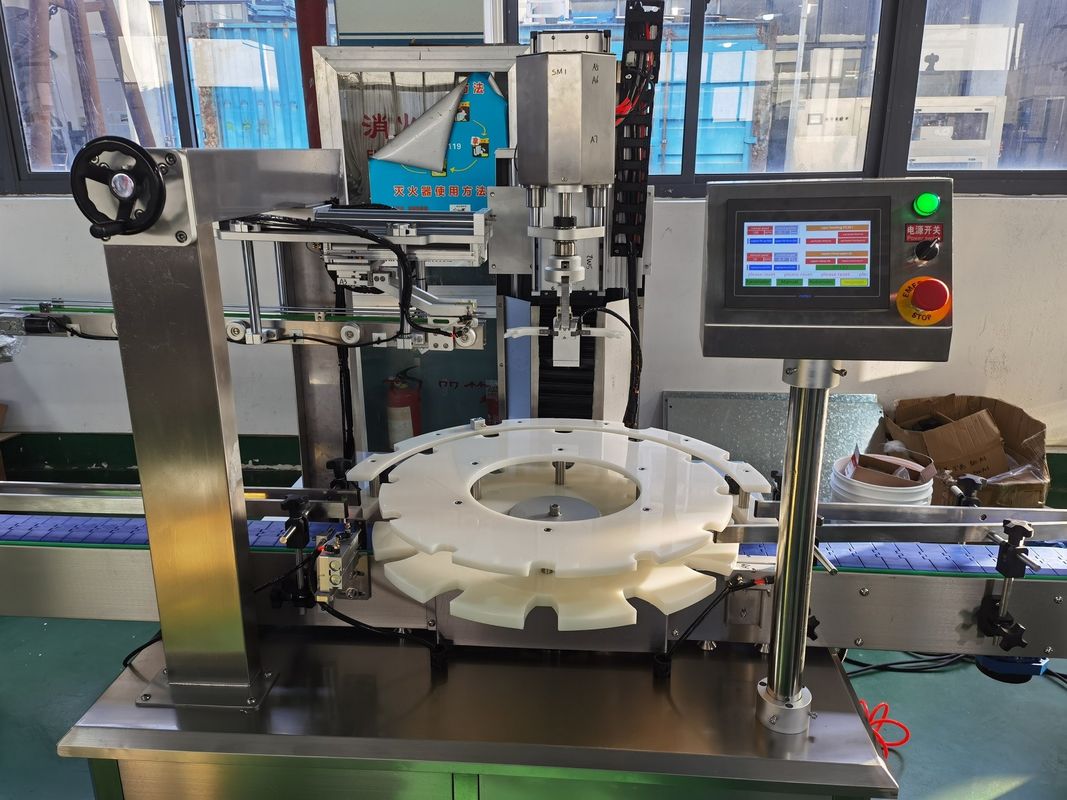

Star wheel for fixing the bottle:

PLC Programmable Bottle Capping Machines 1000BPH-1500BPH For Trigger Cap 1

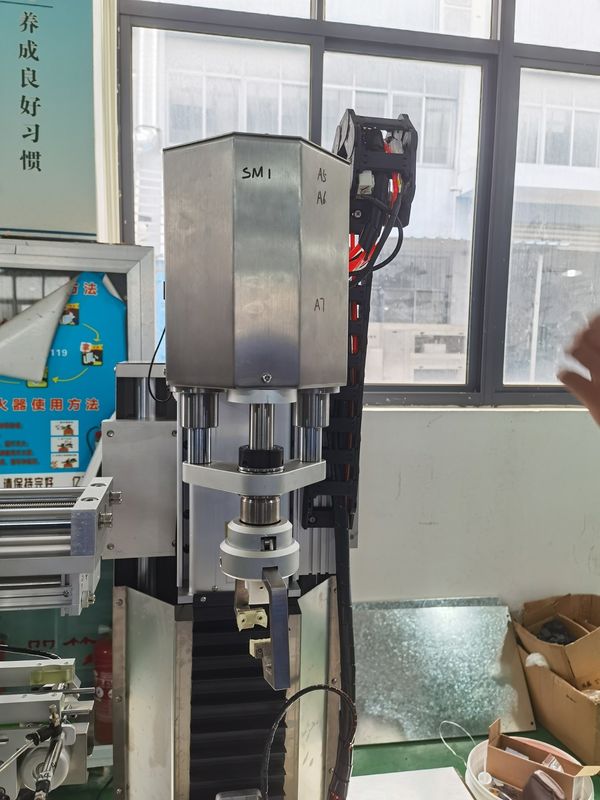

Capping head:

PLC Programmable Bottle Capping Machines 1000BPH-1500BPH For Trigger Cap 2



Rubber wheels for capping:

PLC Programmable Bottle Capping Machines 1000BPH-1500BPH For Trigger Cap 3



Caps feeding track:

PLC Programmable Bottle Capping Machines 1000BPH-1500BPH For Trigger Cap 4

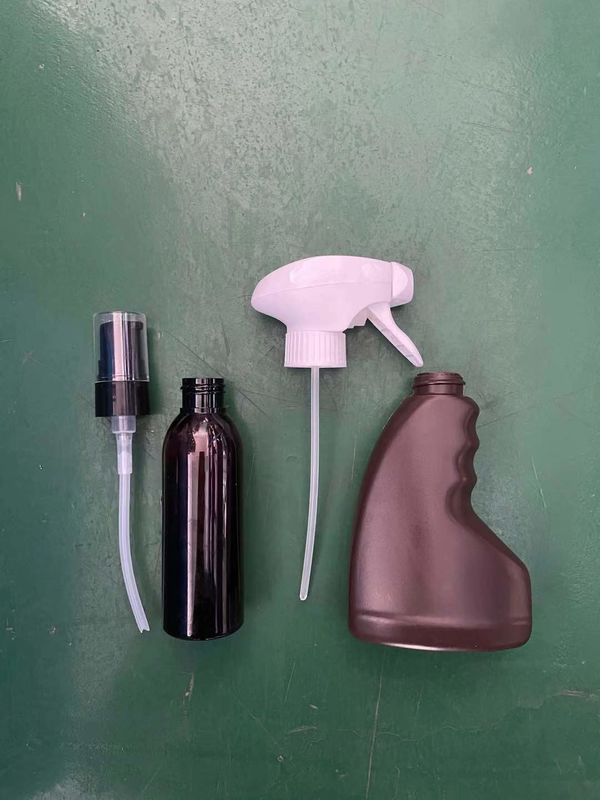

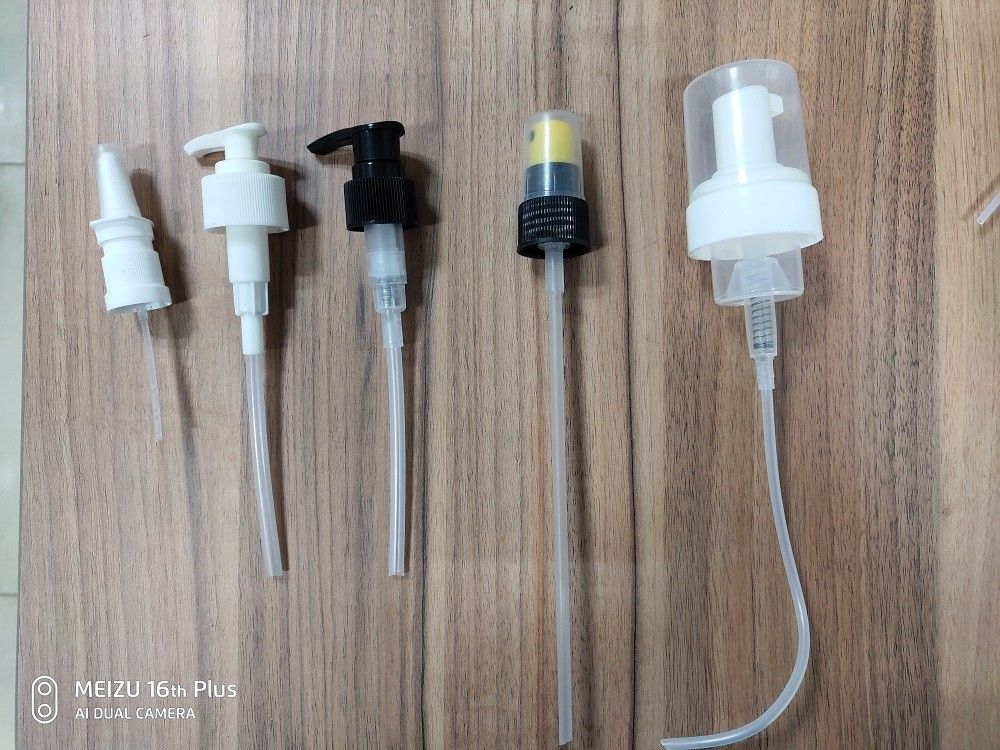

Samples display:

PLC Programmable Bottle Capping Machines 1000BPH-1500BPH For Trigger Cap 5PLC Programmable Bottle Capping Machines 1000BPH-1500BPH For Trigger Cap 6
