Automatic 100ml Glass And Plastic Bottle Washing Machine With Air Blower

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTAW-6
Minimum Order Quantity: 1 SET
Price: USD 7000-10000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Bottle Washing Machine By Air Capacity: 1000-3000 BPH(customizable)
Qualified Rate: More Than99% Machine Size: 250x100x190cm
Warranty: One Year Driven Type: Electric And Pneumatic Combined
Voltage: 220V,50/60HZ Condition: New
Type: Air Washing Machine For Bottle Packaging Type: Bottles,Cans, Jars And Other Containers
Application: Beverage,Food,Medical,Chemical And So On
High Light:

100ml Bottle Washing Machine

,

Linear Automatic Bottle Washer

,

2kw Automatic Bottle Washing Machine


Product Description

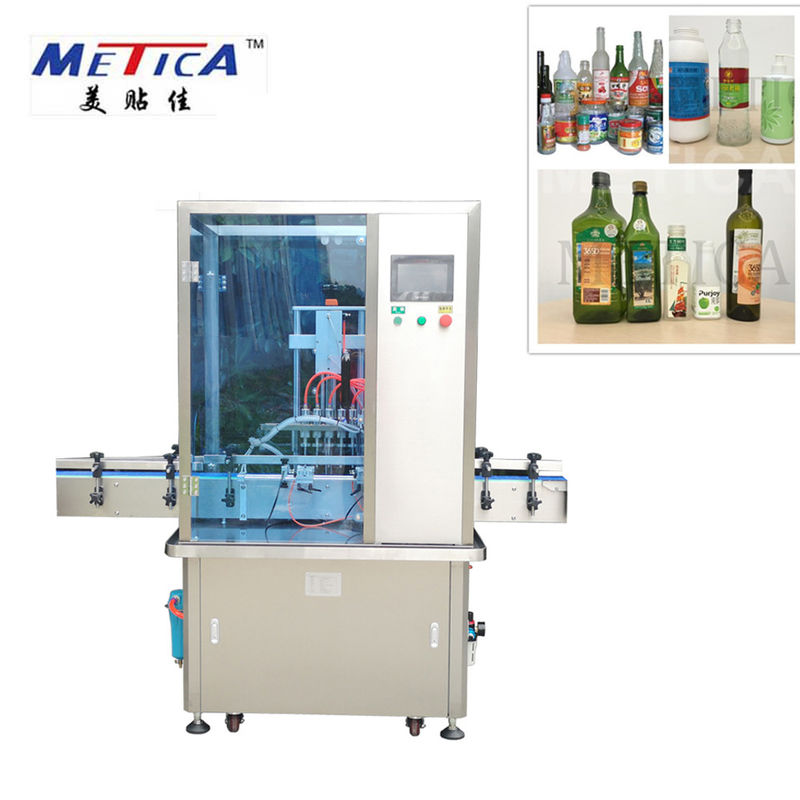

100ml Glass And Plastic Bottle Automatic Bottle Washing Machine With Air Blower



Application:

  • This is a new designed linear type bottle washing machine,washing bottle by air.
  • The machine are widely used in the pharmaceutical and cosmetic industries to clean small particles inside the bottle.



Feature:

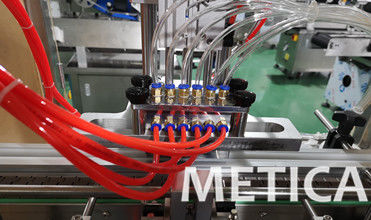

The machine is designed to wash bottles with air:

  • 4/6/8/10 nozzles
  • blowing and suction in one
  • height adjustable for bottles
  • Speed and timing adjustable
  • It needs to link to air compressor

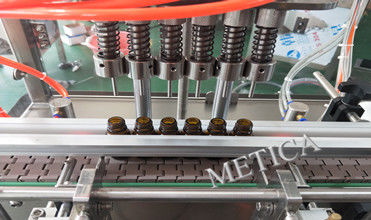

Workflow:

  • Bottles conveyed to the washing nozzles position
  • Nozzles dive and seal the bottle first
  • Then blowing to wash
  • Suction the air out from bottles



Parameter:



Speed  1000-4000 bph (customizable)
Qualified rate more than 99%
Bottles applicable D: 10-100mm (can be customized)
Power supply 220V 50hz 2kw
Air supply 0.4-0.6MPa
Wshing nozzle 4/6/8 nozzles(optional)
Bottle applicable a wide shape range


Automatic 100ml Glass And Plastic Bottle Washing Machine With Air Blower 0
Automatic 100ml Glass And Plastic Bottle Washing Machine With Air Blower 1Automatic 100ml Glass And Plastic Bottle Washing Machine With Air Blower 2

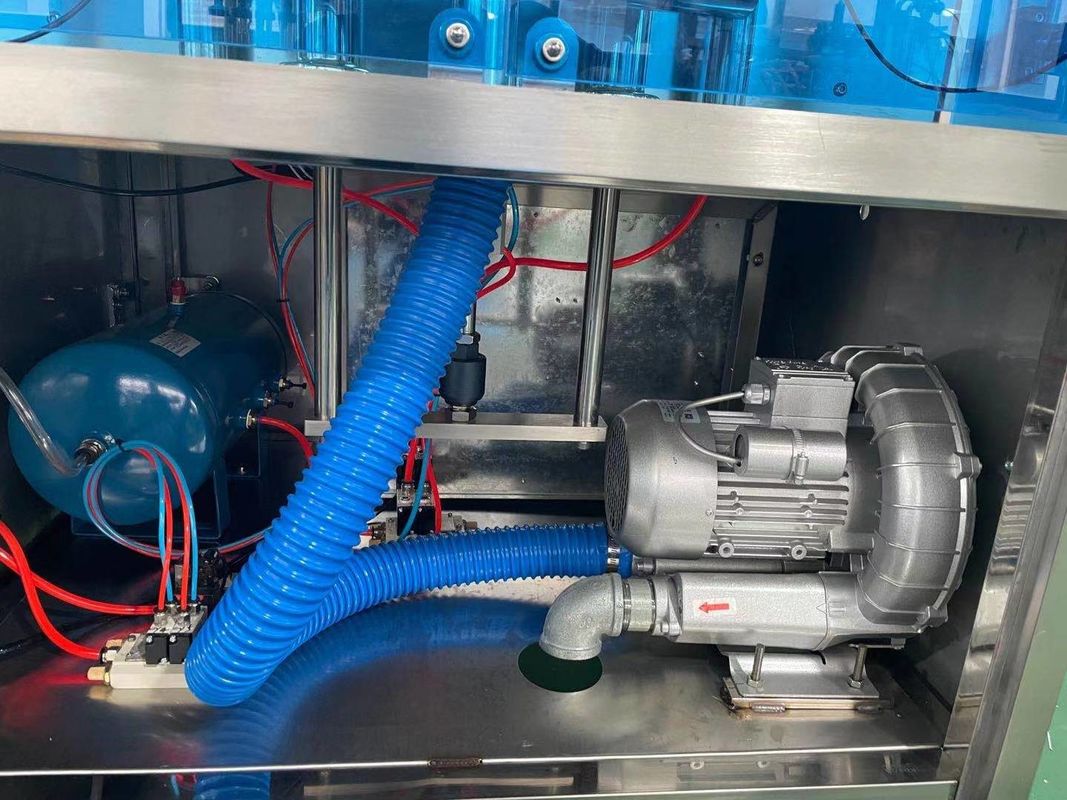

Fan for blowing and suction:
Automatic 100ml Glass And Plastic Bottle Washing Machine With Air Blower 3

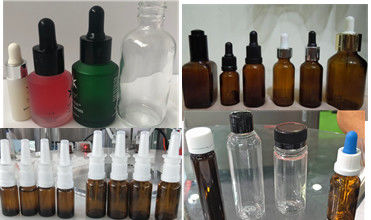

Samples display:
Automatic 100ml Glass And Plastic Bottle Washing Machine With Air Blower 4

Service flow:
Automatic 100ml Glass And Plastic Bottle Washing Machine With Air Blower 5
Pre-sale Service:
Automatic 100ml Glass And Plastic Bottle Washing Machine With Air Blower 6
Automatic 100ml Glass And Plastic Bottle Washing Machine With Air Blower 7
Packing&Shipping:
Automatic 100ml Glass And Plastic Bottle Washing Machine With Air Blower 8
After-sale service:
Automatic 100ml Glass And Plastic Bottle Washing Machine With Air Blower 9




Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We are located in Shanghai, very convenient in factory visiting, and goods shipping. We have more than ten years experience in automatic packaging machinery. We make machines as per GMP Standard.
