10ml - 100ml Linear Type Automatic Bottle Cleaning Machine With Air Washing Function

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTAW-6
Minimum Order Quantity: 1 SET
Price: USD 7000-10000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Bottle Washing Machine By Air Capacity: 1000-3000 BPH(customizable)
Qualified Rate: More Than99% Machine Size: 250x100x190cm
Warranty: One Year Driven Type: Electric And Pneumatic Combined
Voltage: 220V,50/60HZ Condition: New
Type: Air Washing Machine For Bottle Packaging Type: Bottles,Cans, Jars And Other Containers
Application: Beverage,Food,Medical,Chemical And So On
High Light:

Pharmaceutical Bottle Washing Machine

,

100ml Automatic Bottle Cleaning Machine

,

Linear Type Bottle Cleaning Machine 2kw


Product Description



50-500ml Linear Automatic 6 Heads Perfume Glass/Plastic Jar/Bottle Washing Machine



Application:

  • This is a new designed linear type bottle washing machine,washing bottle by air.
  • The machine are widely used in the pharmaceutical and cosmetic industries to clean small particles inside the bottle.



Feature:



The machine is designed to wash bottles with air:

  • 4/6/8/10 nozzles
  • blowing and suction in one
  • height adjustable for bottles
  • Speed and timing adjustable
  • It needs to link to air compressor



Workflow:

  • Bottles conveyed to the washing nozzles position
  • Nozzles dive and seal the bottle first
  • Then blowing to wash
  • Suction the air out from bottles



Parameter:



Speed  1000-4000 bph (customizable)
Qualified rate more than 99%
Bottles applicable D: 10-100mm (can be customized)
Power supply 220V 50hz 2kw
Air supply 0.4-0.6MPa
Wshing nozzle 4/6/8 nozzles(optional)
Bottle applicable a wide shape range



10ml - 100ml Linear Type Automatic Bottle Cleaning Machine With Air Washing Function 0

10ml - 100ml Linear Type Automatic Bottle Cleaning Machine With Air Washing Function 110ml - 100ml Linear Type Automatic Bottle Cleaning Machine With Air Washing Function 2

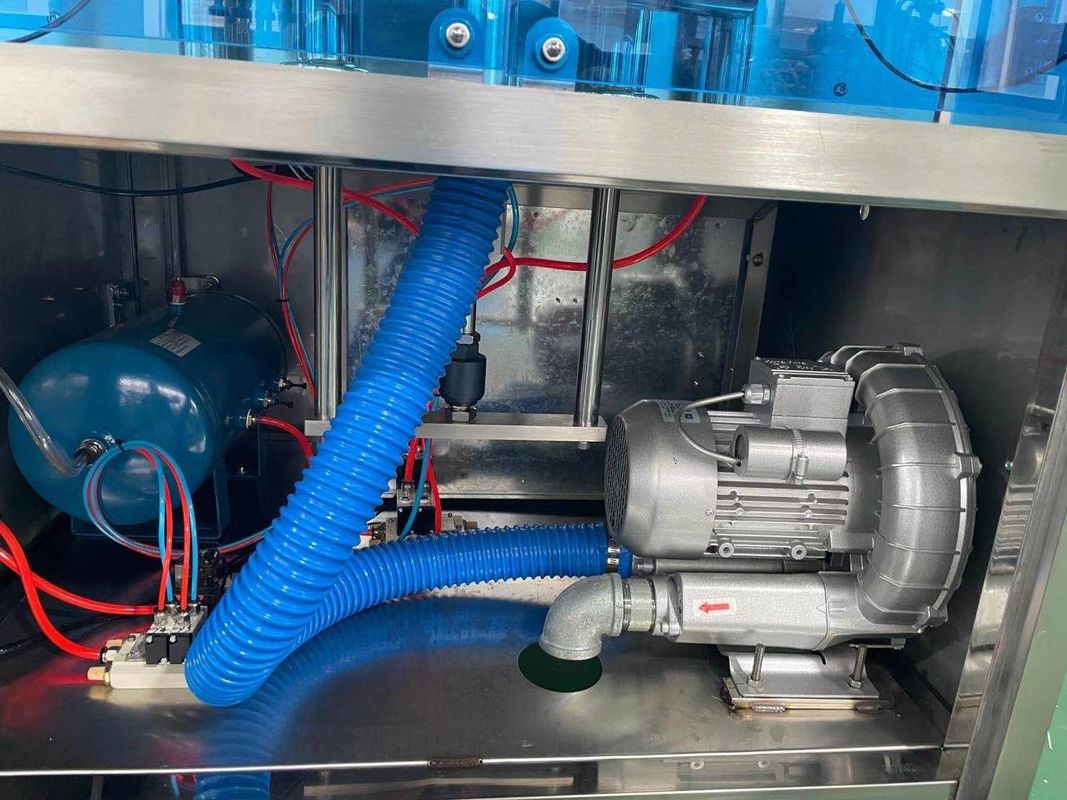

Fan for blowing and suction:

10ml - 100ml Linear Type Automatic Bottle Cleaning Machine With Air Washing Function 3

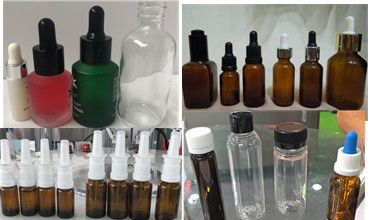

Samples display:

10ml - 100ml Linear Type Automatic Bottle Cleaning Machine With Air Washing Function 4




Service flow:
10ml - 100ml Linear Type Automatic Bottle Cleaning Machine With Air Washing Function 5


Pre-sale Service:
10ml - 100ml Linear Type Automatic Bottle Cleaning Machine With Air Washing Function 6

10ml - 100ml Linear Type Automatic Bottle Cleaning Machine With Air Washing Function 7

Packing&Shipping:
10ml - 100ml Linear Type Automatic Bottle Cleaning Machine With Air Washing Function 8

After-sale service:
10ml - 100ml Linear Type Automatic Bottle Cleaning Machine With Air Washing Function 9



METICA Machinery
provides one-stop service of bottling equipment in developing, manufacturing, shipping and support for customers from all over the world.


  • Real manufacturer: since 2008, with 2 production bases and mature team.
  • Flexible machinery: for filling, capping, labeling, sealing and cartoning.
  • Customization: innovative designs provide you suitable packaging solutions.
  • Strong support: video demonstrations training before and after sales, on-site service available.
  • Guarantee: 1 year free parts, all life service.
