Automatic Bottle Filling Machine For Peanut Butter 1000bph - 1500bph

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTGF-1000
Minimum Order Quantity: 1 SET
Price: USD 13000-16000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Peanut Butter Filling Machine Other Name: Bottle Filling Equipment
Application: For Peanut Butter, Honey, Sauce, Edible Oil Etc.. Capacity: 800-1500 BPH
Filling Accuracy: Over 99% Machine Size: 2400x1350x1730 Mm³
Warranty: One Year Automatic Grade: Fully Automatic
Driven Type: Electric And Pneumatic Combined Voltage: 110V/220V, 50/60HZ (customizable)
Packaging Type: Bottles,Cans,Barrel, Jars And Similar Filling System: Servo Motor And Piston Driven, Diving Is Optional
High Light:

Automatic Peanut Butter Filling Machine 1000bph

,

220V 60HZ Bottle Filling Machine

,

Linear Liquid Filling Machine


Product Description

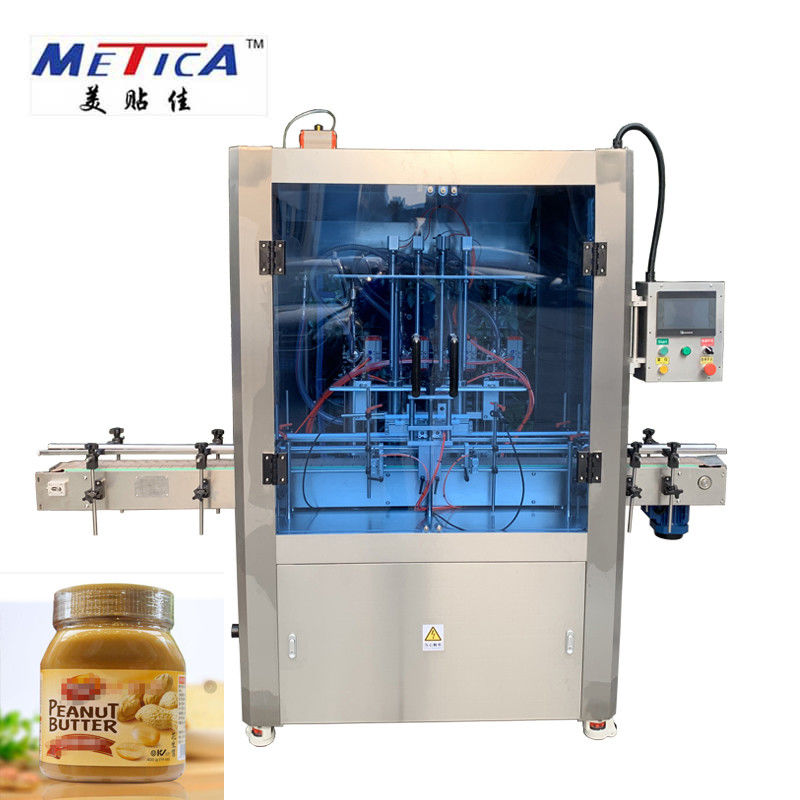

Automatic Bottle Filling Machine Peanut Butter Filling Machine 1000bph-1500bph Bottle Filling Equipment



Application

  • This machine used for all kinds of liquid and high viscosity liquid product,such as honey, sauce, jam and edible oil...
  •  If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.
  • The filling heads designed for many heads (can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.

Spec and Feature

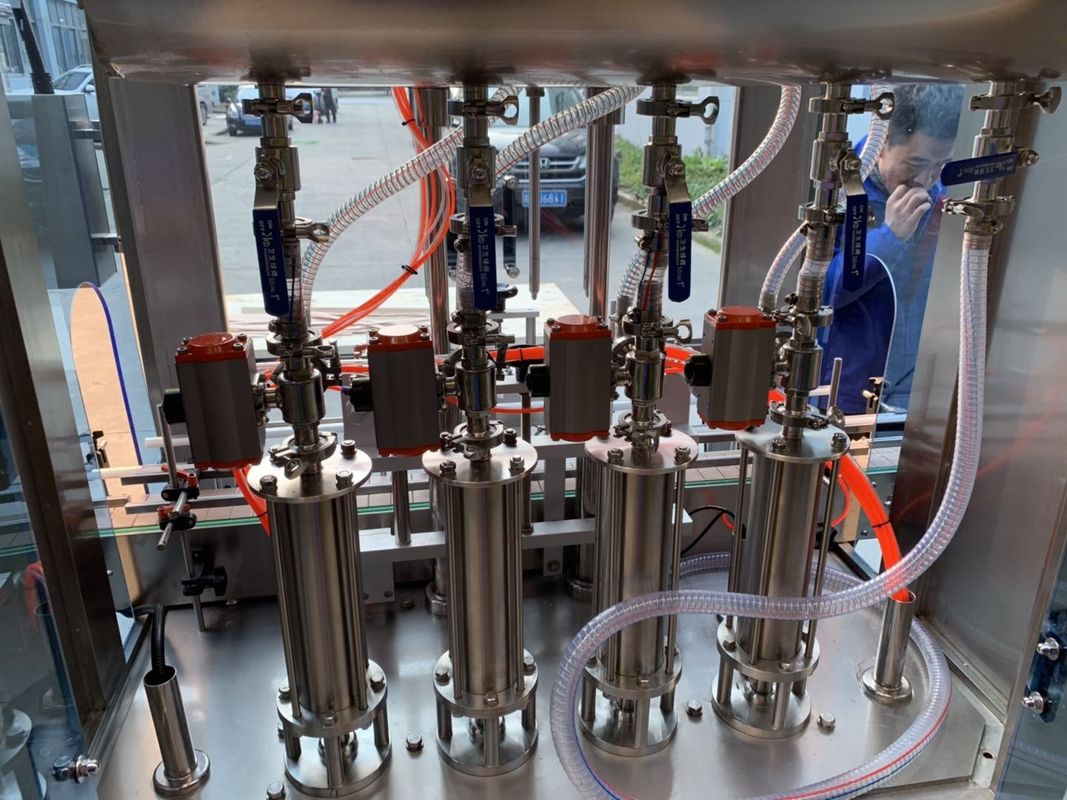

  • Adopts piston + servo motor driven fillin system. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts four filling nozzles, can change to 6/8/10/12/16 filling nozzles or more, the more filling nozzles, the higher capacity.
  • Diving filling method is available
  • High filling speed and filling precision, no bubble,stable
  • Filling volume is adjustable in certain filling volume scope
  • Single nozzle is micro adjustable
  • Compact models, operation stability, simple operation, easy cleaning
  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join a production line

Work flow

  • Put bottle on conveyor by hand
  • Bottle move to the filling nozzles filling automatically
  • Bottle move out after filling

Parameter

Speed  800-1500bph (customizable)
Filling accuracy  over 99%
Filling volume 100-1000ml, 200-2000ml, … 500-5000ml( can be customized)
Filling method piston + servo motor driven, diving
Power supply 110V/220V 50/60hz 2kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Feature PLC, touch screen, tank, level meter,high accuracy





Automatic Bottle Filling Machine For Peanut Butter 1000bph - 1500bph 0



Automatic Bottle Filling Machine For Peanut Butter 1000bph - 1500bph 1

Automatic Bottle Filling Machine For Peanut Butter 1000bph - 1500bph 2

Automatic Bottle Filling Machine For Peanut Butter 1000bph - 1500bph 3

Automatic Bottle Filling Machine For Peanut Butter 1000bph - 1500bph 4





Samples display:

Automatic Bottle Filling Machine For Peanut Butter 1000bph - 1500bph 5

Automatic Bottle Filling Machine For Peanut Butter 1000bph - 1500bph 6



METICA Machinery
provides one-stop service of bottling equipment in developing, manufacturing, shipping and support for customers from all over the world.


  • Real manufacturer: since 2008, with 2 production bases and mature team.
  • Flexible machinery: for filling, capping, labeling, sealing and cartoning.
  • Customization: innovative designs provide you suitable packaging solutions.
  • Strong support: video demonstrations training before and after sales, on-site service available.
  • Guarantee: 1 year free parts, all life service.
