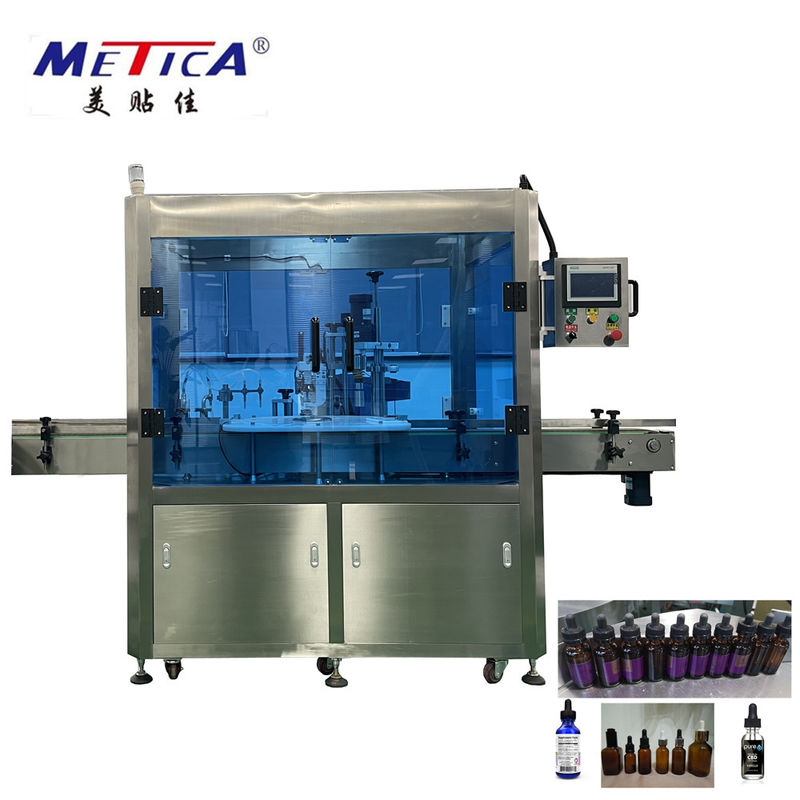

CBD Oil Bottle Monoblock Filling And Capping Machine 1000 - 2000 BPH

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFC-1000
Minimum Order Quantity: 1 SET
Price: USD 10000-20000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Small Bottle Filling Capping Machine Capacity: 1000-2000 BPH
Qualified Rate: > 99% Machine Size: 2500*1350*1650 Mm
Warranty: One Year Type: Filling Machine And Capping Machine Monoblock In One
Automatic Grade: Automatic Filling And Capping Filling Volume: 5-50ml
Weight: 300kg Application: Beverage,Food,Chemical,Medical,Commodity
Product Name: E-liquid Bottle Filling Machine Bottle Type: Glass Dropper Bottle, Small Plastic Bottle
High Light:

CBD Oil Bottle Monoblock Filling Machine

,

2000 BPH Monoblock Filler Capper

,

2 Nozzles Monoblock Liquid Filling Machine


Product Description

E-liquid Bottle Filling Machine And Glass Dropper Bottle Monoblock Filling And Capping Machine



Application

  • The machine is good for Glass dropper bottle, Plastic and similar bottles.
  • The machine is used for all kinds of liquid products filling and capping, mainly small bottle with volume 10-50 ml.
  • Essential Oil, E-Cigarette, Health Care Oil, Eye Drop and similar products is available.

Spec and Feature

  • The whole machine is designed especially for 10-50ml liquid filling, capping
  • The line speed is 20-30 bottles per minute
  • Famous branded electrical parts guarantee the line working stable and a longer working life
  • Adopts peristaltic pump or piston pump, high filling precision. No bottle, no fill, no drop, no leak
  • Touch screen, easy operate and adjust human interface. English operation interface
  • Suitable for single, mass production.
  • The machines have emergency stop Button and automatic interrupt device for safe operation
  • Labors need: 1 workers



Work flow:

  • Manually load bottles on conveyor or turntable(optional)
  • Automatic filling with 2 filling nozzles(customizable)
  • One cap loading station for loading cap automatically
  • One capping station for capping automatically
  • Push out bottle on conveyor after filling and capping
  • We can make fully automatic machine with higher speed for you as well

Parameter:

Speed  1500-2000bph (can be customized)
Filling accuracy  >=99%
Filling volume 10-50ml(can be customized)
Filling method

servo motor + piston or peristaltic pump

Power supply 220V 50hz 2kw
Air supply 0.6 MPa
Bottles applicable glass dropper bottle, plastic bottle
Caps applicable press caps/ screw caps/dropper cap

Application

Liquid or viscosity liquid
Feature PLC, touch screen etc..



CBD Oil Bottle Monoblock Filling And Capping Machine 1000 - 2000 BPH 0

CBD Oil Bottle Monoblock Filling And Capping Machine 1000 - 2000 BPH 1



Cap feeder:

CBD Oil Bottle Monoblock Filling And Capping Machine 1000 - 2000 BPH 2

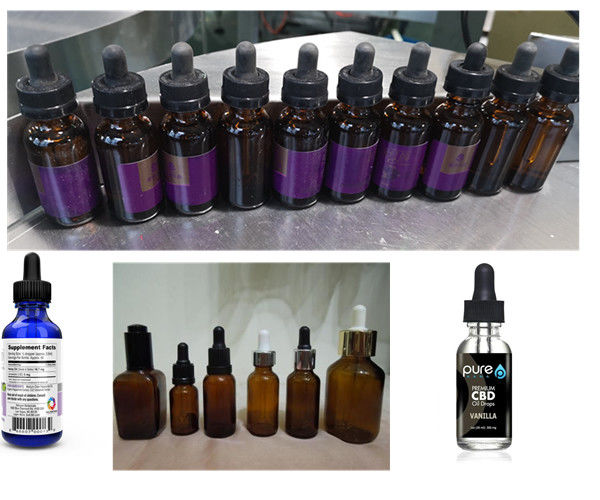

Samples display:
