1 - 5L Fully Automatic Bottle Filling Machine Paste Liquid Bottling Machine 2000 BPH

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTGF-1000-8
Minimum Order Quantity: 1 SET
Price: USD 10000-20000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Liquid Filling Machine, Bottling Machine Other Name: Fully Automatic Bottle Filling Machine
Capacity: 1000-3000 Bottle/minute(customizable) Filling Volume Accuracy: >99%
Machine Size: 3000*1400*2150 Mm³ Warranty: One Year
Automatic Grade: Automatic Filling Driven Type: Electric And Pneumatic
Type: Automatic Bottling Machine Bottle Type: Plastic Bottle And Glass Bottle,PET Plastic Bottle / Glass Bottle
Application: Beverage,Food,Chemical,Medical Condition: New
High Light:

5L Automatic Bottle Filling Machine

,

Paste Liquid Bottling Machine

,

2000 BPH Bottle Filling Machine


Product Description

1-5L Bottle Fully Automatic Bottle Filling Machine Paste Liquid Bottling Machine 3000 Bottle/Hour



Application

  • This machine used for all kinds of liquid and high viscosity liquid product,such as Disinfectant and Medical Alcohol, sauce/paste/jam/edible oil and viscosity liquid filling.
  •  If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.
  • The filling heads designed for many heads (can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.



Spec and Feature

  • Adopts piston + servo motor driven. Also we can use overflow and pneumatic type filling system. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts four filling nozzles, can change to 4/6/8/10/12/16 filling nozzles or more, the more filling nozzles, the higher capacity.
  • Diving filling method is available
  • High filling speed and filling precision, no bubble,stable
  • Filling volume is adjustable in certain filling volume scope
  • Single nozzle is micro adjustable
  • International branded electronic parts applied, good performance
  • Compact models, operation stability, simple operation, easy cleaning
  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join a production line


Parameter:

Speed

2000-3000bph (customizable)
Filling accuracy >99%
Filling volume100-1000ml, 200-2000ml, … 500-5000ml(customizable)
Filling methodpiston + servo motor driven
Power supply220V 50hz 2kw
Bottles applicablea wide shape range

Application

Liquid or viscosity products
FeaturePLC, touch screen, tank, level meter

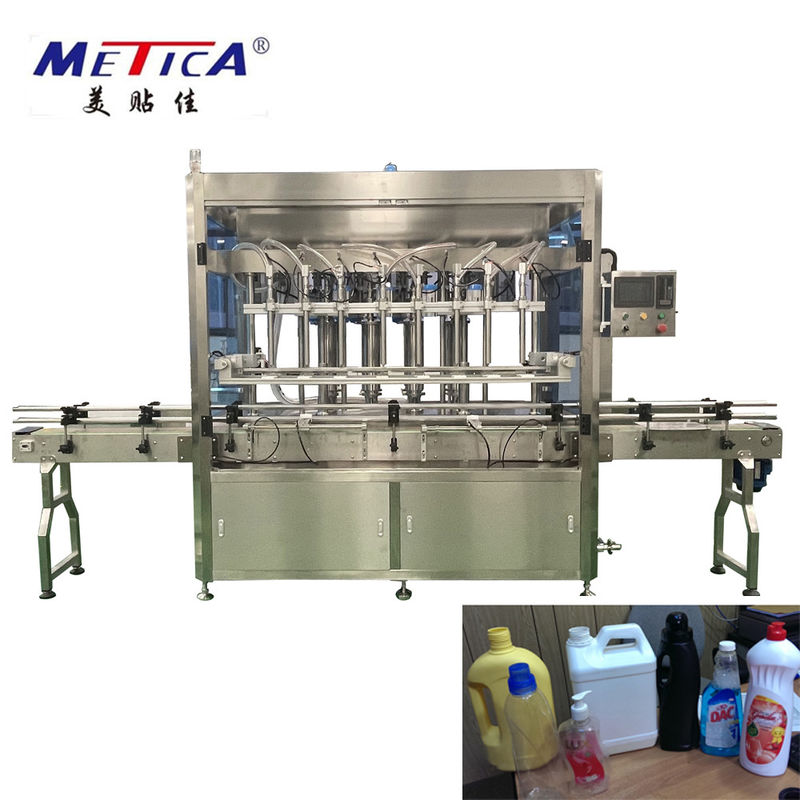

1 - 5L Fully Automatic Bottle Filling Machine Paste Liquid Bottling Machine 2000 BPH 0

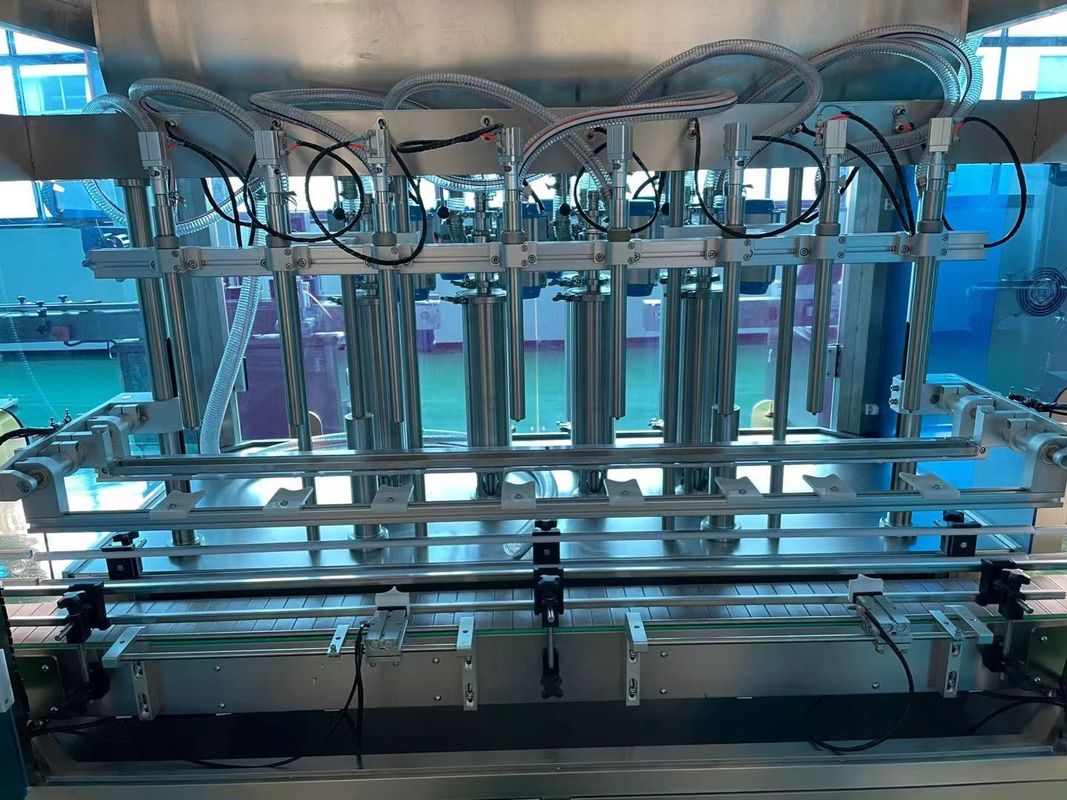

Filling nozzles:
1 - 5L Fully Automatic Bottle Filling Machine Paste Liquid Bottling Machine 2000 BPH 1

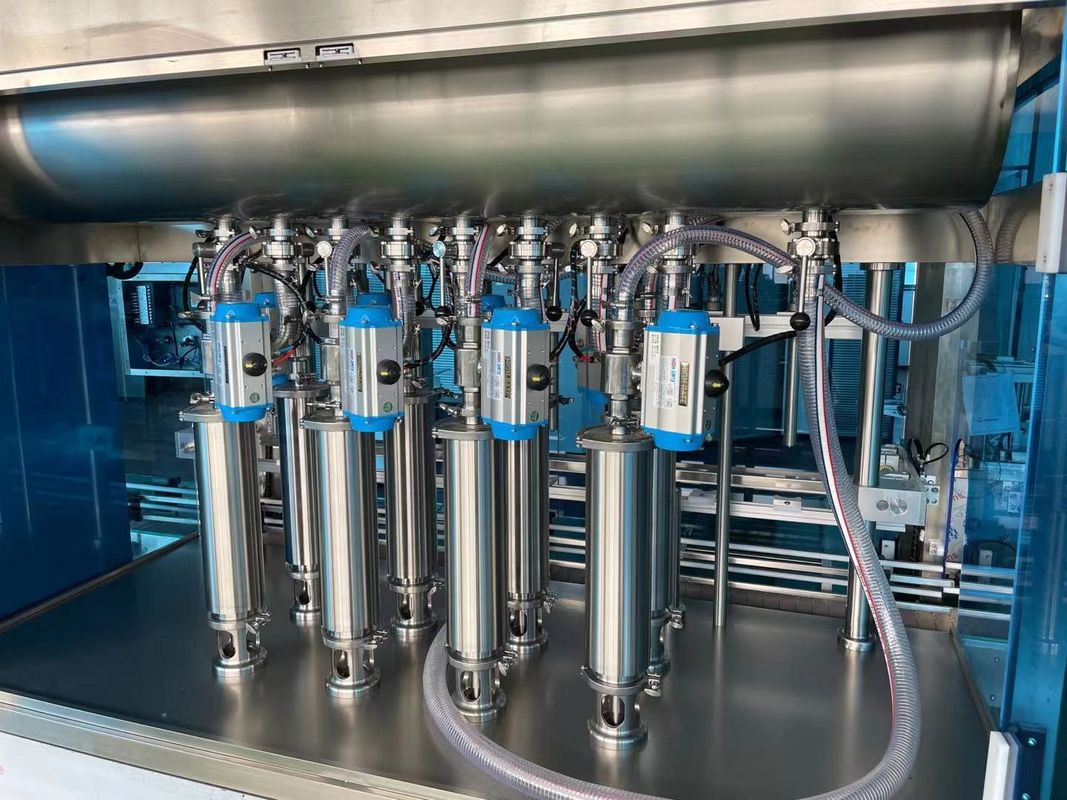

Filling cylinder and tank:
1 - 5L Fully Automatic Bottle Filling Machine Paste Liquid Bottling Machine 2000 BPH 2


Samples display:

1 - 5L Fully Automatic Bottle Filling Machine Paste Liquid Bottling Machine 2000 BPH 31 - 5L Fully Automatic Bottle Filling Machine Paste Liquid Bottling Machine 2000 BPH 4
1 - 5L Fully Automatic Bottle Filling Machine Paste Liquid Bottling Machine 2000 BPH 5

After-sale service:

Service flow:
1 - 5L Fully Automatic Bottle Filling Machine Paste Liquid Bottling Machine 2000 BPH 6


Pre-sale Service:
1 - 5L Fully Automatic Bottle Filling Machine Paste Liquid Bottling Machine 2000 BPH 7

1 - 5L Fully Automatic Bottle Filling Machine Paste Liquid Bottling Machine 2000 BPH 8

Packing&Shipping:
1 - 5L Fully Automatic Bottle Filling Machine Paste Liquid Bottling Machine 2000 BPH 9

After-sale service:
1 - 5L Fully Automatic Bottle Filling Machine Paste Liquid Bottling Machine 2000 BPH 10


METICA Machinery
provides one-stop service of bottling equipment in developing, manufacturing, shipping and support for customers from all over the world.


  • Real manufacturer: since 2008, with 2 production bases and mature team.
  • Flexible machinery: for filling, capping, labeling, sealing and cartoning.
  • Customization: innovative designs provide you suitable packaging solutions.
  • Strong support: video demonstrations training before and after sales, on-site service available.
  • Guarantee: 1 year free parts, all life service.
