100ml-1000ml Manual Bottle Filling Machine For Liquid And Paste

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTY-1
Minimum Order Quantity: 1 SET
Price: USD 500-1000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Semi Automatic Sauce Filling Machine Application: For Sauce Filling Liquid Or Viscosity Liquid Into Bottle
Capacity: 300-800BPH(Depends On Worker Proficiency ) Filling Accuracy: >=99%
Machine Size: 100*35*35cm Warranty: One Year
Automatic Grade: Semi-Automatic, Manual Driven Type: Electric Or Pneumatic
Packaging Type: Bottles,Cans,Barrel
High Light:

Manual 100ml bottle filling machine

,

Paste 100ml bottle filling machine

,

pneumatic pet bottle filling machine


Product Description

100ml-1000ml Bottle Economical Manual Filling Machine Paste Filling Machine For Liquid And Paste



Application

  • Widely used in chemical, daily chemical, petro chemical, medicine, pesticide, food, beverage industries etc.
  • To fill liquid products, such as water, oral liquid, physic liquid, cosmetic liquid, milk, chemical liquid, pesticide liquid, drink etc.
  • Semi automatic type



Spec and Feature

  • It is the most economical filling machine. Save time material cost and labor cost.
  • Simple structure; easy to move, use and maintain.
  • The filling quantity is adjustable and more accurate.
  • Piston Filling drive by cylinder
  • one-way valve control material flow direction
  • Change the filling volume by adjusting the spring switch to control the cylinder.



Work flow:

  • Manually load bottles on the machine
  • Automatic filling with 1 or 2 filling nozzles(customizable)
  • Press foot pedal to fill automatically



Paremeter

Speed  300-800bph (customizable)
Filling accuracy  >=99%
Filling volume 100-1000ml, 200-2000ml, … 500-5000ml(customizable)
Filling method piston + air cylinder
Power supply 220V 50hz 2kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Feature PLC, touch screen

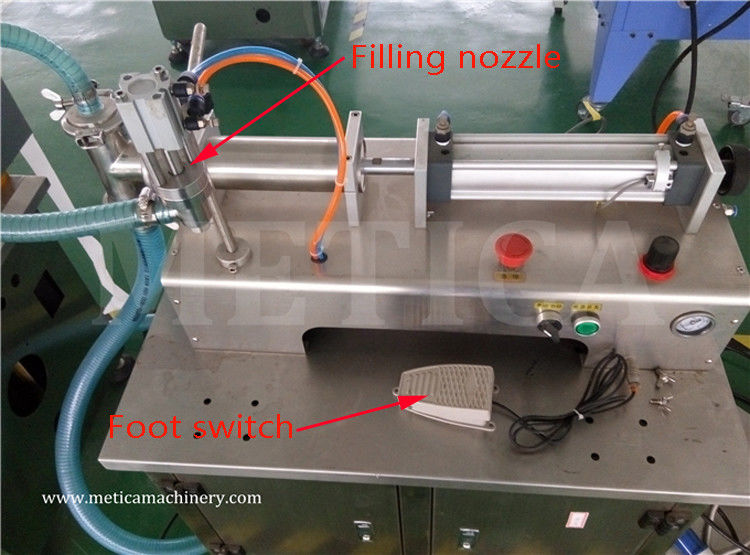

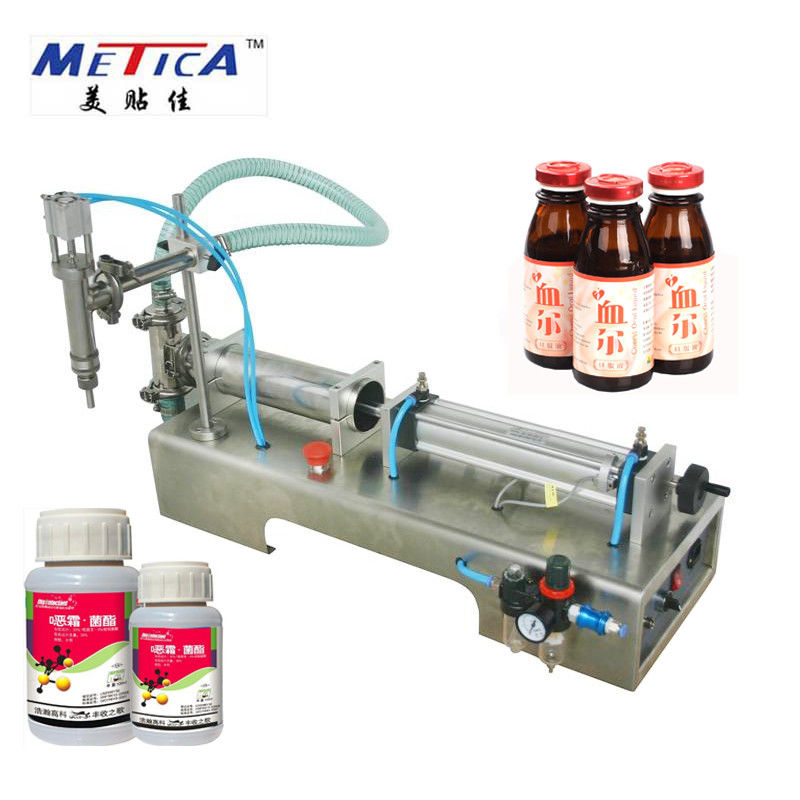

100ml-1000ml Manual Bottle Filling Machine For Liquid And Paste 0100ml-1000ml Manual Bottle Filling Machine For Liquid And Paste 1





Samples display:

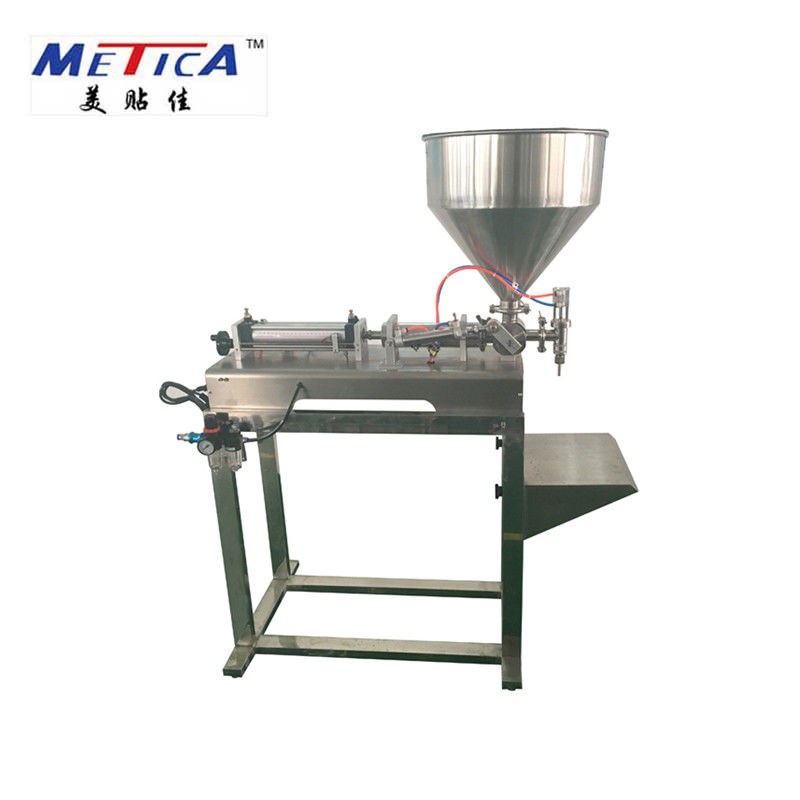

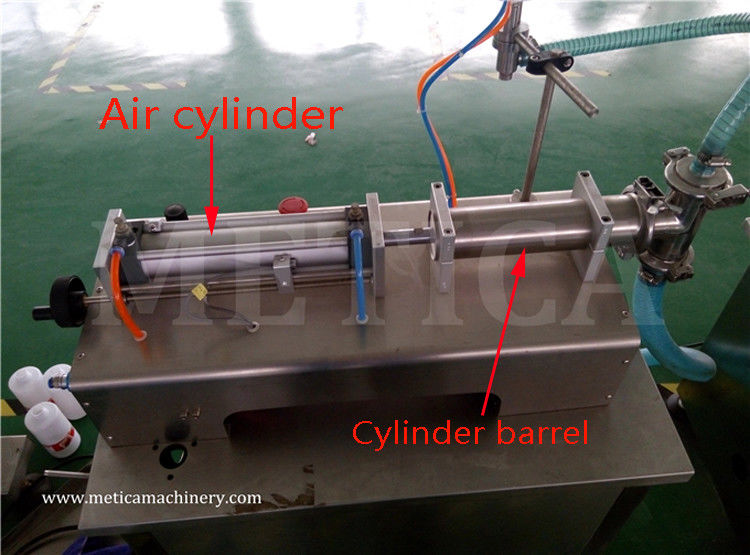

100ml-1000ml Manual Bottle Filling Machine For Liquid And Paste 2100ml-1000ml Manual Bottle Filling Machine For Liquid And Paste 3

100ml-1000ml Manual Bottle Filling Machine For Liquid And Paste 4





Our company:



METICA Machinery

provides one-stop service of bottling equipment in developing, manufacturing, shipping and support for customers from all over the world.



  • Real manufacturer: since 2008, with 2 production bases and mature team.
  • Flexible machinery: for filling, capping, labeling, sealing and cartoning.
  • Customization: innovative designs provide you suitable packaging solutions.
  • Strong support: video demonstrations training before and after sales, on-site service available.
  • Guarantee: 1 year free parts, all life service.
