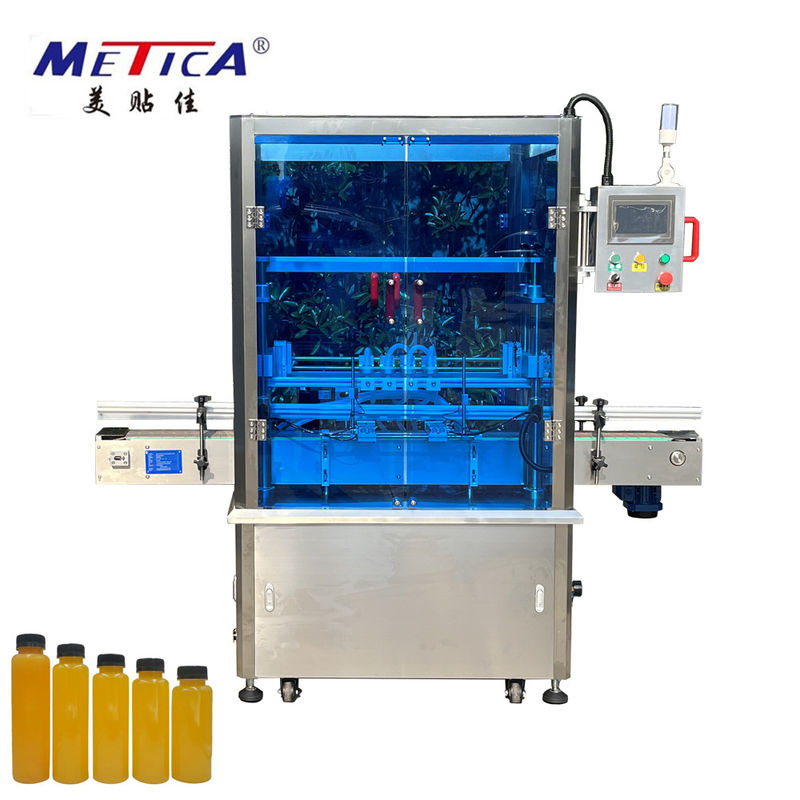

500ml Plastic Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFM-4P
Minimum Order Quantity: 1 SET
Price: USD 9000-15000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Plastic Bottle Beverage Filling Machine Application: Beverage,Food,Chemical,Medical,Commodity
Capacity: 800-2000 BPH(customizable) Filling Accuracy: >= 99%
Machine Size: 200*100*195 Cm Warranty: One Year Warranty
Automatic Grade: Automatic Driven Type: Electric And Pneumatic Combined
Voltage: 110V/220V, 50/60Hz Packaging Type: Plastic Bottles,Cans, Glass Jars
Filling System: Peristaltic Pump For Filling
High Light:

500ml Plastic Bottle Filling Machine

,

Peristaltic Pump Bottle Filling Machine

,

2000 BPH rotary liquid filling machine


Product Description

500ml Plastic Bottle And Glass Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine



Application

  • This machine used for all kinds of liquid product,such as juice, Medical Alcohol, sauce..

    If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.

    The filling heads designed for many heads (can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.





Spec and Feature

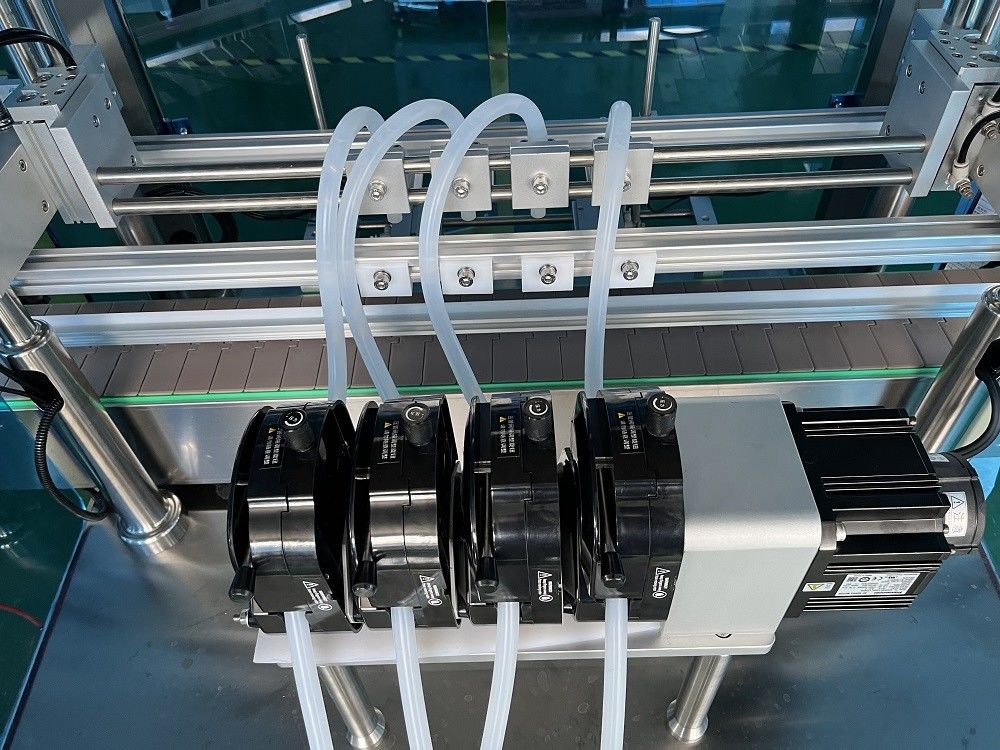

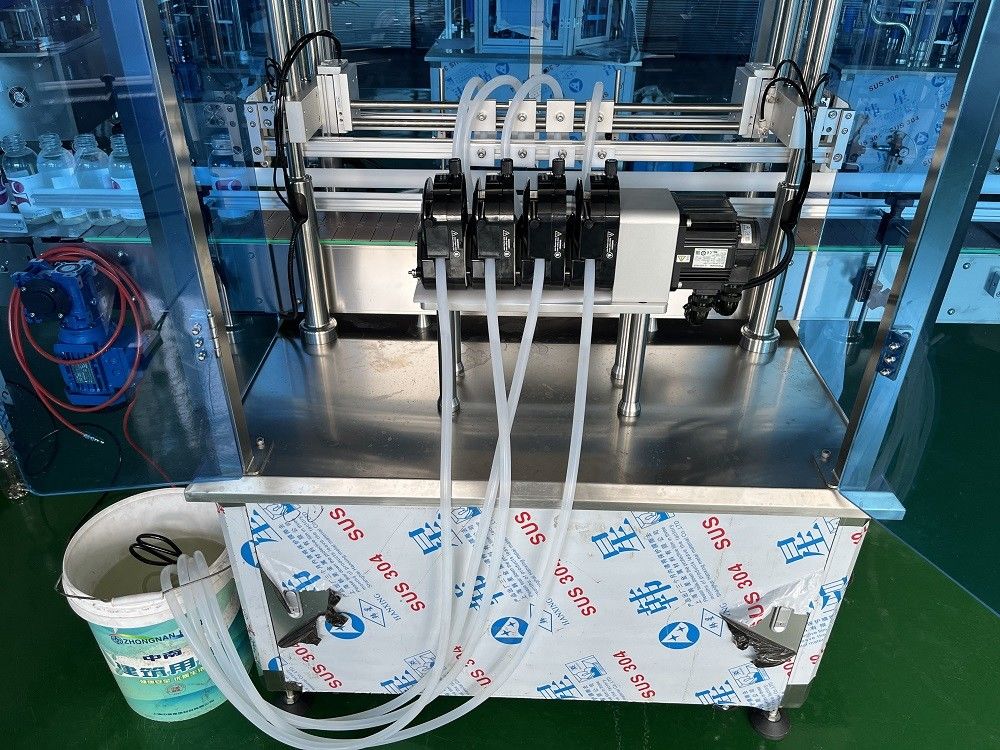

  • Adopts peristaltic pump for filling. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.

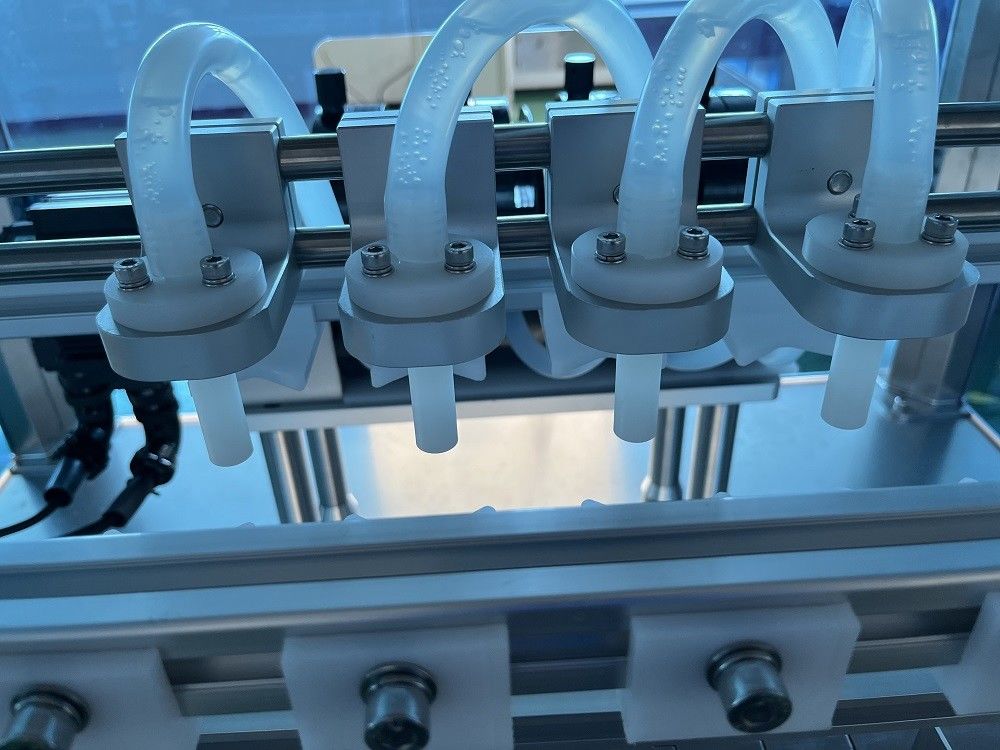

  • Adopts 4 filling nozzles, can change to 1/2/3 filling nozzles or more, the more filling nozzles, the higher capacity.
  • High filling speed and filling precision, no bubble,stable
  • Filling volume is adjustable in certain filling volume scope
  • Single nozzle is micro adjustable
  • International branded electronic parts applied, good performance
  • Compact models, operation stability, simple operation, easy cleaning
  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join the production line.



Work flow

  • Put bottle on conveyor by hand
  • Bottle move to the filling nozzles filling automatically
  • Bottle move out after filling

Parameter:

Speed 8 00-2000bph (customizable)
Filling accuracy  >=99%
Filling volume 50-500ml, 100-1000ml, 200-2000ml, … 500-5000ml( can be customized)
Filling method Peristaltic pump filling
Power supply 220V 50hz 2kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Feature PLC, touch screen, tank, level meter





500ml Plastic Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 0

500ml Plastic Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 1

500ml Plastic Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 2







Samples display:

500ml Plastic Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 3



After-sale service:



Service flow:

500ml Plastic Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 4





Pre-sale Service:

500ml Plastic Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 5



500ml Plastic Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 6



Packing&Shipping:

500ml Plastic Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 7



After-sale service:

500ml Plastic Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 8



Metica Machinery(Shanghai) Co,. Ltd. located in Songjiang District, Shanghai, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service.

Our main products are labeling machine, filling machine,capping machine, and packaging machine line(combined of labeling,filling, capping and code printer etc)

Since the date of establishment, our company has always been pursuing the best product quality and service.

METICA is our product brand, which is the most important thing that our people will always cherish and insist on.

Welcome to our company for long-term cooperation.
