Manual Ultrasonic Tube Filling And Sealing Machine For Row Of Soft Tube

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MT-6A
Minimum Order Quantity: 1 SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Cream Tube Ultrasonic Filling And Sealing Machine Application: Food,Medical,Chemical,Commodity,Beverage And So On
Capacity: 100-1500BPH Qualified Rate: > 99%
Machine Size: 700x700x1300 Mm³ Warranty: One Year
Feature: PLC Control, Touch Screen, Hopper Hopper Volume: 30-40L
Packaging Material: Plastic Soft Tube, Laminated Tube Driven Type: Electric
Weight: 120 Kg
High Light:

Ultrasonic Tube Filling And Sealing Machine

,

1500BPH Tube Filling And Sealing Machine

,

30-40L aluminium tube filling machine


Product Description

Manual Ultrasonic Small Soft Tube Filling And Sealing Machine For Row Of Soft Tube



Application:

  • This machine is designed specially for plastic soft tube filling and sealing. (load tubes by hand)
  • It works for both liquid and sticky products like cream, honey, tooth paste etc
  • It is applicable to all kinds of plastic and plastic combined soft tube, with coder for date and so on. Same machine can work for both plastic and plastic aluminium composite



Feature:

  • 1) It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically.
  • 2) The filling volume is adjustable on touch screen. It can fill 5-50ml etc liquid or sticky products.
  • 3) The machine adopts most advanced ultrasonic tube sealing technology. Sealing effect is better and more beautiful than the other type.
  • 4) It can print date or batch number as required. The number of letter can be set as required.

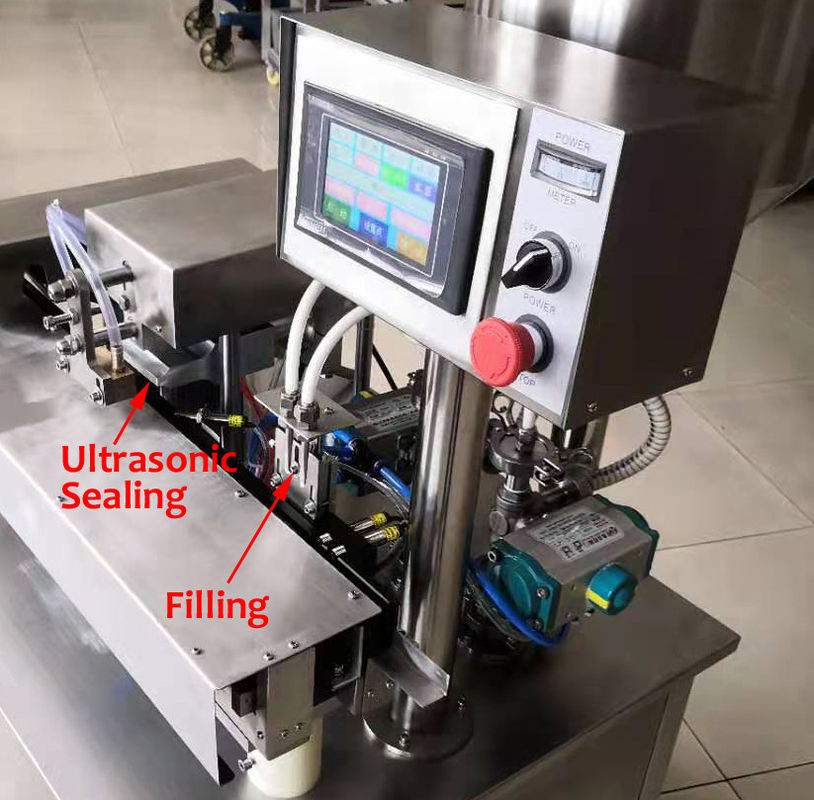

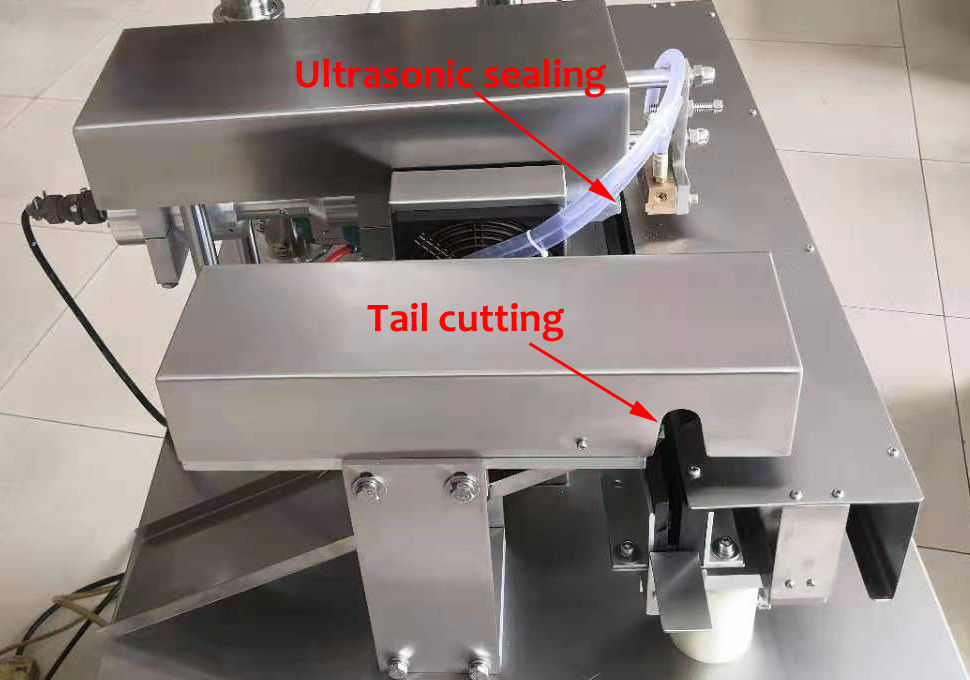

Work flow:

  • Load tube by hand
  • Filling automatically
  • Ultrasonic sealing
  • Tail cutting automatically



Parameter:



Speed  100-1500 bph
Filling volume 5-50ml or 50-300ml(customizable)
Filling accuracy >99%
Ultrasonic power rate 1.0KW
Power supply 220V 50hz 1kw
Air supply 0.6MPa
Machine size 700*700*1300mm





Manual Ultrasonic Tube Filling And Sealing Machine For Row Of Soft Tube 0

Manual Ultrasonic Tube Filling And Sealing Machine For Row Of Soft Tube 1

Manual Ultrasonic Tube Filling And Sealing Machine For Row Of Soft Tube 2

Manual Ultrasonic Tube Filling And Sealing Machine For Row Of Soft Tube 3

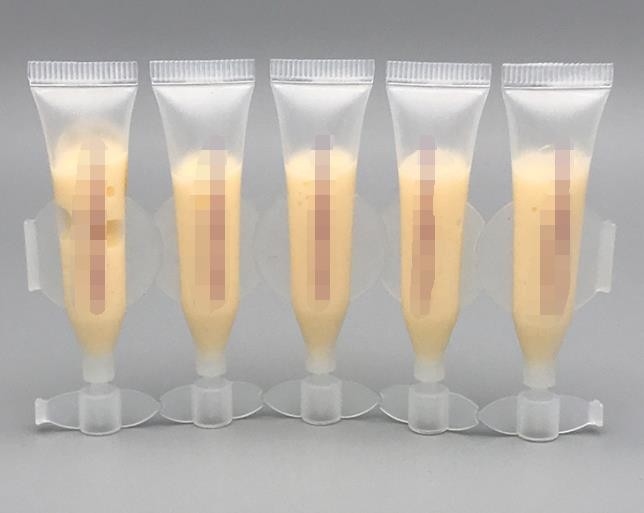

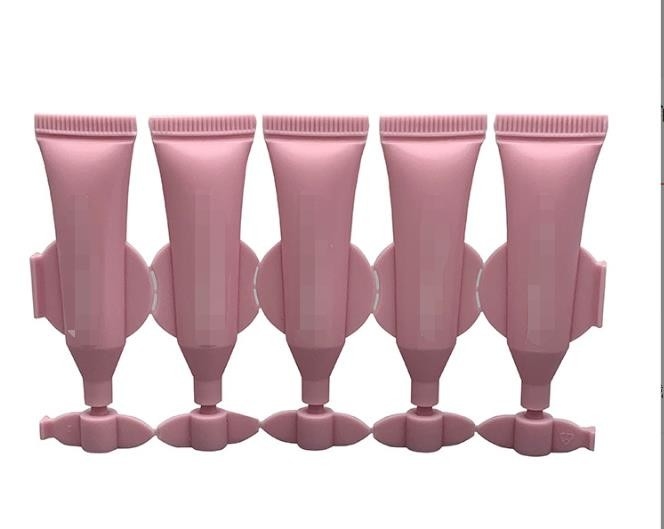

Samples display:

Manual Ultrasonic Tube Filling And Sealing Machine For Row Of Soft Tube 4



Service flow:

Manual Ultrasonic Tube Filling And Sealing Machine For Row Of Soft Tube 5





Pre-sale Service:

Manual Ultrasonic Tube Filling And Sealing Machine For Row Of Soft Tube 6



Manual Ultrasonic Tube Filling And Sealing Machine For Row Of Soft Tube 7



Packing&Shipping:

Manual Ultrasonic Tube Filling And Sealing Machine For Row Of Soft Tube 8



After-sale service:

Manual Ultrasonic Tube Filling And Sealing Machine For Row Of Soft Tube 9



Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We are located in Shanghai, very convenient in factory visiting, and goods shipping. We have more than ten years experience in automatic packaging machinery. We make machines as per GMP Standard. In addition, we have obtained CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and North America, Southeast Asia, the Middle East, Africa and South America.
