PET Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFM-4P
Minimum Order Quantity: 1 SET
Price: USD 9000-15000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Beverage Filling Machine Application: Beverage,Food,Chemical,Medical,Commodity
Capacity: 500-2000 BPH(customizable) Filling Accuracy: >= 99%
Machine Size: 2000*1000*1950 Mm Warranty: One Year
Automatic Grade: Full Automatic Filling Driven Type: Electric And Pneumatic
Voltage: 220V, 50/60Hz Packaging Type: Bottles,Cans
Filling System: Peristaltic Pump Filling

Product Description

PET Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine

Application

  • This machine used for all kinds of liquid product,such as juice, Medical Alcohol, sauce..

    If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.

    The filling heads designed for many heads (can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.





Spec and Feature



  • Adopts peristaltic pump for filling. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts 4 filling nozzles, can change to 1/2/3 filling nozzles or more, the more filling nozzles, the higher capacity.
  • High filling speed and filling precision, no bubble,stable
  • Filling volume is adjustable in certain filling volume scope
  • Single nozzle is micro adjustable
  • International branded electronic parts applied, good performance
  • Compact models, operation stability, simple operation, easy cleaning
  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join the production line.



Work flow

  • Put bottle on conveyor by hand
  • Bottle move to the filling nozzles filling automatically
  • Bottle move out after filling

Parameter:

Speed  500-2000bph (customizable)
Filling accuracy  >=99%
Filling volume 50-500ml, 100-1000ml, 200-2000ml, … 500-5000ml( can be customized)
Filling method Peristaltic pump filling
Power supply 220V 50hz 2kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Feature PLC, touch screen, tank, level meter

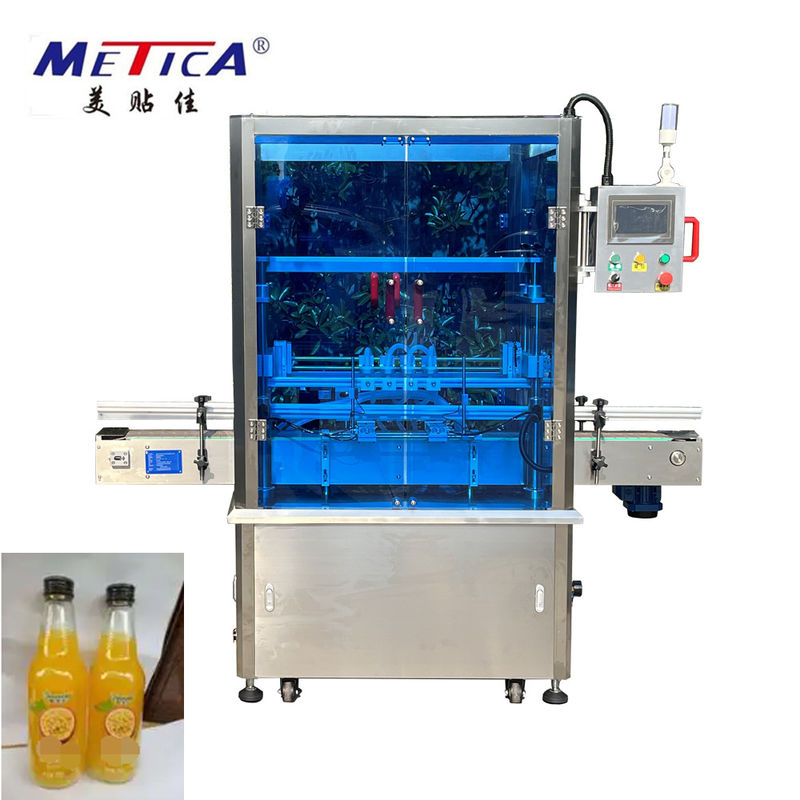

PET Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 0

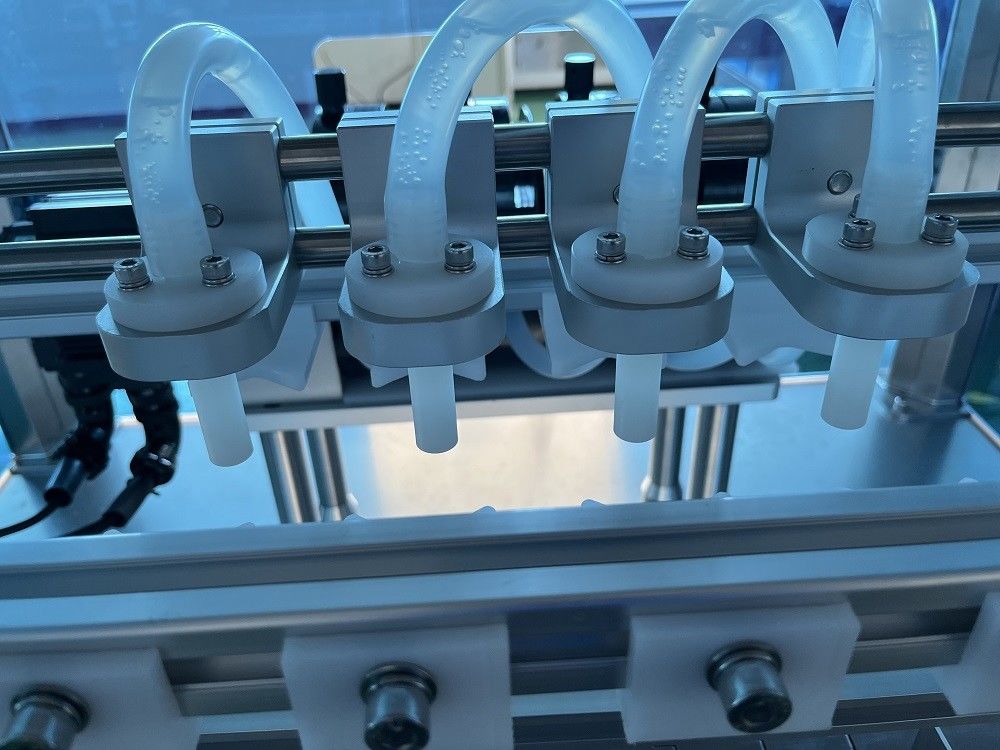

PET Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 1

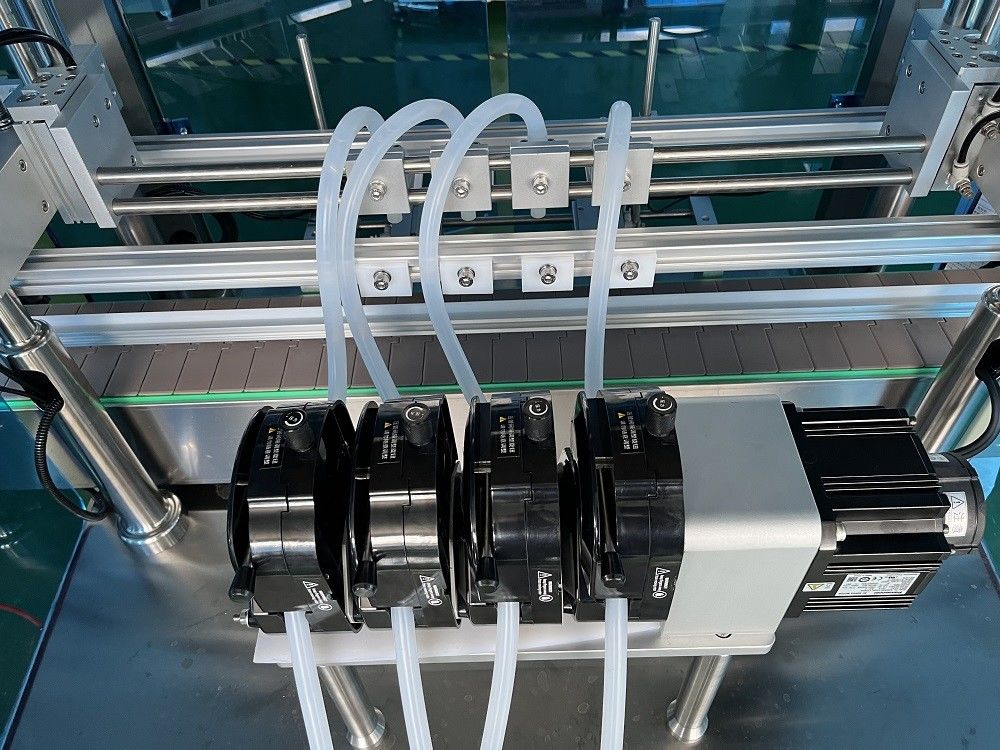

PET Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 2







Samples display:

PET Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 3



After-sale service:



Service flow:

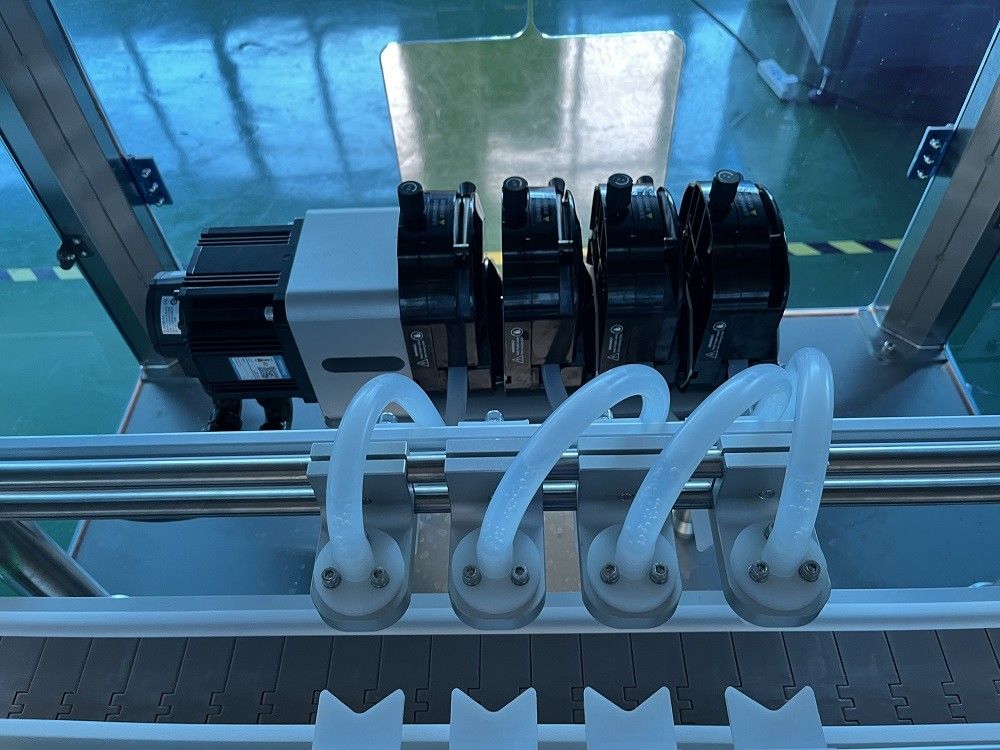

PET Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 4





Pre-sale Service:

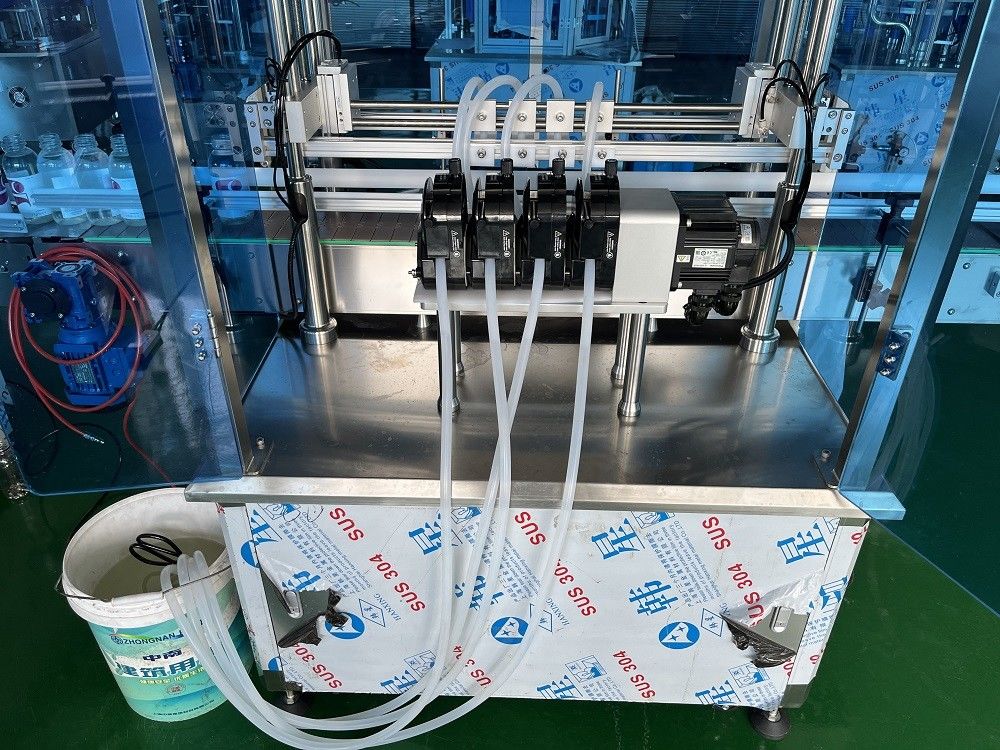

PET Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 5



PET Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 6



Packing&Shipping:

PET Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 7



After-sale service:

PET Bottle Filling Machine With Peristaltic Pump Beverage Filling Machine 8



METICA Machinery

provides one-stop service of bottling equipment in developing, manufacturing, shipping and support for customers from all over the world.



  • Real manufacturer: since 2008, with 2 production bases and mature team.
  • Flexible machinery: for filling, capping, labeling, sealing and cartoning.
  • Customization: innovative designs provide you suitable packaging solutions.
  • Strong support: video demonstrations training before and after sales, on-site service available.
  • Guarantee: 1 year free parts, all life service.
