Semi Automatic Ultrasonic Soft Tube Filling And Sealing Machine For Row Of Soft Tube

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MT-6A
Minimum Order Quantity: 1 SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Cream Tube Ultrasonic Filling And Sealing Machine Application: Food,Medical,Chemical,Commodity,Beverage And So On
Capacity: 100-1500BPH Qualified Rate: > 99%
Machine Size: 700x700x1300 Mm Warranty: 1 Year
Feature: PLC Control, Touch Screen, Hopper Hopper Volume: 30-40L
Packaging Material: Plastic Soft Tube, Laminated Tube Driven Type: Electric
Weight: 120 Kg
High Light:

100BPH Tube Filling And Sealing Machine

,

1500BPH Tube Filling And Sealing Machine

,

30-40L cosmetic tube filling sealing machine


Product Description

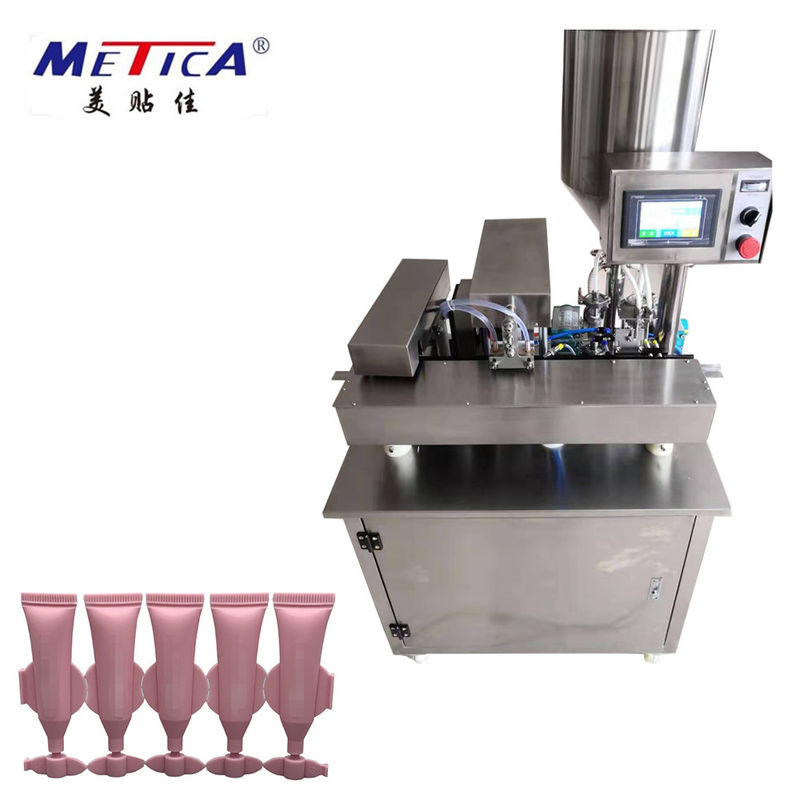

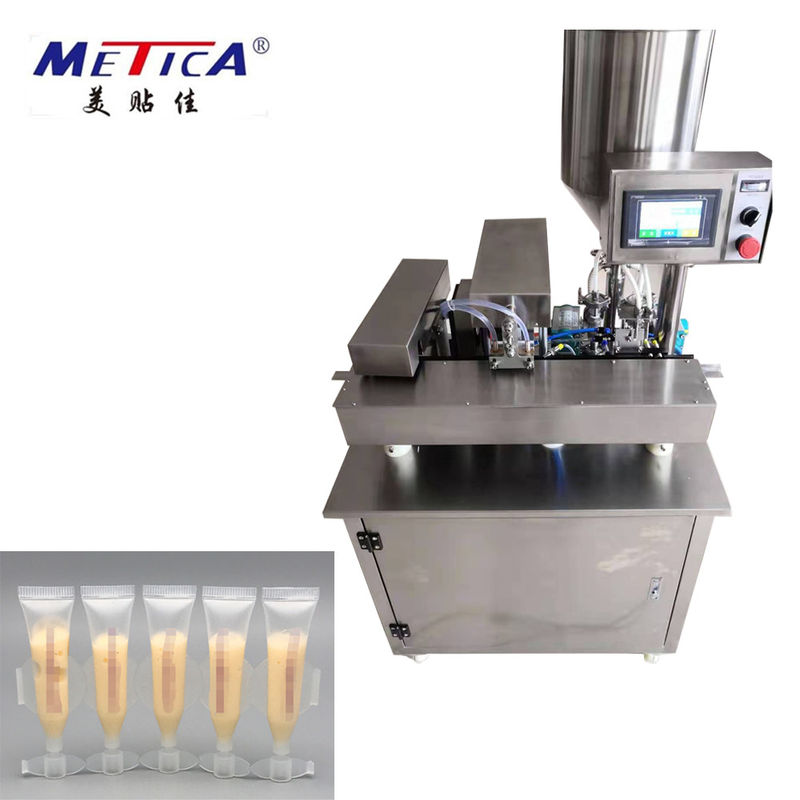

Semi Automatic Ultrasonic Soft Tube Filling And Sealing Machine For Row Of Soft Tube



Application:

  • This machine is designed specially for plastic soft tube filling and sealing. (load tubes by hand)
  • It works for both liquid and sticky products like cream, honey, tooth paste etc
  • It is applicable to all kinds of plastic and plastic combined soft tube, with coder for date and so on. Same machine can work for both plastic and plastic aluminium composite



Feature:

  • 1) It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically.
  • 2) The filling volume is adjustable on touch screen. It can fill 5-50ml etc liquid or sticky products.
  • 3) The machine adopts most advanced ultrasonic tube sealing technology. Sealing effect is better and more beautiful than the other type.
  • 4) It can print date or batch number as required. The number of letter can be set as required.



Work flow:

  • Load tube by hand
  • Filling automatically
  • Ultrasonic sealing
  • Tail cutting automatically



Parameter:



Speed  100-1500 bph
Filling volume 5-50ml or 50-300ml(customizable)
Filling accuracy >99%
Ultrasonic power rate 1.0KW
Power supply 220V 50hz 1kw
Air supply 0.6MPa
Machine size 700*700*1300mm

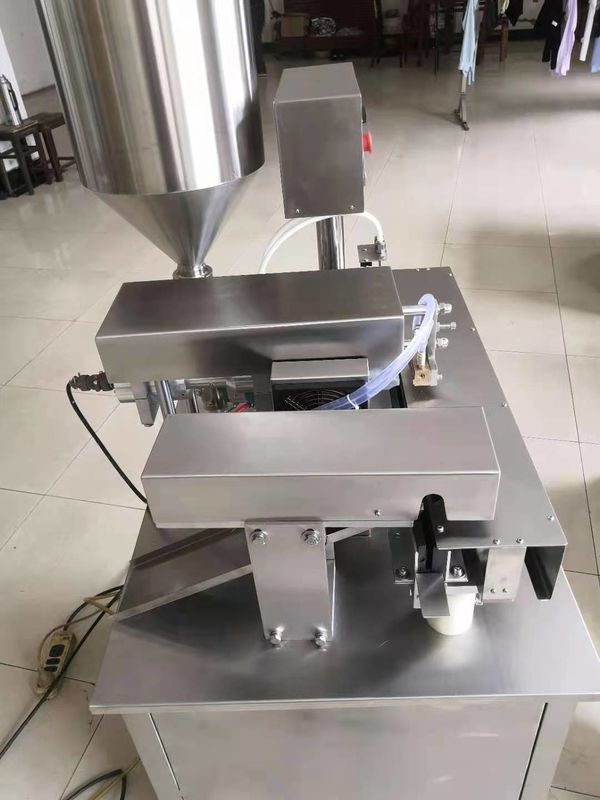

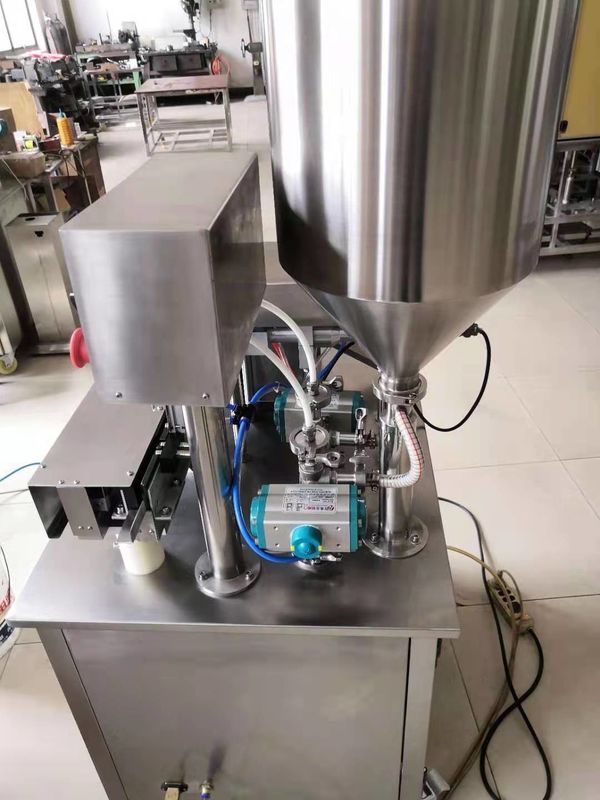

Semi Automatic Ultrasonic Soft Tube Filling And Sealing Machine For Row Of Soft Tube 0

Semi Automatic Ultrasonic Soft Tube Filling And Sealing Machine For Row Of Soft Tube 1

Semi Automatic Ultrasonic Soft Tube Filling And Sealing Machine For Row Of Soft Tube 2

Semi Automatic Ultrasonic Soft Tube Filling And Sealing Machine For Row Of Soft Tube 3

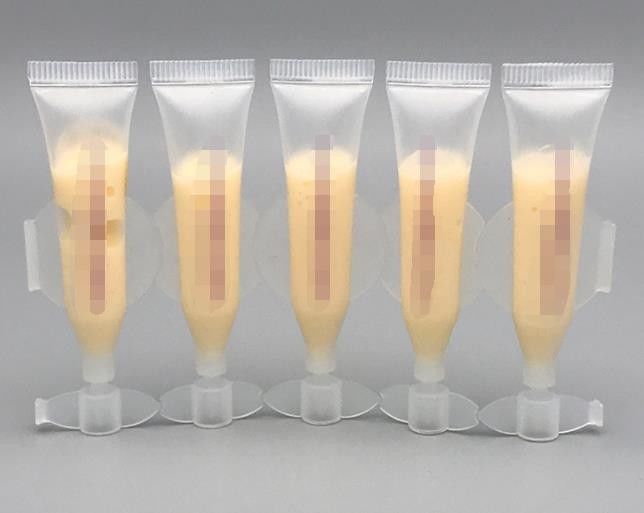

Samples display:

Semi Automatic Ultrasonic Soft Tube Filling And Sealing Machine For Row Of Soft Tube 4



Service flow:

Semi Automatic Ultrasonic Soft Tube Filling And Sealing Machine For Row Of Soft Tube 5





Pre-sale Service:

Semi Automatic Ultrasonic Soft Tube Filling And Sealing Machine For Row Of Soft Tube 6



Semi Automatic Ultrasonic Soft Tube Filling And Sealing Machine For Row Of Soft Tube 7



Packing&Shipping:

Semi Automatic Ultrasonic Soft Tube Filling And Sealing Machine For Row Of Soft Tube 8



After-sale service:

Semi Automatic Ultrasonic Soft Tube Filling And Sealing Machine For Row Of Soft Tube 9
