Liquid 100-1000ml Juice Pet Bottle Filling Machine With Peristaltic Pump

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFM-4P
Minimum Order Quantity: 1 SET
Price: USD 9000-15000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Juice Bottle Filling Machine Application: Beverage,Food,Chemical,Medical
Capacity: 1000-2000 BPH(customizable) Filling Accuracy: > 99%
Machine Size: 2000*1000*1950 Mm³ Warranty: 1 Year
Automatic Grade: Full Automatic Driven Type: Electric
Voltage: 220V, 50/60Hz (customizable) Packaging Type: Bottles,Cans,Barrel, Glass Jars
Filling System: Peristaltic Pump
High Light:

100-1000ml pet bottle filling machine

,

Juice pet bottle filling machine

,

100ml bottle filling machine


Product Description

High Accuracy 100-1000ml Juice Bottle Filling Machine With Peristaltic Pump

Application

  • This machine used for all kinds of liquid product,such as juice, Medical Alcohol, sauce..

    If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.

    The filling heads designed for many heads (can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.





Spec and Feature

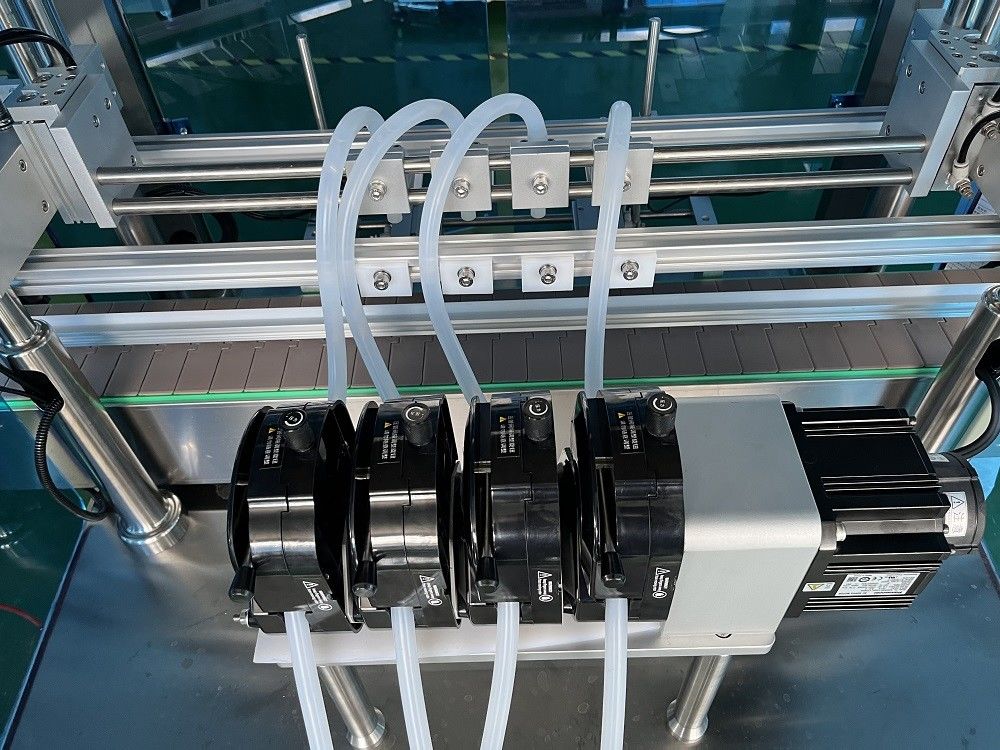

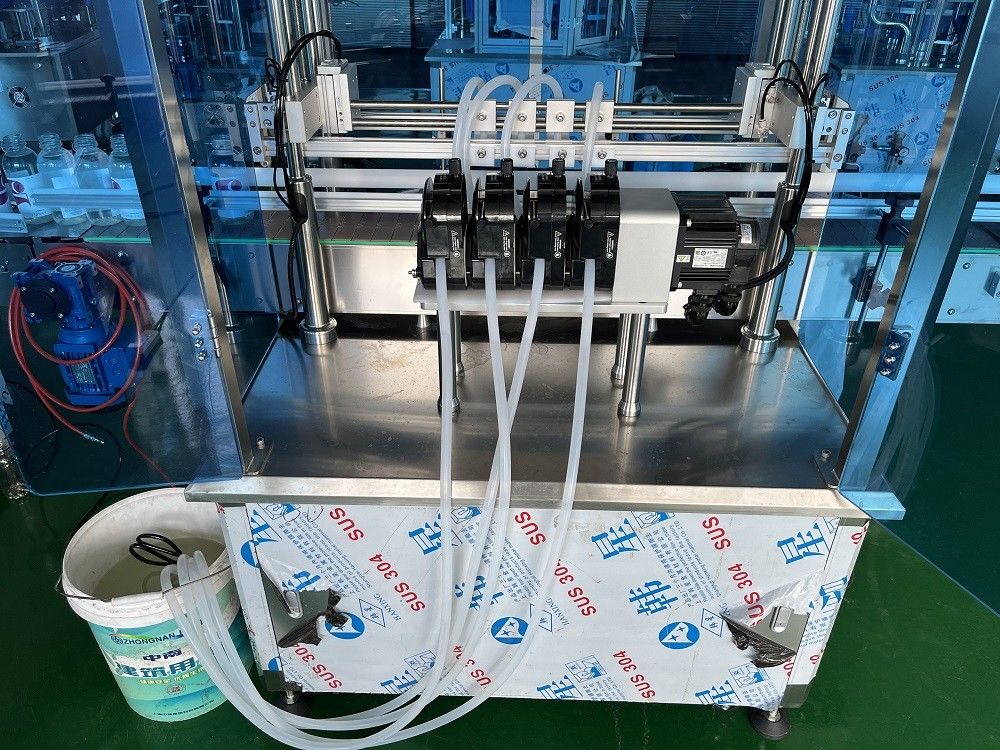

  • Adopts peristaltic pump for filling. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.

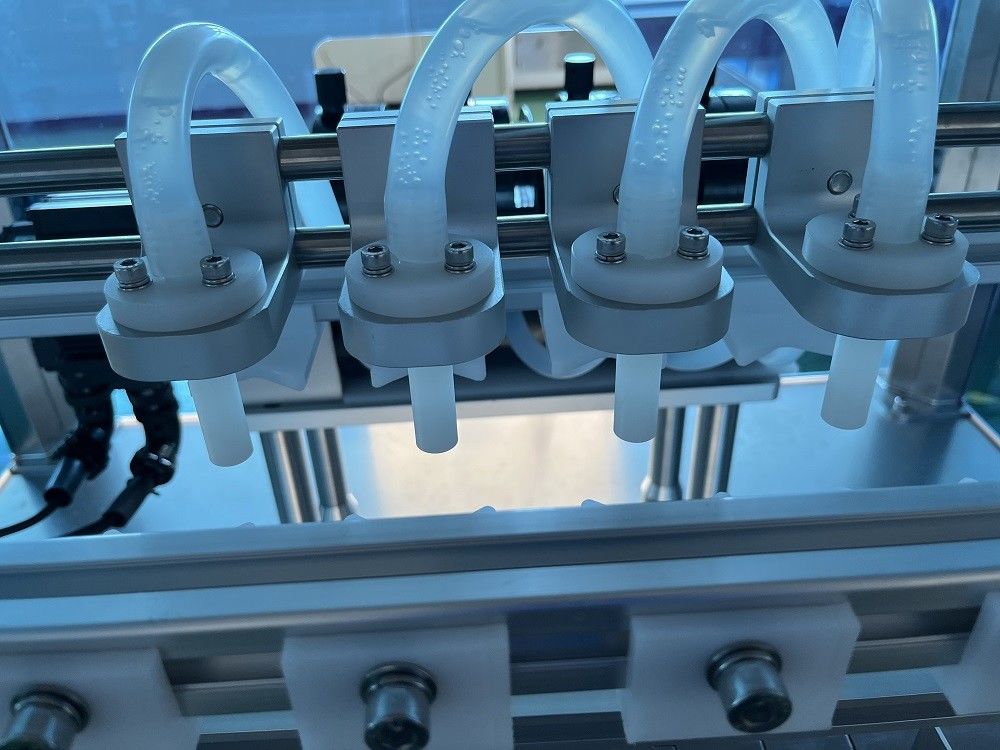

  • Adopts 4 filling nozzles, can change to 1/2/3 filling nozzles or more, the more filling nozzles, the higher capacity.
  • High filling speed and filling precision, no bubble,stable
  • Filling volume is adjustable in certain filling volume scope
  • Single nozzle is micro adjustable
  • International branded electronic parts applied, good performance
  • Compact models, operation stability, simple operation, easy cleaning
  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join the production line.



Work flow

  • Put bottle on conveyor by hand
  • Bottle move to the filling nozzles filling automatically
  • Bottle move out after filling

Parameter:

Speed  1000-2000bph (customizable)
Filling accuracy  >99%
Filling volume 50-500ml, 100-1000ml, 200-2000ml, … 500-5000ml( can be customized)
Filling method Peristaltic pump filling
Power supply 220V 50hz 2kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Feature PLC, touch screen, tank, level meter





Liquid 100-1000ml Juice Pet Bottle Filling Machine With Peristaltic Pump 0

Liquid 100-1000ml Juice Pet Bottle Filling Machine With Peristaltic Pump 1

Liquid 100-1000ml Juice Pet Bottle Filling Machine With Peristaltic Pump 2







Samples display:

Liquid 100-1000ml Juice Pet Bottle Filling Machine With Peristaltic Pump 3
