Automatic Monoblock Filling And Capping Machine For Spicy Powder

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTPF-1000
Minimum Order Quantity: 1 SET
Price: USD 10000-16000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Automatic Powder Products Filling Capping Machine Application: For Food,cosmetic And Chemical Industry
Capacity: 1000-2200BPH(customizable) Filling Accuracy: >= 99%
Machine Size: 300(L)*125(W)*230()H Cm Automatic Grade: Automatic Filling And Capping
Driven Type: Electric And Pneumatic Voltage: 110V/220V, 50/60Hz
Type: Filling Machine For Powders Useage: For Filling Pepper Products
High Light:

Spicy Powder Filling Capping Machine

,

Automatic Powder Filling And Capping Machine

,

Automatic Filling And Capping Machine 50Hz


Product Description

Automatic Powder Products Spicy Powder Filling And Capping Machine In One



Application

  • This machine used for powder products filling into bottle. Such as Sewer Cleaning Agent Powder
  • The filling heads designed according to capacity and product feature. (Can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.



Spec and Feature

  • Adopts servo motor driven filling system. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts one or two filling nozzles, the more filling nozzles, the higher capacity.
  • Filling volume is adjustable in certain filling volume scope.
  • Single nozzle is micro adjustable.
  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join the production line.

Work flow:

  • Manually load bottles on conveyor or turntable(optional)
  • Automatic filling with 2 filling nozzles(customizable)
  • One cap loading station for loading cap automatically
  • One capping station for capping automatically
  • Push out bottle on conveyor after filling and capping



Technical Parameters

Speed 15-60 BPM(can be customized)
Filling accuracy +/- 2%
Filling volume 10-500 g(can be customized)
Filling method servo motor driven
Power supply 220V 50/60 Hz, 3 kw
Air supply 0.8MPa
Machine size 300*125*230 cm
Bottle applicable A wide shape range
Application Powder products filling
Feature PLC, touch screen



Automatic Monoblock Filling And Capping Machine For Spicy Powder 0Automatic Monoblock Filling And Capping Machine For Spicy Powder 1

Automatic Monoblock Filling And Capping Machine For Spicy Powder 2Automatic Monoblock Filling And Capping Machine For Spicy Powder 3





Automatic Monoblock Filling And Capping Machine For Spicy Powder 4Automatic Monoblock Filling And Capping Machine For Spicy Powder 5

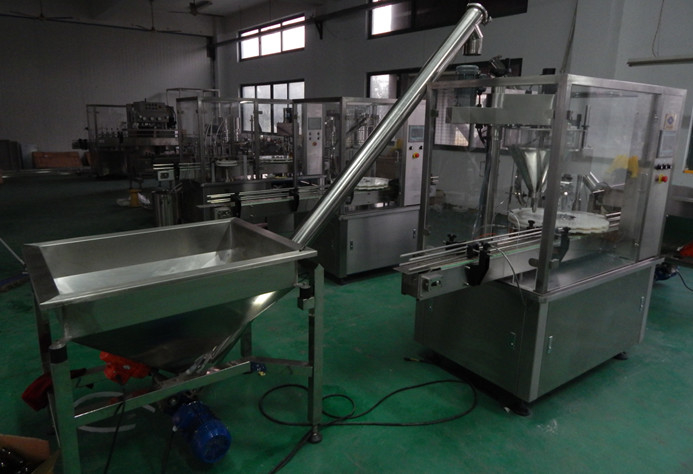

Project Examples

Automatic Monoblock Filling And Capping Machine For Spicy Powder 6



Service flow:

Automatic Monoblock Filling And Capping Machine For Spicy Powder 7





Pre-sale Service:

Automatic Monoblock Filling And Capping Machine For Spicy Powder 8



Automatic Monoblock Filling And Capping Machine For Spicy Powder 9



Packing&Shipping:

Automatic Monoblock Filling And Capping Machine For Spicy Powder 10



After-sale service:

Automatic Monoblock Filling And Capping Machine For Spicy Powder 11
