Monoblock Filling And Capping Machine CBD Oil E Liquid

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFC-1000
Minimum Order Quantity: 1 SET
Price: USD 10000-20000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: E-liquid Glass Dropper Bottle Filling Capping Machine Capacity: 1000-2000 BPH
Qualified Rate: > 99% Machine Size: 2500*1350*1650 Mm³
Warranty: One Year Type: Filling Machine And Capping Machine Monoblock In One
Automatic Grade: Automatic Filling And Capping Filling Volume: 5-50ml
Weight: 300kg Application: Beverage,Food,Chemical,Medical,Commodity
Product Name: E-liquid Bottle Filling Machine Bottle Type: Glass Dropper Bottle, Small Plastic Bottle
High Light:

Oil Monoblock Filling And Capping Machine

,

CBD Oil Filling And Capping Machine

,

E Liquid Monoblock Filling Machine


Product Description

E-liquid Bottle Filling Machine And Glass Dropper Bottle Monoblock Filling And Capping Machine



Application

  • The machine is good for Glass dropper bottle, Plastic and similar bottles.
  • The machine is used for all kinds of liquid products filling and capping, mainly small bottle with volume 10-50 ml.
  • Essential Oil, E-Cigarette, Health Care Oil, Eye Drop and similar products is available.

Spec and Feature

  • The whole machine is designed especially for 10-50ml liquid filling, capping
  • The line speed is 20-30 bottles per minute
  • Famous branded electrical parts guarantee the line working stable and a longer working life
  • Adopts peristaltic pump or piston pump, high filling precision. No bottle, no fill, no drop, no leak
  • Touch screen, easy operate and adjust human interface. English operation interface
  • Suitable for single, mass production.
  • The machines have emergency stop Button and automatic interrupt device for safe operation
  • Labors need: 1 workers



Work flow:

  • Manually load bottles on conveyor or turntable(optional)
  • Automatic filling with 2 filling nozzles(customizable)
  • One cap loading station for loading cap automatically
  • One capping station for capping automatically
  • Push out bottle on conveyor after filling and capping
  • We can make fully automatic machine with higher speed for you as well

Parameter:

Speed  1500-2000bph (can be customized)
Filling accuracy  >=99%
Filling volume 10-50ml(can be customized)
Filling method

servo motor + piston or peristaltic pump

Power supply 220V 50hz 2kw
Air supply 0.6 MPa
Bottles applicable glass dropper bottle, plastic bottle
Caps applicable press caps/ screw caps/dropper cap

Application

Liquid or viscosity liquid
Feature PLC, touch screen etc..

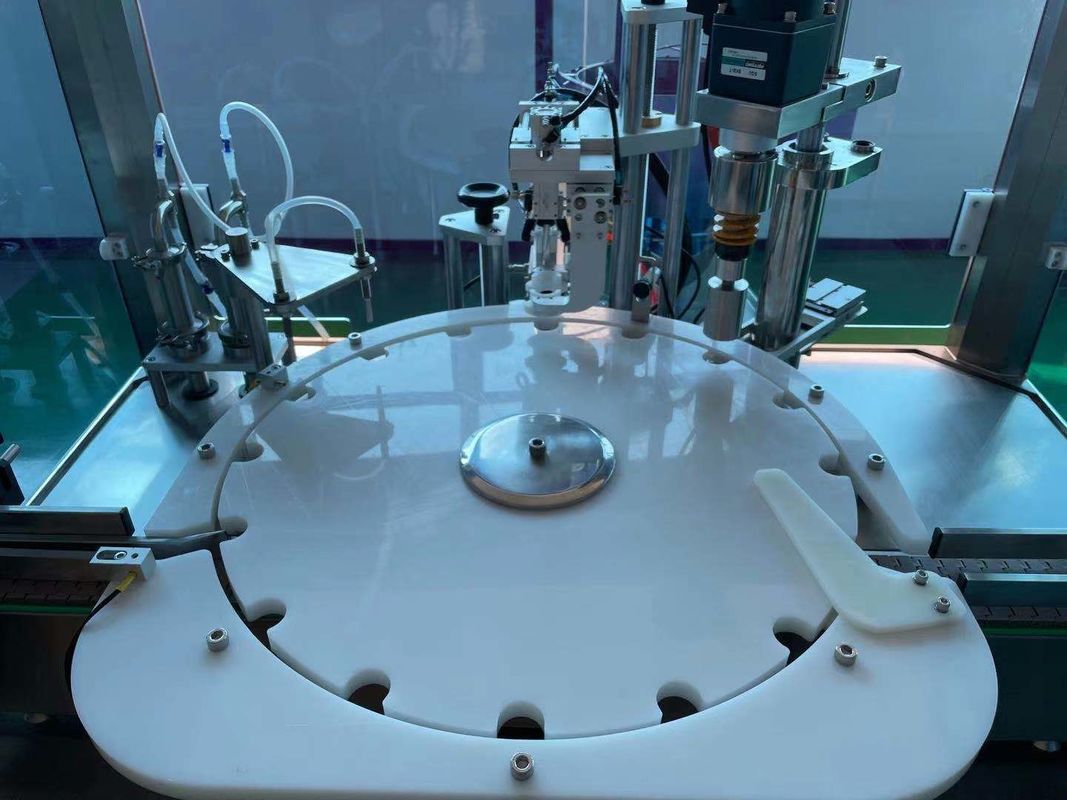

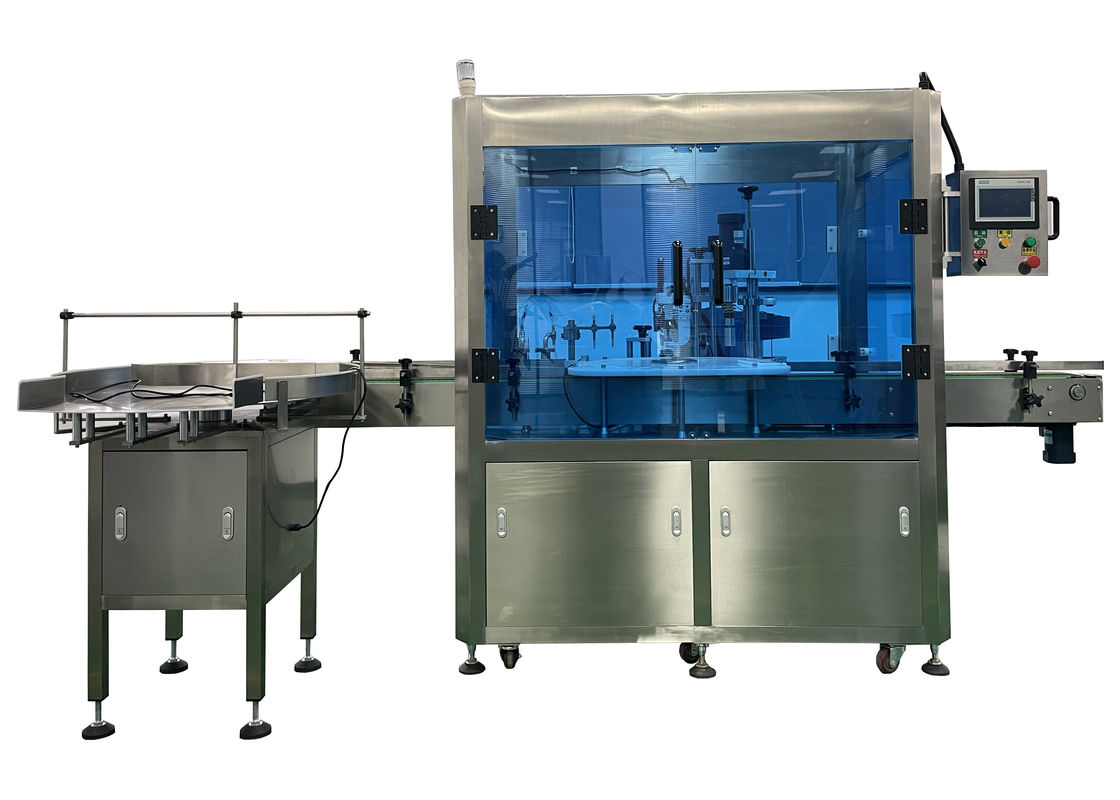

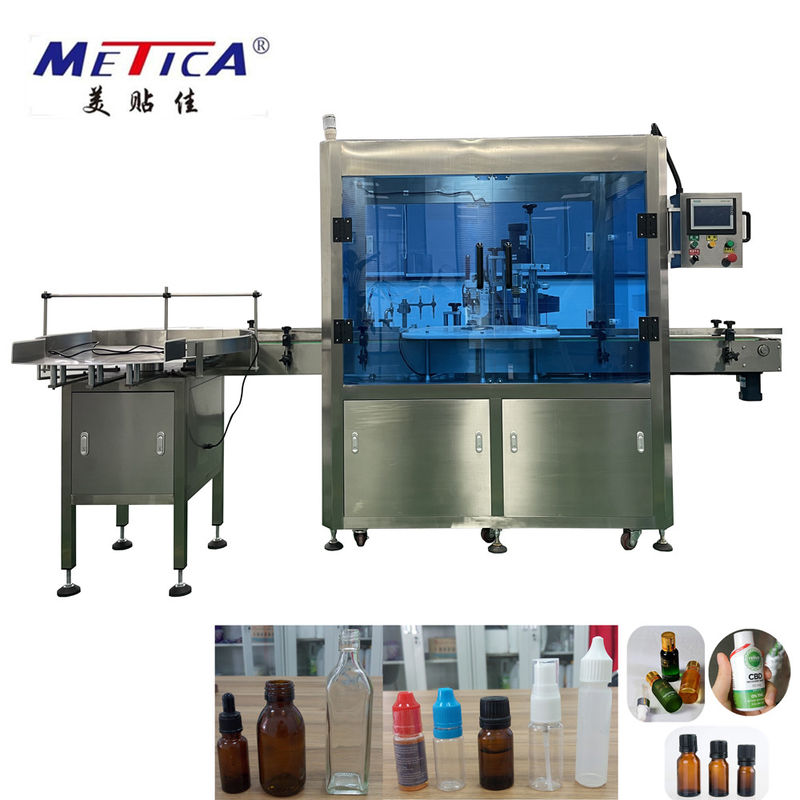

Monoblock Filling And Capping Machine CBD Oil E Liquid 0

Monoblock Filling And Capping Machine CBD Oil E Liquid 1

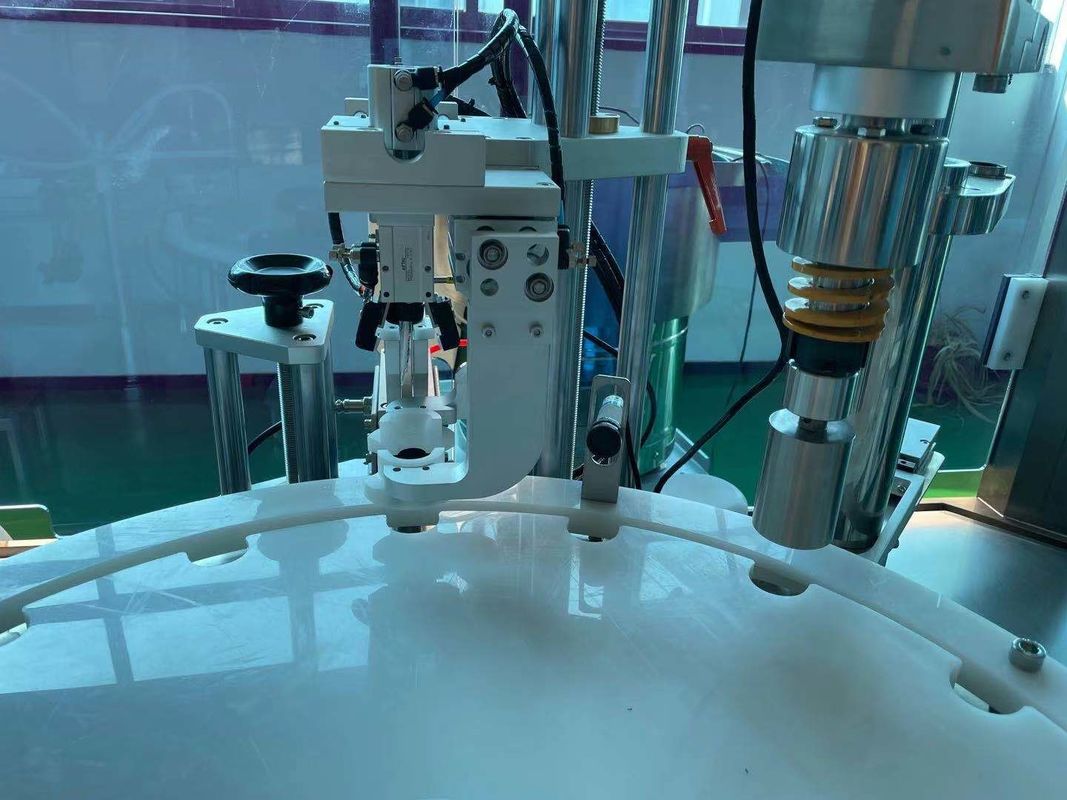

Cap feeder:

Monoblock Filling And Capping Machine CBD Oil E Liquid 2



Samples display:

Monoblock Filling And Capping Machine CBD Oil E Liquid 3



Monoblock Filling And Capping Machine CBD Oil E Liquid 4Monoblock Filling And Capping Machine CBD Oil E Liquid 5

Monoblock Filling And Capping Machine CBD Oil E Liquid 6



Service flow:

Monoblock Filling And Capping Machine CBD Oil E Liquid 7





Pre-sale Service:

Monoblock Filling And Capping Machine CBD Oil E Liquid 8



Monoblock Filling And Capping Machine CBD Oil E Liquid 9



Packing&Shipping:

Monoblock Filling And Capping Machine CBD Oil E Liquid 10



After-sale service:

Monoblock Filling And Capping Machine CBD Oil E Liquid 11



Company Profile:

Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We have more than ten years experience in automatic packaging machinery. Since the date of establishment, our company has always been pursuing the best product quality and service. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We can also provide customers with the manufacture and development of various non-standard machines. We make machines as per GMP Standard. In addition, we have obtained CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and North America, Southeast Asia, the Middle East, Africa and South America.
