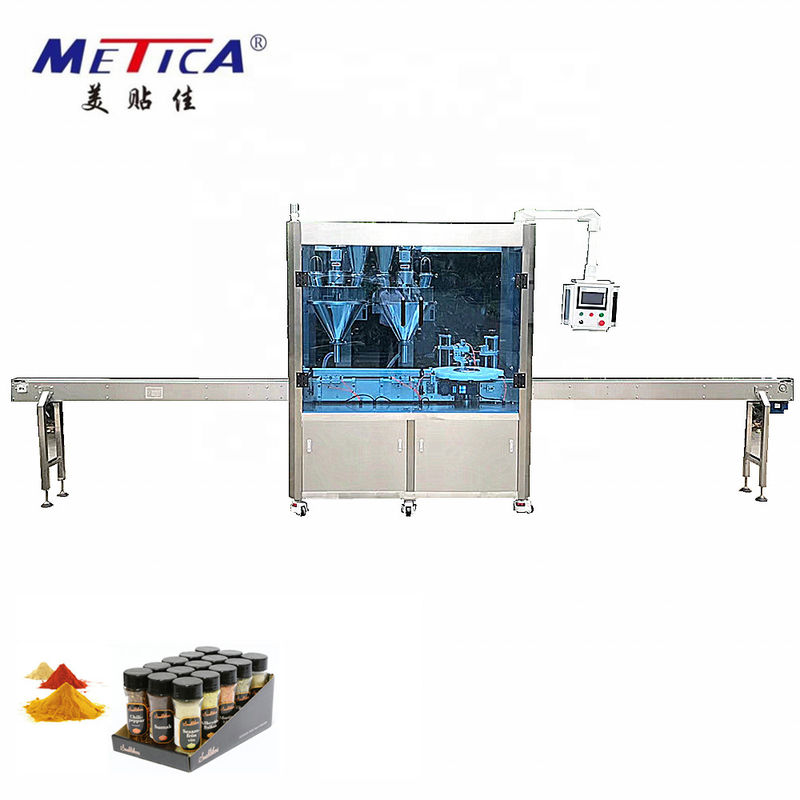

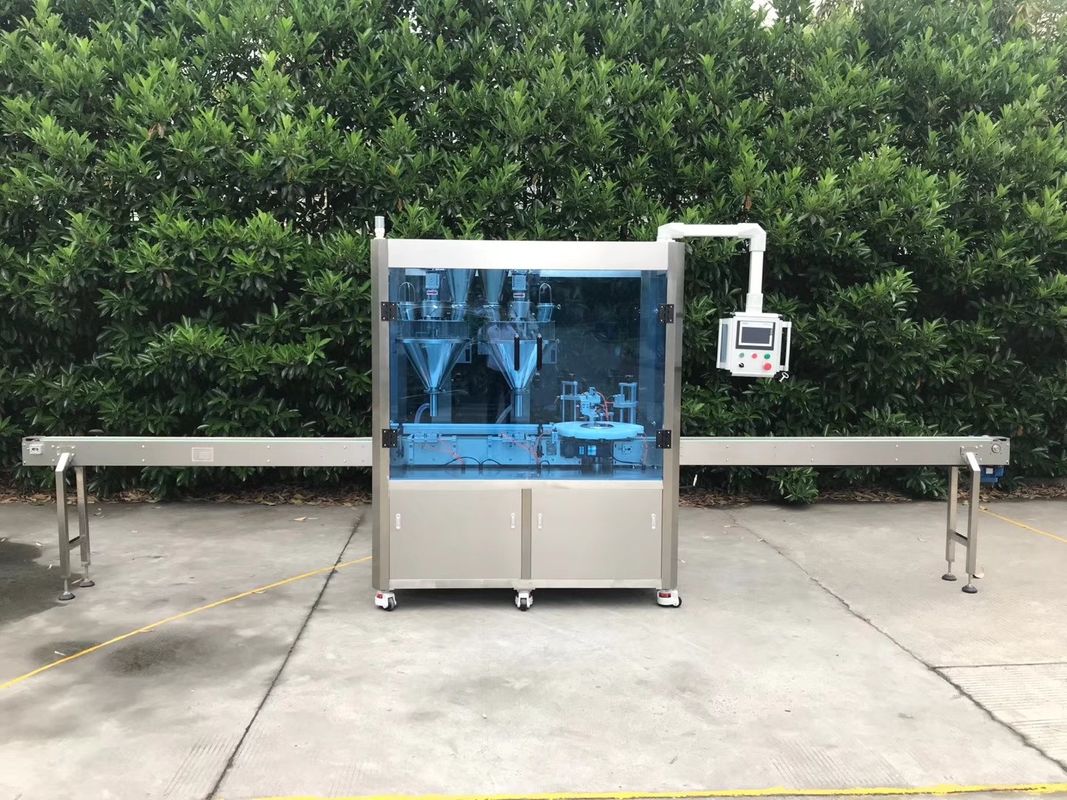

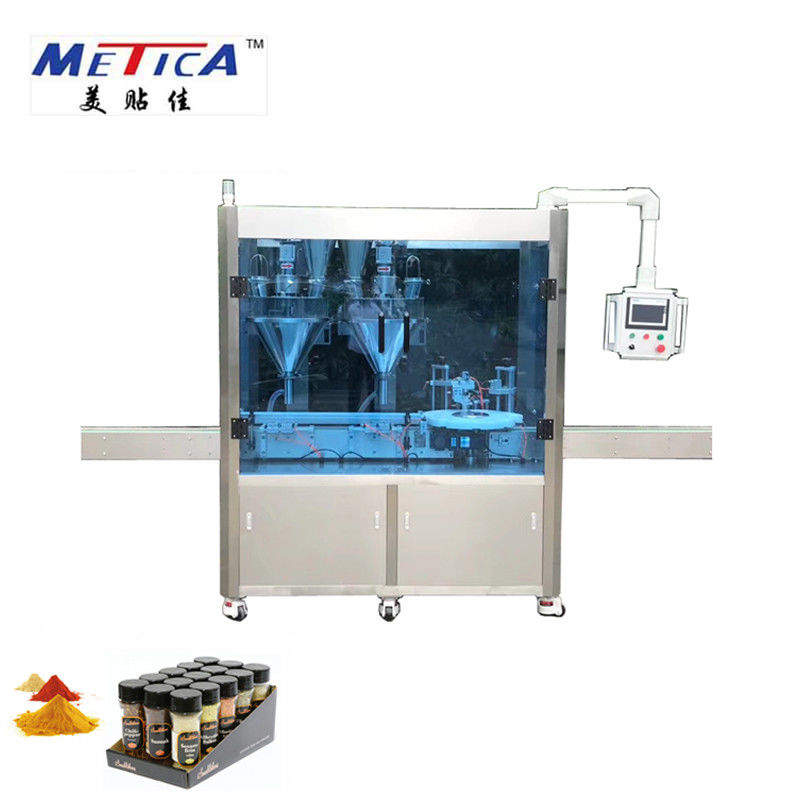

Powder Monoblock Filling And Capping Machine For Cosmetics Food Industry

Powder Monoblock Filling And Capping Machine For Cosmetics Food Industry

Powder Monoblock Filling And Capping Machine

Cosmetics Powder Filling And Capping Machine

Food Industry Monoblock Filling Machine

Place of Origin:

Shanghai

Brand Name:

METICA

Certification:

CE

Model Number:

MTPF-1000

Contact Us
Request A Quote
Product Details
Name:
Powder Products Filling And Capping Machine In One
Application:
For Food, Cosmetics And Chemical Industry
Capacity:
1000-2000BPH(customizable)
Filling Accuracy:
> 99%
Machine Size:
3000(L)*1250(W)*2300()H Mm³
Warranty:
One Year
Automatic Grade:
Automatic Filling And Capping In One
Driven Type:
Electric, Pneumatic
Voltage:
110V/220V, 50/60Hz (customizable)
Type:
Filling Machine For Sewer Cleaning Agent Powders
Highlight:

Powder Monoblock Filling And Capping Machine

,

Cosmetics Powder Filling And Capping Machine

,

Food Industry Monoblock Filling Machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 10000-16000/SET
Packaging Details
Fumigation-free wooden boxes that meet international standards
Delivery Time
25-30 days
Payment Terms
L/C, T/T
Supply Ability
100 SETS PER MONTH
Product Description

Automatic Sewer Cleaning Agent Powder Filling Capping Machine Monoblock Filling And Capping Machine



Application

  • This machine used for powder products filling into bottle. Such as Sewer Cleaning Agent Powder
  • The filling heads designed according to capacity and product feature. (Can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.



Spec and Feature

  • Adopts servo motor driven filling system. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts one or two filling nozzles, the more filling nozzles, the higher capacity.
  • Filling volume is adjustable in certain filling volume scope.
  • Single nozzle is micro adjustable.
  • International branded electronic parts applied, good performance
  • Compact models, operation stability, simple operation, easy cleaning
  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join the production line.

Work flow:

  • Manually load bottles on conveyor or turntable(optional)
  • Automatic filling with 2 filling nozzles(customizable)
  • One cap loading station for loading cap automatically
  • One capping station for capping automatically
  • Push out bottle on conveyor after filling and capping



Technical Parameters

Speed 15-60 BPM(can be customized)
Filling accuracy +/- 2%
Filling volume 10-500 g(can be customized)
Filling method servo motor driven
Power supply 220V 50/60 Hz, 3 kw
Air supply 0.8MPa
Machine size 300*125*230 cm
Bottle applicable A wide shape range
Application Powder products filling
Feature PLC, touch screen



Powder Monoblock Filling And Capping Machine For Cosmetics Food Industry 0Powder Monoblock Filling And Capping Machine For Cosmetics Food Industry 1

Powder Monoblock Filling And Capping Machine For Cosmetics Food Industry 2Powder Monoblock Filling And Capping Machine For Cosmetics Food Industry 3





Powder Monoblock Filling And Capping Machine For Cosmetics Food Industry 4Powder Monoblock Filling And Capping Machine For Cosmetics Food Industry 5

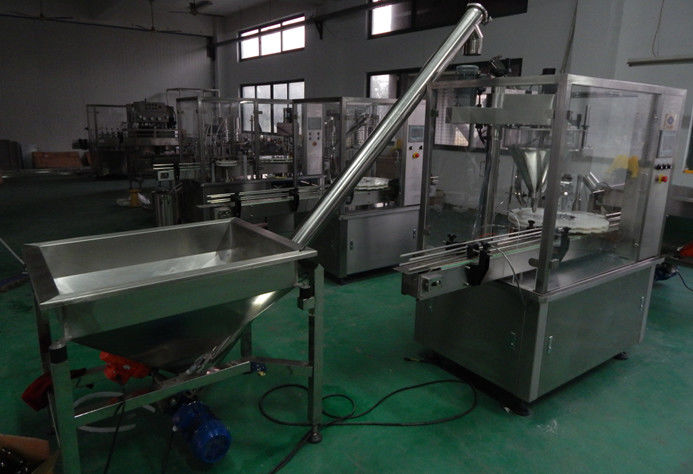

Project Examples

Powder Monoblock Filling And Capping Machine For Cosmetics Food Industry 6



Service flow:

Powder Monoblock Filling And Capping Machine For Cosmetics Food Industry 7





Pre-sale Service:

Powder Monoblock Filling And Capping Machine For Cosmetics Food Industry 8



Powder Monoblock Filling And Capping Machine For Cosmetics Food Industry 9



Packing&Shipping:

Powder Monoblock Filling And Capping Machine For Cosmetics Food Industry 10



After-sale service:

Powder Monoblock Filling And Capping Machine For Cosmetics Food Industry 11



Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We are located in Shanghai, very convenient in factory visiting, and goods shipping. We have more than ten years experience in automatic packaging machinery. We make machines as per GMP Standard. In addition, we have obtained CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and North America, Southeast Asia, the Middle East, Africa and South America.
