Automatic Ultrasonic Tube Filling And Sealing Machine For Toothpaste Hand Sanitizer

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTGF-20
Minimum Order Quantity: 1 SET
Price: USD 7000-9000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Multipurpose Oil Cream Soft Tube Filling And Sealing Machine Application: Cosmetics And Food, Chemical...
Capacity: 1000-1500BPH(related To Filling Volume) Qualified Rate: Around 99%
Machine Size: 1300x950x1700 Mm³ Warranty: One-year
Feature: Automatic Filling,sealing And Tail Cutting, Ultrasonic Sealing Hopper Volume: Around 30-40 L
Voltage: 220V, 50/60Hz Automatic Grade: Fully Automatic
Type: Tube Filling Sealing Machine Weight: About 300kg
High Light:

Toothpaste Tube Filling Machine

,

Hand Sanitizer Automatic Tube Filling Machine

,

Ultrasonic Cosmetic Tube Filling Machine


Product Description

Automatic Multipurpose Oil Cream For Face / Body / Hands Ultrasonic Soft Tube Filling And Sealing Machine



Application:

  • This machine is designed for plastic and composite soft tube filling and sealing. Fully automatic load tube, filling, sealing and tail cutting
  • It works for both liquid and sticky products like hand sanitizer, cream, tooth paste and so on
  • As long as the materials is not very thick, same machine can work for both plastic tube and plastic aluminium composite tube.



Feature:

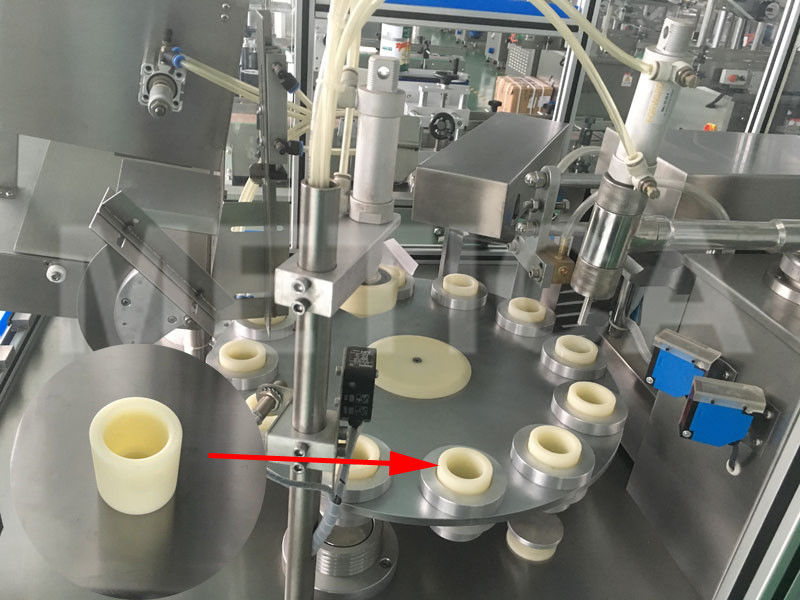

  • it has tube orientation mechanism to locate the tubes position
  • It is controlled by PLC and operate on color touch screen, easy to set up and change filling volume.
  • The filling volume is adjustable on touch screen. It can fill 5-50ml, 50-300ml liquid or sticky products.
  • The sealing way is ultrasonic, it works stable, and have advantages over heating sealing: low temperature, no impact from materials stuck to the tubes, reduce the empty space in the tube, sealing result is better.
  • It can print date or batch number as required. The number of letter can be set as required.
  • It has automatic tube positioning and identify function. It automatically identify front and back side by the color mark

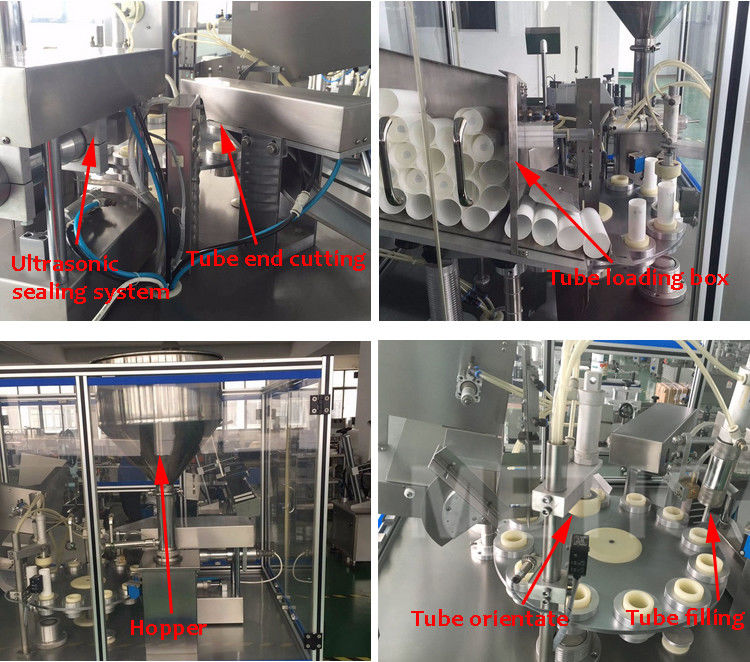

Work flow:

  • Load tube automatically
  • Orientation automatically
  • Filling automatically
  • Ultrasonic sealing
  • Tail cutting automatically



Parameter:



Speed  1000-1500 BPH(related to filling volume)
Filling volume 5-50ml or 50-300ml(customizable)
Filling accuracy >=99%
Ultrasonic power rate 1.5KW
Power supply 220V 50hz 1.5kw
Air supply 0.6 MPa
Machine size 1300*950*1700mm
Feature PLC, touch screen, ultrasonic sealing, hopper

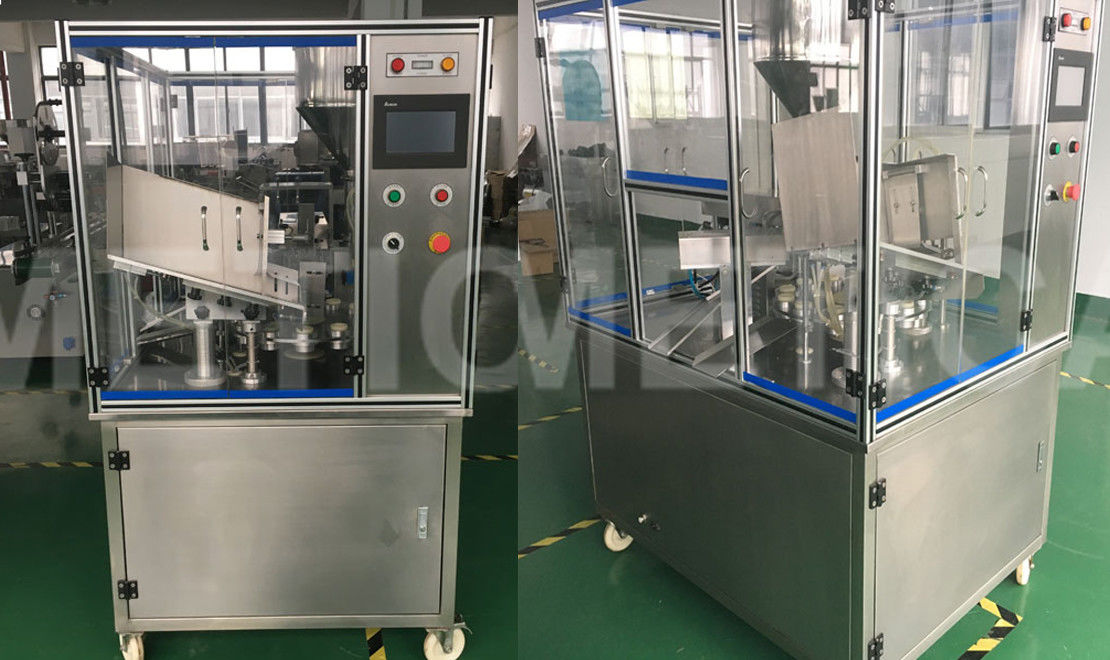

Automatic Ultrasonic Tube Filling And Sealing Machine For Toothpaste Hand Sanitizer 0

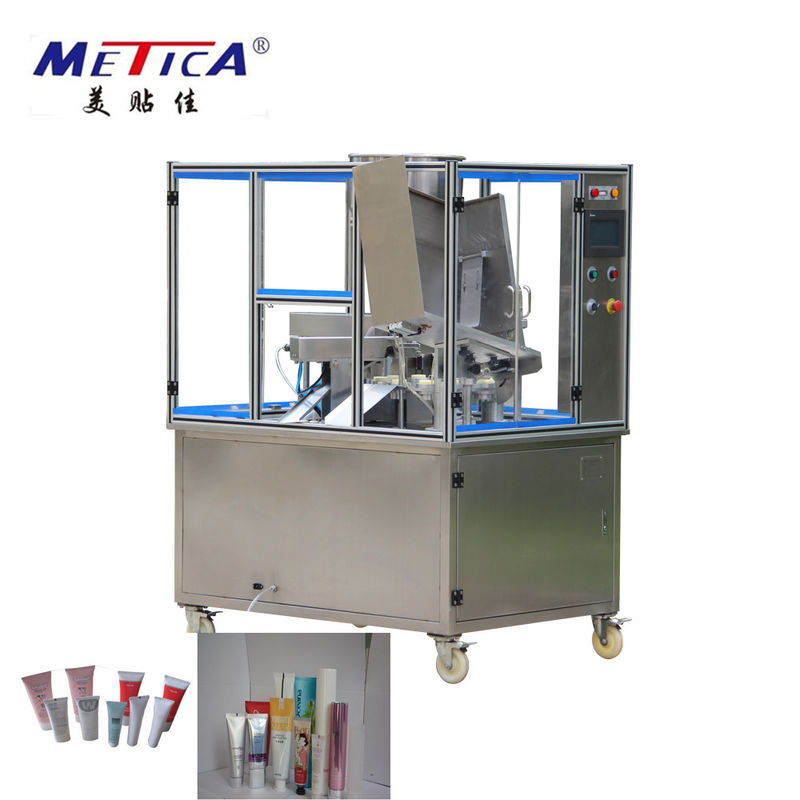

Automatic Ultrasonic Tube Filling And Sealing Machine For Toothpaste Hand Sanitizer 1

Automatic Ultrasonic Tube Filling And Sealing Machine For Toothpaste Hand Sanitizer 2

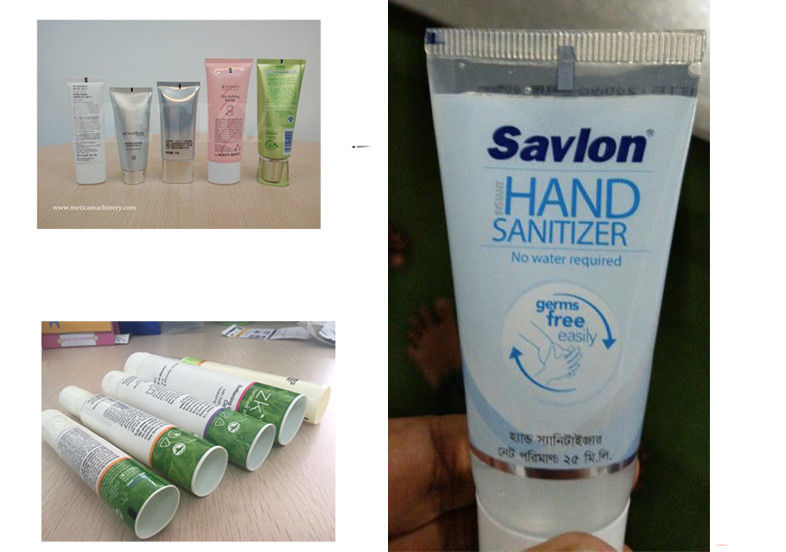

Samples display:

Automatic Ultrasonic Tube Filling And Sealing Machine For Toothpaste Hand Sanitizer 3

Service flow:

Automatic Ultrasonic Tube Filling And Sealing Machine For Toothpaste Hand Sanitizer 4





Pre-sale Service:

Automatic Ultrasonic Tube Filling And Sealing Machine For Toothpaste Hand Sanitizer 5



Automatic Ultrasonic Tube Filling And Sealing Machine For Toothpaste Hand Sanitizer 6



Packing&Shipping:

Automatic Ultrasonic Tube Filling And Sealing Machine For Toothpaste Hand Sanitizer 7



After-sale service:

Automatic Ultrasonic Tube Filling And Sealing Machine For Toothpaste Hand Sanitizer 8



Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We are located in Shanghai, very convenient in factory visiting, and goods shipping. We have more than ten years experience in automatic packaging machinery. We make machines as per GMP Standard. In addition, we have obtained CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and North America, Southeast Asia, the Middle East, Africa and South America. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Warmly welcome friends all over the world to contact for cooperation, we do believe we will be good business partners. We provide strong support with machines, solutions, information.
