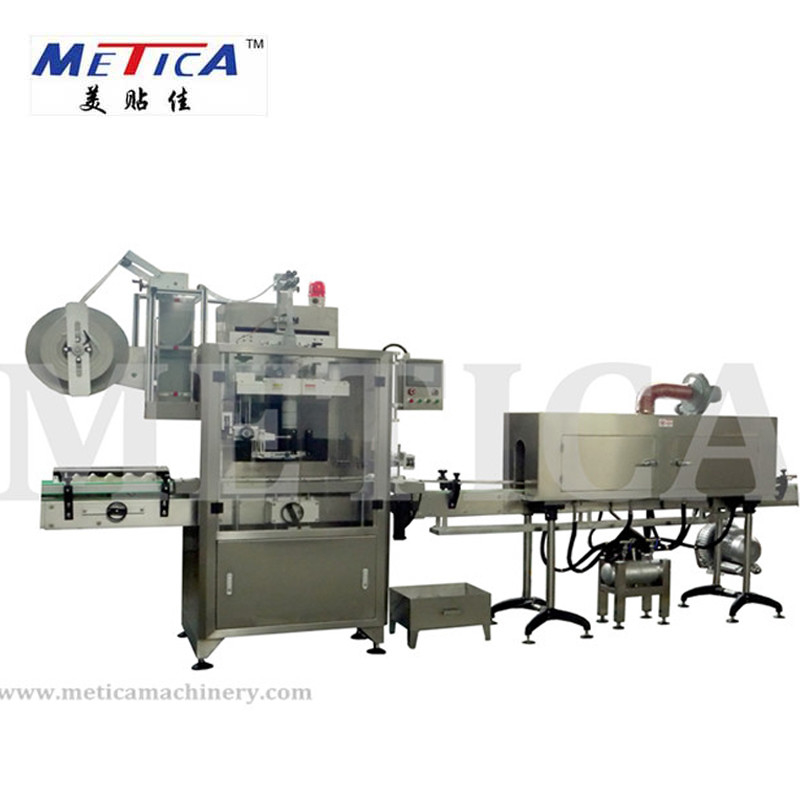

High Speed Juice Bottle Labeling Machine Automatic Shrink Sleeve Applicator Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTSL-100
Minimum Order Quantity: 1 SET
Price: USD 8000-20000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 10-20 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Juice Bottle Shrink Sleeve Labeling Machine For Bottle Capacity: Max 9000BPH-12000BPH
Labeling Accuracy: +/-1mm Machine Size: 3000mm*860mm*1800mm³
Warranty: 1-year Automatic Grade: Automatic
Weight: 500kgs Type: Shrink Sleeve Labeling
Packaging Type: Bottles,Case,Cartons,cans,jars Etc... Bottle Type: Round Pet Bottle, Plastic Or Glass Bottle
Application: Food,Beverage,Medical,Chemical,Commodity Etc.. Label Material: Plastic And Film Label
High Light:

Bottle Shrink Sleeve Applicator Machine

,

Automatic Juice Bottle Labeling Machine

,

Bottle Sleeve Labeling Machine


Product Description

High Speed Juice Bottle Labeling Machine , Automatic Shrink Sleeve Applicator Machine



Application

  • Shrink sleeve labels are widely used for Labeling the shrinkable film( PVC/PP/PET/OPS/PLA) on square bottle and round bottle

Spec and Features

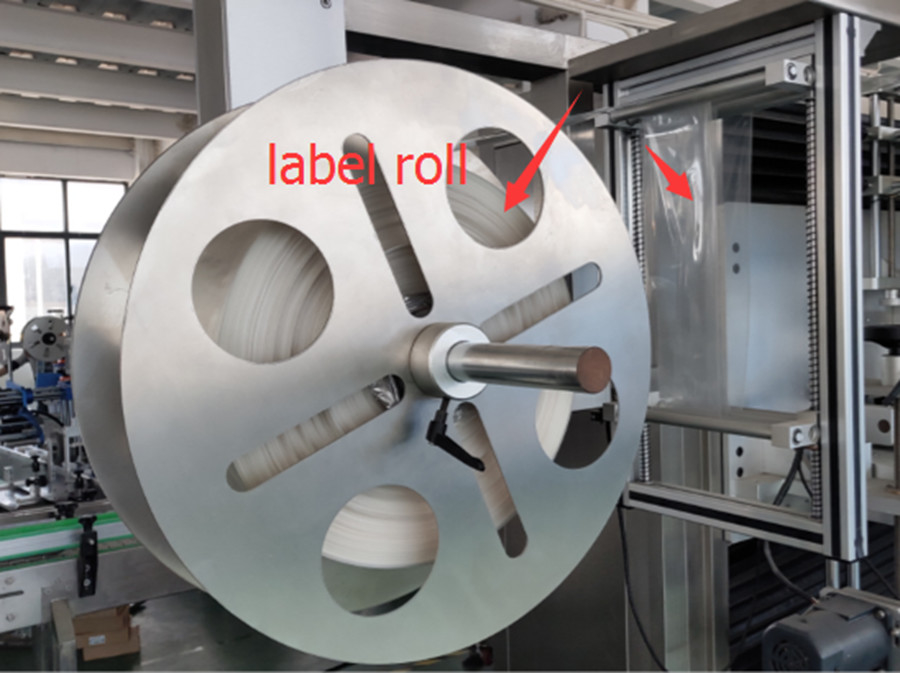

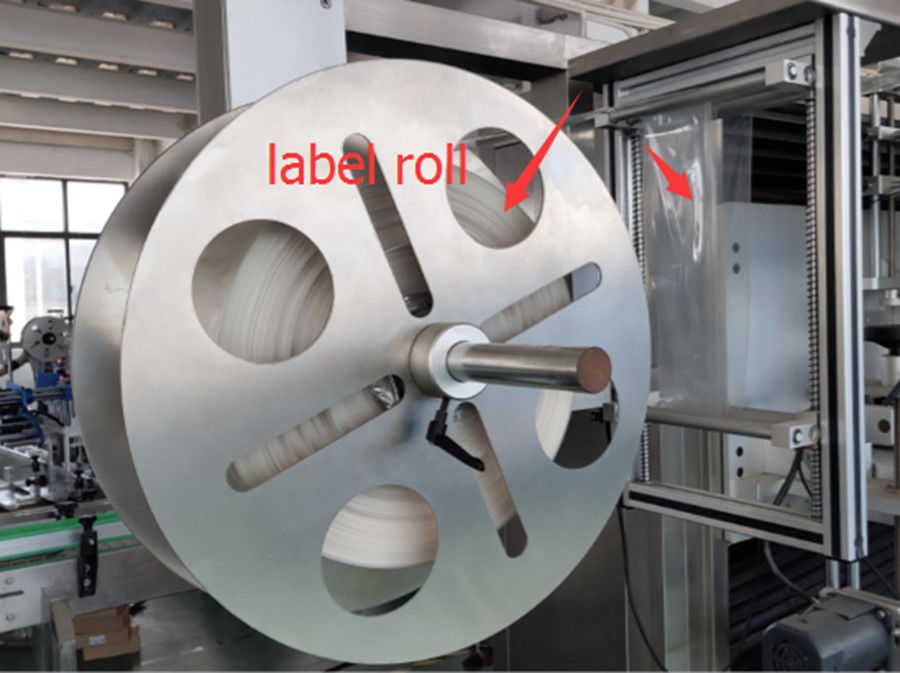

  • Fast and efficient reloading system, saving time and being safety.
  • Adjustable high speed electric eyes lock label precisely
  • Standardized center mould achieve the goal of changing different products quickly.
  • Synchronous separating bottle design keep bottles from swaying in delivery process.
  • Exclusive adjustable knife unit cut label neatly and reduce cutting flaw vastly, and also the knife can be replaced easily.
  • Advanced operation system coordinated with touch panel and assistant buttons are more convenient and humanized

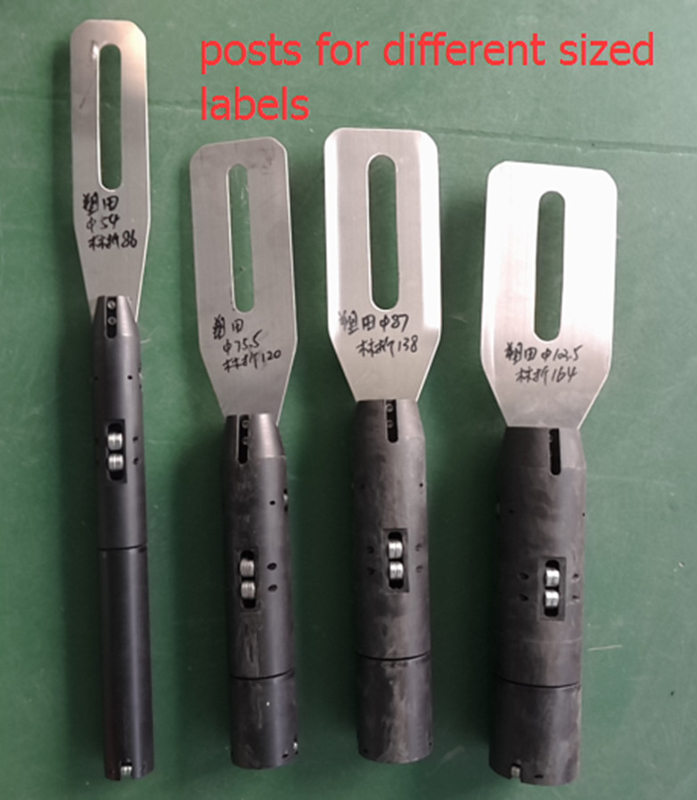

  • easy to adjust for different sized bottles, (change posts)
  • PLC and touch screen control, convenient for operation

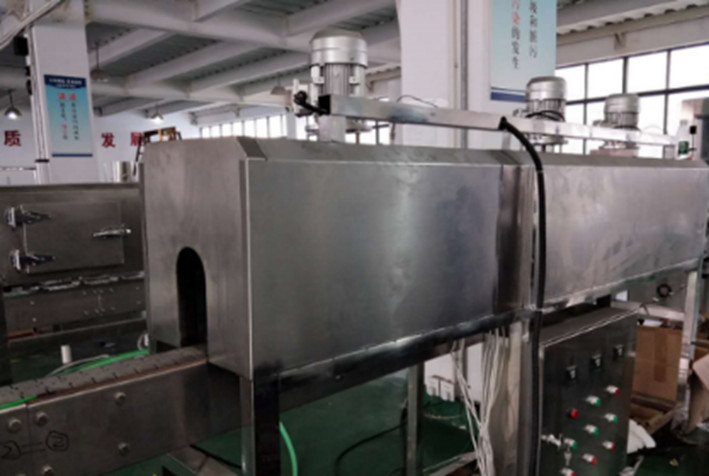

  • steam or electricity shrink tunnel for option



Parameter

Main machine size 3000mm(L)*860mm(W)*1800mm(H)
Machine body&Weight Stainless Steel/Painted Steel, 500KGS(around)
Power AC 3-PHASE 220V/380V
Main machine power 2.5KW
Production speed Max 9000BPH-12000BPH
Bottle diameter range Φ20mm-Φ130mm
Knife plate range Φ20mm-Φ50mm;Φ50mm-Φ95mm; Φ95-Φ130mm
Label height 25mm-300mm
Label material PVC/PP/PET/OPS/PLA
Label thickness 0.03mm-0.13mm
Paper tube inner diameter 5''-10'' is available
Shrink tunnel Heat or steam shrink tunnel is optional

High Speed Juice Bottle Labeling Machine Automatic Shrink Sleeve Applicator Machine 0High Speed Juice Bottle Labeling Machine Automatic Shrink Sleeve Applicator Machine 1High Speed Juice Bottle Labeling Machine Automatic Shrink Sleeve Applicator Machine 2High Speed Juice Bottle Labeling Machine Automatic Shrink Sleeve Applicator Machine 3

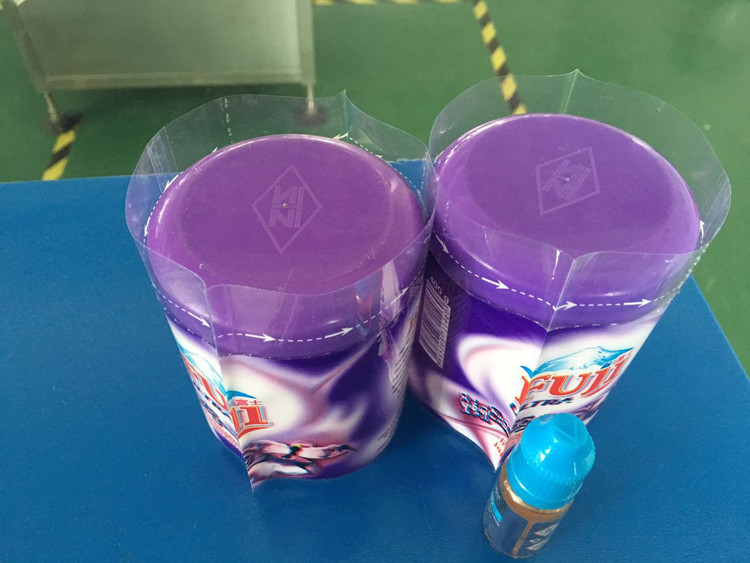

Samples display:

High Speed Juice Bottle Labeling Machine Automatic Shrink Sleeve Applicator Machine 4



Service flow:

High Speed Juice Bottle Labeling Machine Automatic Shrink Sleeve Applicator Machine 5





Pre-sale Service:

High Speed Juice Bottle Labeling Machine Automatic Shrink Sleeve Applicator Machine 6



High Speed Juice Bottle Labeling Machine Automatic Shrink Sleeve Applicator Machine 7



Packing&Shipping:

High Speed Juice Bottle Labeling Machine Automatic Shrink Sleeve Applicator Machine 8



After-sale service:

High Speed Juice Bottle Labeling Machine Automatic Shrink Sleeve Applicator Machine 9



Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We are located in Shanghai, very convenient in factory visiting, and goods shipping. We have more than ten years experience in automatic packaging machinery. We make machines as per GMP Standard. In addition, we have obtained CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and North America, Southeast Asia, the Middle East, Africa and South America. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Warmly welcome friends all over the world to contact for cooperation, we do believe we will be good business partners. We provide strong support with machines, solutions, information.
