Automatic Filling And Capping Machine for Essential Oil Bottle Test Tube 10ml

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFC-1000
Minimum Order Quantity: 1 SET
Price: USD 10000-20000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: 10ml Essential Oil Bottle Filling Capping Machine Application: Beverage,Food,Chemical,Medical
Capacity: 1000-2000 BPH(can Be Customized) Filling Accuracy: >99%
Machine Size: 250*135*165 Cm³ Warranty: 1-year
Type: Filling Machine, Capping Machine Monoblock Automatic Grade: Automatic Filling,cap Loading And Capping
Filling Volume: 5-50ml(can Be Customized) Weight: About 300kg
High Light:

Oil Bottle Filling And Capping Machine

,

Tube Filling And Capping Machine 10ml

,

Automatic Monoblock Filling Machine


Product Description

10ml Essential Oil Bottle And Test Tube Automatic Filling And Capping Machine



Application

  • The machine is good for Glass dropper bottle, Plastic and similar bottles.
  • The machine is used for all kinds of liquid products filling and capping, mainly small bottle with volume 10-50 ml.
  • E-Cigarette, Health Care Oil, Eye Drop, Glue, Perfume, Essential Oil and similar products is available.

Spec and Feature

  • The whole machine is designed especially for 10-50ml liquid filling, capping
  • The line speed is 20-30 bottles per minute
  • Adopts peristaltic pump or piston pump, high filling precision. No bottle, no fill, no drop, no leak
  • Touch screen, easy operate and adjust human interface. English operation interface
  • The machines have emergency stop Button and automatic interrupt device for safe operation
  • Labors need: 1 workers



Work flow:

  • Manually load bottles on conveyor or turntable(optional)
  • Automatic filling with 2 filling nozzles(customizable)
  • One cap loading station for loading cap automatically
  • One capping station for capping automatically
  • Push out bottle on conveyor after filling and capping





Speed  1500-2000bph (customizable)
Filling accuracy  more than 99%
Filling volume 10-50ml(can be customized)
Filling method

servo motor + piston or peristaltic pump

Power supply 220V 50hz 2kw
Bottles applicable glass dropper bottle, plastic bottle
Caps applicable press caps/ screw caps/Dropper cap

Application

Liquid or viscosity liquid
Feature PLC, touch screen, fully automatic



Automatic Filling And Capping Machine for Essential Oil Bottle Test Tube 10ml 0

Automatic Filling And Capping Machine for Essential Oil Bottle Test Tube 10ml 1

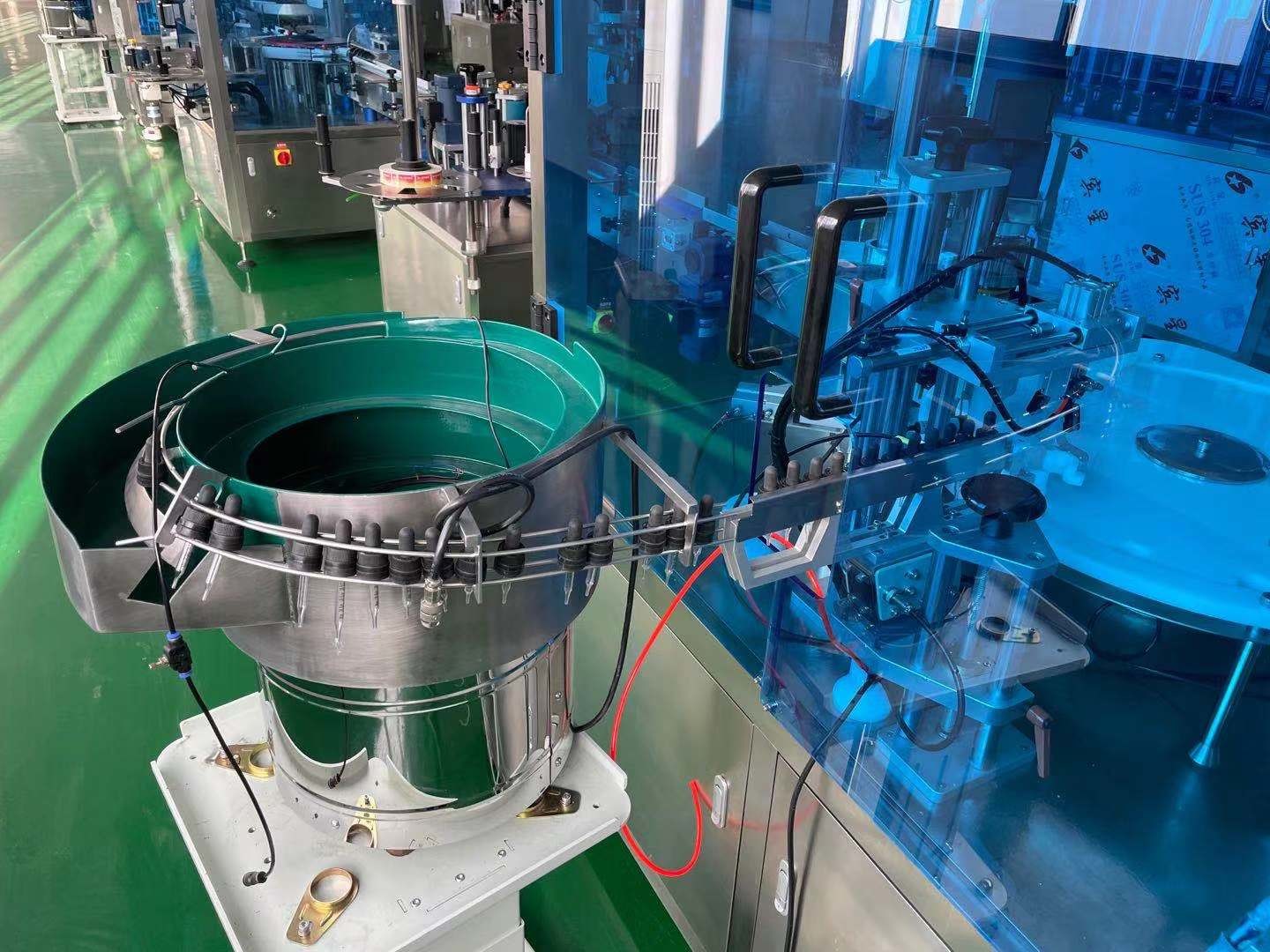

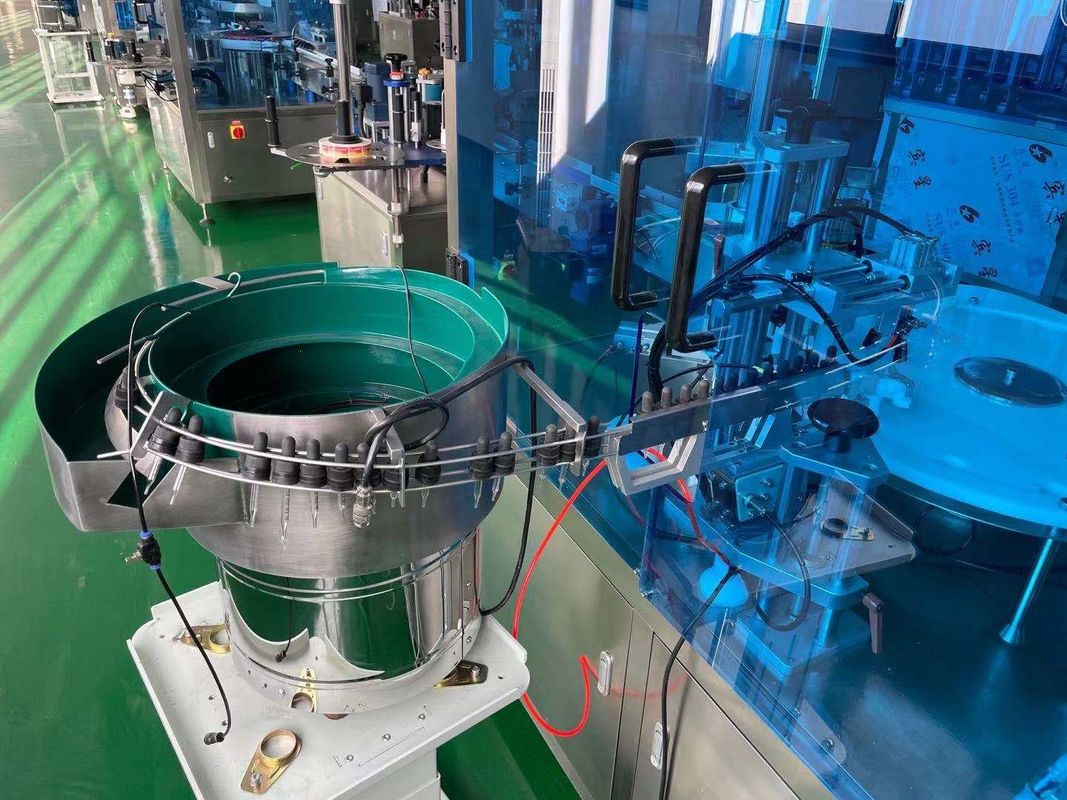

Cap feeder:

Automatic Filling And Capping Machine for Essential Oil Bottle Test Tube 10ml 2

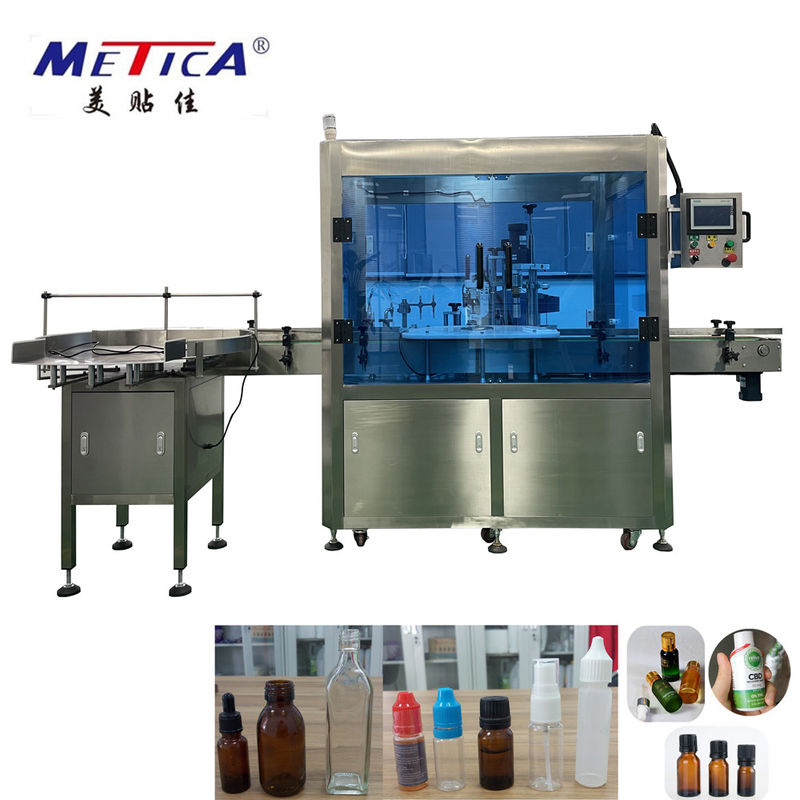

Samples display:



Automatic Filling And Capping Machine for Essential Oil Bottle Test Tube 10ml 3Automatic Filling And Capping Machine for Essential Oil Bottle Test Tube 10ml 4

Automatic Filling And Capping Machine for Essential Oil Bottle Test Tube 10ml 5



Service flow:

Automatic Filling And Capping Machine for Essential Oil Bottle Test Tube 10ml 6





Pre-sale Service:

Automatic Filling And Capping Machine for Essential Oil Bottle Test Tube 10ml 7



Automatic Filling And Capping Machine for Essential Oil Bottle Test Tube 10ml 8



Packing&Shipping:

Automatic Filling And Capping Machine for Essential Oil Bottle Test Tube 10ml 9



After-sale service:

Automatic Filling And Capping Machine for Essential Oil Bottle Test Tube 10ml 10
