Automatic Tracking Bottle Filling Machine For Jam Honey

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTGF-1000
Minimum Order Quantity: 1 SET
Price: USD 13000-16000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Hand Sanitizer Filler, Liquid And Paste Filling Machine Application: Beverage,Food,Chemical,Medical
Capacity: 1500-2000 BPH(customizable) Filling Accuracy: > 99%
Machine Size: 2400*1350*1730 Mm³ Warranty: One-year
Automatic Grade: Automatic Driven Type: Electric
Voltage: 220V, 50/60Hz (customizable) Packaging Type: Bottles,Cans,Barrel, Glass Jars
Filling System: Servo Motor Driven Piston, Servo Motor Control Filling Nozzle
High Light:

Jam Liquid Filling Machine

,

Honey Tracking Automatic Liquid Filling Machine

,

Automatic Bottle Liquid Filling Machine


Product Description

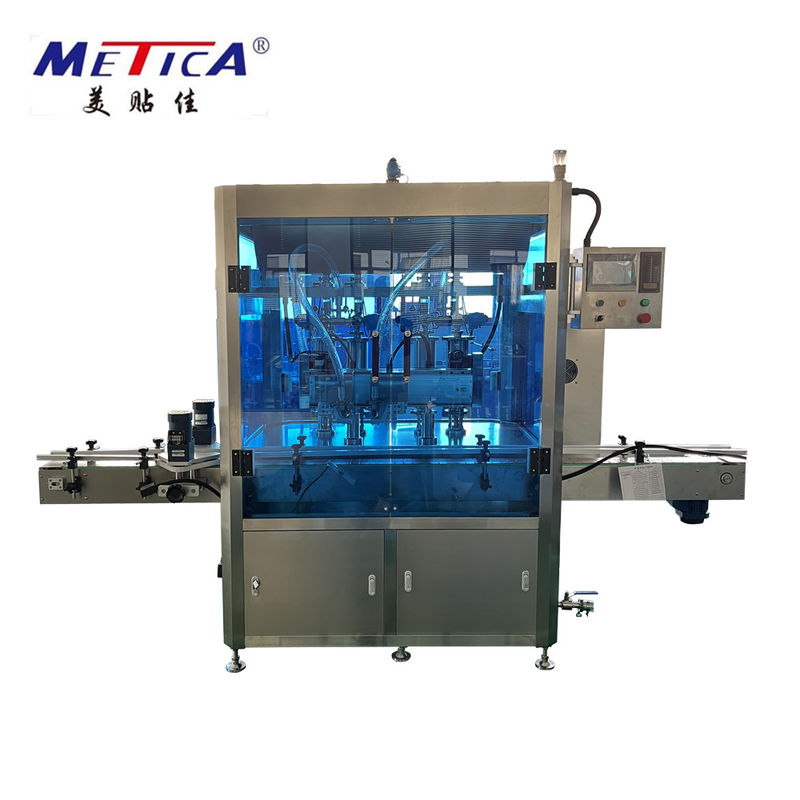

Hand Sanitizer And Shampoo Bottle Tracking Filling Machine



Application

  • This machine used for all kinds of liquid and high viscosity liquid product,such as shampoo, detergent and Medical Alcohol, sauce / paste / jam / edible oil and viscosity liquid filling.

    If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.

    The filling heads designed for many heads (can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.





Spec and Feature

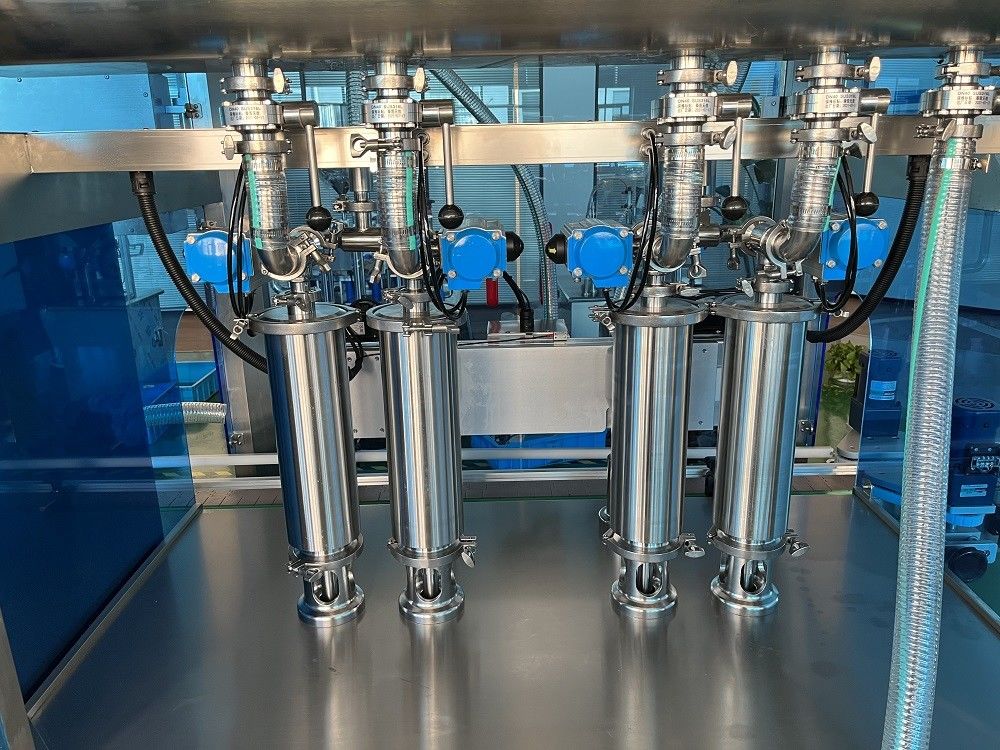

  • Adopts piston + servo motor driven. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts 2 filling nozzles, can change to 4/6/8 filling nozzles or more, the more filling nozzles, the higher capacity.
  • Servo motor controls the filling nozzle to track the bottle and fill it
  • High filling speed and filling precision, no bubble,stable
  • Filling volume is adjustable in certain filling volume scope
  • Single nozzle is micro adjustable
  • International branded electronic parts applied, good performance
  • Compact models, operation stability, simple operation, easy cleaning

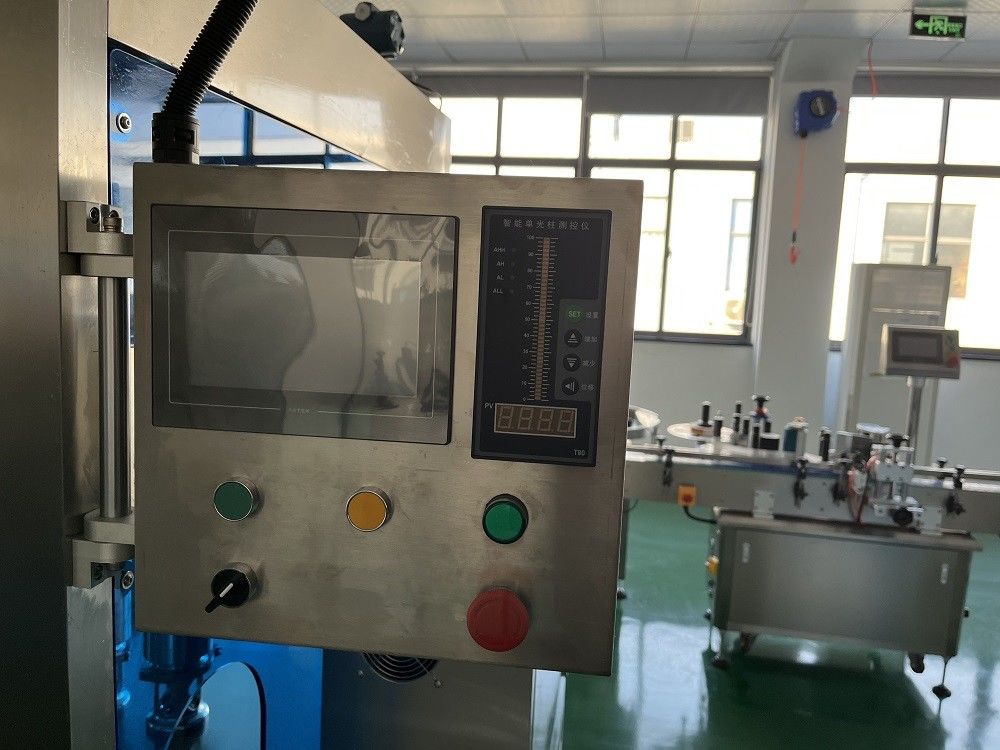

  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join the production line.



Work flow

  • Put bottle on conveyor by hand
  • Bottle move to the filling nozzles filling automatically
  • Bottle move out after filling

Parameter:

Speed  1500-2000bph (customizable)
Filling accuracy  >99%
Filling volume 50-500ml, 100-1000ml, 200-2000ml, … 500-5000ml( can be customized)
Filling method piston + servo motor driven
Power supply 220V 50hz 2kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Feature PLC, touch screen, tank, level meter



Automatic Tracking Bottle Filling Machine For Jam Honey 0Automatic Tracking Bottle Filling Machine For Jam Honey 1Automatic Tracking Bottle Filling Machine For Jam Honey 2Automatic Tracking Bottle Filling Machine For Jam Honey 3Automatic Tracking Bottle Filling Machine For Jam Honey 4





Samples display:



Automatic Tracking Bottle Filling Machine For Jam Honey 5Automatic Tracking Bottle Filling Machine For Jam Honey 6

Automatic Tracking Bottle Filling Machine For Jam Honey 7



Service flow:

Automatic Tracking Bottle Filling Machine For Jam Honey 8





Pre-sale Service:

Automatic Tracking Bottle Filling Machine For Jam Honey 9



Automatic Tracking Bottle Filling Machine For Jam Honey 10



Packing&Shipping:

Automatic Tracking Bottle Filling Machine For Jam Honey 11



After-sale service:

Automatic Tracking Bottle Filling Machine For Jam Honey 12
