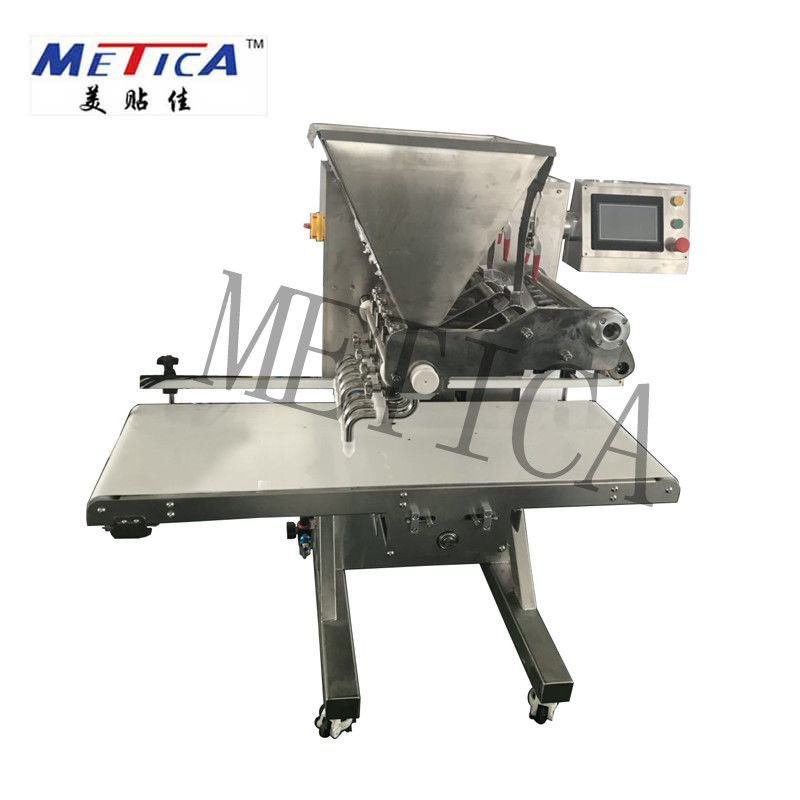

PLC Control Cake Dough Filling Machine 2000BPH-3000BPH With 8 Nozzles

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTMD-8
Minimum Order Quantity: 1 SET
Price: USD 13000-16000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Filling Machine With 8 Nozzles Application: For Cake
Capacity: 2000-3000 BPH(can Be Customized) Filling Accuracy: More Than 99%
Machine Size: 1500*900*1500 Mm³ Warranty: One-year
Automatic Grade: Automatic Voltage: 220V, 50/60Hz (customizable)
Filling System: Servo Motor Driven Piston Other Name: Cake Dough Filler
High Light:

PLC Control Cake Dough Filling Machine

,

Dough Filling Machine 2000BPH

,

Cake Filling Machine 3000BPH


Product Description

New Designed Cake Dough Filling Machine And Multi-Functional Cake Filling Machine Bottle Filling Machine



Application

  • 1) The machine is designed for bakery decoration, fill batter, custard and cake etc.,
  • 2) PLC and touch screen control, easy to adjust the filling volume
  • 3) The machine can be operated independently or connected to other production equipment.
  • 4) In addition to the standard applicable products, it can be increased, widened and lengthened according to customer requirements.
  • 5) It can also be specially customized according to the special product and the special position of some products.



Spec and Feature

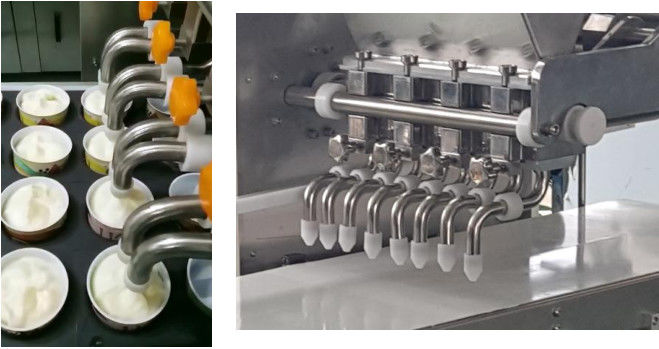

  • The machine adopt 8 filling nozzles, each filling nozzle can be combined or can be filled separately.
  • Easy to change nozzles for different types of decorations.

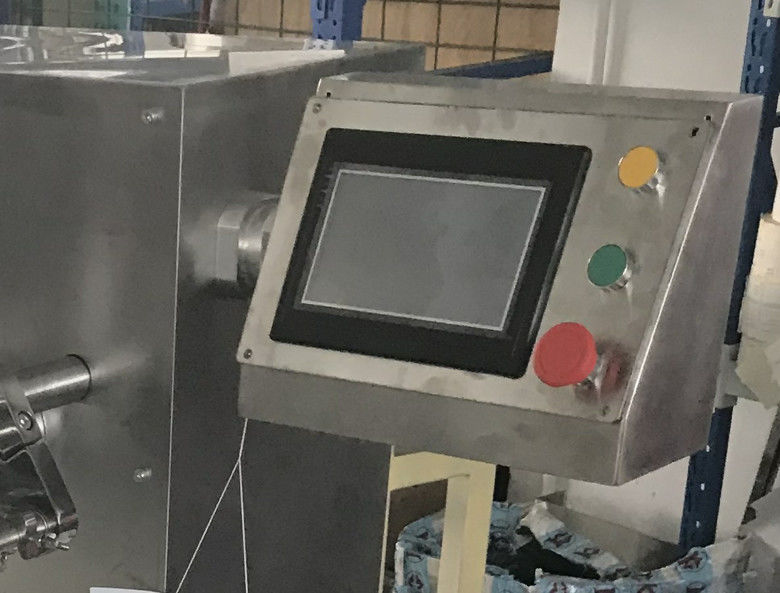

  • Adopt PLC + touch screen control system. Easy to adjust the filling volume.

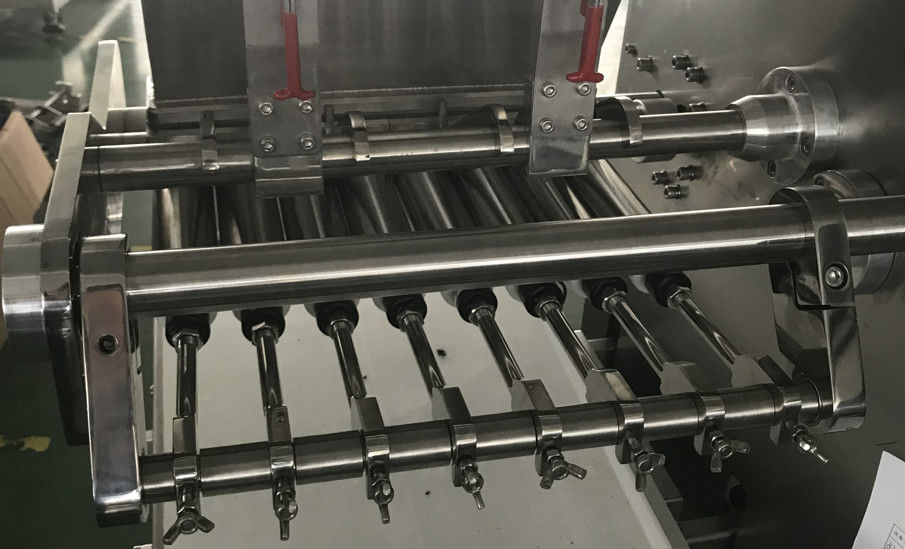

  • Adopt servo motor drive piston filling method, can fill high viscosity product with high efficient.
  • High precision filling volume. Also filling volume can be customized according to customer requirements.

Work flow

  • Put Cake tray on conveyor by hand
  • Cake tray move to the filling nozzles filling automatically
  • Cake tray move out after filling

Technical Parameters



Production capacity 2000-3000 BPH (8 nozzles)
Filling method piston + servo motor driven
Filling accuracy +/- 1%
Power supply 220V 50/60Hz, 0.5kw
Air supply 0.4-0.6 MPa
Machine size 1500*900*1500 mm
Application product size Diameter: 20 mm - 100 mm
Feature PLC, touch screen



PLC Control Cake Dough Filling Machine 2000BPH-3000BPH With 8 Nozzles 0

PLC Control Cake Dough Filling Machine 2000BPH-3000BPH With 8 Nozzles 1PLC Control Cake Dough Filling Machine 2000BPH-3000BPH With 8 Nozzles 2PLC Control Cake Dough Filling Machine 2000BPH-3000BPH With 8 Nozzles 3



Samples display:

PLC Control Cake Dough Filling Machine 2000BPH-3000BPH With 8 Nozzles 4PLC Control Cake Dough Filling Machine 2000BPH-3000BPH With 8 Nozzles 5



Service flow:

PLC Control Cake Dough Filling Machine 2000BPH-3000BPH With 8 Nozzles 6





Pre-sale Service:

PLC Control Cake Dough Filling Machine 2000BPH-3000BPH With 8 Nozzles 7



PLC Control Cake Dough Filling Machine 2000BPH-3000BPH With 8 Nozzles 8



Packing&Shipping:

PLC Control Cake Dough Filling Machine 2000BPH-3000BPH With 8 Nozzles 9



After-sale service:

PLC Control Cake Dough Filling Machine 2000BPH-3000BPH With 8 Nozzles 10



Company Profile:

Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We are located in Shanghai, very convenient in factory visiting, and goods shipping. We have more than ten years experience in automatic packaging machinery. Since the date of establishment, our company has always been pursuing the best product quality and service. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We can also provide customers with the manufacture and development of various non-standard machines. We make machines as per GMP Standard. In addition, we have obtained CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and North America, Southeast Asia, the Middle East, Africa and South America. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Warmly welcome friends all over the world to contact for cooperation, we do believe we will be good business partners. We provide strong support with machines, solutions, information.
