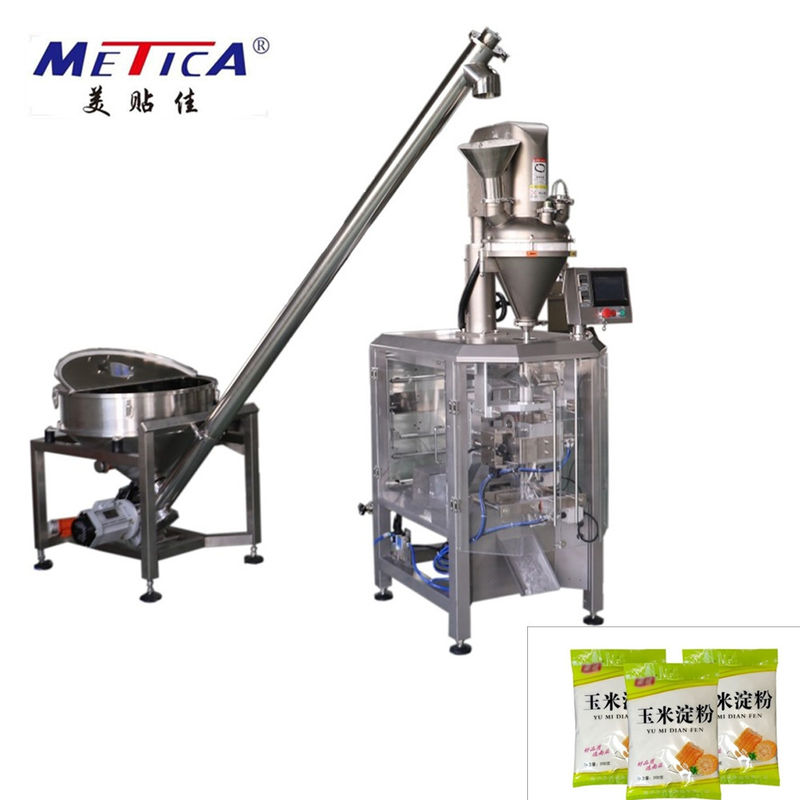

5g-500g Bag Packing Machine Powder Pouch Filling Machine With Metering Device

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: ZL-180SF
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Starch Products Products Bag Packing Machine, Bag Filling Machine Application: Food,Medical,Chemical,Commodity And So On
Capacity: 2000-5400BPH(related To Filling Volume) Machine Size: 130(L)x90(W)x220(H) Cm³
Warranty: One-year Automatic Grade: Automatic Bag Making,filling And Sealing
Type: Starch Products Bag Filling And Sealing Machine Voltage: 110V Or 220V, 50/60Hz(customizable)
Control System: Servo Driven + Touch Screen Control Function: Automatic Starch Products Bag Making, Filling, Sealing, Powder Filling Machine
High Light:

5g Bag Packing Machine

,

500g Powder Pouch Filling Machine

,

5400BPH Bag Packing Machine


Product Description

5-500g Powder Products Bag Making And Filling Machine With Metering Device Bag Packing Machine



Application

  • Suitable for automatic quantitative packaging of granular materials



Machines Features

  • 1. The whole machine adopts 4 servo control system, the machine runs smoothly, the action is accurate, the performance is stable, and the packaging efficiency is high;
  • 2. The whole machine is assembled with 3mm & 5mm thick stainless steel sheet metal, and the operation is stable; and the core components are specially optimized design, and the packaging speed is fast;
  • 3. The equipment adopts servo-driven film pulling and unwinding to ensure precise film pulling, and the packaging bag-shaped effect is neat and beautiful;
  • 4. The equipment accessories adopt domestic/international famous brand electrical components, and have been tested by many years of market practice to ensure more stable performance and durability;

Advantage

  • 1. The whole machine is made of 304 stainless steel, which complies with pharmaceutical production specifications, which is convenient for cleaning and sanitation;
  • 2. The metering screw is precisely manufactured by CNC machine tools, with stable craftsmanship and high metering accuracy;
  • 3. Using servo motor drive control, fast and stable performance, fast production speed.

Parameter:

Model ZL-180SF 15 liter metering screw 30 liter metering screw
Speed 20-90bag/minute 20-90bag/minute 20-80bag/minute
Package weight 5-500g 5-150g 50-500g
Packaging error According to the metering device ±0.3-1% ±0.3-1%
Control System Servo motor driven + color touch screen Servo motor driven Servo motor driven

Bag size:

Roll film width:

L:50—190mm,W:50—150mm

110mm—320mm

Roll film thickness:

Suitable packaging material:

0.06—0.12mm

PP,PE,PVC,PS,EVA,PET,PVDC+PVC,OPP+composite CPP etc..

Power 220v/50Hz/2kw
Optional device for packaging machine Charging deviceDrainage device Safety switch Clipping removal device Punching device Encoder
Machine material Main body 3mm&5mm thickness 304 stainless steel (carbon steel) frame, machine surface sandblasting and no fingerprint processing
Machine size 130x90x22cm Packaging size 150x120x230cm
Weight 400kg Packaging weight 550kg


5g-500g Bag Packing Machine Powder Pouch Filling Machine With Metering Device 0

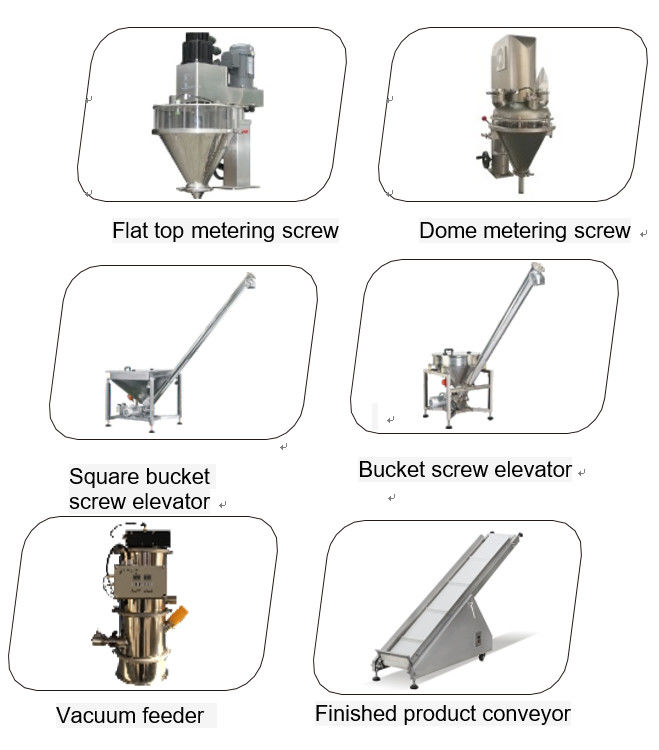

Compatible metering device

5g-500g Bag Packing Machine Powder Pouch Filling Machine With Metering Device 1


5g-500g Bag Packing Machine Powder Pouch Filling Machine With Metering Device 2



Samples display:



5g-500g Bag Packing Machine Powder Pouch Filling Machine With Metering Device 35g-500g Bag Packing Machine Powder Pouch Filling Machine With Metering Device 4

Service flow:

5g-500g Bag Packing Machine Powder Pouch Filling Machine With Metering Device 5





Pre-sale Service:

5g-500g Bag Packing Machine Powder Pouch Filling Machine With Metering Device 6



5g-500g Bag Packing Machine Powder Pouch Filling Machine With Metering Device 7



Packing&Shipping:

5g-500g Bag Packing Machine Powder Pouch Filling Machine With Metering Device 8



After-sale service:

5g-500g Bag Packing Machine Powder Pouch Filling Machine With Metering Device 9



Company Profile:

Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We are located in Shanghai, very convenient in factory visiting, and goods shipping. We have more than ten years experience in automatic packaging machinery. Since the date of establishment, our company has always been pursuing the best product quality and service. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We can also provide customers with the manufacture and development of various non-standard machines. We make machines as per GMP Standard. In addition, we have obtained CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and North America, Southeast Asia, the Middle East, Africa and South America. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Warmly welcome friends all over the world to contact for cooperation, we do believe we will be good business partners. We provide strong support with machines, solutions, information.
