Rustproof Bag Packing Machine 5-500g Granular Filling Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: ZL-180SF
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Potato Chips And Similar Products Bag Packing Machine Application: Food,Medical,and So On
Capacity: 1600-6000BPH Machine Size: 130*90*220 Cm³
Warranty: One Year Warranty Automatic Grade: Full Automatic
Type: Potato Chips Products Bag Filling And Sealing Machine In One Voltage: 220V, 50/60Hz (can Be Customized)
Control System: Servo Motor Driven + PLC Control Function: Weighing, Automatic Bag Making, Filling, Sealing In One
High Light:

rustproof Bag Packing Machine

,

Rustproof Granular Filling Machine

,

500g Bag Packing Machine


Product Description

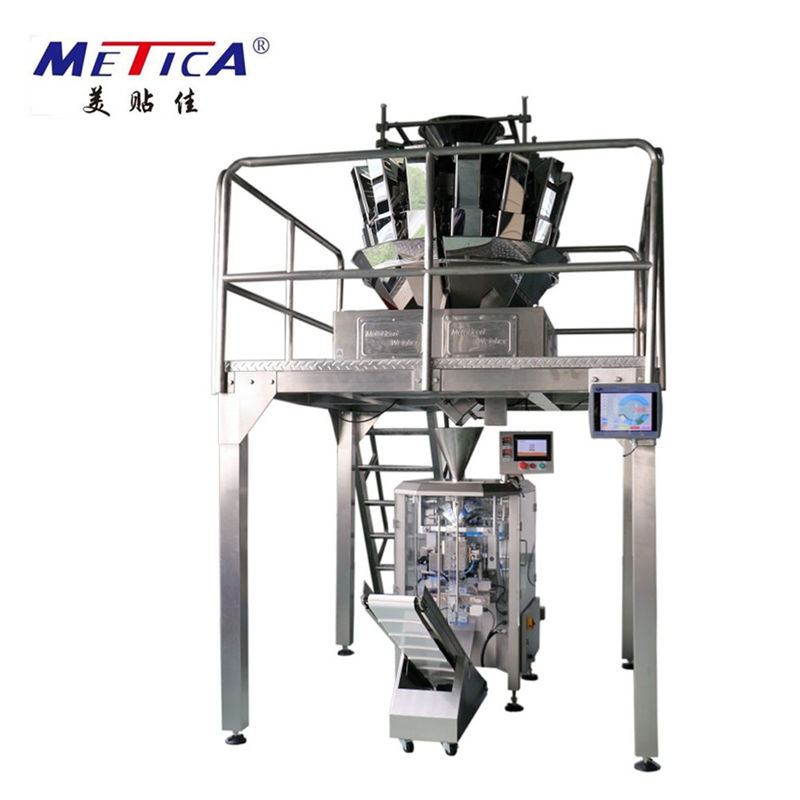

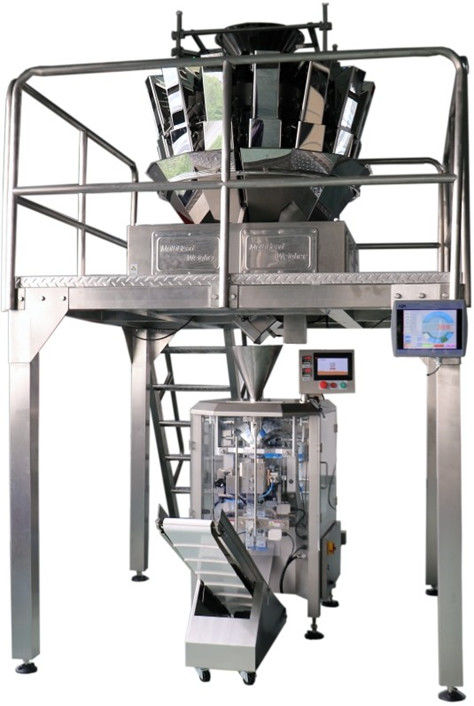

5-500g Automatic Granular Products Bag Filling Machine With Weighing Scale Bag Packing Machine



Application

  • Suitable for automatic quantitative packaging of granular materials, such as Biscuits, Potato chips and so on

Machines Features

  • 1. The whole machine adopts 3 servo control system, the machine runs smoothly, the action is accurate, the performance is stable, and the packaging efficiency is high;
  • 2. The whole machine is assembled with 3mm & 5mm thick stainless steel sheet metal, and the operation is stable; and the core components are specially optimized design, and the packaging speed is fast;
  • 3. The equipment adopts servo-driven film pulling and unwinding to ensure precise film pulling, and the packaging bag-shaped effect is neat and beautiful;
  • 4. The equipment accessories adopt domestic/international famous brand electrical components, and have been tested by many years of market practice to ensure more stable performance and durability;
  • 5. The design of the whole machine has passed CE certification.



Parameter:

Model ZL-180SF M10L0.5/M10L1.6 M14L0.5/M14L1.6
Speed 20-100bag/minute 20-70bag/minute 20-100bag/minute
Package weight 5-500g 3-100g/5-500g 3-100g/5-500g
Packaging error According to the metering device ±0.2-1g/±0.3-2g ±0.2-1g/±0.3-2g
Control System Servo driver + color touch screen MCU+color touch screen MCU+color touch screen

Bag size:

Roll film width:

L:50—190mm,W:50—150mm

110mm—320mm

Roll film thickness:

Suitable packaging material:

0.06—0.12mm

PP,PE,PVC,PS,EVA,PET,PVDC+PVC,OPP+composite CPP etc..

Power 220v/50Hz/2kw
Optional device for packaging machine Charging device Drainage device Safety switch Clipping removal device Punching device Encoder
Combination weigher optional device Collection hopper Checkered board Rotary distributor Teflon spray Waterproof case Operating language
Machine material Main body 3mm&5mm thickness 304 stainless steel
Machine size 1300x900x2200mm Packaging size 1500x1200x1800mm
Weight 400kg Packaging weight 550kg


Rustproof Bag Packing Machine 5-500g Granular Filling Machine 0

Compatible metering device


Rustproof Bag Packing Machine 5-500g Granular Filling Machine 1

Rustproof Bag Packing Machine 5-500g Granular Filling Machine 2



Samples display:

Rustproof Bag Packing Machine 5-500g Granular Filling Machine 3



Service flow:

Rustproof Bag Packing Machine 5-500g Granular Filling Machine 4





Pre-sale Service:

Rustproof Bag Packing Machine 5-500g Granular Filling Machine 5



Rustproof Bag Packing Machine 5-500g Granular Filling Machine 6



Packing&Shipping:

Rustproof Bag Packing Machine 5-500g Granular Filling Machine 7



After-sale service:

Rustproof Bag Packing Machine 5-500g Granular Filling Machine 8



Company Profile:

Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We are located in Shanghai, very convenient in factory visiting, and goods shipping. We have more than ten years experience in automatic packaging machinery. Since the date of establishment, our company has always been pursuing the best product quality and service. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We can also provide customers with the manufacture and development of various non-standard machines. We make machines as per GMP Standard. In addition, we have obtained CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and North America, Southeast Asia, the Middle East, Africa and South America. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Warmly welcome friends all over the world to contact for cooperation, we do believe we will be good business partners. We provide strong support with machines, solutions, information.
