50ml Tube Filling And Sealing Machine

50ml Tube Filling And Sealing Machine

50ml Tube Filling And Sealing Machine

25BPM Tube Filling And Sealing Machine

30L Tube Filling And Sealing Machine

Place of Origin:

Shanghai

Brand Name:

METICA

Certification:

CE

Model Number:

MT-6A

Contact Us
Request A Quote
Product Details
Name:
Ultrasonic Lotion Tube Filling And Sealing Machine
Capacity:
25BPM
Qualified Rate:
>=99%
Machine Size:
80*90*170 Cm
Warranty:
One Year
Feature:
Ultrasonic Sealing, PLC And Touch Screen
Hopper Volume:
30L To 40L
Packaging Material:
Plastic Soft Tube, Aluminum Plastic Tube Etc..
Driven Type:
Electric And Pneumatic
Application:
Food,Medical,Chemical,Cosmetic
Other Name:
Ultrasonic Lotion And Hand Cream Filling Sealing Machine
Highlight:

50ml Tube Filling And Sealing Machine

,

25BPM Tube Filling And Sealing Machine

,

30L Tube Filling And Sealing Machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 7000-9000/SET
Packaging Details
Fumigation-free wooden boxes that meet international standards
Delivery Time
15-30 days
Payment Terms
L/C, T/T
Supply Ability
100 SETS PER MONTH
Product Description

50ml Hand Cream Ultrasonic Soft Tube Filling Machine And Sealing Machine



Application:

  • The machine good for hand cream tube and lotion tube filling and sealing.
  • This machine is designed specially for plastic soft tube filling and sealing. (load tubes by hand), include tail cutting as well.
  • It works for both liquid and sticky products like cream, honey, toothpaste, lotion etc..
  • It is applicable to all kinds of plastic and plastic combined soft tube, with coder for date and so on.
  • Same machine can work for both plastic and plastic aluminium composite



Feature:

  • The filling volume is adjustable on touch screen. It can fill 5-50ml,30-300ml liquid or sticky products.
  • Ultrasonic sealing system, it works stable, and have advantages over heating sealing: low temperature, no impact from materials stuck to the tubes, reduce the empty space in the tube, sealing result is better.
  • It can print date or batch number as required. The number of letter can be set as required.
  • It has automatic tube positioning and identify function. It automatically identify front and back side by the color mark
  • it has tube orientation mechanism to locate the tubes position

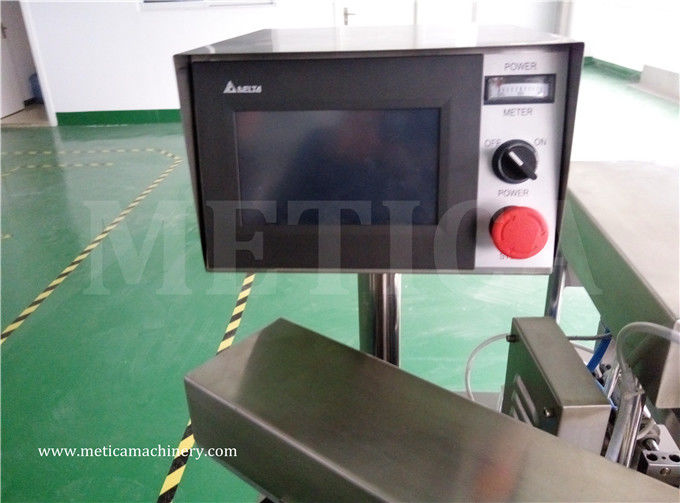

  • It is controlled by PLC and operate on color touch screen, easy to set up



Parameter:



Speed  25 BPM(can be customized)
Filling volume 5-50ml or 50-300ml(customizable)
Filling accuracy >=99%
Ultrasonic power rate 1.0KW
Power supply 220V 50hz 1kw
Air supply 0.4-0.6MPa
Machine size 800*900*1700mm
Feature PLC, Touch screen



50ml Tube Filling And Sealing Machine 0

50ml Tube Filling And Sealing Machine 1

50ml Tube Filling And Sealing Machine 2

50ml Tube Filling And Sealing Machine 3



Samples display:

50ml Tube Filling And Sealing Machine 4



Service flow:

50ml Tube Filling And Sealing Machine 5





Pre-sale Service:

50ml Tube Filling And Sealing Machine 6



50ml Tube Filling And Sealing Machine 7



Packing&Shipping:

50ml Tube Filling And Sealing Machine 8



After-sale service:

50ml Tube Filling And Sealing Machine 9



Company Profile:

Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We are located in Shanghai, very convenient in factory visiting, and goods shipping. We have more than ten years experience in automatic packaging machinery. Since the date of establishment, our company has always been pursuing the best product quality and service. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We can also provide customers with the manufacture and development of various non-standard machines. We make machines as per GMP Standard. In addition, we have obtained CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and North America, Southeast Asia, the Middle East, Africa and South America. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Warmly welcome friends all over the world to contact for cooperation, we do believe we will be good business partners. We provide strong support with machines, solutions, information.
