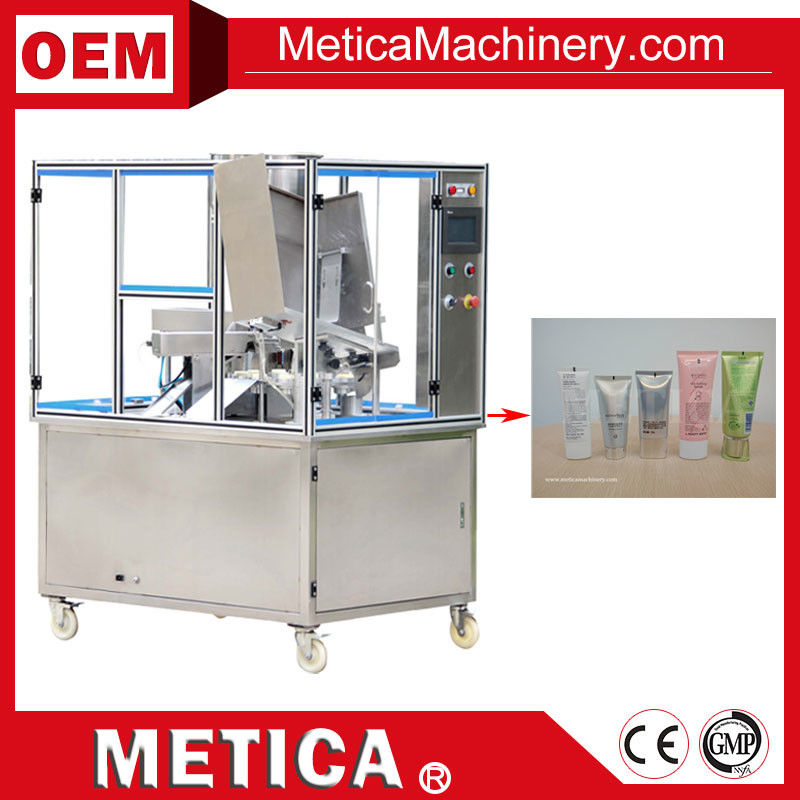

1500Bph Tube Filling And Sealing Machine 70ml Body Lotion Tube Sealer

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTGF-20
Minimum Order Quantity: 1 SET
Price: USD 7000-9000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Cream And Lotion Oft Tube Filling And Sealing Machine Application: Cosmetics And Food, Chemical Industry
Capacity: 1500 BPH Qualified Rate: >99%
Machine Size: 1300*950*1700 Mm Warranty: 1 Year
Feature: Ultrasonic Sealing Hopper Volume: 30-40 L ( Can Be Customized)
Voltage: 220V, 50/60Hz Automatic Grade: Automatic
Type: Filling Machine,tube Sealing Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas,Free Spare Parts,Video Technical Support,Online Support,Field Maintenance And Repair Service
Certification: CE Weight: 300kg
High Light:

Tube Filling And Sealing Machine 1500Bph

,

70ml Body Lotion Tube Sealer

,

Tube Filling And Sealing Machine 300kg


Product Description

70 ml Body Cream And Lotion Tube Ultrasonic Soft Tube Filling Machine And Sealing Machine



Application:



  • This machine is designed for plastic and composite soft tube filling and sealing. Fully automatic load tube, filling, sealing and tail cutting
  • It works for both liquid and sticky products like cream, tooth paste and so on
  • It is applicable to all kinds of plastic and plastic combined soft tube, with coder for date and so on.
  • As long as the materials is not very thick, same machine can work for both plastic tube and plastic aluminium composite tube.

Feature:

  • it has tube orientation mechanism to locate the tubes position
  • It is controlled by PLC and operate on color touch screen, easy to set up and change filling volume.
  • The filling volume is adjustable on touch screen. It can fill 5-50ml, 50-300ml liquid or sticky products.
  • The sealing way is ultrasonic, it works stable, and have advantages over heating sealing: low temperature, no impact from materials stuck to the tubes, reduce the empty space in the tube, sealing result is better.
  • It can print date or batch number as required. The number of letter can be set as required.
  • It has automatic tube positioning and identify function. It automatically identify front and back side by the color mark



Parameter:



Speed  1500 bph
Filling volume 5-50ml or 50-300ml(customizable)
Filling accuracy >99%
Ultrasonic power rate 1.5KW
Power supply 220V 50hz 1.5kw
Air supply 0.6 MPa
Machine size 1300*950*1700mm
Feature PLC, touch screen, ultrasonic sealing, hopper

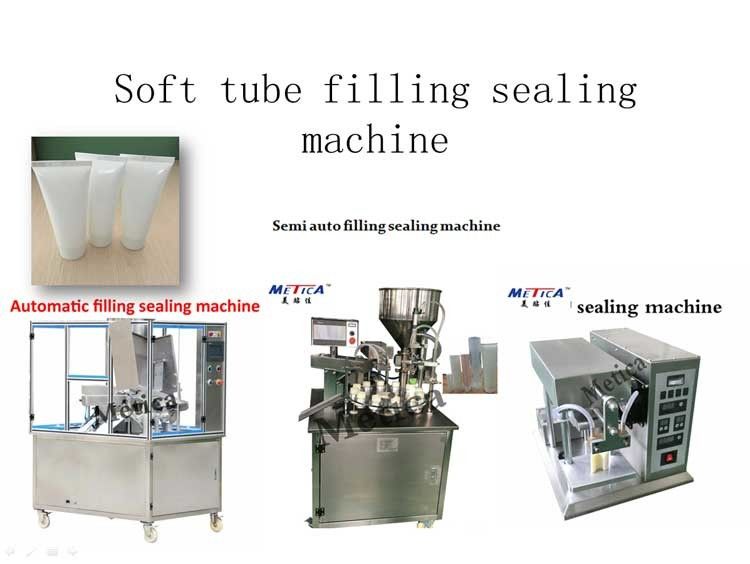

1500Bph Tube Filling And Sealing Machine 70ml Body Lotion Tube Sealer 0

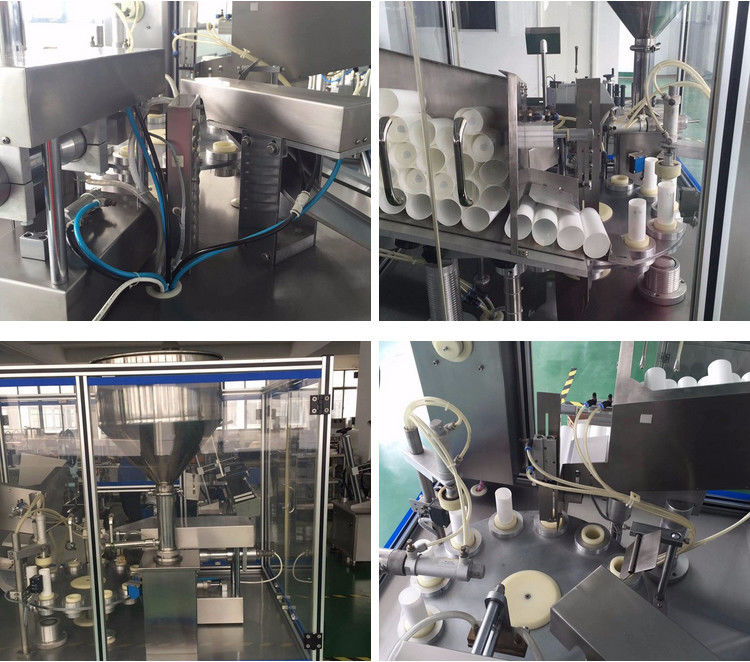

1500Bph Tube Filling And Sealing Machine 70ml Body Lotion Tube Sealer 1

1500Bph Tube Filling And Sealing Machine 70ml Body Lotion Tube Sealer 2

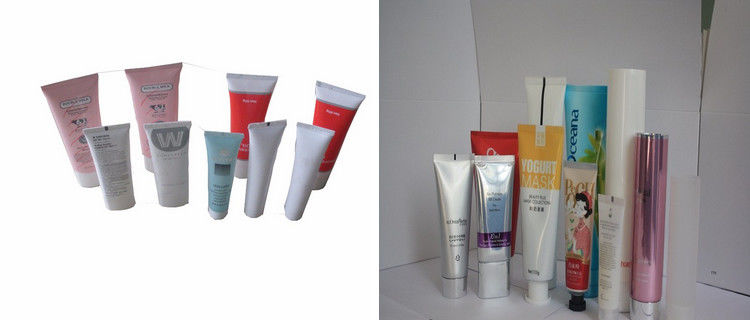

Samples display:

1500Bph Tube Filling And Sealing Machine 70ml Body Lotion Tube Sealer 3



Service flow:

1500Bph Tube Filling And Sealing Machine 70ml Body Lotion Tube Sealer 4





Pre-sale Service:

1500Bph Tube Filling And Sealing Machine 70ml Body Lotion Tube Sealer 5



1500Bph Tube Filling And Sealing Machine 70ml Body Lotion Tube Sealer 6



Packing&Shipping:

1500Bph Tube Filling And Sealing Machine 70ml Body Lotion Tube Sealer 7



After-sale service:

1500Bph Tube Filling And Sealing Machine 70ml Body Lotion Tube Sealer 8
