Ultrasonic Soft Tube Filling And Sealing Machine with 30L-40L Hopper volume

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MT-6A
Minimum Order Quantity: 1 SET
Price: USD 7000-9000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Facial Cleanser Tube Ultrasonic Filling And Sealing Machine Application: Medical,Chemical,Commodity,Beverage And So On
Capacity: 800-1500BPH Qualified Rate: Not Less Than 99%
Machine Size: 80x90x170 Cm³ Warranty: One-year
Feature: PLC Control, Touch Screen, Hopper Hopper Volume: 30-40L
Packaging Material: Plastic Soft Tube, Laminated Tube, Composite Tube Driven Type: Electric With Pneumatic
Weight: About 190kg Automatic Grade: Semi-Automatic
High Light:

30L Tube Filling And Sealing Machine

,

1500BPH Tube Filling And Sealing Machine


Product Description

Facial Cleanser Soft Tube Ultrasonic Soft Tube Filling Machine And Sealing Machine



Application:

  • This machine is designed specially for plastic soft tube filling and sealing. (load tubes by hand)
  • It works for both liquid and sticky products like cream, honey, tooth paste etc
  • It is applicable to all kinds of plastic and plastic combined soft tube, with coder for date and so on. Same machine can work for both plastic and plastic aluminium composite



Feature:

  • 1) MT-6A is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine.
  • 2) It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically.
  • 3) It has automatic tube positioning and identify function. It automaticly identify front and back side by the color mark.
  • 4) The filling volume is adjustable on touch screen. It can fill 5-50ml etc liquid or sticky products.
  • 5) The machine adopts most advanced ultrasonic tube sealing technology. Sealing effect is better and more beautiful than the other type.
  • 6) It can print date or batch number as required. The number of letter can be set as required.



Parameter:

Speed  100-1500 bph
Filling volume 5-50ml or 50-300ml(customizable)
Filling accuracy >99%
Ultrasonic power rate 1.0KW
Power supply 220V 50hz 1kw
Air supply 0.6MPa
Machine size 800*900*1700mm

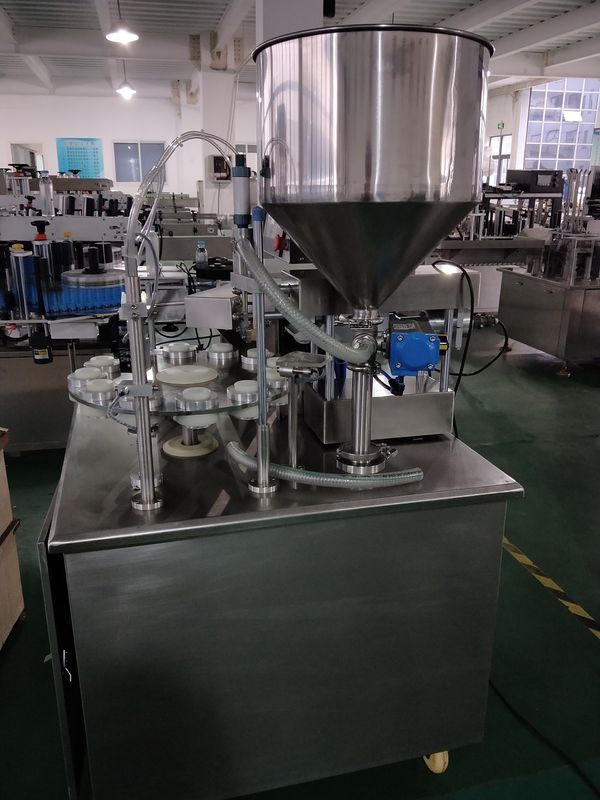

Ultrasonic Soft Tube Filling And Sealing Machine with 30L-40L Hopper volume 0

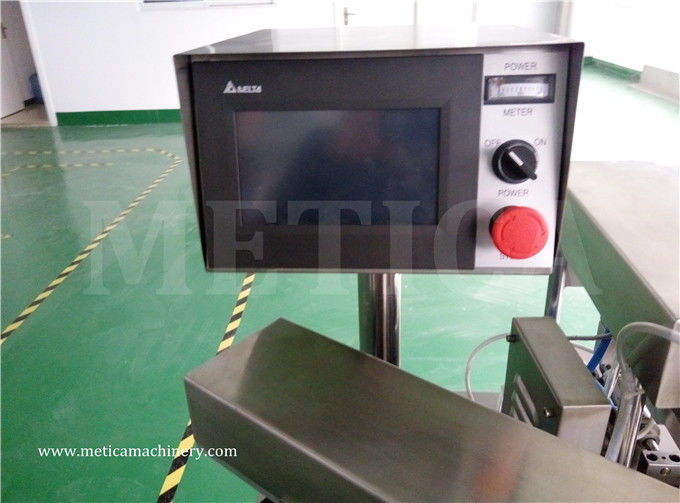

Ultrasonic Soft Tube Filling And Sealing Machine with 30L-40L Hopper volume 1

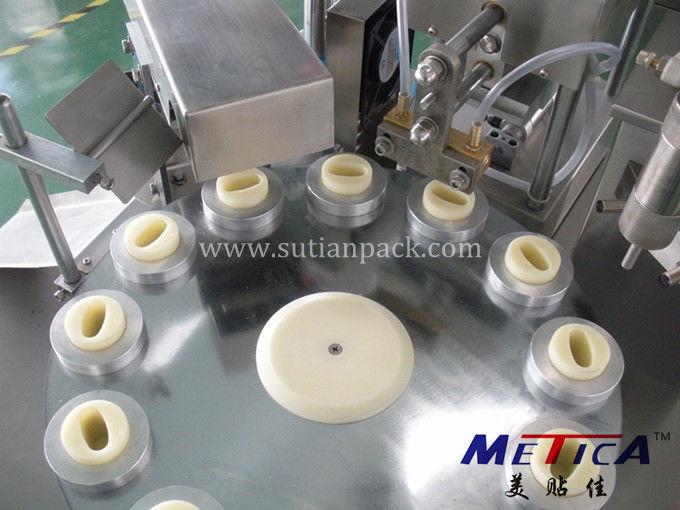

Ultrasonic Soft Tube Filling And Sealing Machine with 30L-40L Hopper volume 2

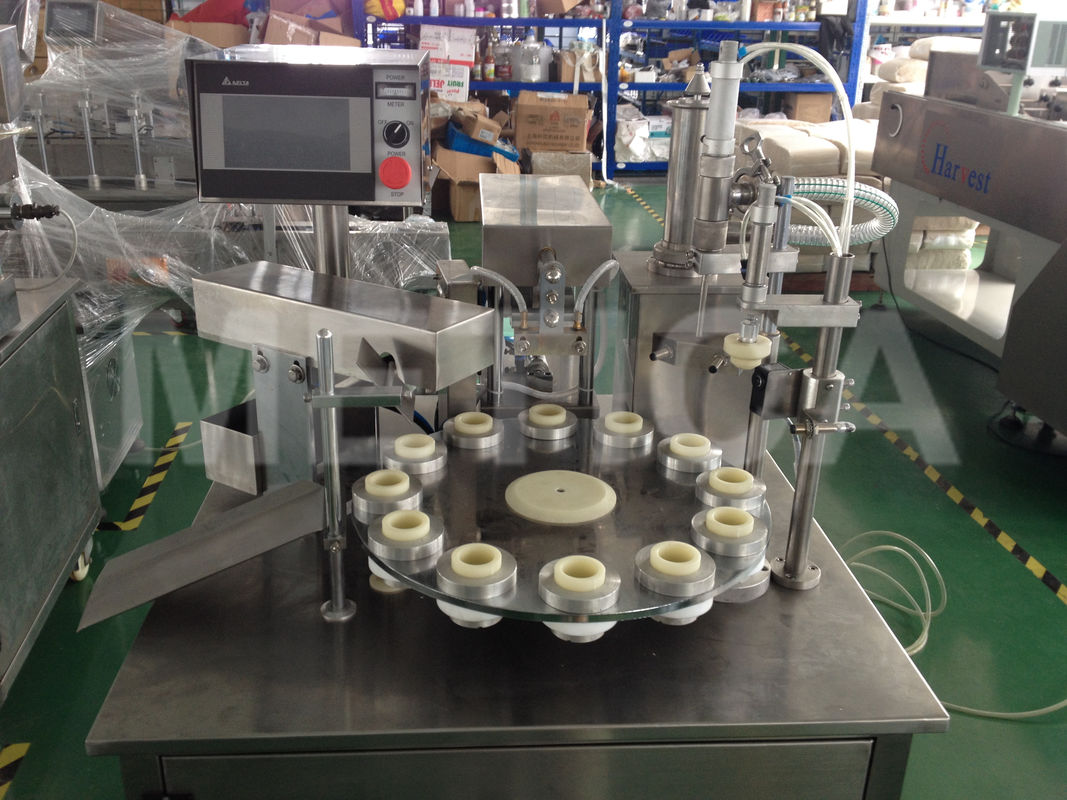

Ultrasonic Soft Tube Filling And Sealing Machine with 30L-40L Hopper volume 3



Samples display:

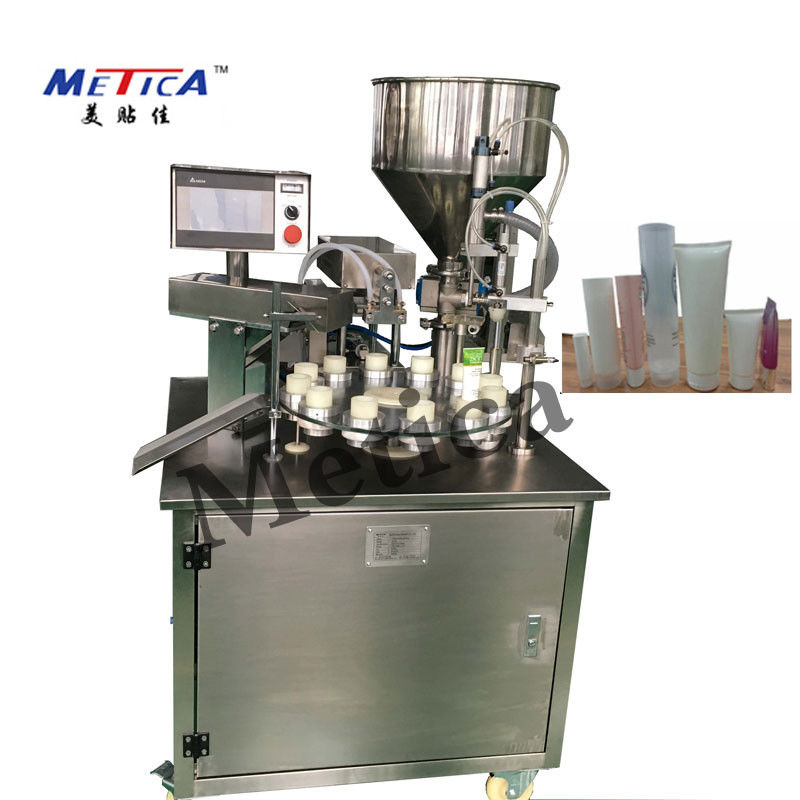

Ultrasonic Soft Tube Filling And Sealing Machine with 30L-40L Hopper volume 4
