SS Automatic Round Bottle Labeling Machine , Lipstick Bottom Sticker Labeling Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MT-400
Minimum Order Quantity: 1 SET
Price: USD 4000-8000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Lipstick Tube Sticker Labeling Machine Capacity: 2400-4800 BPH
Labeling Accuracy: Around ±1mm Machine Size: 2000(L)*1300(W)*1600(H) Mm
Warranty: 1 Year Automatic Grade: Automatic Labeling
Weight: About 160kg Type: Lipstick Tube Top Or Bottom Sticker Labeling Machine
Voltage: 220V,50/60HZ Application: Beverage,Medical,Chemical,Cosmetic Etc...
High Light:

SS Automatic Round Bottle Labeling Machine

,

SS Lipstick Bottom Sticker Labeling Machine

,

160kg Automatic Round Bottle Labeling Machine


Product Description

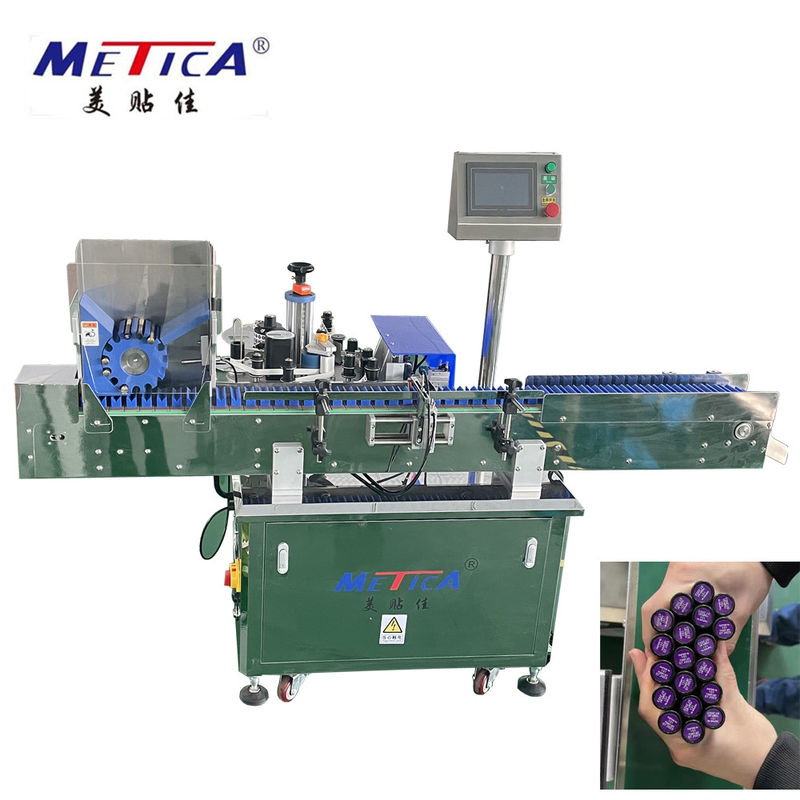

Lipstick Tube Top Or Bottom Sticker Labeling Machine And Small Round Bottle Labeling Machine





Labeling Application



  • Use:widely used in cosmetics industry.

  • Label applicable: adhesive labels; adhesive films; electronic supervision code, bar code etc.

  • The clever design which allow user to mechanically adjust some structure combination and label winding, makes it easy to adjust the labeling position freely (it can be fixed easily after adjustment). All these make the change of different products and winding of labels more simple and saving time.



Labeling Machines Features



  • Labeling machine produced accordance CE certificated.
  • Automatic Labeling with container for bottle feeding, labor and space saved.
  • Simple operation, labeling controlled by PLC and touch screen.
  • No products, No labeling, Brand Named Sensors applied, Labeling Accuracy is high.
  • Strong S/S frame construction.
  • Work independently or connected to a production line.
  • High Speed Labeling, suitable for big batch production.







Workflow:

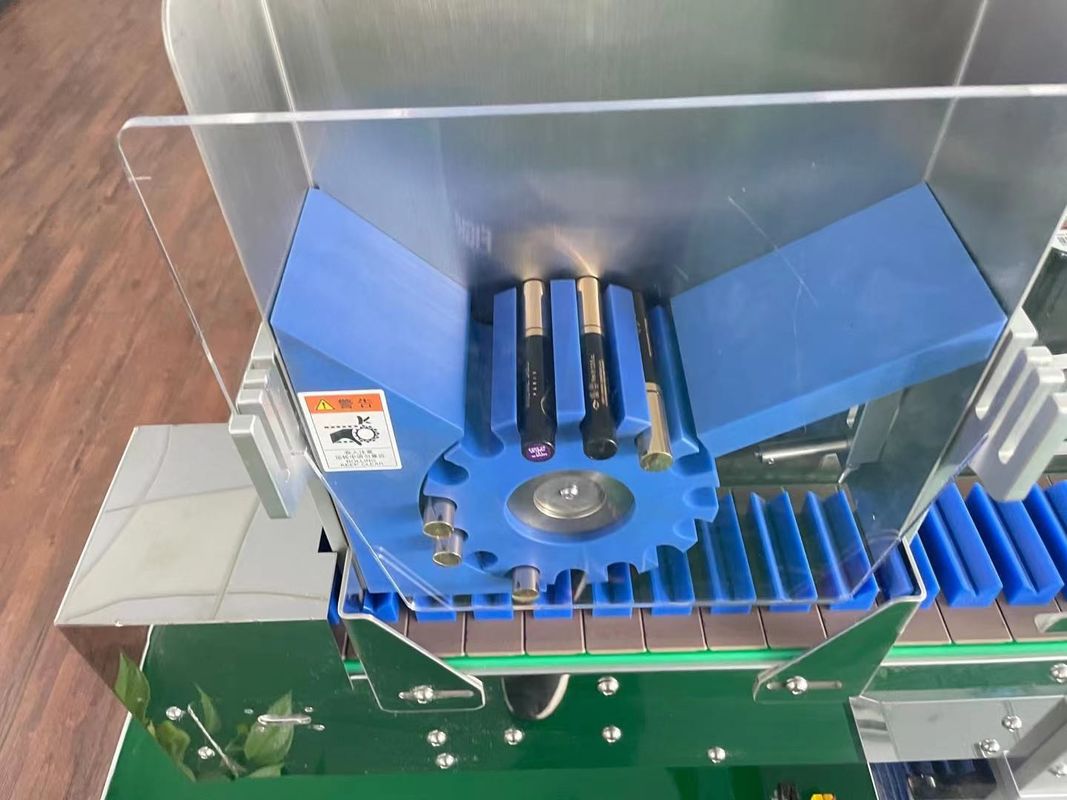

  • auto feeding products
  • The sensor detect the products
  • auto labeling



Options Function for the Labeling Machine

  • Coder Printer to print batch number, expiry date and so on on the label when labeling
  • Clear Label sensor for round labeling
  • Remote control function is available



Parameter:

Speed 2400-4800 bph (related to product size)
Labeling accuracy  +/- 1mm
Products applicable 9mm≤D≤25mm, Height≤150mm
(customizable)
labels applicable adhesive stickers/opaque or transparent
10mm<W<80mm, 10mm<L<230mm
Customize machine for bigger labels
Power supply 220V 50/60hz 1kw
Application

Round or cylindrical bottle labeling, tube labeling

Air supply 0.6MPa(If with a code printer)
Feature PLC, Touch Screen, photoelectric sensor



SS Automatic Round Bottle Labeling Machine , Lipstick Bottom Sticker Labeling Machine 0SS Automatic Round Bottle Labeling Machine , Lipstick Bottom Sticker Labeling Machine 1SS Automatic Round Bottle Labeling Machine , Lipstick Bottom Sticker Labeling Machine 2SS Automatic Round Bottle Labeling Machine , Lipstick Bottom Sticker Labeling Machine 3

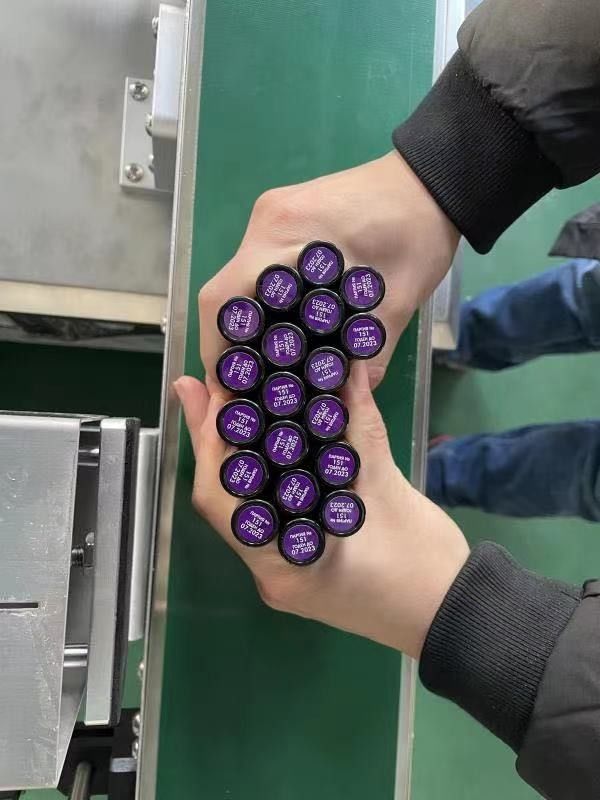

Samples display:

SS Automatic Round Bottle Labeling Machine , Lipstick Bottom Sticker Labeling Machine 4
