50ml-500ml Linear Bottle Washing Machine 6 Heads Speed Adjustable

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTAW-6
Minimum Order Quantity: 1 SET
Price: USD 7000-10000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Bottle Washing Machine By Air Capacity: 1000-3000 BPH(customizable)
Qualified Rate: More Than99% Machine Size: 250x100x190cm
Warranty: One Year Driven Type: Electric And Pneumatic Combined
Voltage: 220V,50/60HZ Condition: New
Type: Air Washing Machine For Bottle Packaging Type: Bottles,Cans, Jars And Other Containers
Application: Beverage,Food,Medical,Chemical And So On
High Light:

500ml Linear Bottle Washing Machine

,

Linear Bottle Washing Machine 6 Heads


Product Description

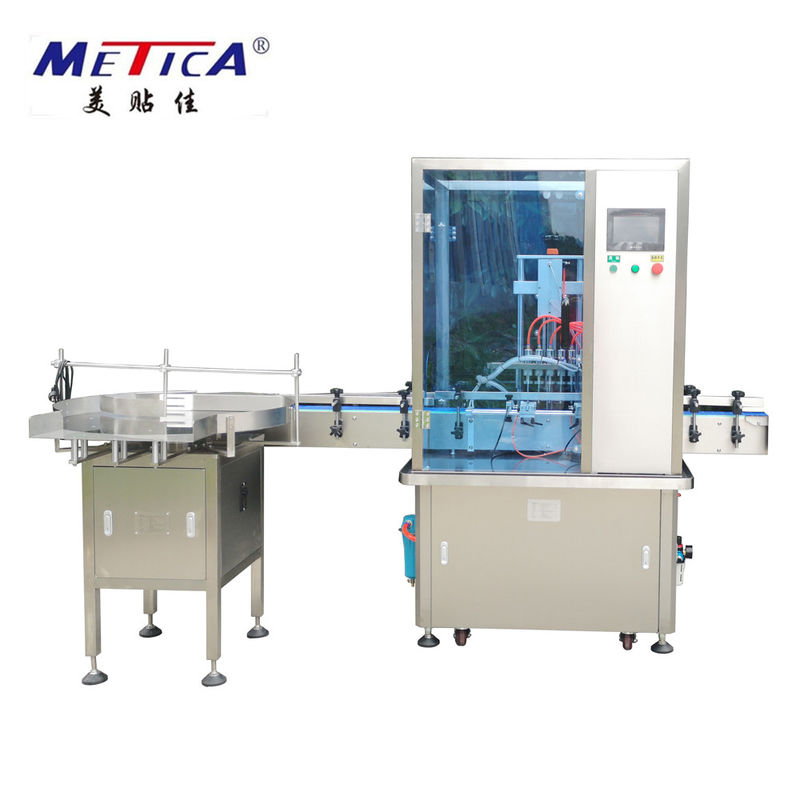

50-500ml Linear Automatic 6 Heads Perfume Glass/Plastic Jar/Bottle Washing Machine



Application:

  • This is a new designed linear type bottle washing machine,washing bottle by air.
  • The machine are widely used in the pharmaceutical and cosmetic industries to clean small particles inside the bottle.



Feature:

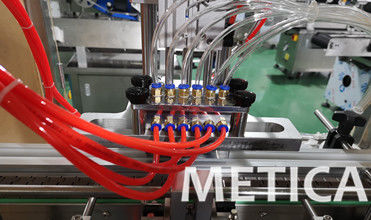

The machine is designed to wash bottles with air:

  • 4/6/8/10 nozzles
  • blowing and suction in one
  • height adjustable for bottles
  • Speed and timing adjustable
  • It needs to link to air compressor



Workflow:

  • Bottles conveyed to the washing nozzles position
  • Nozzles dive and seal the bottle first
  • Then blowing to wash
  • Suction the air out from bottles



Parameter:



Speed  1000-4000 bph (customizable)
Qualified rate more than 99%
Bottles applicable D: 10-100mm (can be customized)
Power supply 220V 50hz 2kw
Air supply 0.4-0.6MPa
Wshing nozzle 4/6/8 nozzles(optional)
Bottle applicable a wide shape range



50ml-500ml Linear Bottle Washing Machine 6 Heads Speed Adjustable 0

50ml-500ml Linear Bottle Washing Machine 6 Heads Speed Adjustable 150ml-500ml Linear Bottle Washing Machine 6 Heads Speed Adjustable 2

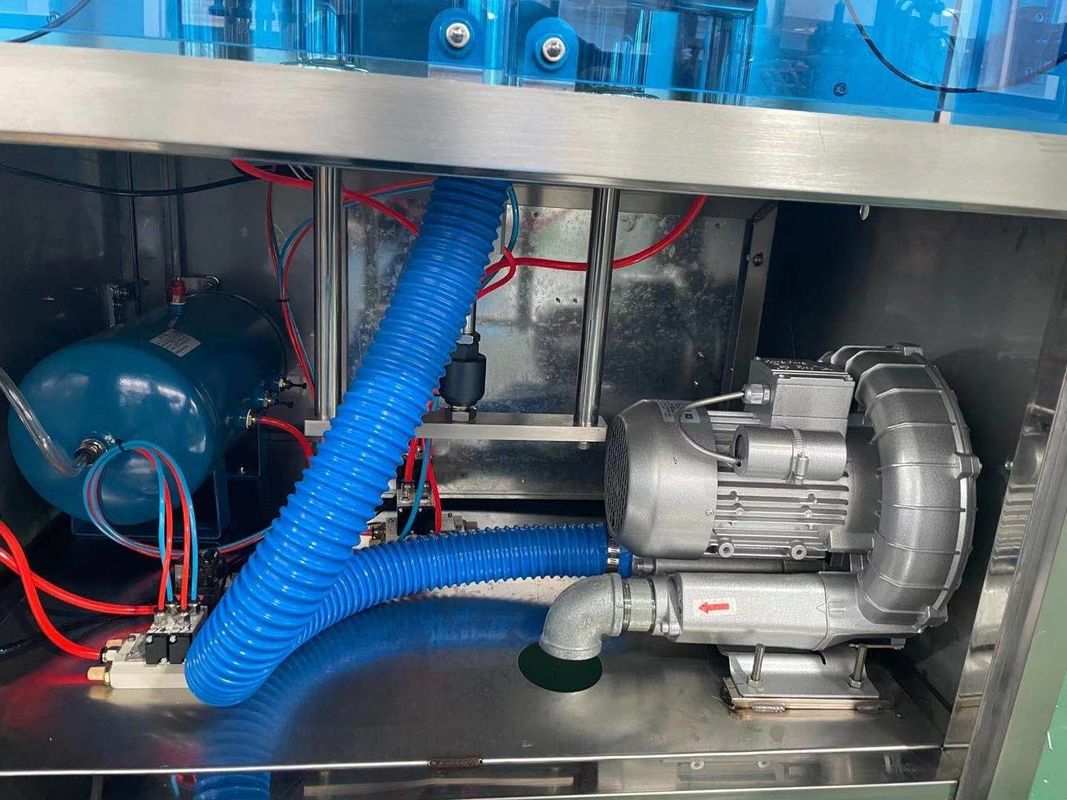

Fan for blowing and suction:

50ml-500ml Linear Bottle Washing Machine 6 Heads Speed Adjustable 3

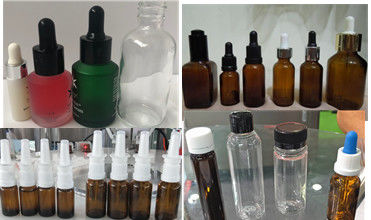

Samples display:

50ml-500ml Linear Bottle Washing Machine 6 Heads Speed Adjustable 4
