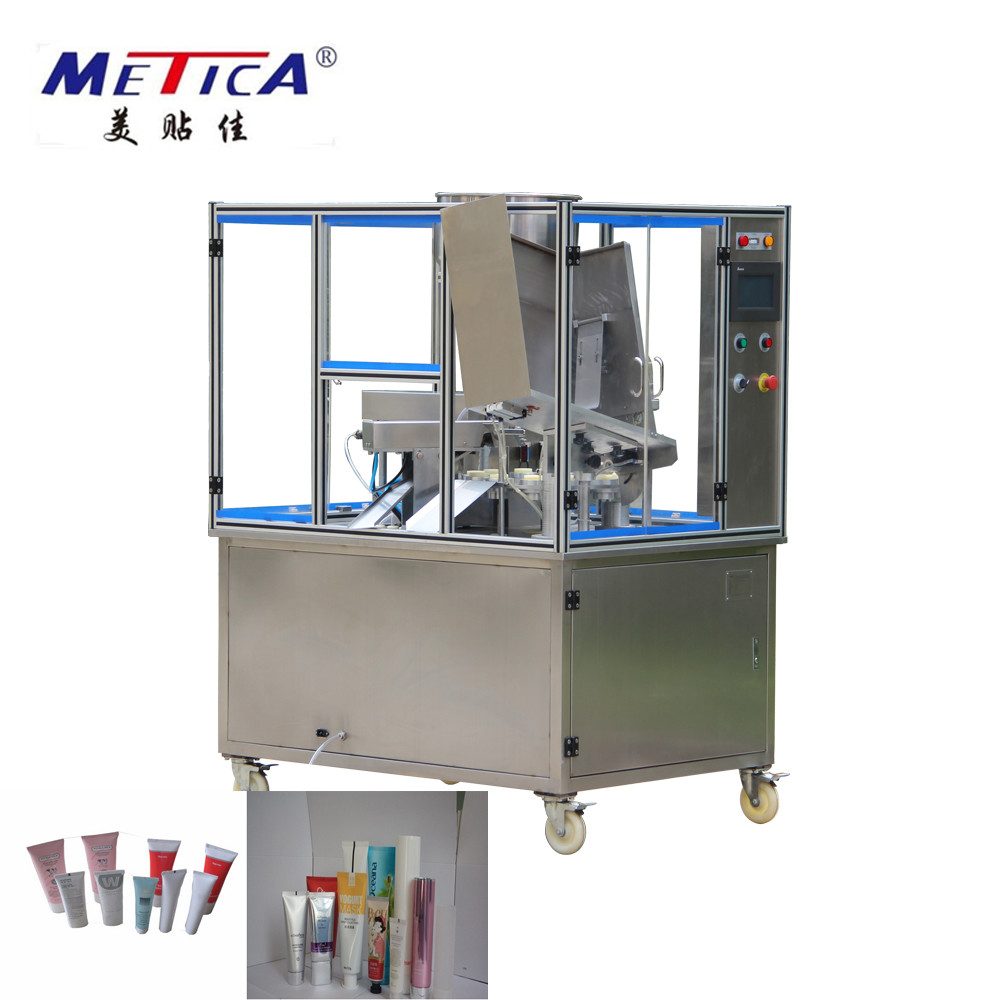

800BPH-1500BPH Soft Tube Filling And Sealing Machine PLC Controlled

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTGF-20
Minimum Order Quantity: 1 SET
Price: USD 7000-9000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Automatic Sunscreen Soft Tube Filling And Sealing Machine Application: Cosmetics And Food, Beverage And Chemical Etc...
Capacity: 800-1500 BPH(related To Filling Volume) Qualified Rate: Over 99%
Machine Size: 130*95*170 Cm³ Warranty: 12 Months Warranty
Feature: PLC Control,Ultrasonic Sealing Hopper Volume: 30 To 40 L(customizable)
Voltage: 110V/220V, 50/60Hz (can Be Customized) Automatic Grade: Automatic
Type: Tube Filling Sealing Machine, Tube Packing Machine Weight: 310kg
High Light:

1500BPH Soft Tube Filling And Sealing Machine

,

PLC Tube Filling And Sealing Machine


Product Description

Automatic Sunscreen Soft Tube Ultrasonic Soft Tube Filling And Sealing Machine



Application:

  • This machine is designed for plastic and composite soft tube filling and sealing. Fully automatic load tube, filling, sealing and tail cutting
  • It works for both liquid and sticky products like hand sanitizer, cream, tooth paste and so on
  • As long as the materials is not very thick, same machine can work for both plastic tube and plastic aluminium composite tube.



Feature:

  • it has tube orientation mechanism to locate the tubes position
  • It is controlled by PLC and operate on color touch screen, easy to set up and change filling volume.
  • The filling volume is adjustable on touch screen. It can fill 5-50ml, 50-300ml liquid or sticky products.
  • The sealing way is ultrasonic, it works stable, and have advantages over heating sealing: low temperature, no impact from materials stuck to the tubes, reduce the empty space in the tube, sealing result is better.
  • It can print date or batch number as required. The number of letter can be set as required.
  • It has automatic tube positioning and identify function. It automatically identify front and back side by the color mark
  • A set of molds with twelve holes, one diameter, one set of molds, Easy to replace, just change the white mold

Work flow:

  • Put tubes on tube loading box→tube feeding and locating→tube orientate automatically→tube filling automatically→ultrasonic tube sealing→tube end cutting automatically→tube eject out automatically.



Parameter:



Speed  500-1500 BPH(related to filling volume)
Filling volume 5-50ml or 50-300ml(customizable)
Filling accuracy more than 99%
Ultrasonic power rate 1.5KW
Power supply 220V 50hz 1.5kw
Air supply 0.6 MPa
Machine size 1300*950*1700mm³
Feature PLC, touch screen, ultrasonic sealing, hopper

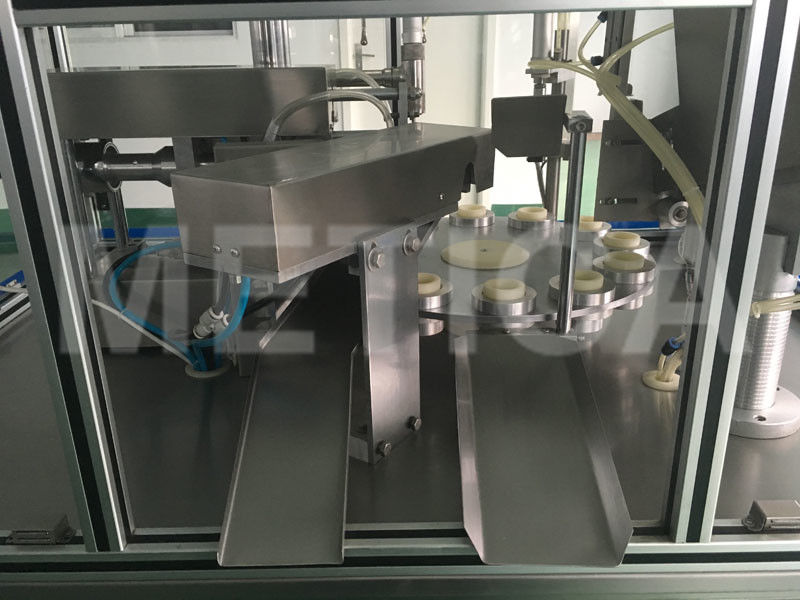

800BPH-1500BPH Soft Tube Filling And Sealing Machine PLC Controlled 0

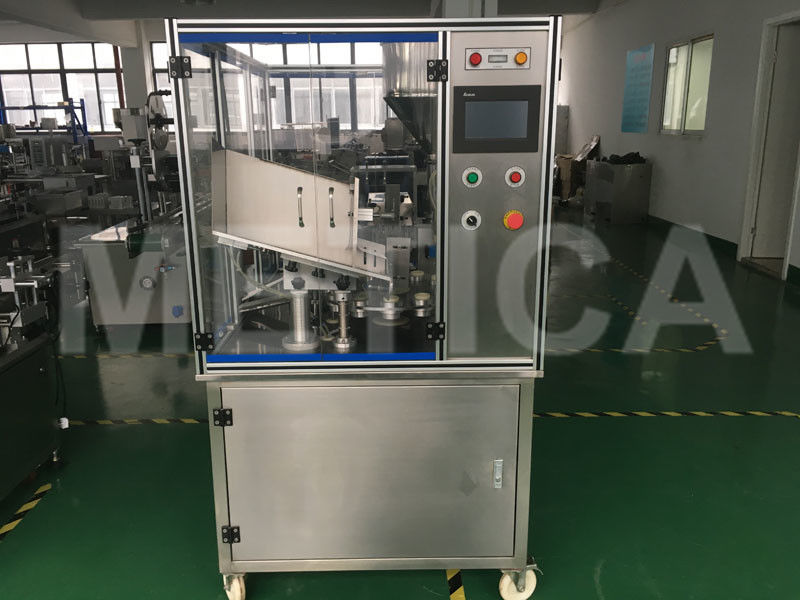

800BPH-1500BPH Soft Tube Filling And Sealing Machine PLC Controlled 1

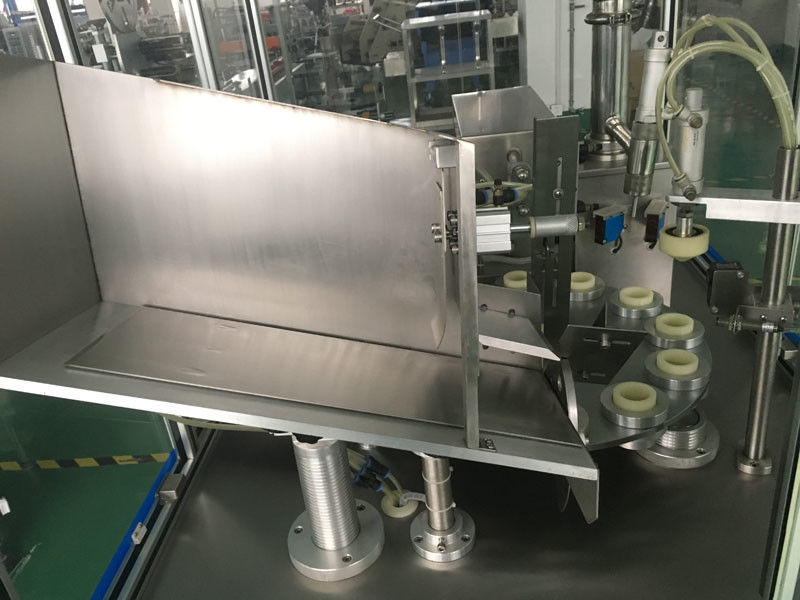

800BPH-1500BPH Soft Tube Filling And Sealing Machine PLC Controlled 2



Samples display:

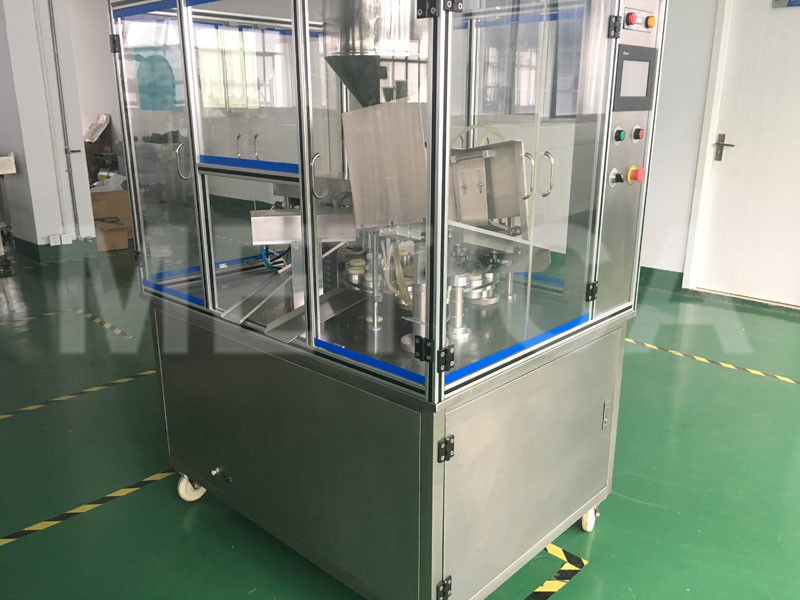

800BPH-1500BPH Soft Tube Filling And Sealing Machine PLC Controlled 3
